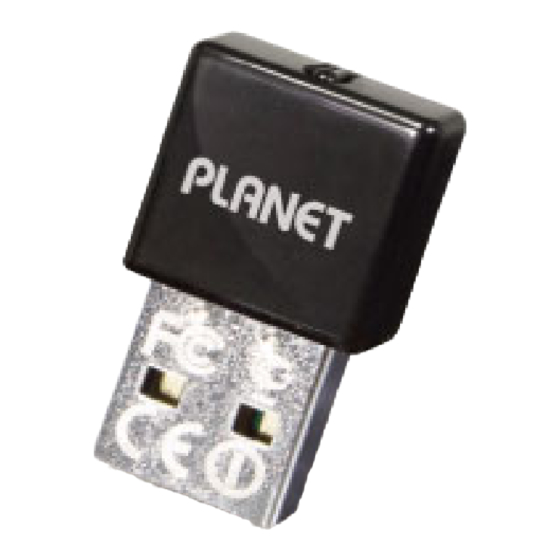

Planet WNL-U55M User Manual
  1. Manuals
  2. Brands
  3. Planet Manuals
  4. Adapter
  5. WNL-U55M
  6. User manual

Planet WNL-U55M User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
300Mbps 802.11n Wireless USB Adapte
r
WNL-U556M

Advertisement

Table of Contents
loading

Related Manuals for Planet WNL-U55M

Summary of Contents for Planet WNL-U55M

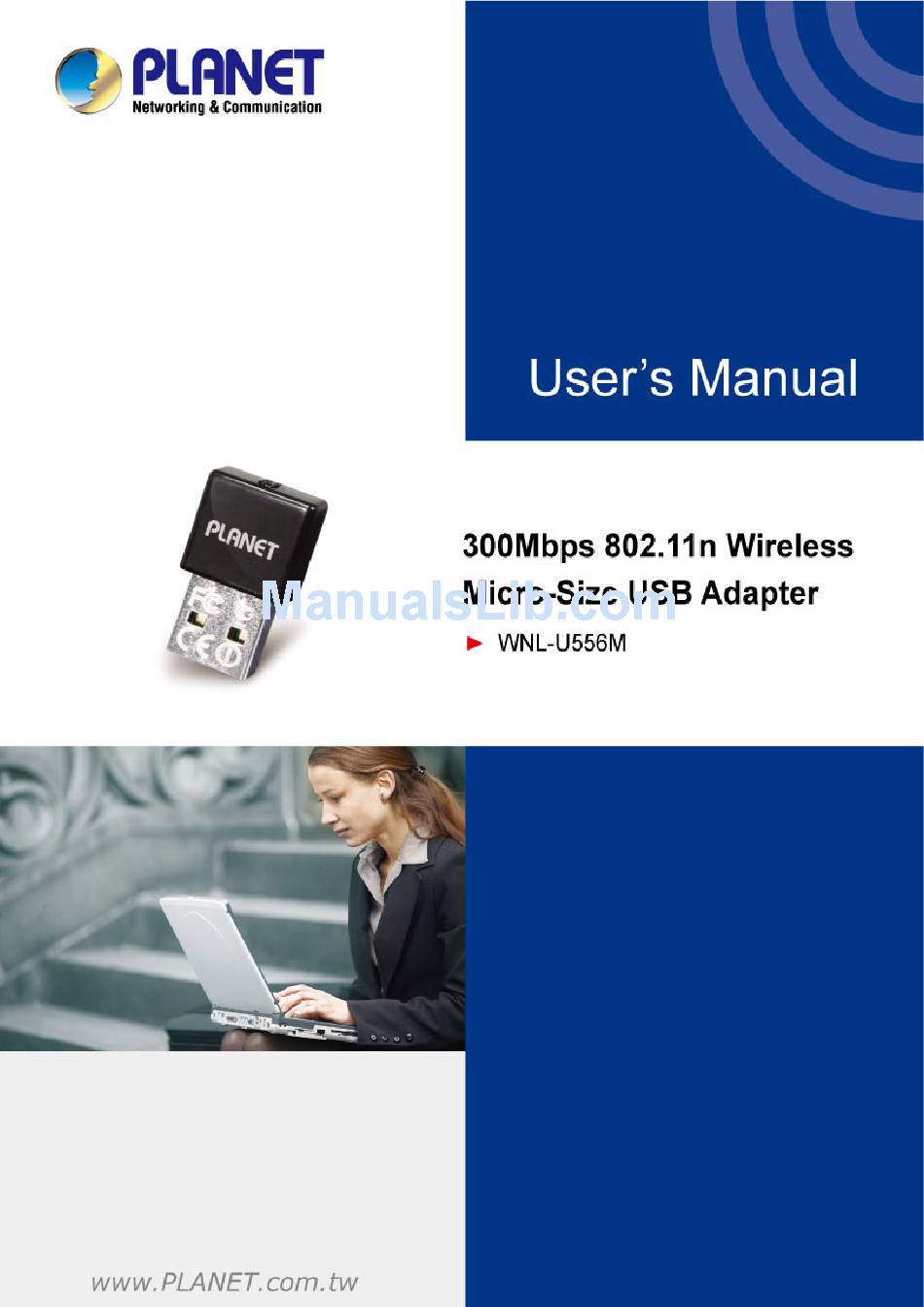

  • Page 1 300Mbps 802.11n Wireless USB Adapte WNL-U556M...

  • Page 2: Federal Communication Commission Interference Statement

    WNL-U556M Copyright Copyright  2012 by PLANET Technology Corp. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of PLANET.

  • Page 3: Ce Mark Warning

    Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately. Revision User’s Manual for PLANET 300Mbps 802.11n Wireless USB Adapter Model: WNL-U556M Rev: EM-WNLU556M_v1.0 (September, 2012) Part No. 2081-E23190-000...

  • Page 4: Table Of Contents

    Windows XP - Use Windows Zero Configure ............28 3.2.2 Windows 7 - Use Windows 7 WLAN AutoConfig ........... 32 Chapter 4. PLANET USB WIRELESS LAN UTILITY................35 Connection Profile Management ..................35 4.1.1 Add a new profile ....................36 4.1.2...
  • Page 5 300Mbps 802.11n Wireless USB Adapte WNL-U556M Internet Connection Sharing (ICS) ..................55 Appendix: Specifications........................57 Appendix: Troubleshooting....................... 59 Appendix: Glossary..........................60 Appendix: FAQ............................ 65...

  • Page 6: Chapter 1. Product Introduction

    1.2 Product Description Ultra Mini Size Portable USB Adapter Boost 11n Performance The PLANET WNL-U556M is specially designed for users who need high mobility and provides 300Mbps 802.11n high speed wireless transmission. The ultra mini size compact design of WNL-U556M is convenient to carry for all mobile users. Users will not need to remove it from the laptop anymore, no matter operating, moving, or even put the laptop back to the briefcase.
  • Page 7 300Mbps 802.11n Wireless USB Adapte WNL-U556M High Speed 802.11n Wireless Experience The WNL-U556M offers a reliable and cost effective wireless extending solution. It adopts IEEE 802.11n technology and is backward compatible with IEEE 802.11b and 802.11g. The WNL-U556M supports USB 2.0 interface that integrates with one transmit channel and one concurrent receive channel to enable the speed up to 300Mbps for both data upload and download.
  • Page 8 300Mbps 802.11n Wireless USB Adapte WNL-U556M Advanced Wireless Security The WNL-U556M provides advanced security features including 64/128-bit WEP, WPA / WPA2 and WPA-PSK / WPA2-PSK with TKIP/AES encryption. Furthermore, in order to simplify the security configurations, WPS (Wi-Fi Protected Setup) function is included to offer a convenient and fast connection method for users as well.

  • Page 9: Product Features

    300Mbps 802.11n Wireless USB Adapte WNL-U556M Easy Installation Wizard The WNL-U556M provides an easy installation wizard in 35 languages. It guides users step by step to easily complete the product installation through the whole process. 1.3 Product Features  2.4GHz ISM band, unlicensed operation ...

  • Page 10: Hardware Description

    300Mbps 802.11n Wireless USB Adapte WNL-U556M 1.4 Hardware Description .4 Hardware Description   Case Outlook Case Outlook Front Side Back Side Top Side LED definition  There is a LED equipped on the wireless adapter. When the data is transmitting, the LED will be flashing.

  • Page 11: Chapter 2. Installation

    300Mbps 802.11n Wireless USB Adapte WNL-U556M Chapter 2. INSTALLATION 2.1 Microsoft Windows Driver Installation Before installing the driver and utility of wireless adapter, do not insert the device into the USB port of your computer. 1. If you had ever installed other wireless adapters before, please uninstall the existed drivers and utilities first.
  • Page 12 300Mbps 802.11n Wireless USB Adapte WNL-U556M Step 3. Click “Next” button to start installing the driver and utility. If the screen below appears during installation, please click “Continue Anyway” button to continue. Step 4. After the software has been installed successfully, choose “Yes, I want to restart my computer now.”...
  • Page 13 300Mbps 802.11n Wireless USB Adapte WNL-U556M Step 5. After restarting the computer, insert the wireless USB adapter into an empty USB port of your computer. Never force to insert the adapter if you feel it get stuck. Flip the adapter over and try again.
  • Page 14 300Mbps 802.11n Wireless USB Adapte WNL-U556M Step 6. The following window will be pop-up. Choose “No, not this time” and click “Next” button to continue. Step 7. Choose “Install the software automatically (Recommended)”, and click “Next” button to install the driver.
  • Page 15 300Mbps 802.11n Wireless USB Adapte WNL-U556M If the screen below appears during installation, please click “Continue Anyway” button to continue. Step 8. Once the installation is finished, click “Finish” button. After the driver of wireless adapter has been installed successfully, you’ll see another message pop-up at lower-right corner of the screen.
  • Page 16 300Mbps 802.11n Wireless USB Adapte WNL-U556M Left-click the new icon will launch PLANET 11n USB Wireless LAN Utility, and right-click the icon will show the quick menu of configuration utility. This icon also uses different colors to show the status of wireless connection: Wireless connection is established, good signal reception.

  • Page 17: Mac Os X 10.X Driver Installation

    300Mbps 802.11n Wireless USB Adapte WNL-U556M 2.2 MAC OS X 10.x Driver Installation The WNL-U556M supports MAC OS X 10.4 / 10.5 / 10.6 / 10.7. To install in MAC OS X operation system, please follow the instructions below to install the USB Wireless Adapter: Step 1.
  • Page 18 300Mbps 802.11n Wireless USB Adapte WNL-U556M Step 4. Select the language, and click “Continue”. Step 5. Click “Agree” and then click “Continue”.
  • Page 19 300Mbps 802.11n Wireless USB Adapte WNL-U556M Step 6. Click “Install”. Step 7. Enter your Username and Password of the System. Then, click “OK”.
  • Page 20 300Mbps 802.11n Wireless USB Adapte WNL-U556M Step 8. The window pops up the notice to remind you that computer will restart while finishing the installing. Please click “Continue Installation”. Step 9. When the installation was successful, click“Restart”to restart your computer. Step 10.
  • Page 21 300Mbps 802.11n Wireless USB Adapte WNL-U556M Step 11. Go to the administrator’s folder. Click “Applications”. Then, click “Wireless Network Utility”. Step 12. Click “Available Network”. Choose the AP you would like to connect. Then, click “Add to Profile”.
  • Page 22 300Mbps 802.11n Wireless USB Adapte WNL-U556M Step 13. Select the encryption type of the AP that you connected and fill in encryption key. Click “OK”, and finish the installation and configuration of the wireless adapter!

  • Page 23: Linux Driver Installation

    300Mbps 802.11n Wireless USB Adapte WNL-U556M 2.3 Linux Driver Installation The WNL-U556M supports following Linux platform: Linux Kernel 2.6.18~2.6.38   Linux Kernel 3.0.8 To install in Linux operation system, please refer to the README text file in the Linux_Driver folder included in the bundled CD.

  • Page 24: Chapter 3. Connecting To Wireless Network

    (comes with Windows operating system). 3.1 PLANET 11n USB Wireless LAN Utility Please follow the instructions below to connect the wireless access point via PLANET 11n USB Wireless LAN Utility. Step 1. Left-click the PLANET Wireless Utility icon located at lower-right corner of the screen, and configuration menu will appear: Step 2.
  • Page 25 300Mbps 802.11n Wireless USB Adapte WNL-U556M Step 3. When the access point you’re looking for is on the list, left-click it and then double click it or click “Add to Profile”. Step 4. If a password (Network Key) is required to access the wireless access point, please input it in “Network key”...
  • Page 26 300Mbps 802.11n Wireless USB Adapte WNL-U556M have to input correct SSID you yourself.  This is a Check this box if you wish to connect to another computer / computer-to-computer network device by ad-hoc method. When not accessing to wireless access point, you have to check this box. (ad-hoc) network ...

  • Page 27: Windows Zero Configuration

    Windows XP / Vista / 7 has a built-in wireless network configuration utility, called as “Windows Zero Configuration” (WZC). You can also use WZC to configure your wireless network parameter: Step 1. Right-click PLANET Wireless Utility icon, and click “Open Config Utility”.

  • Page 28: Windows Xp - Use Windows Zero Configure

    Check “Windows Zero Config” box. Step 3. There is message appeared indicating that you’ve been already switched to Windows Zero Config mode. To return to use PLANET wireless utility, uncheck “Windows Zero Config” box. 3.2.1 Windows XP - Use Windows Zero Configure Step 4.
  • Page 29 300Mbps 802.11n Wireless USB Adapte WNL-U556M Step 5. Double click “Network Connections”.
  • Page 30 Step 6. Right-click “Wireless Network Connection” (it may have a number as suffix if you have more than one wireless network adapter, please make sure you right-click the PLANET Wireless LAN 802.11n USB Network Adapter), then select “View Available Wireless Networks”.
  • Page 31 300Mbps 802.11n Wireless USB Adapte WNL-U556M Step 8. If the access point is protected by encryption, you have to input its Network key or passphrase here. It must match the encryption setting on the access point. If the access point you selected does not use encryption, you’ll not be prompted for network key or passphrase.

  • Page 32: Windows 7 - Use Windows 7 Wlan Autoconfig

    300Mbps 802.11n Wireless USB Adapte WNL-U556M 3.2.2 Windows 7 - Use Windows 7 WLAN AutoConfig WLAN AutoConfig service is built-in in Windows 7 that can be used to detect and connect to wireless network. This built-in wireless network connection tool is similar to wireless zero configuration tool in Windows XP.
  • Page 33 300Mbps 802.11n Wireless USB Adapte WNL-U556M Step 4: Enter the network security key of the wireless access point. (1) The Connect to a Network box will appear (2) Enter the security key If the access point is protected by encryption, you have to input its Network key or passphrase here.
  • Page 34 300Mbps 802.11n Wireless USB Adapte WNL-U556M Step 5: Check if “Connected” is displayed...

  • Page 35: Chapter 4. Planet Usb Wireless Lan Utility

    To manage profiles, right-click the PLANET wireless utility icon located at lower-right corner of the screen, then click “Open Config Utility”.

  • Page 36: Add A New Profile

    300Mbps 802.11n Wireless USB Adapte WNL-U556M 4.1.1 Add a new profile You can setup the connection parameters for the specific wireless access point in advance. If you want to create a new profile, click “Add” button. You’ll be prompted to input connection parameters for the wireless access point you wish to connect:...
  • Page 37 300Mbps 802.11n Wireless USB Adapte WNL-U556M Required parameters are as follows: Object Description  Profile name You can give a name to this profile, so you can remember its purpose easily. It can be any phrase to help you remember. ...

  • Page 38: Remove An Existing Profile

    300Mbps 802.11n Wireless USB Adapte WNL-U556M  PAC Check this box and PAC (Privilege Access Certificate) will be automatically selected. When all required parameters are set, click “OK” to create and save a new profile. 4.1.2 Remove an existing profile If you want to remove a profile no longer needed, click “Profile”...
  • Page 39 300Mbps 802.11n Wireless USB Adapte WNL-U556M...

  • Page 40: Make A Copy Of Existing Profile

    If you wish to use a specific profile as the default wireless connection, you can select the profile in the list, and click “Set Default”. The selected profile will become default selection and PLANET wireless utility will attempt to connect to the selected access point.

  • Page 41: General Information, Status, And Network Statistics

    300Mbps 802.11n Wireless USB Adapte WNL-U556M 4.2 General Information, Status, and Network Statistics The PLANET wireless utility provides the detailed information about the wireless connection you’re using. 4.2.1 General Information If you want to know the general information of the access point you’re connecting to, click “General”...

  • Page 42: Network Transmission Statistics

    300Mbps 802.11n Wireless USB Adapte WNL-U556M 4.2.3 Network Transmission Statistics To view the statistical data of wireless adapter, click “Statistics” label, and the statistics of wireless connection will be displayed: All connection-related statistics is displayed here. You can click “Reset” button to reset the statistics of all items back to 0.

  • Page 43: Miscellaneous Settings

    4.3 Miscellaneous Settings .3 Miscellaneous Settings There are some other functions provided by PLANET wireless utility, and you can access these There are some other functions provided by PLANET wireless utility, and you can access these functions from the bottom of configuration window:...

  • Page 44: Wi-Fi Protected Setup (Wps)

    The PLANET Wireless LAN Utility supports two kinds of WPS method, “PIN Input Config (PIN)” and “Push Button Config (PBC)”. Please follow the instructions below to establish the secure connection between WPS-supported wireless access point and the PLANET wireless adapter.
  • Page 45 300Mbps 802.11n Wireless USB Adapte WNL-U556M Then a message window will appear: Step 5. After pushing the PBC button. Please push the physical button on your wireless access point or virtual button on the WPS configuration page.

  • Page 46: Pin Input Config (Pin)

    300Mbps 802.11n Wireless USB Adapte WNL-U556M Step 6. After activate WPS function of wireless access point, the secure connection between wireless adapter and the WPS-supported access point will be established automatically. 4.4.2 PIN Input Config (PIN) Step 4. Please click “Pin Input Config (PIN)” button: You’ll be prompted to select an access point you wish to connect.
  • Page 47 300Mbps 802.11n Wireless USB Adapte WNL-U556M If you select “No”, wireless adapter will prompt you to enter 8-digit PIN code into your access point, without selecting an access point in advance. Step 6. After you select “Yes” or “No” in previous step, wireless adapter will attempt to connect to WPS-supported access point, and an 8-digit number will appear.

  • Page 48: Chapter 5. Soft Access Point Mode

    WNL-U556M Chapter 5. SOFT ACCESS POINT MODE Excepting be a wireless client of other wireless access points, the PLANET wireless adapter can also act as a wireless service provider. You can switch the operation mode of wireless adapter to “Access Point”...

  • Page 49: Switch Between Access Point Mode And Station Mode

    Please follow the instructions below to switch to Access Point mode: Please follow the instructions below to switch to Access Point mode: Step 1. Right-click PLANET wireless utility icon, and click “Open Config Utility”. Step 2. Select “Mode(M)”, and then click “Access Point”.
  • Page 50 300Mbps 802.11n Wireless USB Adapte WNL-U556M After the mode switch is complete, the window of general information about software access point will appear, includes SSID, IP address of the Soft AP and connected wireless clients. lso the wireless LAN Utility icon in you system tray (lower-right conner) be changed to another icon. Station mode icon: Access Point icon:...

  • Page 51: Configure Ssid And Channel

    300Mbps 802.11n Wireless USB Adapte WNL-U556M 5.1.1 Configure SSID and Channel To configure software Access Point, click “Config” button, and the “Wireless Network Properties” will be displayed. Please note that Ad-Hoc mode is not available when the wireless adapter is in Access Point mode. The setup options are listed below: Object Description...

  • Page 52: Soft Access Point Security

    300Mbps 802.11n Wireless USB Adapte WNL-U556M 5.1.2 Soft Access Point Security To setup security options for Soft Access Point, configure “Wireless Network Security” as follows: The setup items about wireless security are listed below: Object Description Select network authentication mode from dropdown menu. Network Authentication Select data encryption method from dropdown menu.

  • Page 53: Advanced Settings

    300Mbps 802.11n Wireless USB Adapte WNL-U556M 5.2 Advanced Settings Click “Advanced” label to setup advanced settings of software access point. If you don’t know the meaning and affects of these settings, please keep them as default. The setup items are listed below: Object Description Beacon Interval...

  • Page 54: Wireless Transmission Statistics

    300Mbps 802.11n Wireless USB Adapte WNL-U556M 5.3 Wireless Transmission Statistics Click “Statistics” label and the data statistics about software access point will be displayed. Click “Reset” button to reset the value of every item back to “0”.

  • Page 55: Internet Connection Sharing (Ics)

    300Mbps 802.11n Wireless USB Adapte WNL-U556M Internet Connection Sharing (ICS) You can assign a network adapter on your computer as the path for all wireless clients to get connected to Internet. If you have only one network adapter (except the software access point), you don’t have to select network adapter here.
  • Page 56 300Mbps 802.11n Wireless USB Adapte WNL-U556M If you have more than one network adapter, select the one you wish to be used as Internet gateway. For example, the 3G USB dongle is connected to the laptop for internet access. The other portable wireless devices can enjoy the internet surfing through the software AP and 3G connection sharing.

  • Page 57: Appendix: Specifications

    300Mbps 802.11n Wireless USB Adapte WNL-U556M Appendix: Specifications Product 300Mbps 802.11n Wireless Micro-size USB Adapter Model WNL-U556M Hardware Specification Interface USB 2.0, Type-A Antenna Type Internal Omni-directional PIFA Antenna Antenna Gain 2dBi Button WPS Push Button (PBC mode) to launch WPS connection 1 x Link / Active (Green) Operation Voltage 5V DC, power input from USB port...
  • Page 58 300Mbps 802.11n Wireless USB Adapte WNL-U556M Windows 2000/XP (x86/x64) / VISTA (x86/x64) / Win7 (x86/x64) Operating systems Linux Kernel 2.4 /2.6 Macintosh 10.4/10.5/10.6 Effective Distance 12 meters Certification CE, FCC Emission Environment Operating Temperature 0°C~40°C (32°F~104°F) Humidity 10% ~ 90%, non condensation ...

  • Page 59: Appendix: Troubleshooting

    300Mbps 802.11n Wireless USB Adapte WNL-U556M Appendix: Troubleshooting Symptom : The LED is off. Make sure the PC Card is inserted properly. Otherwise contact your Remedy : vendor. Symptom : The LED is always on not blinking. Make sure that you have installed the driver from attached CD. Remedy : Otherwise contact your vendor.

  • Page 60: Appendix: Glossary

    300Mbps 802.11n Wireless USB Adapte WNL-U556M Appendix: Glossary 1. IEEE 802.11 Standard The IEEE 802.11 Wireless LAN standards subcommittee, which is formulating a standard for the industry. 2. Access Point An internetworking device that seamlessly connects wired and wireless networks together. 3.
  • Page 61 300Mbps 802.11n Wireless USB Adapte WNL-U556M 10. IEEE Institute of Electrical and Electronics Engineers Infrastructure. An integrated wireless and wired LAN is called an Infrastructure configuration. Infrastructure is applicable to enterprise scale for wireless access to central database, or wireless 11.
  • Page 62 300Mbps 802.11n Wireless USB Adapte WNL-U556M 19. Transmit / Receive The wireless throughput in Bytes per second averaged over two seconds. 20. Wi-Fi Alliance The Wi-Fi Alliance is a nonprofit international association formed in 1999 to certify interoperability of wireless Local Area Network products based on IEEE 802.11 specification. The goal of the Wi-Fi Alliance’s members is to enhance the user experience through product interoperability.

  • Page 63: Preamble Type

    300Mbps 802.11n Wireless USB Adapte WNL-U556M overhead, so you'll want to keep this value as close to the maximum value as possible. 26. RTS(Request To Send) Threshold The RTS threshold is the packet size at which packet transmission is governed by the RTS/CTS transaction.
  • Page 64 300Mbps 802.11n Wireless USB Adapte WNL-U556M 32. Advanced Encryption Standard (AES) Security issues are a major concern for wireless LANs, AES is the U.S. government’s next-generation cryptography algorithm, which will replace DES and 3DES.

  • Page 65: Appendix: Faq

    300Mbps 802.11n Wireless USB Adapte WNL-U556M Appendix: FAQ What is WMM? Wi-Fi Multimedia (WMM), a group of features for wireless networks that improve the user experience for audio, video and voice applications. WMM is based on a subset of the IEEE 802.11e WLAN QoS draft standard.

  • Page 66: Ec Declaration Of Conformity

    WNL-U556M *Model Number * Produced by: Manufacturer‘s Name : Planet Technology Corp. Manufacturer‘s Address: 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) is herewith confirmed to comply with the requirements set out in the Council Directive on the 99/5/EC R&TTE.
  • Page 67 ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ disposições da Directiva 1999/5/CE. ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ Por medio de la presente, PLANET Technology Español Slovensky Výrobca PLANET Technology Corporation, Corporation, declara que 802.11n Wireless USB týmto deklaruje, že táto 802.11n Wireless USB...
