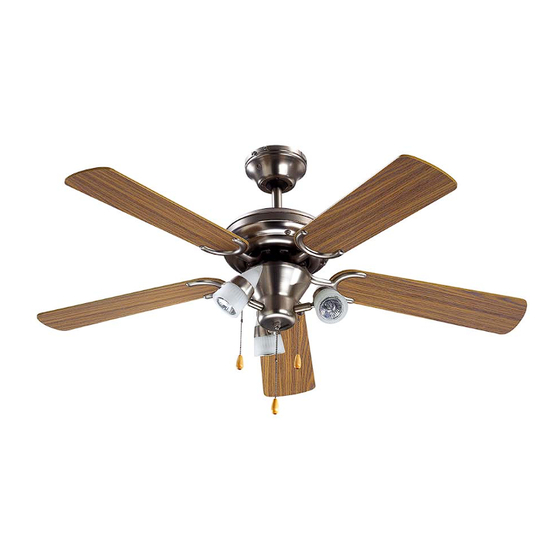

- Page 1 INSTRUCTIONS / WARRANTY MODEL: SCF 42.3B 3 LIGHT CEILING FAN...
-
Page 2: Important Safeguards
INTRODUCTION Thank you for purchasing our Salton Ceiling Fan. Each unit has been manufactured to ensure safety, reliability & ease of use. Before use, please read these instructions carefully, and keep them for further reference. PLEASE NOTE THAT LIGHT BULBS ARE NOT INCLUDED. REFER SECTION “FAN INSTALLATION INSTRUCTIONS”FOR DETAILS ON TYPE OF... - Page 3 Do not allow objects to touch the fan blades when the fan is in operation. Do not operate without fan blades safely secured. Do not use outdoors. To disconnect, switch off the mains then disconnect wiring. Do not try to over extend or stretch the mains cable. Never attempt to open any part or dismantle the controls.
- Page 4 FAN INSTALLATION INSTRUCTIONS Your Salton Ceiling Fan has been boxed unassembled to minimize packaging waste. Choose a suitable location to mount your fan. The place should be free from any...
- Page 5 The desired location for the ceiling fan must be able to support a hanging weight of approximately 30Kg and must be secured firmly with wood screws to prevent coming loose. Important: GLOBES The following globe/lamp is suitable for this model. Please refer to the pictures for clarity: 50W Halogen Lamp Model:...
- Page 6 a. Slide the canopy onto the downrod. b. Run the lead wires through the downrod. c. Place the downrod onto the motor shaft by inserting clevis pin into the aligned holes. d. Insert cotter pin through the holes at the end of the clevis pin. e.
- Page 7 5. Install the upper canopy to the bracket with set of screws provided. a. Assemble blades into blade holders with screw, washers and nuts. b. Install fan blade sets onto the motor by tightening screws and spring washers.
- Page 8 7. Install the light bulb/light bulbs (40W Max. per globe for multiple light units) a. Install the glass-bowl/shades onto the lamp fitting and tighten the thumbscrews by hand. b. Do not over tighten the screw as this can cause the glass to break.
- Page 9 9. Connect the pull-chain pendent onto the fan and light switches. OPERATING INSTRUCTIONS Your Salton ceiling fan is supplied with 3 pull-chain controls: One to operate the fan. The fan control has three speed settings the various speed settings assist in regulating the airflow from the fan: 1.
-
Page 10: Fan Wobbles
One to select the fan direction between “DOWNWARD” or “UPWARD”. 1. Downward – for summer when the whether is warm 2. Upward – for winter when the whether is cooler The third pull chain controls the ON/OFF light operation FAN WOBBLES The following procedure should correct most situations where the fan wobbles, confirm if there is an improvement after each step. -
Page 11: Taking Care Of Your Salton Ceiling Fan
TAKING CARE OF YOUR SALTON CEILING FAN The Following suggestion will help you to preserve your ceiling fan; 1. It is necessary to check the parts of the Mounting Bracket twice a year. This is necessary in order to ensure that there has been no damage to the fan due continuous rotation of the fan. -
Page 12: Warranty
AMALGAMATED APPLIANCES (PTY) LTD. 29, HERONMERE ROAD TEL NO. (011) 490-9000 P O BOX 39186 BOOYSENS, JOHANNESBURG BOOYSENS 2016 2016 CAPE TOWN TEL NO. (021) 535-0600 DURBAN TEL NO. (031) 792-6000 Visit our website: www.salton.co.za...
