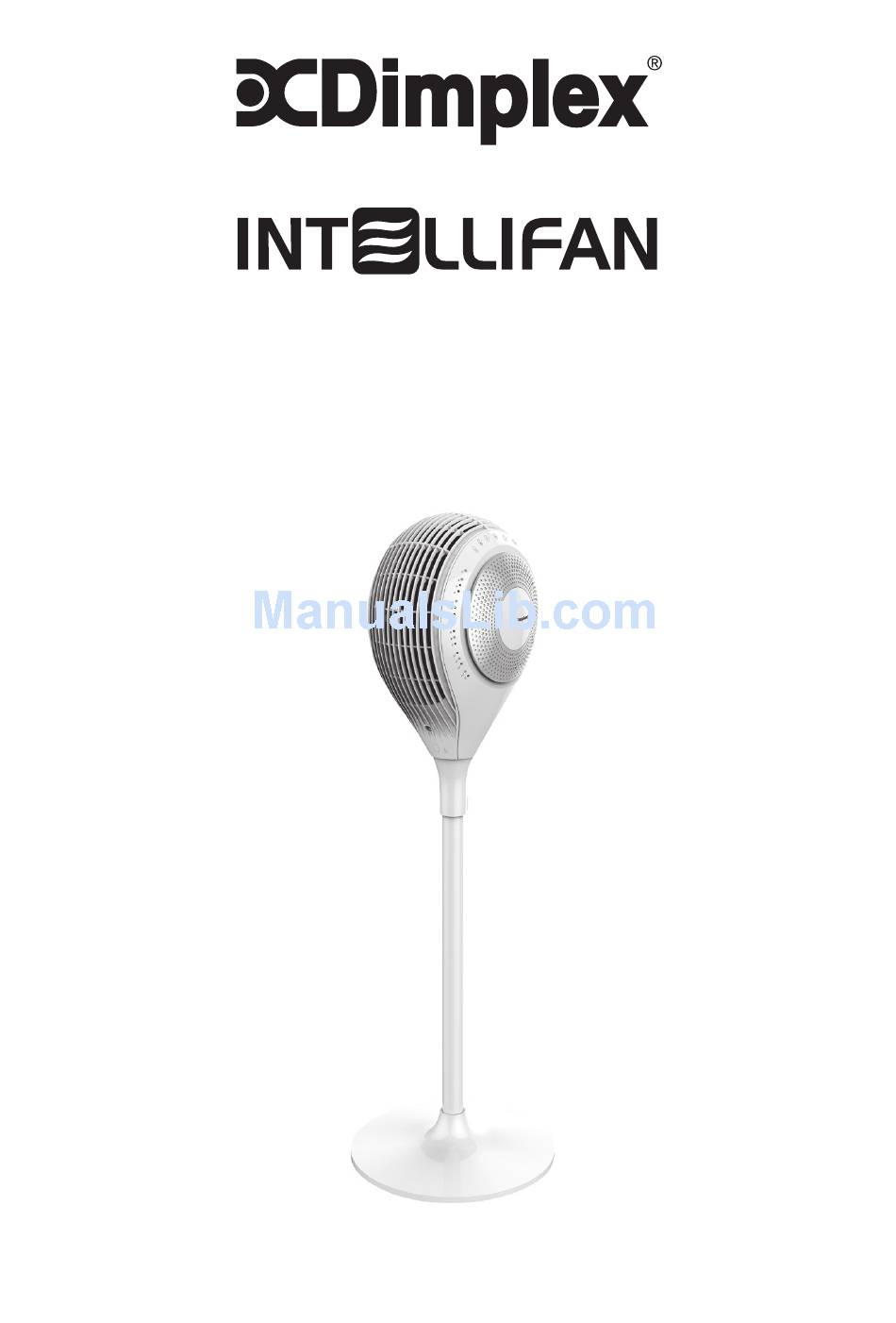

- Page 1 The Smart fan that knows where you are and how hot you feel Model: DCPFS1 INSTRUCTION MANUAL PLEASE READ THE INSTRUCTION MANUAL CAREFULLY BEFORE USING THE UNIT...
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT INFORMATION PARTS DESCRIPTION LED DISPLAY GUIDE REMOTE CONTROL GUIDE INSTALLATION INSTRUCTIONS OPERATING INSTRUCTIONS EXTRA FEATURES BODY SENSOR FUNCTION BODY SENSOR FUNCTION TROUBLESHOOTING CLEANING & MAINTENANCE TECHNICAL SPECIFICATIONS WARRANTY DISPOSAL... -
Page 3: Important Information
IMPORTANT INFORMATION Please retain this manual for product warranty and for future reference. • Never touch the power cord with wet hands as there is a danger of electric shock. • Never place objects into the Intellifan’s air inlets and outlets. This could damage the product and lead to a risk of electric shock. - Page 4 • Ensure the power plug is fully inserted into the socket and is clean of any foreign material. • If the product emits an abnormal sound during operation, turn it off and disconnect the power immediately. • Do not fold the power cord or place heavy objects on top of it. Doing so may damage the cord and pose a serious risk of electric shock and/or fire.
-
Page 5: Parts Description
PARTS DESCRIPTION 1. Right-side cowling 8. Left air inlet 2. LED indicator lights 9. Fan cowling 3. Right-side front panel 10. Left-side panel 4. Touch control panel 11. Front housing 5. Rear housing 12. Infrared Body sensor 6. Power cord 13. -
Page 6: Led Display Guide
LED DISPLAY GUIDE Power On Natural Breeze Mode Night Mode Eco Temperature Sensor Mode 1 Hour Timer Setting 2 Hour Timer Setting 4 Hour Timer Setting 8 Hour Timer Setting High Wind Speed Medium Wind Speed Low Wind Speed 60° Horizontal Oscillation 90°... -
Page 7: Remote Control Guide
REMOTE CONTROL GUIDE Select Mode Power on/off Vertical Horizontal Oscillation/ Oscillation Body Sensor mode Wind Speed Timer Setting... -
Page 8: Installation Instructions
INSTALLATION INSTRUCTIONS 1. Remove parts from box 2. Insert one end of the support column into the pedestal base and screw them tightly together with the screw key provided. (Diagram 1) 3. Place the main body of the Intellifan on top of the support column. (Diagram 2) 4. -
Page 9: Operating Instructions
OPERATING INSTRUCTIONS Touch screen controls are installed on this unit. All of the unit’s functions can be operated by lightly touching the desired function on the control panel. NOTE: When first connected to power, all of the LED lights should turn on for 2 seconds and be accompanied by 2 BEEP sounds. - Page 10 • NORMAL – provides a constant wind speed. Select either, high, medium or low wind speed. NOTE: The NORMAL mode is not displayed on the LED panel. All three LED MODE indicators will turn off in normal mode. • NATURAL BREEZE –...
- Page 11 TIMER To activate, press the TIMER button, which will allow you to set the Intellifan’s running time (either 1 hour, 2 hours, 4 hours or 8 hours). All four timer LED indicators will turn off when TIMER is not activated. SPEED When the Intellifan is in operation, pressing the SPEED button will cycle through the settings for LOW, MEDIUM and HIGH speed selections, which will be...
-
Page 12: Extra Features
EXTRA FEATURES SAVED FUNCTIONS When in STANDBY mode, the previous SPEED and OSCILLATION settings will be saved. The previous MODES (NATURAL BREEZE, SLEEP and ECO TEMPERATURE SENSOR) and TIMER settings will not be saved and the default setting will be OFF. AUTO DIMMING FUNCTION The LED indicators will dim automatically if the control panel has not been touched for more than 1 minute. -
Page 13: Body Sensor Function
BODY SENSOR FUNCTION OPERATING THE BODY SENSOR The body sensor function will be the default setting when turning on the Intellifan if there is no pre-saved function from last use (see “Extra Features / Saved Functions” section for more information about “SAVED FUNCTIONS”). To manually activate the body sensor function, press and hold (for approx. -
Page 14: Body Sensor Function Troubleshooting
BODY SENSOR TROUBLEShOOTING: Why does the Intellifan BEEP multiple times at a person? This is normal. The Intellifan may BEEP as it detects where a person’s body starts and/or ends. After the Intellifan has locked in its rotational arc, why does it rotate past a person that it detected? The Intellifan is designed to rotate up to 30°... -
Page 15: Cleaning & Maintenance
CLEANING & MAINTENANCE Cleaning Dust may accumulate on the Intellifan’s grill and can affect performance of the appliance. It is recommended that the Intellifan be cleaned at least once per month. Directions for cleaning exterior of the appliance: Always remember to turn off the Intellifan and disconnect from the power source before cleaning. -
Page 16: Technical Specifications
TEChNICAL SPECIFICATIONS Model DCPFS1 Power Source 220-240V~50Hz Rated Power Up to 65 W Noise ≤ 55 dB Air Volume 180 m Product size Φ 370 × 1148.3 mm N.W (KG) 6.8 kg G.W (KG) 8.25 kg Environment 5~40°C, relative humidity ≤ 95% (25°C) -
Page 17: Warranty
Australia and 24 months from date of purchase in New Zealand. For service advice, please contact the Customer Care Centre on 1300 556 816 (AU) / +64 9 274 8265 (NZ). Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Pty Ltd 1340 Ferntree Gully Road 38 Harris Road Scoresby...
