Wharfedale Pro USX-800 User Manual

Hide thumbs Also See for USX-800:

Advertisement

Quick Links

Wireless Microphone

Advertisement

loading

Related Manuals for Wharfedale Pro USX-800

Summary of Contents for Wharfedale Pro USX-800

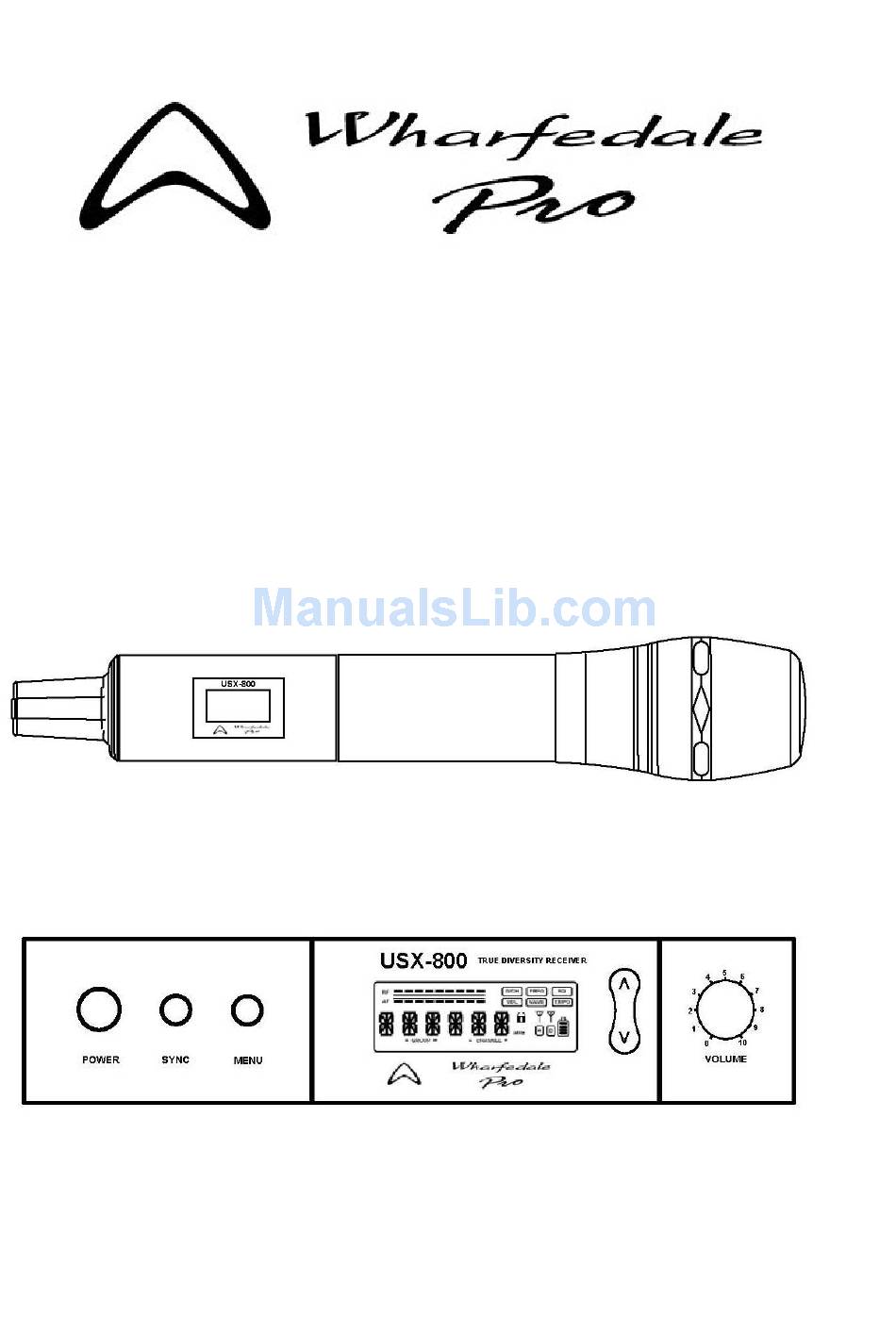

  • Page 1 Wireless Microphone...

  • Page 2: Table Of Contents

    DO NOT EXPOSE THIS UNIT TO RAIN OR MOSITURE. Unpacking: All Wharfedale Pro products are fully tested before leaving the factory. After unpacking, please inspect the unit. In the event of any noticed damage due to shipping, contact your dealer and the shipping provider immediately to file a shipping damage claim.
  • Page 3 Wharfedale Pro USX-800 Wireless Microphone System Thank you for selecting the Wharfedale Pro USX-800 single channel wireless microphone system! Before operating the system, please read this instruction manual thoroughly for a complete understanding of the product features and correct operating procedures...

  • Page 4: Parts Names And Functions

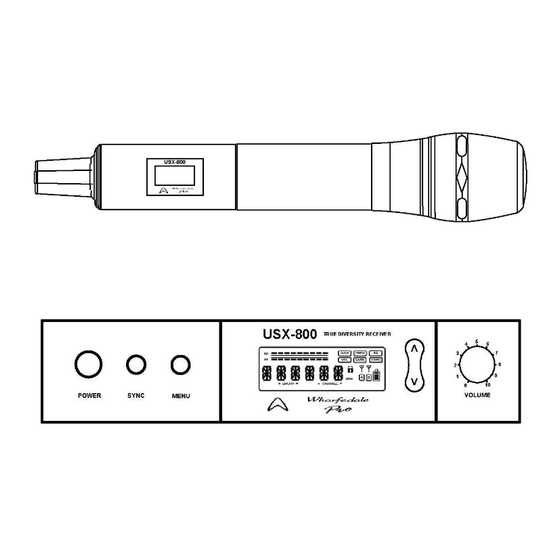

    Parts names and functions -Front panel (Fig.1) 1. POWER switch 2. SYNC button: Synchronization of transmitter & receiver. (Automatic Channel Matching) 3. MENU button: Multiple function selection. 4. SYNC I/R receiver: Works with the microphone transmitter SYNC signal 5. LCD Display: Shows currently selected function parameter 6.
  • Page 5 Setup Fig.3 Transmitter / Microphone (Fig.3) - Install the provided “AA” batteries in the microphone battery compartment (Fig.4 / 5) by holding the main barrel of the microphone firmly while turning to unscrew the transmitter section (the portion with the LCD display) and slide it open to reveal the battery compartment in the middle section of the mic.

  • Page 6: Installation Of The Receiver

    Receiver -Connect the antennas into ANTENNA A connector (14) and ANTENNA B connector (9) at the rear of the USX-800 Receiver as shown below. (Fig 6/A). Rotate and flip the antennas to the upward position as shown in FIG.6-B. Fig, 6A Fig.

  • Page 7: Audio Output Connections

    ¼” input jack of a mixer or an amplifier (usually line level) that uses a ¼” phone plug. Use the appropriate setting on the ‘LEVEL’ switch (10) on the rear panel of the USX-800. Cable length for this type of connection should be limited to less than 15 feet (5 meters).

  • Page 8: Receiver Settings

    Receiver Settings -In accordance with the operating instructions of the sound system’s mixer, adjust the appropriate mixer settings and gradually increase the ‘VOLUME’ knob (8) on the USX-800 receiver to achieve a suitable level setting of the microphone signal. -Verify that the ‘VOLUME’ control setting is at its minimum (fully counterclockwise).

  • Page 9: Lcd Display Legend / Display Modes

    LCD DISPLAY LEGEND Display Modes: _Pressing the ‘MENU’ button repeatedly will change the information displayed in the alpha- numeric section of the LCD panel showing the five display modes available: -GROUP/CH -FREQ (Frequency) -SQ (Squelch) -VOL (Mute) -NAME (Name) will be highlighted in the display with each press of the ‘MENU’ button...
  • Page 10 Function Descriptions: G/CH – Group / Channel: This allows for the selection of the Group and the Channel assignment to match the wireless microphone transmitter being used with the receiver. 9 Groups and 4 Channel selections are available. The Up button selects the Groups, the Down button selects the Channel FREQ –...

  • Page 11: Specifications

    Specifications Microphone / Transmitter Specifications Housing Material Aluminum Extrusion Oscillation Mode PLL Synthesized Carrier Frequency Range UHF 740-752MHz Stability ±0.005%(-10/50 I I) Frequency Adjustment Automatic Channel Setting RF Output Power <10mW Spurious Emissions <-55dBc Max. Deviation Range ±68KHz Maximum Input Level 140dB SPL Battery 1.5V (AA)×2...

  • Page 12: Appendix

    9.) and eligible to carry the CE mark. The USX-800 receiver complies with FCC part 15 rules. Meets the essential requirements of the European R&TTE Directive 99/5/EC (ETSI EN 300-422 Part 1 & 2, EN 301 489 Parts 1 & 9.) and eligible to carry the CE mark.
  • Page 13 Sovereign Court, Ermine Business Park, Huntingdon, Cambs, PE29 6XU, England www.wharfedalepro.com IAG Professional reserves the right to alter or improve specifications without notice. All rights reserved © 2006 Wharfedale Pro Wharfedale Pro is a member of the International Audio Group...
