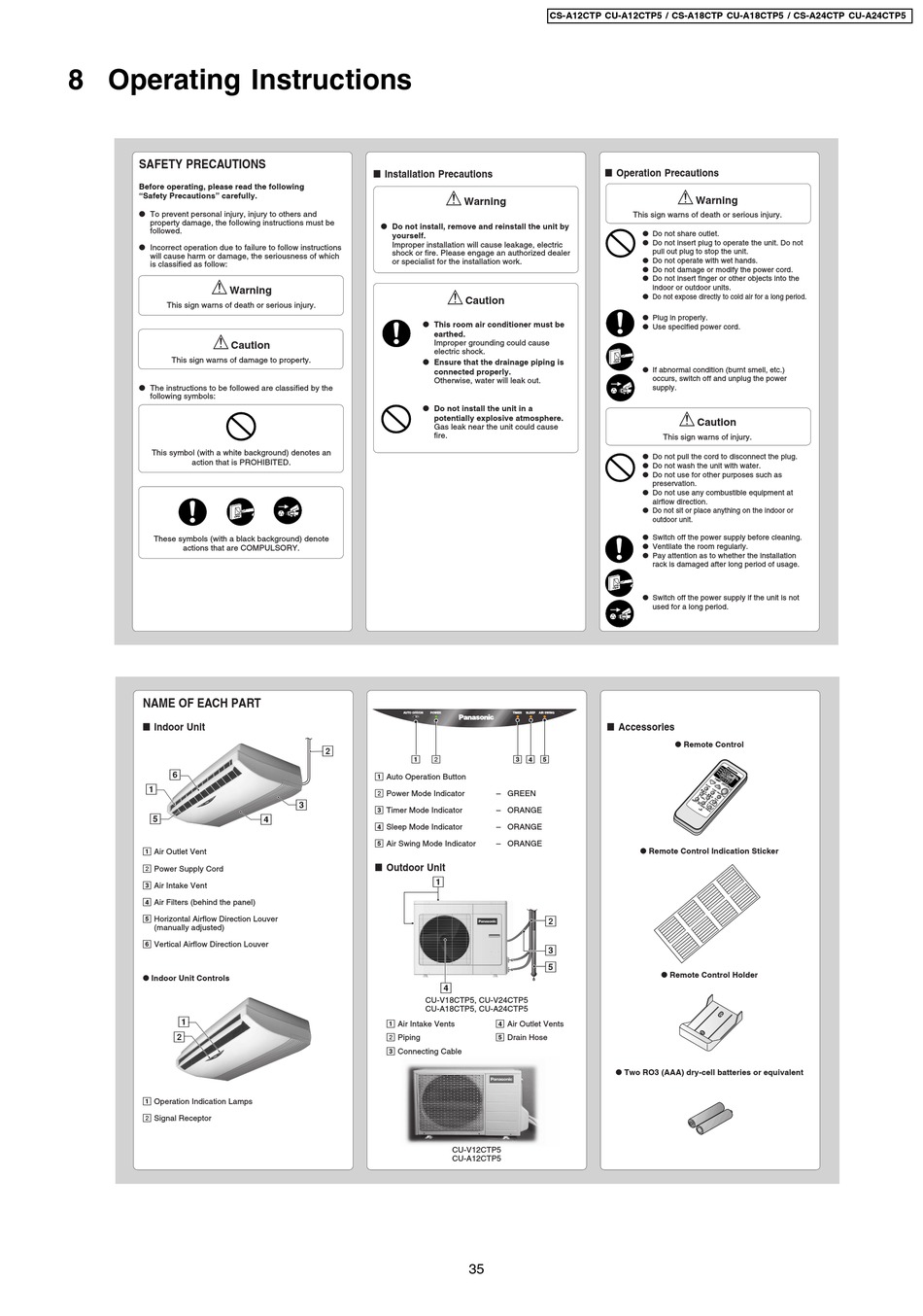

Panasonic CS-A12CTP Operating Instructions

8 Operating Instructions

SAFETY PRECAUTIONS
Before operating, please read the following
"Safety Precautions" carefully.
G To prevent personal injury, injury to others and
property damage, the following instructions must be
followed.
G Incorrect operation due to failure to follow instructions
will cause harm or damage, the seriousness of which
is classified as follow:
!
Warning
This sign warns of death or serious injury.
!
Caution
This sign warns of damage to property.
G The instructions to be followed are classified by the
following symbols:
This symbol (with a white background) denotes an
action that is PROHIBITED.
These symbols (with a black background) denote
actions that are COMPULSORY.
NAME OF EACH PART
I Indoor Unit
6
1
5
1 Air Outlet Vent
2 Power Supply Cord
3 Air Intake Vent
4 Air Filters (behind the panel)
5 Horizontal Airflow Direction Louver
(manually adjusted)
6 Vertical Airflow Direction Louver
G Indoor Unit Controls
1
2
1 Operation Indication Lamps
2 Signal Receptor
I Installation Precautions
G Do not install, remove and reinstall the unit by
yourself.
Improper installation will cause leakage, electric
shock or fire. Please engage an authorized dealer
or specialist for the installation work.
G This room air conditioner must be
earthed.
Improper grounding could cause
electric shock.
G Ensure that the drainage piping is
connected properly.
Otherwise, water will leak out.
G Do not install the unit in a
potentially explosive atmosphere.
Gas leak near the unit could cause
fire.
AUTO OFF/ON POWER
2
1 2
1 Auto Operation Button
2 Power Mode Indicator
3
3 Timer Mode Indicator
4
4 Sleep Mode Indicator
5 Air Swing Mode Indicator
I Outdoor Unit
1
CU-V18CTP5, CU-V24CTP5
CU-A18CTP5, CU-A24CTP5
1 Air Intake Vents
2 Piping
3 Connecting Cable
CS-A12CTP CU-A12CTP5 / CS-A18CTP CU-A18CTP5 / CS-A24CTP CU-A24CTP5
I Operation Precautions
!
Warning
!
Caution
TIMER SLEEP AIR SWING
I Accessories
3 4 5
– GREEN
– ORANGE
– ORANGE
– ORANGE
2
3
5
4
4 Air Outlet Vents
5 Drain Hose
CU-V12CTP5
CU-A12CTP5
35
!
Warning
This sign warns of death or serious injury.
G Do not share outlet.
G Do not insert plug to operate the unit. Do not
pull out plug to stop the unit.
G Do not operate with wet hands.
G Do not damage or modify the power cord.
G Do not insert finger or other objects into the
indoor or outdoor units.
G Do not expose directly to cold air for a long period.
G Plug in properly.
G Use specified power cord.
G If abnormal condition (burnt smell, etc.)
occurs, switch off and unplug the power
supply.
!
Caution
This sign warns of injury.
G Do not pull the cord to disconnect the plug.
G Do not wash the unit with water.
G Do not use for other purposes such as
preservation.
G Do not use any combustible equipment at
airflow direction.
G Do not sit or place anything on the indoor or
outdoor unit.
G Switch off the power supply before cleaning.
G Ventilate the room regularly.
G Pay attention as to whether the installation
rack is damaged after long period of usage.
G Switch off the power supply if the unit is not
used for a long period.
G Remote Control
G Remote Control Indication Sticker
G Remote Control Holder
G Two RO3 (AAA) dry-cell batteries or equivalent
