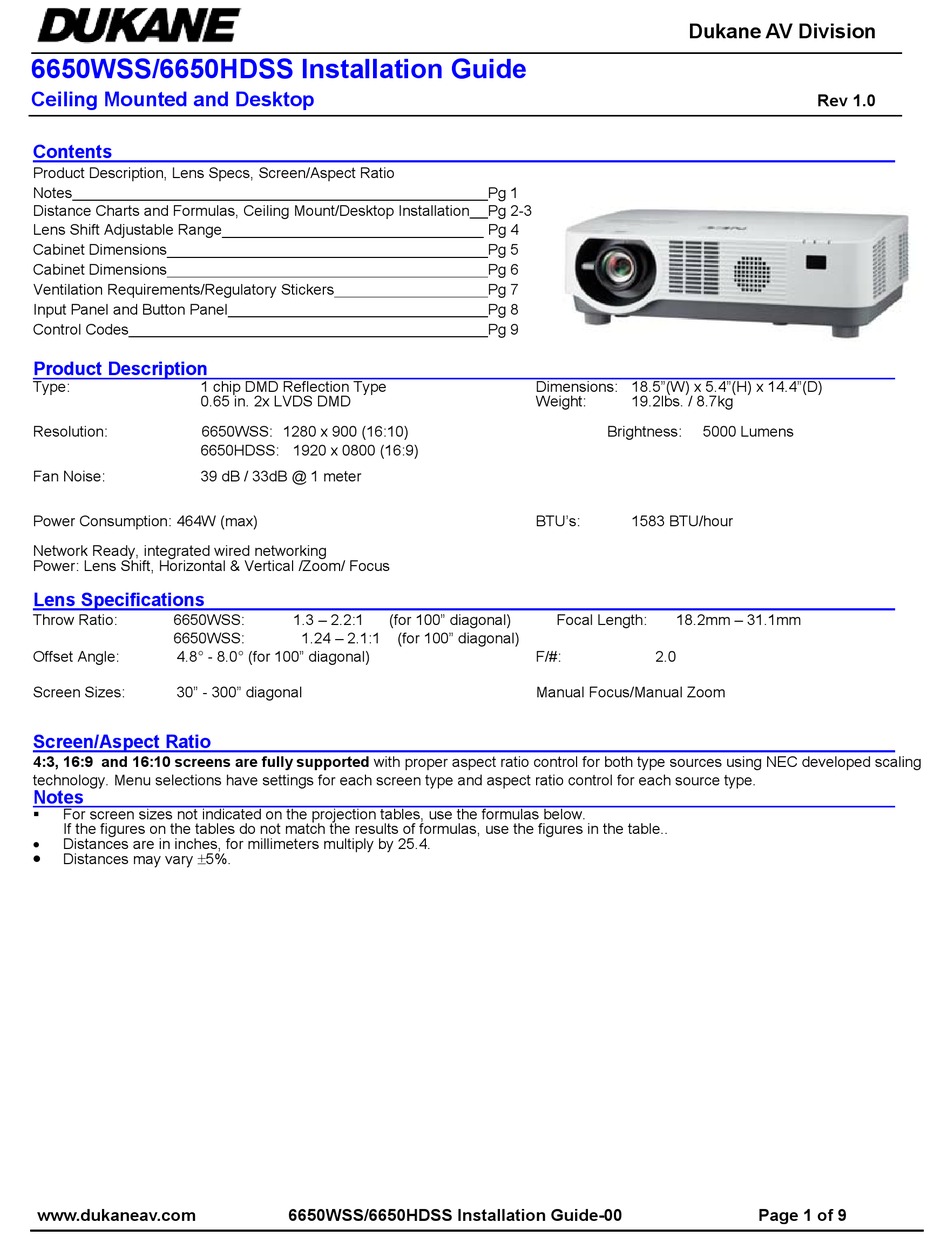

Product Description, Lens Specs, Screen/Aspect Ratio
Notes
Distance Charts and Formulas, Ceiling Mount/Desktop Installation
Lens Shift Adjustable Range
Cabinet Dimensions
Cabinet Dimensions
Ventilation Requirements/Regulatory Stickers
Input Panel and Button Panel
Control Codes

Product Description

Type: 1 chip DMD Reflection Type
0.65 in. 2x LVDS DMD
Resolution: 6650WSS: 1280 x 900 (16:10)
6650HDSS: 1920 x 0800 (16:9)
Fan Noise: 39 dB / 33dB @ 1 meter
Power Consumption: 464W (max)
Network Ready, integrated wired networking
Power: Lens Shift, Horizontal & Vertical /Zoom/ Focus

Lens Specifications

Throw Ratio: 6650WSS:
6650WSS:
Offset Angle: 4.8° - 8.0° (for 100" diagonal)
Screen Sizes: 30" - 300" diagonal
Screen/Aspect Ratio
4:3, 16:9 and 16:10 screens are fully supported with proper aspect ratio control for both type sources using NEC developed scaling
technology. Menu selections have settings for each screen type and aspect ratio control for each source type.
Notes
For screen sizes not indicated on the projection tables, use the formulas below.

If the figures on the tables do not match the results of formulas, use the figures in the table..
 Distances are in inches, for millimeters multiply by 25.4.

Distances may vary 5%.
