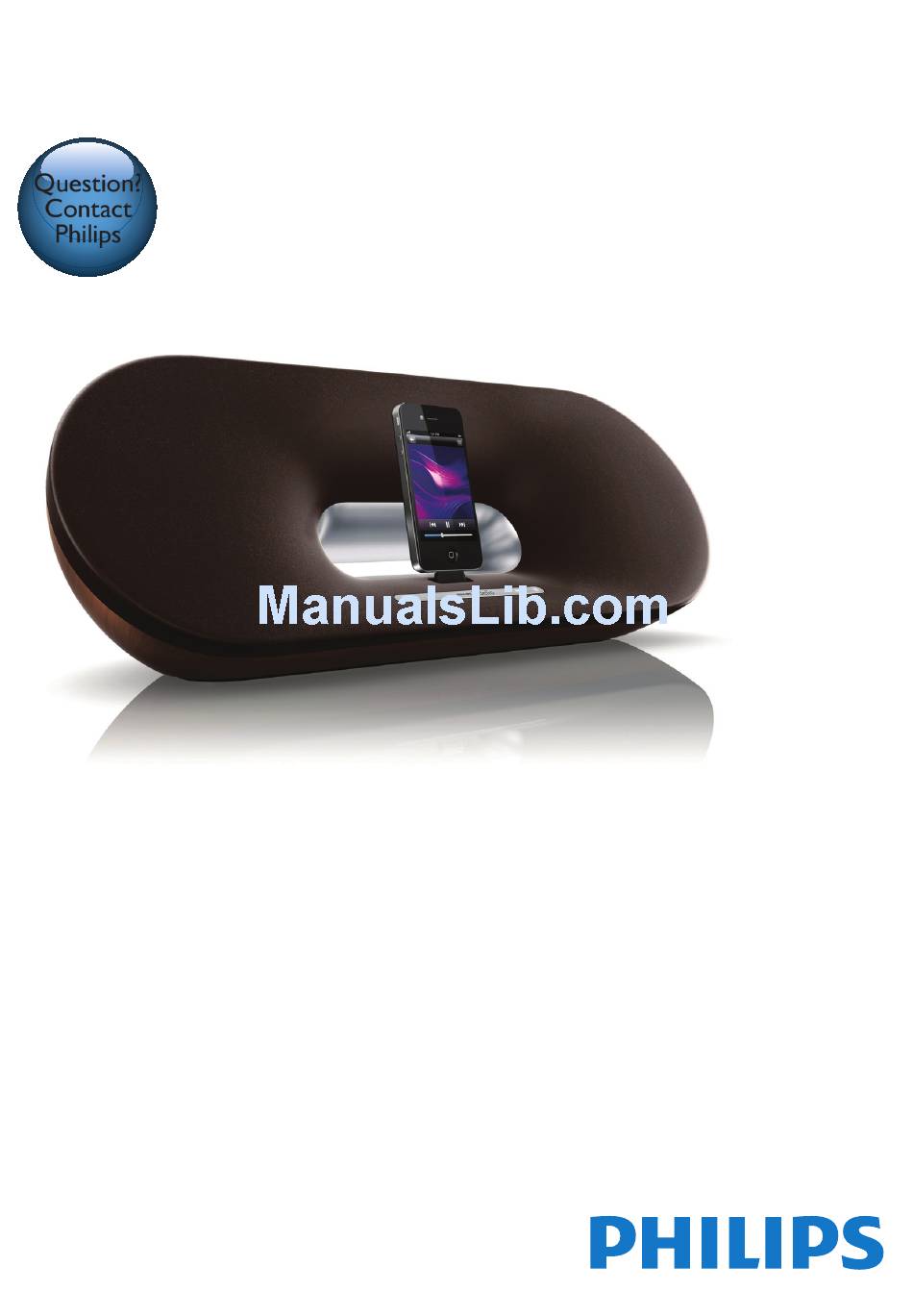

- Page 1 Always there to help you Register your product and get support at www.philips.com/welcome DS9100W Question? Contact Philips User manual...
-
Page 3: Table Of Contents
Stream audio from your iTunes music library to DS9100W Play and charge your iPod/iPhone/iPad through the dock connector directly Control play Use advanced sound settings Play from an external device 6 Update firmware Option 1: Update through Philips SoundStudio (recommended) Option 2: Update from a PC/Mac... -
Page 4: Important
1 Important Warning • Never remove the casing of this apparatus. • Never lubricate any part of this apparatus. • Never place this apparatus on other electrical equipment. • Ensure that you always have easy access to the power Safety cord, plug or adaptor to disconnect this apparatus from the power. -
Page 5: Notice
• the ratings shown on the plug, • a BS 1362 approval, and Philips and the Philips’ Shield Emblem are • the ASTA approval mark. registered trademarks of Koninklijke Philips N.V. Contact your dealer if you are not sure and are used by WOOX Innovations Limited about what type of fuse to use. - Page 6 means that the product is covered by “Made for iPod, ” “Made for iPhone, ” and the European Directive 2002/96/EC. “Made for iPad” mean that an electronic accessory has been designed to connect Please inform yourself about the specifically to iPod, iPhone, or iPad, respectively, local separate collection system for and has been certified by the developer to electrical and electronic products.
-
Page 7: Your Entertainment System
Philips offers, register your through the AUX IN socket. product at www.philips.com/welcome. If you contact Philips, you will be asked for the model and serial number of What's in the box this apparatus. The model number and... -
Page 8: Overview Of The Main Unit
List of compatible iTunes host devices • Detect signals from the remote for AirPlay control. Point the remote control directly at the sensor. In terms of AirPlay, DS9100W is compatible with: b Lightning dock for iPod/iPhone/iPad • a Wi-Fi enabled PC/Mac installed with iTunes 10.2.2 (or later);... -
Page 9: Overview Of The Remote Control
Overview of the remote • Switch between the AirPlay audio control source and the iPod/iPhone/iPad dock source. • Mute or restore volume. • Select the 3.5mm audio input source. c Up/down keys • In dock mode, navigate through the iPod/iPhone/iPad menu. d Left/right keys • Fast reverse or fast forward within a track on your iPod/iPhone/iPad. -
Page 10: Prepare
Connect the AC power cord to • the AC IN socket on the back of the unit. • the wall power socket. Turn DS9100W on After proper power connection, the Press the hole with the tip of a ball-point unit switches on automatically. - Page 11 • If you are not going to use the remote control for a long time, remove the battery. • Point the remote control directly at the IR sensor on the front of DS9100W for better reception.
-
Page 12: Connect To Your Home Wi-Fi Network For Airplay
Wi-Fi settings. Then you can enjoy AirPlay whenever To connect DS9100W to your existing DS9100W is powered on and connected to home Wi-Fi network, you need to apply your home Wi-Fi network automatically. your home Wi-Fi settings to DS9100W. -
Page 13: Method 2: Connect To A Wps Router
PBC function from the router configuration pages. See the user manuals of the specific routers for details. • • Before you press any button on DS9100W, make sure If the indicator on DS9100W stays yellow, it means that DS9100W has been booted up successfully (see that the Wi-Fi connection has failed. Please wait for 2 'Turn DS9100W on' on page 8). -
Page 14: Method 3: Connect To A Non-Wps Wi-Fi Router
DS9100W to a WPS router manually. to your existing home Wi-Fi settings (see 'Restore your Wi-Fi enabled device back to your existing home Wi-Fi setting' on To connect DS9100W to a Wi-Fi router page 16). manually, you need access to DS9100W's built-in configuration web page for change of its internal Wi-Fi settings. - Page 15 After you finish manual Wi-Fi setting for DS9100W, this new Wi-Fi network disappears. • If you fail to enter Assisted Wi-Fi Setup mode, power off DS9100W and power on it, then try again after successful boot-up. • Make sure that there are no other Philips AirPlay-...
- Page 16 Select Philips_Install XXXXXX from the Wait until successful Wi-Fi connection on your iPod touch/iPhone/iPad. list of available networks. is displayed at the upper left corner » of your iPod touch/iPhone/iPad. • If Philips_Install XXXXXX is not in the list, try to scan the available Wi-Fi networks again.
- Page 17 Wi-Fi connection has Configure the internal Wi-Fi settings failed. Please power off both your Wi-Fi router and of DS9100W DS9100W and then power on them again to see whether DS9100W can be connected to your home Wi-Fi network. If the problem remains, try the above On the DS9100W configuration web page, procedures again.
- Page 18 Select your network name (SSID) from the list of available wireless networks. • If you like, you can change the name of your DS9100W in Philips Fidelio Device Name on the DS9100W configuration web page. This is helpful when you have multiple Philips AirPlay-enabled devices in your house and you need to distinguish between them.
- Page 19 -> Preferences. Click » The Bookmarks menu is displayed. Tick Include Bonjour for Bookmarks bar. Select Philips DS9100W XXXXXX from the Bonjour pull-down list shown at the bookmarks bar. » The DS9100W configuration web page is displayed. Philips DS9100W XXXXXX Philips DS9100W XXXXXX Here, you can change the internal Wi-Fi settings or rename your device easily.
-
Page 20: Play
Note • Make sure that your iTunes host device is connected to the same Wi-Fi network as DS9100W. Your iTunes device can be an iPod touch/iPhone/iPad installed with iOS 4.3.3 (or later) or a Wi-Fi enabled PC/Mac installed with iTunes 10.2.2 (or later). -
Page 21: Play And Charge Your Ipod/Iphone/Ipad Through The Dock Connector Directly
Play and charge your iPod/ iPhone/iPad through the dock connector directly Select Philips DS9100W XXXXXX (or user customized name) from the AirPlay Compatible iPod/iPhone/iPad list. This unit supports play and charge of the following iPod, iPhone, and iPad models: Made for • iPhone 5... -
Page 22: Control Play
• select, and press OK to confirm. If you are streaming music from a PC/Mac, to control music play from DS9100W, launch iTunes and tick Allow iTunes audio control from remote speakers Charge the iPod/iPhone/iPad in Edit (for Windows) or iTunes (for Mac) ->... -
Page 23: Use Advanced Sound Settings
AUX IN iPhone/iPad to download the Philips SoundStudio app from Apple App Store. It is a free application from Philips. • You can also upgrade the firmware of the device Connect a 3.5mm audio cable to: through the Philips SoundStudio app directly (see • the AUX IN socket on the back of... -
Page 24: Update Firmware
To use an Internet browser other than Apple Safari upgrade. on your PC/Mac, remember to go to the Wi-Fi router configuration page and write down the IP address of your DS9100W. See the user manual of your Wi-Fi router for how to find the IP addresses of devices Option 2: Update from a PC/ connected to the Wi-Fi router. - Page 25 In case the firmware update fails, try the above procedures again. • After successful firmware update, if there is any problem with the Wi-Fi connection, restart DS9100W, and then try to set up the Wi-Fi network for DS9100W again (see 'Connect to your home Wi-Fi network for AirPlay' on page 10).
-
Page 26: Product Information
7 Product General information information AC power 100-240V~, 50/60Hz Operation Power 100 W Consumption Note Dimensions 562 x 219 x 180 mm • Product information is subject to change without prior Weight notice. - Main unit 6.4 kg Specifications Amplifier Rated Output Power 2X50 W RMS Frequency Response... -
Page 27: Troubleshooting
If you encounter problems when using this apparatus, check the following points before requesting service. If the problem remains Wi-Fi network connection failed unsolved, go to the Philips web site (www. philips.com/welcome). When you contact Philips, • Check if your Wi-Fi router is Wi- ensure that the apparatus is nearby and the Fi 802.11b/g certified. - Page 28 • Turn off other Wi-Fi routers. No AirPlay icon on my iTunes host device • Make sure that DS9100W is already connected to your home Wi-Fi network. • Before you open iTunes, make sure that you have enabled Bonjour service in your PC.
- Page 30 WOOX Innovations, and is the manufacturer of the product. WOOX Innovations is the warrantor in relation to the product with which this booklet was packaged. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. DS9100W_UM_10_V3.0...
