Panasonic CT-25L8G Service Manual

Hide thumbs Also See for CT-25L8G:

Advertisement

Quick Links

Download this manual See also: Operating Manual

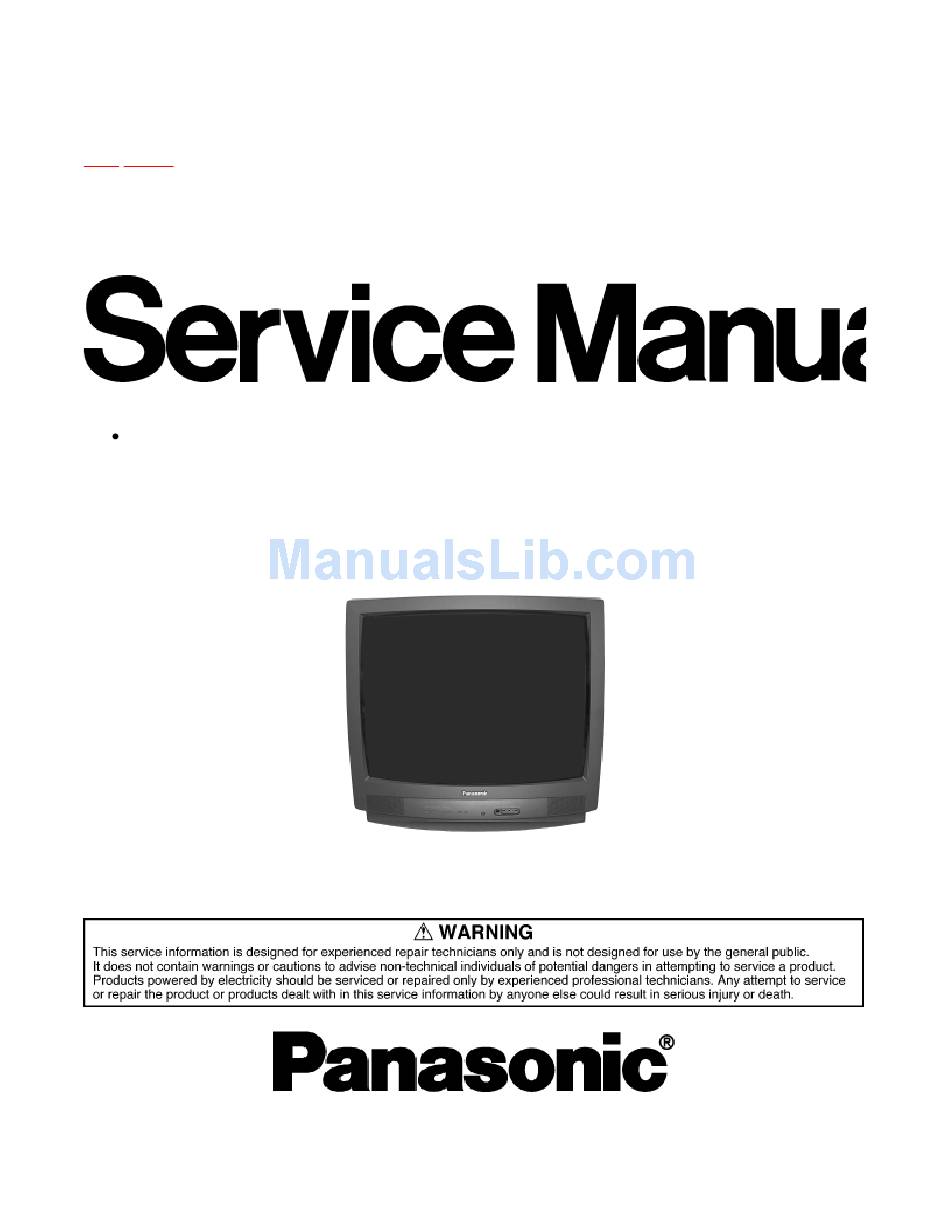

Service Manual

TOP NEXT
MTNC030623C1
B01/B05
Color Television
CT-25L8G
CT-25L8UG
CT-20L8G
CT-20G8G
CT-20G8SG
NA10
Copyright 2003 Matsushita Electric Corporation of America. All rights reserved. Unauthorized copying
and distribution is a violation of law.
http://tsn.pstc.panasonic.com/viewing/NA/CT-25L8G/SVC/s0000000000.html
Page 1 of 2
5/19/2008

Advertisement

loading

Related Manuals for Panasonic CT-25L8G

Summary of Contents for Panasonic CT-25L8G

  • Page 1: Service Manual

    Page 1 of 2 Service Manual TOP NEXT MTNC030623C1 B01/B05 Color Television CT-25L8G CT-25L8UG CT-20L8G CT-20G8G CT-20G8SG NA10 Copyright 2003 Matsushita Electric Corporation of America. All rights reserved. Unauthorized copying and distribution is a violation of law. http://tsn.pstc.panasonic.com/viewing/NA/CT-25L8G/SVC/s0000000000.html 5/19/2008...
  • Page 2 Page 2 of 2 TOP NEXT http://tsn.pstc.panasonic.com/viewing/NA/CT-25L8G/SVC/s0000000000.html 5/19/2008...

  • Page 3: Board Description Table

    TNP2AH047AA MAIN BOARD TNP2AA122AA CRT BOARD CT-20L8G BOARD PART NUMBER DESCRIPTION TNP2AH047AB MAIN BOARD TNP2AA122AA CRT BOARD CT-25L8G/CT-25L8UG BOARD PART NUMBER DESCRIPTION TNP2AH047FA MAIN BOARD TNP2AA122FA CRT BOARD NOTE When ordering a replacement board assembly, append an “S” to the board number EXAMPLE To order the A Board, the replacement board is TNP2AH047AAS.
  • Page 4 Page 1 of 1 http://tsn.pstc.panasonic.com/viewing/NA/CT-25L8G/SVC/expview.gif 5/19/2008...

  • Page 5: Parts List

    CAP E 100UF-10V C017 TCJ2VC1H680J CAP C 68PF-J-50V C018 ECJ2VF1H103Z CAP C .01UF-Z-50V CT-20G8G CT-20G8SG CT-20L8G C018 TCJ2VF1H103Z CAP C .01UF-Z-50V CT-25L8G CT-25L8UG C019 ECA0JM102B CAP E 1000UF-6.3V C020 ECA1CM102B CAP E 1000UF/16V C021 TCJ2VF1H103Z CAP C .01UF-Z-50V C031 TCJ2VC1H220J...
  • Page 6 CAP C .1UF-K-16V C350 ECA1CM101B CAP E 100UF/16V C351 TCJ2VC1H101J CAP C 100PF-J-50V CT-20G8G CT-20G8SG CT-20L8G C351 TCJ2VC1H331J CAP C 330PF-J-50V CT-25L8G CT-25L8UG C352 TCJ2VC1H101J CAP C 100PF-J-50V CT-20G8G CT-20G8SG CT-20L8G C352 TCJ2VC1H331J CAP C 330PF-J-50V CT-25L8G CT-25L8UG C353 TCJ2VC1H151J...
  • Page 7 TCJ2VF1H103Z CAP C .01UF-Z-50V C551 ECA1VHG471B CAP E 470UF-35V C554 ECKR2H561KB5 CAP C 560PF-K-500V C555 ECA2EM220E CAP E 22UF-250V CT-25L8G CT-25L8UG C555 ECA2EM470E CAP E 47UF-250V CT-20G8G CT-20G8SG CT-20L8G C556 ECA1CM471B CAP E 470UF-16V C557 ECKR2H102KB5 CAP C 1000PF-K-500V CT-25L8G CT-25L8UG...
  • Page 8 Page 4 of 16 CT-20G8G CT-20G8SG CT-20L8G C805 EC0S2DA331BB CAP E 330UF/200V CT-25L8G CT-25L8UG C806 ECQM4103KZW CAP P .01UF-K-400V C808 ECA1HM470B CAP E 47UF-50V C809 ECKR1H102KB5 CAP C .001UF-K-50V CT-25L8G CT-25L8UG C809 ECKR1H152KB5 CAP C 1500PF-K-50V CT-20G8G CT-20G8SG CT-20L8G C810...
  • Page 9 D556 MA2C165001VT DIODE D557 MAZ40270LF DIODE ZENER D558 B0HANV000008 DIODE D559 DIODE D561 AU02V0 DIODE D606 MA2C165001VT DIODE D801 D3SBA60-4103 DIODE D803 MAZ41200MF DIODE ZENER D806 TAP2AA0003 PTC 3-OHM D808 SARS01V1 DIODE D809 B0HAJP000015 DIODE D810 B0HAJP000015 DIODE http://tsn.pstc.panasonic.com/viewing/NA/CT-25L8G/SVC/s2002000000.html 5/19/2008...
  • Page 10 FUSES F801 XBA2A00101 FUSE 6.3A 125V INTEGRATED CIRCUITS IC001 MN101E03GTB3 IC002 TVR2AJ165S EEPROM CT-20G8G CT-20G8SG IC002 TVR2AJ166S EEPROM CT-20L8G CT-25L8G CT-25L8UG IC003 GP1UE282GK IR SENSOR IC004 PST9128NR RESET IC005 PQ3RD13 3.3V STBY REGULATOR IC451 AN5522 VERTICAL OUT AMP IC501 NC7SZU04M5X...
  • Page 11 L807 EXCELSA35V FERRITE BEAD L808 EXCELSA35V FERRITE BEAD L809 EXCELDR35V FERRITE BEAD CT-25L8G CT-25L8UG L810 EXCELDR35V FERRITE BEAD CT-25L8G CT-25L8UG L2301 EXCELDR35V FERRITE BEAD CT-20L8G CT-25L8G CT-25L8UG L2303 EXCELSA39T FERRITE BEAD CT-25L8G CT-25L8UG L2305 EXCELSA35V FERRITE BEAD TRANSISTORS http://tsn.pstc.panasonic.com/viewing/NA/CT-25L8G/SVC/s2002000000.html 5/19/2008...
  • Page 12 Q362 2SB709ARTX TRANSISTOR Q411 2SB0710AQL TRANSISTOR Q412 2SD0602AQL TRANSISTOR Q451 2SB709ARTX TRANSISTOR Q501 2SC1573AH TRANSISTOR Q501 2SC4212HLB TRANSISTOR CT-25L8G CT-25L8UG Q551 2SC562200VLK TRANSISTOR CT-20G8G CT-20G8SG CT-20L8G Q551 2SC5902000LK TRANSISTOR CT-25L8G CT-25L8UG Q560 2SB709ARTX TRANSISTOR Q605 2SB709ARTX TRANSISTOR Q606 2SD601ARTX TRANSISTOR...
  • Page 13 RES C 100-J-1/4W R064 ERJ6GEYJ473V RES M 47K-J-1/10W R065 ERDS2TJ101T RES C 100-J-1/4W R066 ERJ6GEYJ223V RES M 22K-J-1/10W R067 ERJ6GEYJ223V RES M 22K-J-1/10W R068 ERJ6GEYJ103V RES M 10K-J-1/10W R069 ERJ6GEYJ123V RES M 12K-J-1/10W R070 ERJ6GEYJ561V RES M 560-J-1/10W http://tsn.pstc.panasonic.com/viewing/NA/CT-25L8G/SVC/s2002000000.html 5/19/2008...
  • Page 14 RES M 330-F-1/10W R359 ERJ6ENF3300V RES M 330-F-1/10W R360 ERJ6ENF1101V RES M 1.1K-F-1/10W CT-20G8G CT-20G8SG CT-20L8G R360 ERJ6ENF9100V RES M 910-F-1/10W CT-25L8G CT-25L8UG R361 ERJ6ENF1101V RES M 1.1K-F-1/10W CT-20G8G CT-20G8SG CT-20L8G R361 ERJ6ENF9100V RES M 910-F-1/10W CT-25L8G CT-25L8UG R362 ERJ6ENF1101V RES M 1.1K-F-1/10W...
  • Page 15 ERJ6GEYJ471V RES M 470-J-1/10W R413 ERJ6GEYJ103V RES M 10K-J-1/10W R414 ERJ6GEYJ471V RES M 470-J-1/10W R451 ERDS1FJ1R0P RES C 1.0-J-1/2W CT-25L8G CT-25L8UG R451 ERDS1FJ1R2P RES C 1.2-J-1/2W CT-20G8G CT-20G8SG CT-20L8G R453 ERJ6GEYJ333V RES M 33K-J-1/10W R454 ERJ6GEYJ243V RES M 24K-J-1/10W CT-20G8G CT-20G8SG CT-20L8G...
  • Page 16 Page 12 of 16 R510 ERG3FJ622 RES M 6.2K-J-3W CT-25L8G CT-25L8UG R511 ERG3FJ622 RES M 6.2K-J-3W CT-25L8G CT-25L8UG R512 ERJ6GEYJ222V RES M 2.2K-J-1/10W R514 ERJ6GEYJ392V RES M 3.9K-J-1/10W R515 ERDS2TJ101T RES C 100-J-1/4W R532 ERJ6ENF2202V RES M 22K-F-1/10W R533 ERJ6ENF1003V...
  • Page 17 Page 13 of 16 CT-20G8G CT-20G8SG CT-20L8G R822 ERDS1FJ1R0T RES C 1.0-J-1/2W CT-25L8G CT-25L8UG R822 ERDS1FJ1R5T RES C 1.5-J-1/2W CT-20G8G CT-20G8SG CT-20L8G R823 ERDS1FJ272T RES C 2.7K-J-1/2W R824 ERDS2TJ223T RES C 22K-J-1/4W R825 ERDS2TJ272T RES C 2.7K-J-1/4W R827 ERJ6GEYJ153V RES M 15K-J-1/10W...
  • Page 18 EVQPF106K SWITCH S008 EVQPF106K SWITCH S009 EVQPF106K SWITCH TRANSFORMERS T501 ETH19Y211AZ TRASMFORMER T551 TLF2AA004 TRANSFORMER FLYBACK CT-25L8G CT-25L8UG T551 ZTFN32501A TRANSFORMER FLYBACK CT-20G8G CT-20G8SG CT-20L8G T801 ETS29AS1N5NC TRANSFORMER CT-20G8G CT-20G8SG CT-20L8G T801 SRW35EC-U07V TRANSFORMER SWITCHING CT-25L8G CT-25L8UG T3001 TF0402B04P03 TRANSFORMER...
  • Page 19 IR GUIDE CT-20G8G CT-20G8SG CT-20L8G TKX2AA00403 IR GUIDE CT-25L8G CT-25L8UG TAS2AA0012 SPEAKER 16-OHM 1.5W TBM2A10141 BADGE PANASONIC CT-20G8G TBM2A10143 BADGE PANASONIC CT-20G8SG CT-20L8G CT-25L8G CT-25L8UG TBX2AA1303G BUTTON 7-KEY CT-25L8G CT-25L8UG TBX2AA1701GS BUTTON 7-KEY CT-20G8G TBX2AA1702G BUTTON 7-KEY CT-20L8G TBX2AA1702GS BUTTON 7-KEY...
  • Page 20 JK3002 TJB2AA0046 TERMINAL FRONT A/V JK3003 TJB2AA0171 TERMINAL S-VIDEO CT-20G8G CT-20G8SG OTHER ACCESSORIES M007 TQB2AA0452-1 OWNERS MANUAL CT-20G8G CT-20G8SG CT-20L8G M008 TQB2AA0461 OWNERS MANUAL CT-25L8G CT-25L8UG M009 EUR7713010 REMOTE CONTROL M010 UR77EC1303A BATTERY COVER REMOTE CONTROL TOP PREVIOUS http://tsn.pstc.panasonic.com/viewing/NA/CT-25L8G/SVC/s2002000000.html 5/19/2008...
