Summary of Contents for Beko DPY8500
-

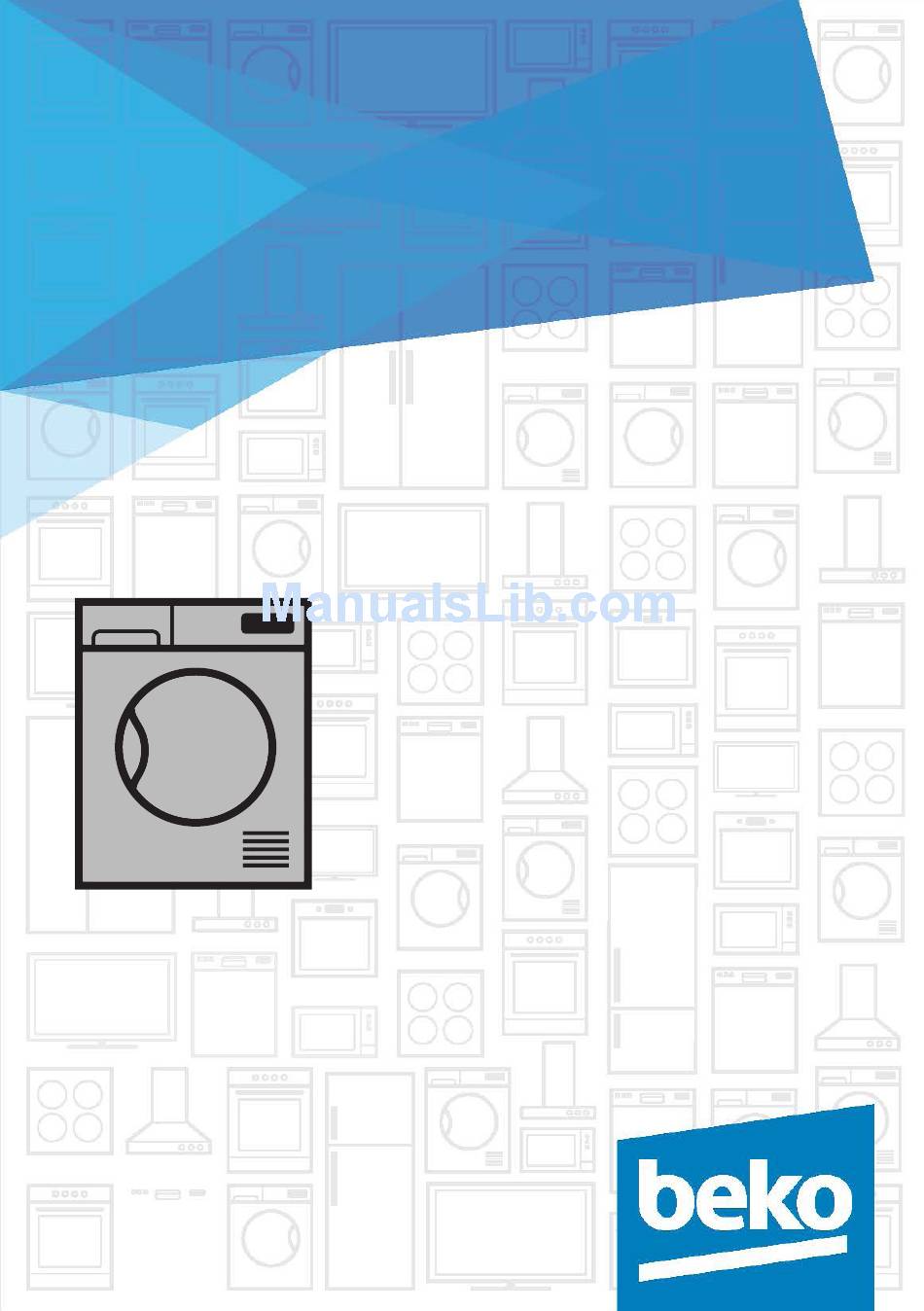

Page 1: User Manual
Dryer User Manual DPY8500 2960311255_EN/210316.0905... -
Page 2: Please Read This User Manual First
Please read this user manual first! Dear Customer, Thank you for prefering a Beko product. We hope that your product which has been manufac- tured with high quality and technology will give you the best results. We advise you to read through this manual and the other accompanying documentation carefully before using your product and keep it for future reference. -
Page 3: General Safety
Important safety and environmental instructions This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty. 1.1 General safety • Dryer can be used by the children at the age of 8 and over and the persons with physical, sensory or mental disorders or unlearned or inexperienced people as long as they are attended by a person who will be responsible for... -
Page 4: Important Instructions For Safety And Environment
Important instructions for safety and environment 1.1.1 Electrical safety Electrical safety instructions should be followed while electrical connection is made during the installation. • Connect the dryer to a grounded outlet protected by a fuse at the value specified on the type label. (See Overview) Have the grounding installation performed by a qualified electrician. -
Page 5: Product Safety
Important instructions for safety and environment 1.1.2 Product safety Points to be taken into consideration for fire hazard: Below specified laundry or items must not be dried in the dryer considering fire hazard. • Unwashed laundry items • Items soiled with oil, acetone, alcohol, fuel oil, kerosene, stain removers, turpentine, paraffin or paraffin removers must be washed in hot water with plenty of detergent before being dried in the... - Page 6 Important instructions for safety and environment Clothes that are washed inadequately may ignite on their own and even may ignite after drying ends. Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil.
- Page 7 Important instructions for safety and environment • Never attempt to repair the dryer by yourself. Do not perform any repair or replacement procedures on the product even if you know or have the ability to perform the required procedure unless it is clearly suggested in the operating instructions or the published service manual.
-
Page 8: Mounting Over A Washing Machine
Important instructions for safety and environment 1.2 Mounting over a washing machine • A fixing device should be used between the two machines when installing the dryer above a washing machine. The fitting device must be installed by the authorized service agent. -
Page 9: Intended Use
Important instructions for safety and environment 1.3 Intended use • Dryer has been designed for domestic use. It is not designed for commercial purposes and should not be used for other purposes. • Use the dryer only for drying laundry that are marked accordingly. -
Page 10: Compliance With The Weee Regulation And Disposing Of The Waste Product
Important instructions for safety and environment 1.5 Compliance with the WEEE regulation and disposing of the waste product This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. -
Page 11: Your Dryer
Your Dryer 2.1 Package Contents 1. Water drain hose * 2. Filter drawer spare sponge* 3. User Manual 4. Drying basket* 5. Drying basket user manual* *It can be supplied with your machine depending on its model. Dryer / User Manual 11 / EN... -
Page 12: Appropriate Installation Location
Installation Before the calling the nearest Authorized • The rear surface of the tumble dryer Service for the installation of the dryer, en- shall be placed against a wall. sure that electrical installation and water on the Do not place the dryer drain is appropriate referring to the user’s power cable. -
Page 13: Connecting To The Drain
Installation 3.3 Connecting to the drain 3.4 Adjusting the feet In products equipped with condenser unit, • In order to ensure that the dryer water accumulates in the water tank during operates more silently and vibration- the drying cycle. You should drain accumu- free, it must stand level and balanced lated water after each drying cycle. -
Page 14: Warnings About Sounds
Installation 3.7 Warnings about sounds It is normal to hear a metallic noise from the compressor some- times during operation. Water collected during operation is pumped to water tank. It is nor- mal to hear pumping noise during this process. 3.8 Changing the illumination lamp In case an illumination lamp is used in your... -
Page 15: Laundry Not Suitable For Drying In The Dryer
Preparation 4.1 Laundry suitable for drying in the dryer • Always obey the instructions given on the garment tags. Dry only the laundry having a label stating that they are suitable for drying in a dryer and make sure that you select the appropriate programme. -
Page 16: Correct Load Capacity
Preparation • Clean the lint filter before or after each Following weights are given as examples. drying cycle. (See 6.1 Cleaning Lint Approximate Laundry Filter / Loading Door Inner Surface) weights (g)* • Clean the filter periodically when there Cotton quilt covers is visible air collection on it or when 1500 (double) -
Page 17: Operating The Product
Operating the product 5.1 Control panel 1. Programme Selection knob 2. Dryness Level Adjustment button 3. Audio Warning Level button 4. Display 5. On /Off/Cancel button 6. Start/Pause button 7. End Time button 8. Favourite button 9. Timer Programmes Selection button 10. -
Page 18: Preparing The Machine
Operating the product 5.3 Preparing the machine 5.5 Main programmes Plug in your machine. Depending on the fabric type, the following Place the laundry in the machine. main programmes are available. • Cottons Press the On/Off/Cancel button for 1 second (long). Dry durable laundry with this programme. -
Page 19: Timer Programmes
Operating the product • Delicates The wool drying cycle of this You can dry your highly delicate laundry (silk machine has been approved by blouses, fine underwear, etc.) that are suit- The Woolmark Company for the able for drying, or laundry which is advised to drying of machine washable be hand-washed at a lower temperature. -
Page 20: Programme Selection And Consumption Table
Operating the product 5.7 Programme selection and consumption table Spin speed Approximate Capacity Drying time Programs in washing amount of remaining (kg) (minutes) machine (rpm) humidity Cottons / Coloreds Extra dry 1000 % 60 Cupboard dry 1000 % 60 Iron dry 1000 % 60 Night... -
Page 21: Auxiliary Functions
Operating the product 5.8 Auxiliary functions Dryness level adjustment selection Dryness level adjustment button is Audio Warning used to adjust the required dryness level. Programme duration can change depending The machine will give an audio warning on the selection. when the programme comes to an end. Use the Audio Warning Level button to adjust You can activate this function the sound level. - Page 22 Operating the product Anti-creasing Press Anti-creasing button to Anti-creasing programme duration may activate this function. be changed with the Anti-creasing selec- tion button. You can use Anti-creasing func- Anti-creasing symbol will tion to prevent laundry from creasing if you illuminate at the end of the will not take the laundry out after the pro- programme if Anti-creasing gram has come to an end.
-
Page 23: Warning Symbols
Operating the product 5.9 Warning symbols Press End Time button to set the desired time delay. Warning symbols may differ • Press Start/Pause button. Time Delaying according to the model of your starts countdown and the time delaying machine. symbol lights up on the display. The “:” in the middle of the displayed delay time Lint filter cleaning will flash. -
Page 24: Starting The Programme
Operating the product Loading door open • All buttons except the On/Off/Cancel and Child Lock button on the control This warning symbol Pause appears and pro- panel are deactivated when the Child gramme progress symbol flashes when the Lock is active. loading door of the dryer is open. -
Page 25: Canceling The Programme
Operating the product 5.15 End of programme Any laundry added after the When the programme comes to an end Lint drying process has started may filter cleaning and Water tank warning sym- cause the clothes that are already bols light up in the programme follow-up dried in the machine intermingle indicator. -
Page 26: Maintenance And Cleaning
Maintenance and cleaning Service life of product extends and frequent- ly experienced problems will be reduced if it is cleaned at regular intervals. 6.1 Cleaning Lint Filter / Loading Door Inner Surface Lint and fiber released from the laundry to the air during the drying cycle are collected in the Lint Filter. -
Page 27: Cleaning The Sensor
Maintenance and cleaning 6.2 Cleaning the sensor 6.3 Draining the water tank There are dampness sensors in the dryer Dampness of the laundry is removed and that detect whether the laundry is dry or not. condensed during drying process and the To clean the sensors: water that arise accumulates in the water •... -
Page 28: Cleaning The Filter Drawer
Maintenance and cleaning • Open the filter drawer by pressing the If the direct water draining is used red button. as an option, there is no need to empty the water tank. 6.4 Cleaning the filter drawer Lint and fiber that could not be captured by the lint filter are blocked in the filter drawer behind the kick plate. -
Page 29: Cleaning The Evaporator
Maintenance and cleaning 6.5 Cleaning the evaporator • Place the sponge back into its place. Clean the lint accumulated on the fins of the evaporator located behind the filter drawer with a vacuum cleaner. • Close the filter drawer as to lock the red button. -
Page 30: Troubleshooting
Troubleshooting Drying process takes too much time. • Pores of the lint filter are clogged. >>> Wash the lint filter with warm water. • Filter drawer is clogged. >>> Clean the sponge and the filter cloth in the filter drawer. •... - Page 31 Troubleshooting End symbol is on. • Programme is over. Turn off the dryer and take out the laundry. Lint Filter Cleaning symbol is on. • Lint filter is not cleaned. >>> Clean the lint filter. Lint Filter Cleaning symbol is flashing. •...
