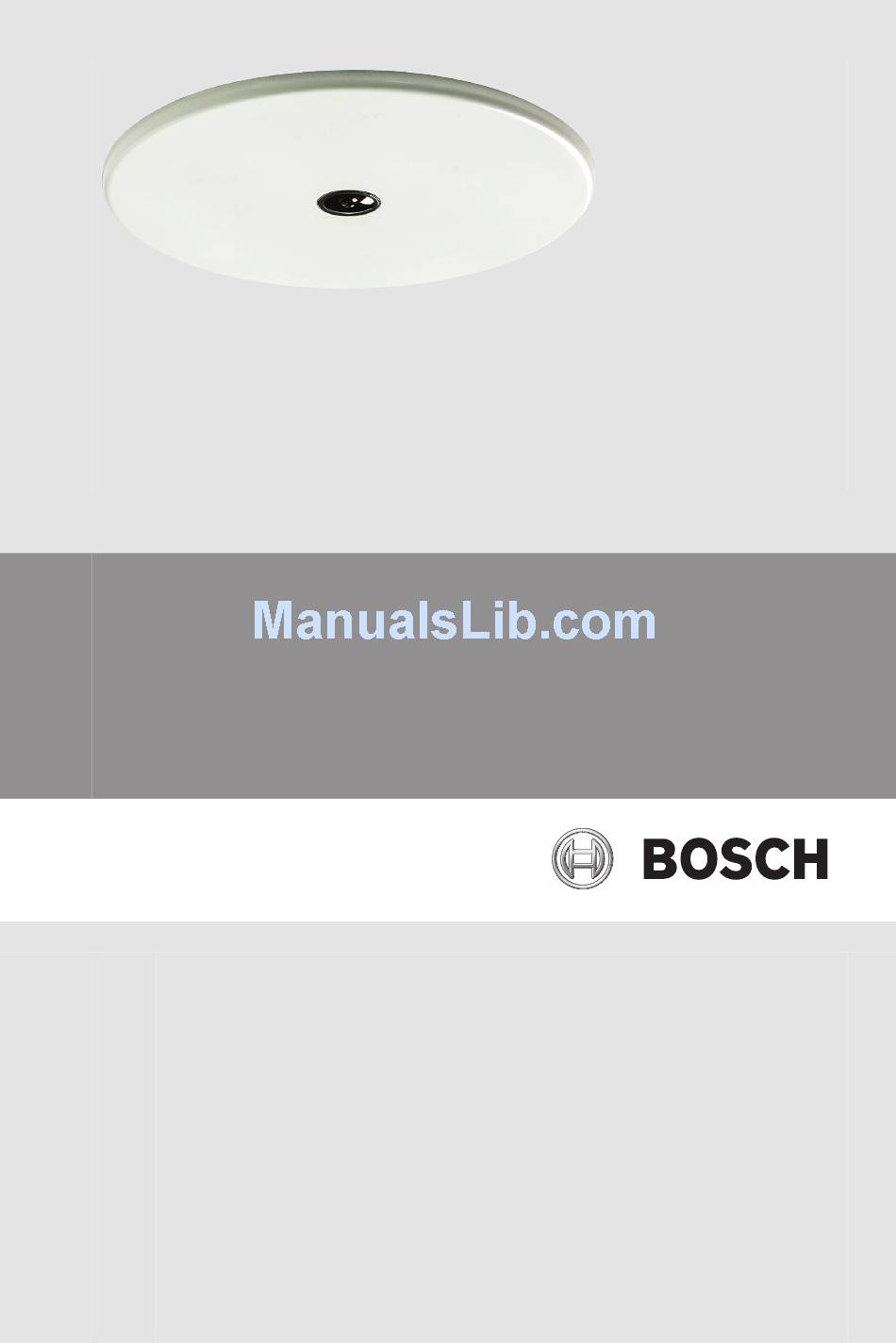

- Page 1 FLEXIDOME IP panoramic 6000/7000 IC NFN-60122 | NFN-70122 Installation Manual...
-
Page 3: Table Of Contents
Uninstalling the camera Connection Network (and PoE power) Configuration Browser connection 7.1.1 Establishing the connection 7.1.2 Protected network 7.1.3 Set-up with web browser Troubleshooting Resolving problems Testing the network connection Customer service Bosch Security Systems 2016.08 | v1.0 | AM18-Q0707... - Page 4 FLEXIDOME IP en | Table of Contents panoramic 6000/7000 IC Maintenance Cleaning 9.1.1 Lens cleaning Repair Reset Decommissioning 10.1 Transfer 10.2 Disposal Technical data 11.1 Specifications 11.2 Dimensions 2016.08 | v1.0 | AM18-Q0707 Bosch Security Systems...
-
Page 5: Safety
Safety precautions Caution! Installation should only be performed by qualified service personnel in accordance with the National Electrical Code (NEC 800 CEC Section 60) or applicable local codes. Bosch Security Systems 2016.08 | v1.0 | AM18-Q0707... -
Page 6: Important Safety Instructions
Install in accordance with the manufacturer's instructions in accordance with applicable local codes. Use only attachments/accessories specified by the manufacturer. 10. Protect all connection cables from possible damage, particularly at connection points. 2016.08 | v1.0 | AM18-Q0707 Bosch Security Systems... -
Page 7: Fcc And Ices Compliance
The user may find the following booklet, prepared by the Federal Communications Commission, helpful: How to Identify and Resolve Radio-TV Interference Problems. This booklet is available from the U.S. Government Printing Office, Washington, DC 20402, Stock No. 004-000-00345-4. Bosch Security Systems 2016.08 | v1.0 | AM18-Q0707... -
Page 8: Notices
Notice! Video loss is inherent to digital video recording; therefore, Bosch Security Systems cannot be held liable for any damage that results from missing video information. To minimize the risk of losing information, we recommend multiple, redundant recording systems, and a procedure to back up all analog and digital information. -
Page 9: Short Information
All hardware and software product names used in this document are likely to be registered trademarks and must be treated accordingly. More information For more information please contact the nearest Bosch Security Systems location or visit www.boschsecurity.com http://www.boschsecurity.com/catalog_overview.htm Bosch Security Systems... -
Page 10: System Overview
Refer to the software manual for more information on the browser interface. 2016.08 | v1.0 | AM18-Q0707 Bosch Security Systems... -
Page 11: Operation With External Systems
The camera recording and storage functions include local alarm recording and recording to iSCSI-based systems. The camera can also use the Bosch Video Recording Manager (VRM) to control recording and storage. Integration with the many Bosch recording solutions is seamless. -
Page 12: Larger Surveillance Systems
The Bosch Video Management System is a unique enterprise IP video surveillance solution that provides seamless management of digital video, audio and data across any IP network. It is designed to work with Bosch security products as part of a total video surveillance management system. Third-party integration Third-party integrators can easily access the internal feature set of the camera for integration into large projects. -
Page 13: Planning Information
Verify that all parts are included. If any items are missing, notify your Bosch Security Systems Sales or Customer Service Representative. The original packaging is the safest container in which to transport the unit and can be used if returning the unit for service. -
Page 14: System Requirements
Internet Explorer version 11 or later – or – Application software, for example, Video Security Client, Bosch Video Client or Bosch Video Management System. Notice! Megapixel cameras can generate high bitrate streams. Ensure that your network can handle high volume traffic and that you use a powerful, high performance computer. -
Page 15: Installation
To insert a memory card: Slide the memory card into the slot. Press it firmly until it latches into place in the slot (when removing the card, press it down firmly again until it unlatches). Bosch Security Systems 2016.08 | v1.0 | AM18-Q0707... -
Page 16: Painting The Cover Plate
To paint the cover plate: Use a non-scratch scour pad to improve the adhesion of the paint. Thoroughly clean the cover plate to remove dust particles. Spray the paint in a dust-free environment. 2016.08 | v1.0 | AM18-Q0707 Bosch Security Systems... -
Page 17: Mounting The Camera
The mounting holes are equally spaced around a diameter of 175 mm (6.89 in). Use a 6 mm (0.24 in) bit to drill the four mounting holes. Insert the supplied mounting plugs into the mounting holes. Bosch Security Systems 2016.08 | v1.0 | AM18-Q0707... - Page 18 Insert the Ethernet cable into the RJ45 connector at the back of the camera. Use the supplied screws and washers to securely mount the camera to the surface; if the surface is too thin, use appropriate bolts (not supplied). 2016.08 | v1.0 | AM18-Q0707 Bosch Security Systems...
- Page 19 FLEXIDOME IP Installation | en panoramic 6000/7000 IC To install the cover plate hold it against the camera body and rotate it clockwise until it clicks into place. Bosch Security Systems 2016.08 | v1.0 | AM18-Q0707...
-
Page 20: Uninstalling The Camera
Remove the cover plate Push a small object (for example, the 1.5 Allen key) into the opening (push straight, do not wobble). Turn the cover plate counterclockwise to disconnect it from the camera body. 2016.08 | v1.0 | AM18-Q0707 Bosch Security Systems... - Page 21 FLEXIDOME IP Installation | en panoramic 6000/7000 IC Remove the camera Unscrew the four screws and pull the camera away from the surface. Disconnect the Ethernet cable and remove the camera. Bosch Security Systems 2016.08 | v1.0 | AM18-Q0707...
-
Page 22: Connection
Use STP Category 5e cable with RJ45 connectors (the camera network socket is Auto MDIX compliant). – Power is supplied to the camera via the Ethernet cable compliant with the Power-over-Ethernet standard. Notice! Use only PoE approved devices. 2016.08 | v1.0 | AM18-Q0707 Bosch Security Systems... -
Page 23: Configuration
IP Helper The IP Helper tool is a free PC application that makes it easy to detect Bosch cameras and devices on your network. 7.1.2 Protected network If a RADIUS server is used for network access control (802.1x authentication), the unit must be configured first. -
Page 24: Set-Up With Web Browser
Select the installation parameters as required. If required, configure the parameters in other menus to suit your working environment (for example, ID, passwords, date and time). Refer to the operation manuals of the software for more information. 2016.08 | v1.0 | AM18-Q0707 Bosch Security Systems... -
Page 25: Troubleshooting
Faulty data Check the data transmission within transmission with the LAN. ping. The maximum Wait until there is a number of free connection and connections has call the transmitter been reached. again. Bosch Security Systems 2016.08 | v1.0 | AM18-Q0707... - Page 26 /main.htmin your Web browser and repeat the upload. Web browser Active proxy server in Create a rule in the contains empty network. local computer's fields. proxy settings to exclude local IP addresses. 2016.08 | v1.0 | AM18-Q0707 Bosch Security Systems...
-
Page 27: Testing The Network Connection
Check the IP address, subnet mask, and gateway address. Customer service If a fault cannot be resolved, please contact your supplier or system integrator, or go directly to Bosch Security Systems Customer Service. The version numbers of the internal firmware can be viewed on a service page. -
Page 28: Maintenance
Repair Notice! Never open the casing of the unit The unit does not contain any user-serviceable parts. Refer all repairs to suitable qualified specialists. 2016.08 | v1.0 | AM18-Q0707 Bosch Security Systems... -
Page 29: Reset
Any changes to the settings are overwritten by the factory defaults. A reset may be necessary, for example, if the unit has invalid settings that prevent it from functioning as desired. Bosch Security Systems 2016.08 | v1.0 | AM18-Q0707... -
Page 30: Decommissioning
The unit should only be passed on together with this installation guide. 10.2 Disposal Disposal - Your Bosch product was developed and manufactured with high-quality material and components that can be recycled and reused. This symbol means that electronic and electrical appliances, which have reached the end of their working life, must be collected and disposed of separately from household waste material. -
Page 31: Technical Data
Video performance – Sensitivity – 360° lens (3100K, reflectivity 89%, F2.8, 30IRE) Color 0.55 lx Mono 0.18 lx Video performance – Sensitivity – 180° lens (3100K, reflectivity 89%, F2.8, 30IRE) Color 0.46 lx Mono 0.15 lx Bosch Security Systems 2016.08 | v1.0 | AM18-Q0707... - Page 32 Video resolution (H x V) – 360° version Video 1 channel Full image circle 2640 x 2640 Video 2 channel Full panoramic 3584 x 504 E-PTZ 1536 x 864 Quad 1536 x 864 Panoramic 2688 x 800 2016.08 | v1.0 | AM18-Q0707 Bosch Security Systems...
- Page 33 (BLC) Contrast On/off enhancement Noise reduction Intelligent Dynamic Noise Reduction with separate temporal and spatial adjustments Intelligent defog Intelligent Defog automatically adjusts parameters for best picture in foggy or misty scenes (switchable) Bosch Security Systems 2016.08 | v1.0 | AM18-Q0707...
- Page 34 Fixed iris Field of view (180° 180° (H) x 93° (V) version) Field of view (360° 180° (H) x 180° (V) version) Minimum object 0.1 m distance Day/Night Switched mechanical IR filter 2016.08 | v1.0 | AM18-Q0707 Bosch Security Systems...
- Page 35 Via web browser or Configuration Manager Firmware update Remotely programmable Software viewing Web browser; Video Security Client; Video Security App; Bosch Video Management System; Bosch Video Client; or third party software Latest firmware and http:// software downloadstore.boschsecurity.com/ Bosch Security Systems...
- Page 36 Ø195 x 7 mm (7.68 x 0.28 in) profile Weight 761 g (1.68 lb) Environmental Operating -20°C to +40°C (-4°F to 104°F) Temperature Storage -20°C to +60°C (-4°F to 140°F) Temperature Operating humidity 20% to 93% RH 2016.08 | v1.0 | AM18-Q0707 Bosch Security Systems...
-
Page 37: Dimensions
FLEXIDOME IP Technical data | en panoramic 6000/7000 IC Environmental Storage humidity up to 98% RH Vandal resistance IK06 (Lens: IK04) 11.2 Dimensions Ø 159.2 (6.3) Ø 194.6 (7.7) mm (in) Bosch Security Systems 2016.08 | v1.0 | AM18-Q0707... - Page 40 Bosch Security Systems B.V. Torenallee 49 5617 BA Eindhoven Netherlands www.boschsecurity.com © Bosch Security Systems B.V., 2016...
