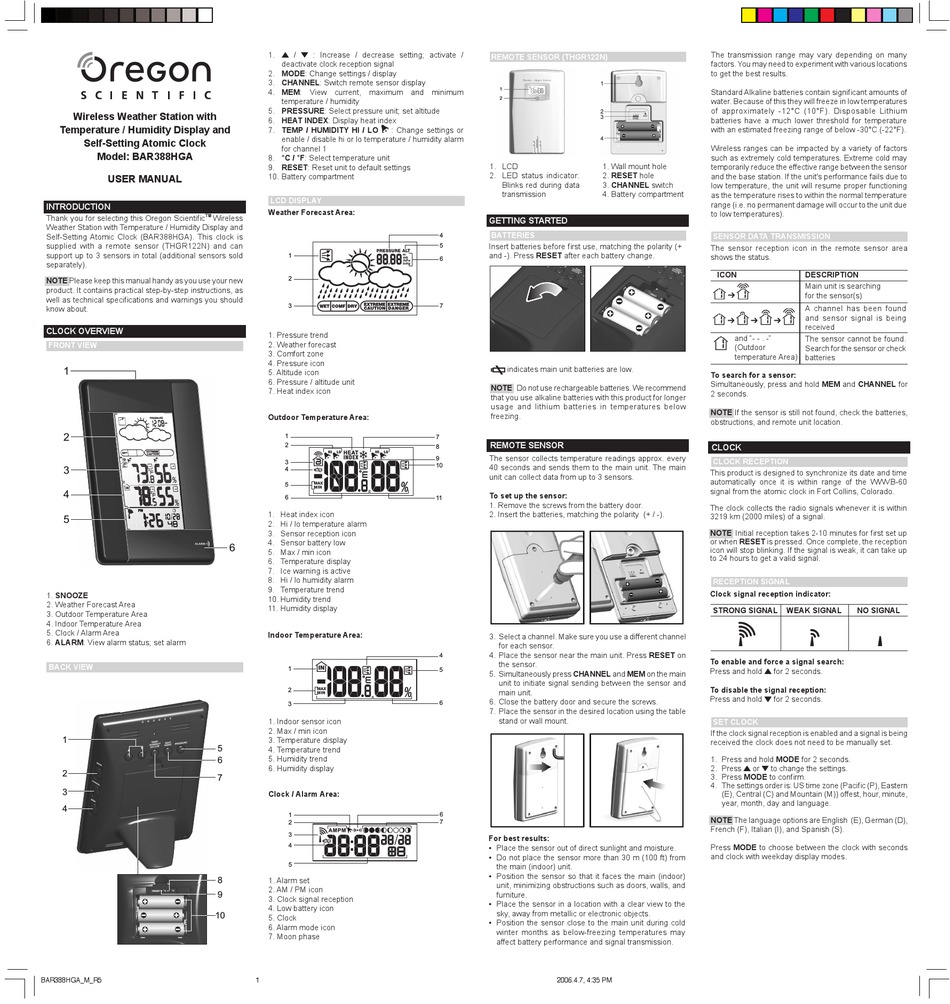

Oregon Scientific BAR388HGA User Manual

Wireless Weather Station with
Temperature / Humidity Display and
Self-Setting Atomic Clock
Model: BAR388HGA
USER MANUAL
INTRODUCTION
Thank you for selecting this Oregon Scientific TM Wireless
Weather Station with Temperature / Humidity Display and
Self-Setting Atomic Clock (BAR388HGA). This clock is
supplied with a remote sensor (THGR122N) and can
support up to 3 sensors in total (additional sensors sold
separately).
NOTE Please keep this manual handy as you use your new
product. It contains practical step-by-step instructions, as
well as technical specifications and warnings you should
know about.
CLOCK OVERVIEW
FRONT VIEW
�
�
�
�
�
1. SNOOZE
2. Weather Forecast Area
3. Outdoor Temperature Area
4. Indoor Temperature Area
5. Clock / Alarm Area
6. ALARM: View alarm status; set alarm
BACK VIEW
�
�
�
�
�
�
�
�
�
��
BAR388HGA_M_R5
1. / : Increase / decrease setting; activate /
deactivate clock reception signal
2. MODE: Change settings / display
3. CHANNEL: Switch remote sensor display
4. MEM: View current, maximum and minimum
temperature / humidity
5. PRESSURE: Select pressure unit; set altitude
6. HEAT INDEX: Display heat index
7. TEMP / HUMIDITY HI / LO : Change settings or
enable / disable hi or lo temperature / humidity alarm
for channel 1
8. °C / °F: Select temperature unit
9. RESET: Reset unit to default settings
10. Battery compartment
LCD DISPLAY
Weather Forecast Area:
�
�
�
1. Pressure trend
2. Weather forecast
3. Comfort zone
4. Pressure icon
5. Altitude icon
6. Pressure / altitude unit
7. Heat index icon
Outdoor Temperature Area:
�
�
�
�
�
�
1. Heat index icon
2. Hi / lo temperature alarm
3. Sensor reception icon
4. Sensor battery low
�
5. Max / min icon
6. Temperature display
7. Ice warning is active
8. Hi / lo humidity alarm
9. Temperature trend
10. Humidity trend
11. Humidity display
Indoor Temperature Area:
�
�
�
1. Indoor sensor icon
2. Max / min icon
3. Temperature display
4. Temperature trend
5. Humidity trend
6. Humidity display
Clock / Alarm Area:
�
�
�
�
�
1. Alarm set
2. AM / PM icon
3. Clock signal reception
4. Low battery icon
5. Clock
6. Alarm mode icon
7. Moon phase
1
REMOTE SENSOR (THGR122N)
�
�
1. LCD 1. Wall mount hole
2. LED status indicator: 2. RESET hole
Blinks red during data 3. CHANNEL switch
transmission 4. Battery compartment
GETTING STARTED
BATTERIES
�
Insert batteries before first use, matching the polarity (+
�
and -). Press RESET after each battery change.
�
�
indicates main unit batteries are low.
NOTE Do not use rechargeable batteries. We recommend
that you use alkaline batteries with this product for longer
usage and lithium batteries in temperatures below
freezing.
�
REMOTE SENSOR
�
The sensor collects temperature readings approx. every
�
��
40 seconds and sends them to the main unit. The main
unit can collect data from up to 3 sensors.
To set up the sensor:
��
1. Remove the screws from the battery door.
2. Insert the batteries, matching the polarity (+ / -).
3. Select a channel. Make sure you use a different channel
for each sensor.
4. Place the sensor near the main unit. Press RESET on
�
the sensor.
�
5. Simultaneously press CHANNEL and MEM on the main
unit to initiate signal sending between the sensor and
main unit.
6. Close the battery door and secure the screws.
�
7. Place the sensor in the desired location using the table
stand or wall mount.
�
�
For best results:
• Place the sensor out of direct sunlight and moisture.
• Do not place the sensor more than 30 m (100 ft) from
the main (indoor) unit.
• Position the sensor so that it faces the main (indoor)
unit, minimizing obstructions such as doors, walls, and
furniture.
• Place the sensor in a location with a clear view to the
sky, away from metallic or electronic objects.
• Position the sensor close to the main unit during cold
winter months as below-freezing temperatures may
affect battery performance and signal transmission.
2006.4.7, 4:35 PM
The transmission range may vary depending on many
factors. You may need to experiment with various locations
to get the best results.
Standard Alkaline batteries contain significant amounts of
water. Because of this they will freeze in low temperatures
of approximately -12°C (10°F). Disposable Lithium
batteries have a much lower threshold for temperature
with an estimated freezing range of below -30°C (-22°F).
Wireless ranges can be impacted by a variety of factors
such as extremely cold temperatures. Extreme cold may
temporarily reduce the effective range between the sensor
and the base station. If the unit's performance fails due to
low temperature, the unit will resume proper functioning
as the temperature rises to within the normal temperature
range (i.e. no permanent damage will occur to the unit due
to low temperatures).
SENSOR DATA TRANSMISSION
The sensor reception icon in the remote sensor area
shows the status.
ICON DESCRIPTION
Main unit is searching
for the sensor(s)
A channel has been found
and sensor signal is being
received
and "- - . -"
The sensor cannot be found.
(Outdoor
Search for the sensor or check
temperature Area)
batteries
To search for a sensor:
Simultaneously, press and hold MEM and CHANNEL for
2 seconds.
NOTE If the sensor is still not found, check the batteries,
obstructions, and remote unit location.
CLOCK
CLOCK RECEPTION
This product is designed to synchronize its date and time
automatically once it is within range of the WWVB-60
signal from the atomic clock in Fort Collins, Colorado.
The clock collects the radio signals whenever it is within
3219 km (2000 miles) of a signal.
NOTE Initial reception takes 2-10 minutes for first set up
or when RESET is pressed. Once complete, the reception
icon will stop blinking. If the signal is weak, it can take up
to 24 hours to get a valid signal.
RECEPTION SIGNAL
Clock signal reception indicator:
STRONG SIGNAL WEAK SIGNAL NO SIGNAL
To enable and force a signal search:
Press and hold for 2 seconds.
To disable the signal reception:
Press and hold for 2 seconds.
SET CLOCK
If the clock signal reception is enabled and a signal is being
received the clock does not need to be manually set.
1. Press and hold MODE for 2 seconds.
2. Press or to change the settings.
3. Press MODE to confirm.
4. The settings order is: US time zone (Pacific (P), Eastern
(E), Central (C) and Mountain (M)) offest, hour, minute,
year, month, day and language.
NOTE The language options are English (E), German (D),
French (F), Italian (I), and Spanish (S).
Press MODE to choose between the clock with seconds
and clock with weekday display modes.
