Konftel 55Wx Quick Reference Guide

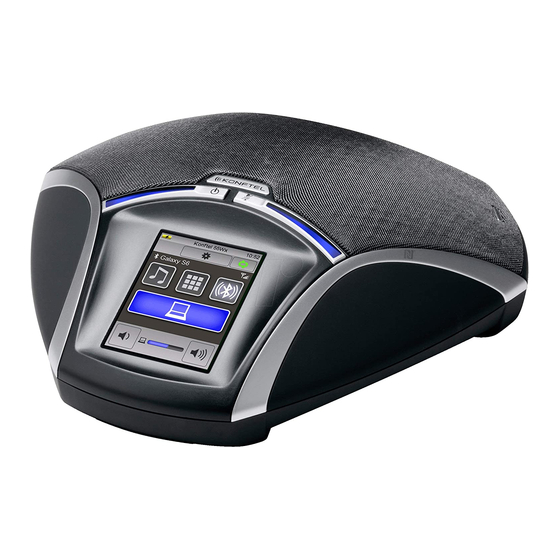

The Konftel 55Wx is a conference unit that can be connected to your desktop phone, mobile

phone and computer. It transforms your communication tools into conference phones using

Konftel's unique audio technology, OmniSound

On / Off (long press)

LEDS

Flashing blue

Steady blue light

Steady red light

Flashing red

Incoming call via Bluetooth

Sound channel on / call in progress

Mute, microphone off

Hold, microphone and speaker turned off

ENGLISH

Mute (microphone off / speaker off)

NFC symbol

Touch screen

Page 1 ENGLISH Konftel 55Wx Quick Reference Guide The Konftel 55Wx is a conference unit that can be connected to your desktop phone, mobile phone and computer. It transforms your communication tools into conference phones using Konftel’s unique audio technology, OmniSound ®...
Page 2 DESCRIPTION The Konftel 55Wx automatically detects the connections you make. When you connect a mobile phone, the screen displays a button for activating the audio stream from the mobile. When you insert an SD card, a button to record onto the card is displayed. A lit button indicates that the feature is active.
Page 3: Making Calls
Connection to a desktop phone Cable connection to a mobile phone   Connect the phone to the Konftel 55Wx Connect the mobile phone to the using a phone adapter (accessory). Konftel 55Wx. (You will need an acces- sory cable for your phone.) button is displayed on the Konftel 55Wx.
Page 4 Using the Konftel with a computer and connected.  Press the button on the Konftel Pairing and connection without NFC 55Wx if it is not already lit up blue.  Press the key on the Konftel 55Wx.  Connect the call to the computer using,...
Page 5 Konftel 55Wx. The Konftel 55Wx music mode is usually activated when a mobile phone or computer uses a music app to play audio.
