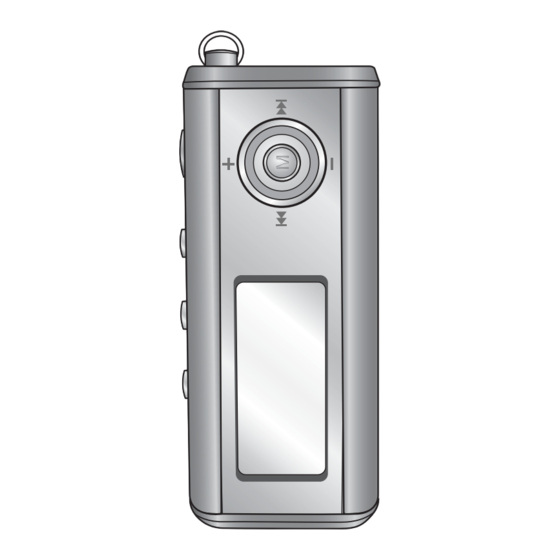

- Page 1 Model : YP-T5H(128MB) YP-T5V(256MB) YP-T5X(512MB) YP-520H/HP/HW YP-520V/VL/VP YP-520X/XC SERVICE Manual PORTABLE DIGITAL AUDIO PLAYER CONTENTS 1. Exploded Views and Parts List 2. Electrical Parts List 3. Block Diagrams 4. Schematic Diagrams - Confidential -...
- Page 2 ELECTRONICS © Samsung Electronics Co.,Ltd. APR.2004 Printed in Korea Code no. AH68-01427L...
- Page 3 1.Exploded Views and Parts List 1-1. Total Exploded View and Parts List Samsung Electronics...
- Page 4 KNOB-FUNC DOWN ABS Cr PLATING AH63-00721A COVER-WINDOW AL 0.5t YP-T5 H(HONGKONG) AH63-00721B COVER-WINDOW AL 0.5t YP-T5 H1(ALL AREA- Except for HONGKONG) AH64-03017A WINDOW-LCD ACRYL 0.8t YP-T5 V(ALL AREA),YP-520 H,V,X(CHINA) AH64-03017B WINDOW-LCD_AL ACRYL 1.5t YP-T5 H(ALL AREA- Except for CHINA) Samsung Electronics...
- Page 5 YP-520 H, V(CHINA) AH63-00722B COVER-USB WHITE YP-T5 H(ALL AREA),YP-520 H(CHINA) AH63-00722D COVER-USB BLUE YP-T5 V(USA,CANADA,EUROPE,RUSSIA) AH63-00722C COVER-USB BLACK YP-T5 V(HONGKONG,CHINA),YP-520 V, X(CHINA) AH97-01301A ASSY-LCD AH07-00133A 128048 AH61-01609A HOLDER-LCD AH63-00741A SHEET-LIGHT MIRROR SHEET 0.15t AH64-02995A KNOB-JOG ABS Cr PLATING Samsung Electronics...
- Page 6 FLASH MEMORY K9W4G08U0M YP-T5 X,YP-520 X(ALL AREA) AH61-01629A SPRING-BATTERY SWPB PI0.5 PLATING AH61-01612A BRKT-SPRING PLATING 0.2t AH63-00742A SHEET-HOLD PC 0.1t 6001-001632 SCREW-MACHINE M1.7 L2.5 Ni COATING AH97-01313A ASSY-CASE_BOTTOM PC BLK AH63-00715A CASE-BOTTOM PC BLK AH61-01633A BRKT-B SECC 0.5t Samsung Electronics...
- Page 7 * Accessories-1 (USA, CANADA) 1. I / B (USER MANUAL) 2. CD - INSTALL 3. BATTERY-ALKALINE 4. CABLE - USB 5. CABLE-LINE IN 6. USB-ADAPTER 7. EARPHONE 8. CARRYING CASE 9. NECK STRAP Samsung Electronics...
- Page 8 * Accessories-2 (HONGKONG, TAIWAN) 1. I / B (USER MANUAL) 2. CD - INSTALL 3. BATTERY-ALKALINE 4. CABLE - USB 5. CABLE-LINE IN 6. USB-ADAPTER 7. EARPHONE 8. CARRYING CASE 9. NECK STRAP Samsung Electronics...
- Page 9 * Accessories-3 (EUROPE, RUSSIA) 1. I / B (USER MANUAL) 2. CD - INSTALL 3. BATTERY-ALKALINE 4. CABLE - USB 5. CABLE-LINE IN 6. USB-ADAPTER 7. EARPHONE 8. CARRYING CASE 9. NECK STRAP Samsung Electronics...
- Page 10 * Accessories-4 (CHINA) 1. I / B (USER MANUAL) 2. CD - INSTALL 3. CABLE - USB 4. CABLE-LINE IN 5. USB-ADAPTER 6. EARPHONE 7. CARRYING CASE 8. NECK STRAP Samsung Electronics...
- Page 11 TANTAL CAP 100UF,20%,6.3V,WT,TP,3528 2007-000148 R-CHIP 10Kohm,5%,1/16W,DA,TP,1005 2007-000148 R-CHIP 10Kohm,5%,1/16W,DA,TP,1005 2007-000148 R-CHIP 10Kohm,5%,1/16W,DA,TP,1005 2007-000148 R-CHIP 10Kohm,5%,1/16W,DA,TP,1005 2007-000148 R-CHIP 10Kohm,5%,1/16W,DA,TP,1005 2007-000148 R-CHIP 10Kohm,5%,1/16W,DA,TP,1005 2007-000148 R-CHIP 10Kohm,5%,1/16W,DA,TP,1005 2007-000157 R-CHIP 47Kohm,5%,1/16W,DA,TP,1005 2007-000157 R-CHIP 47Kohm,5%,1/16W,DA,TP,1005 2007-000157 R-CHIP 47Kohm,5%,1/16W,DA,TP,1005 2007-000157 R-CHIP 47Kohm,5%,1/16W,DA,TP,1005 2007-000157 R-CHIP 47Kohm,5%,1/16W,DA,TP,1005 Samsung Electronics...
- Page 12 R-CHIP 10Kohm,5%,1/16W,DA,TP,1005 2007-000157 R-CHIP 47Kohm,5%,1/16W,DA,TP,1005 2007-000157 R-CHIP 47Kohm,5%,1/16W,DA,TP,1005 2007-000157 R-CHIP 47Kohm,5%,1/16W,DA,TP,1005 2007-000157 R-CHIP 47Kohm,5%,1/16W,DA,TP,1005 2007-000157 R-CHIP 47Kohm,5%,1/16W,DA,TP,1005 2007-000157 R-CHIP 47Kohm,5%,1/16W,DA,TP,1005 2007-000157 R-CHIP 47Kohm,5%,1/16W,DA,TP,1005 2007-000157 R-CHIP 47Kohm,5%,1/16W,DA,TP,1005 2007-000157 R-CHIP 47Kohm,5%,1/16W,DA,TP,1005 2007-000157 R-CHIP 47Kohm,5%,1/16W,DA,TP,1005 2007-000157 R-CHIP 47Kohm,5%,1/16W,DA,TP,1005 2007-000157 R-CHIP 47Kohm,5%,1/16W,DA,TP,1005 Samsung Electronics...
- Page 13 R-CHIP 47Kohm,5%,1/16W,DA,TP,1005 2007-000157 R-CHIP 47Kohm,5%,1/16W,DA,TP,1005 2007-000157 R-CHIP 47Kohm,5%,1/16W,DA,TP,1005 2007-000157 R-CHIP 47Kohm,5%,1/16W,DA,TP,1005 2007-000157 R-CHIP 47Kohm,5%,1/16W,DA,TP,1005 2007-000157 R-CHIP 47Kohm,5%,1/16W,DA,TP,1005 2007-000157 R-CHIP 47Kohm,5%,1/16W,DA,TP,1005 2007-000157 R-CHIP 47Kohm,5%,1/16W,DA,TP,1005 2007-000157 R-CHIP 47Kohm,5%,1/16W,DA,TP,1005 2007-000157 R-CHIP 47Kohm,5%,1/16W,DA,TP,1005 2007-000157 R-CHIP 47Kohm,5%,1/16W,DA,TP,1005 2007-000157 R-CHIP 47Kohm,5%,1/16W,DA,TP,1005 2007-000157 R-CHIP 47Kohm,5%,1/16W,DA,TP,1005 Samsung Electronics...
- Page 14 3. Block Diagram Samsung Electronics...
- Page 15 - This Document can not be used without Samsung’s authorization - 4. Schematic Diagram 4-1 Main Samsung Electronics...
- Page 16 * Appendix: PCB Diagram VIEW BOTT TTOM VIEW VIEW VIEW Samsung Electronics...
