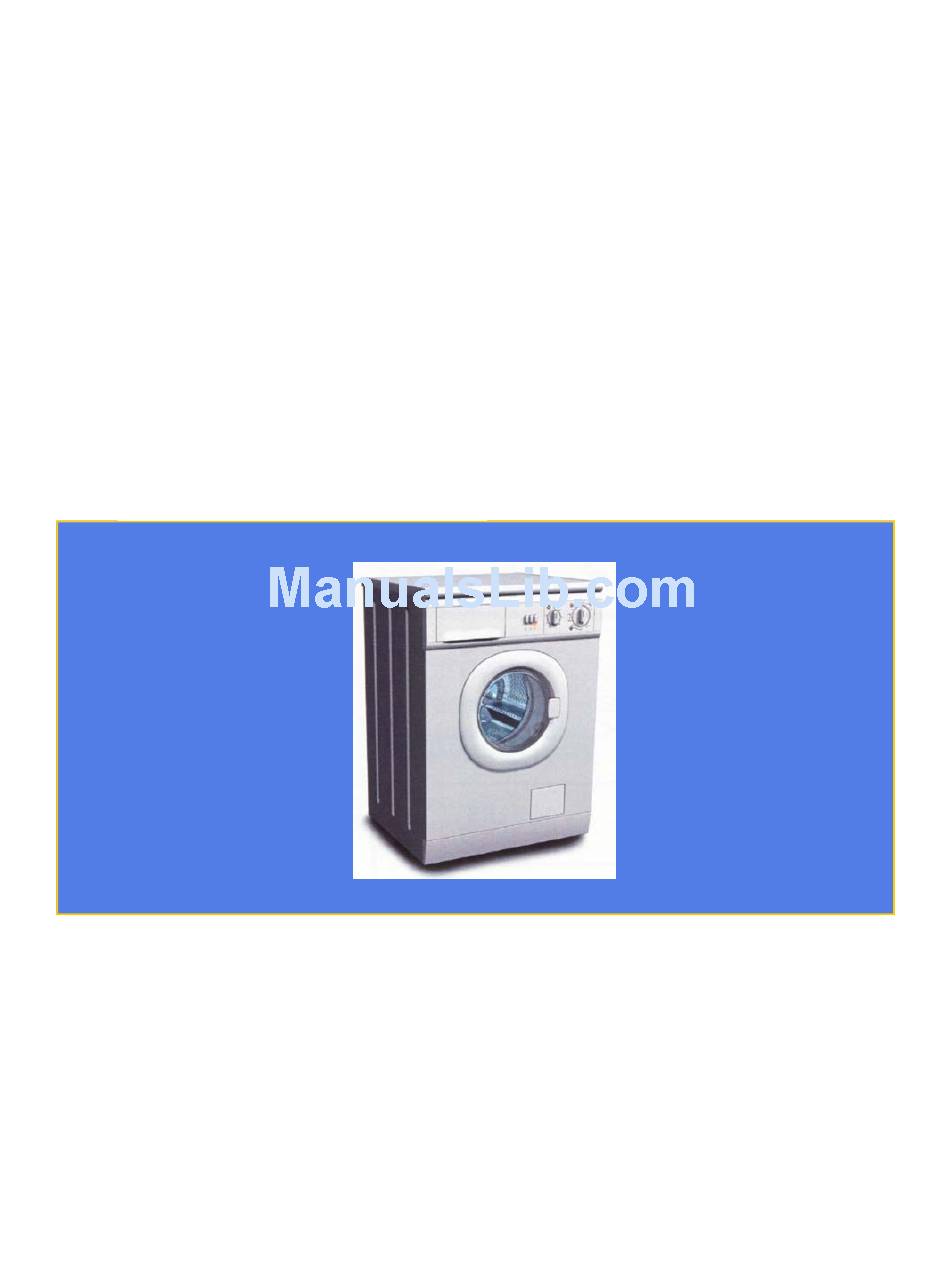

- Page 1 THOR WASHER/DRYER INSTALLATION GUIDE MODEL: WD-9900...
-
Page 2: Unpacking The Machine
Unpacking the Machine Summary The Thor Combination Washer/ Dryer must be unpacked prior to installation. All packaging should be removed from the machine. Two water supply hoses with brass pressure reducers, a drain hose U- bracket, a wrench, and three plastic inserts will be located in a bag inside the drum. - Page 3 Locations of Shipping Bolts Unscrew the three shipping bolts on the back of the machine using the wrench provided or a 13 mm socket. Once the bolts are unscrewed Cover the holes left by the bolts fully they can be removed from with the plastic inserts located the machine.
- Page 4 Connecting Water Supply and Drain Summary The machine should be located within easy reach of the water supply, the drain pipe, and an electrical outlet The water supply should be connected once the machine is in the correct location, followed by the drain hose. Drain hose should be secure.
- Page 5 With Adaptor Attach both inlet hoses to the Attach both hoses to the water machine. The red end MUST supply. Be sure that the be attached to the machine, as correct hose is on the correct it has metric threading. inlet valve.
- Page 6 Leveling the Machine and Finishing Up Summary: The QuietLine washer/dryer should be installed on a level surface that is well supported to prevent vibration. Preferably the machine should be installed on a solid and level floor surface. The machine must be leveled properly before operation.
- Page 7 Hand tighten the locknuts Using the leveling leg wrench, against the base of the firmly secure the locknuts to machine. prevent the legs from slipping. Once the machine is level plug Turn it on/off using the button into electrical outlet. located in the center of the panel.
- Page 8 FOR TECHNICAL SERVICE, HELP, OR QUESTIONS ABOUT INSTALLING OR INITIAL OPERATION OF YOUR THOR COMBINATION WASHER/DRYER PLEASE CALL 888-876-8002 www.OasisAppliance.com...
