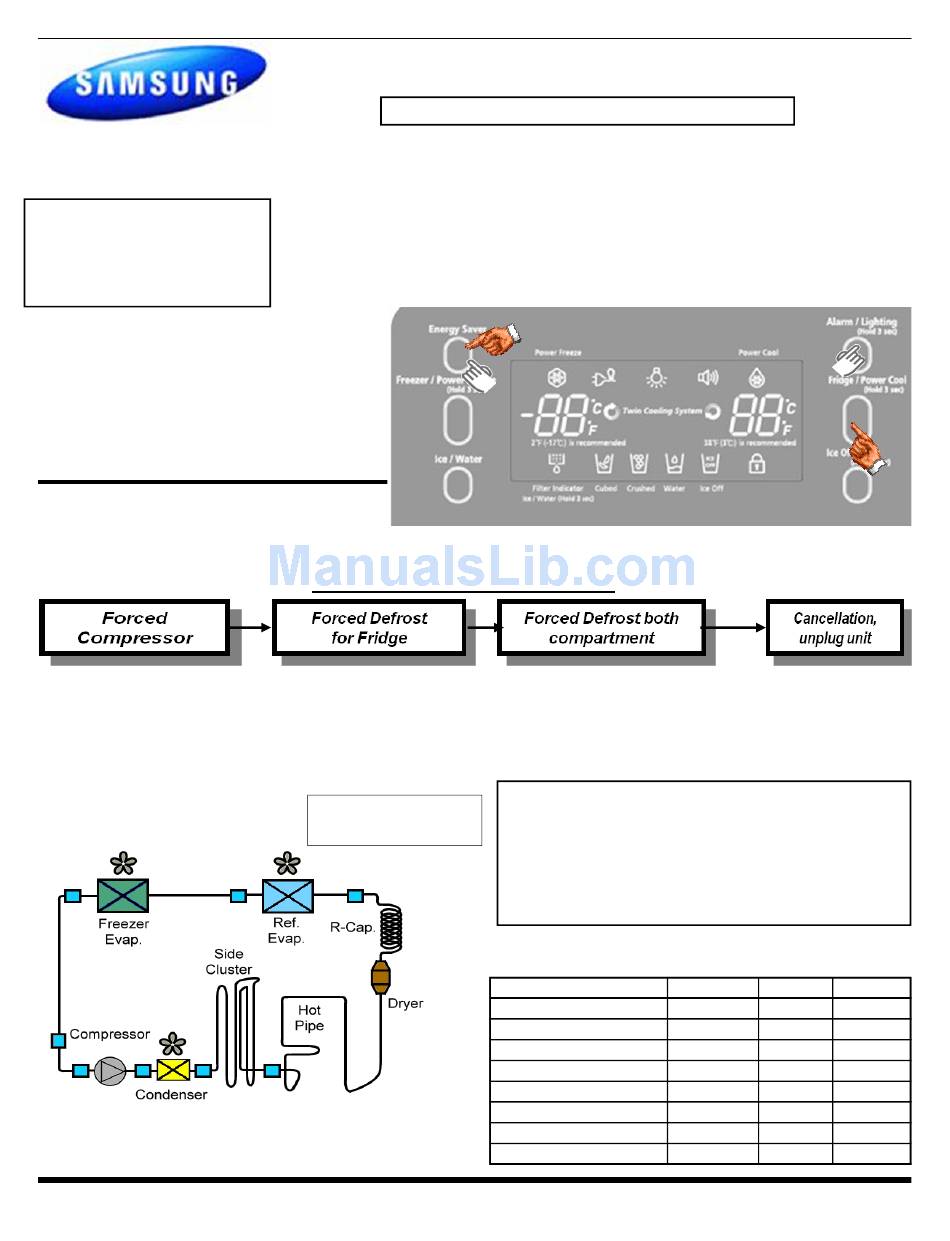

Samsung RF267AA SERIES Fast Track Troubleshooting

1
Models Covered:
RF267AA**/XAA
French Door Refrigeration
NOTICE:
RF267AA** 01/09
Parts Change: Refer to bulletin.
All Water Tank Parts & Door
Dispenser Ass'y Parts
Self Diagnosis: Press both buttons
(Energy Saver– Alarm) simultaneously (No
sound when both buttons are pressed at
the same time) 'til the display quits blink-
ing and beeps, 8-12 seconds, then release
and read Fault Codes.
This will also cancel the Fault Mode cre-
ated by self-diagnosis at power up.
Forced Mode: Press both buttons (Energy
Saver– Fridge) simultaneously (No sound
when both buttons are pressed at the same
time) 'til it beeps and goes blank, 8-12 seconds
Press Freezer button one
time at the Test Mode to
Force Compressor Run,
measure fan and com-
pressor voltages at main
PCB
Sealed System
Compressor → Condenser →Side Cluster → Hot Pipe→
Dryer → R Capillary → R Evaporator → F Evaporator →
Suction Pipe → Compressor
Fast Track Troubleshooting
Publication # tsRF267AA Creation Date 08/12/2010
IMPORTANT SAFETY NOTICE – "For Technicians Only" This service data sheet is
intended for use by persons having electrical, electronic, and mechanical experience
and knowledge at a level generally considered acceptable in the appliance repair trade.
Any attempt to repair a major appliance may result in personal injury and property
damage. The manufacturer or seller cannot be responsible, nor assume any liability for
injury or damage of any kind arising from the use of this data sheet.
Wait 5 seconds between button pushes
Press Freezer button a
second time to Force
Defrost of Fridge, meas-
ure defrost voltage at
main PCB
Refrigerant Charge
R134a 5.64 oz.
Press Freezer button a
third time to Force Defrost
for Fridge & Freezer,
measure defrost voltages
at main PCB

Sales Mode, No Compressor Operation

Press Energy Saver & Freezer temp buttons
simultaneously for 3 sec ( you will hear a "Ding
Dong") to remove or put into Sales Mode. When in
the Sales Mode the Display will show "OF" "OF"
Removing power will not cancel this mode.

Component Value Chart

Component Resistance Wattage Voltage
Freezer Defrost Heater
Fridge Defrost Heater
French Mullion Heater
Ice Duct Heater
Dispenser Heater
Water Tank Heater
Sensors 2.5kΩ-89kΩ
Fans
60Ω 240 120vac
120Ω 120 120vac
1800Ω 8 120vac
3600Ω 4 120vac
7200Ω 2 120vac
72Ω 2 12vdc
N/A 1~4.5vdc
N/A N/A 7~12vdc
