Toro 30284 Operator's Manual

Commercial walk-behind mower floating deck, pistol grip, hydro with 36in, 40in, 48in or 52in turbo force cutting unit
Hide thumbs Also See for 30284:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operator's Manual

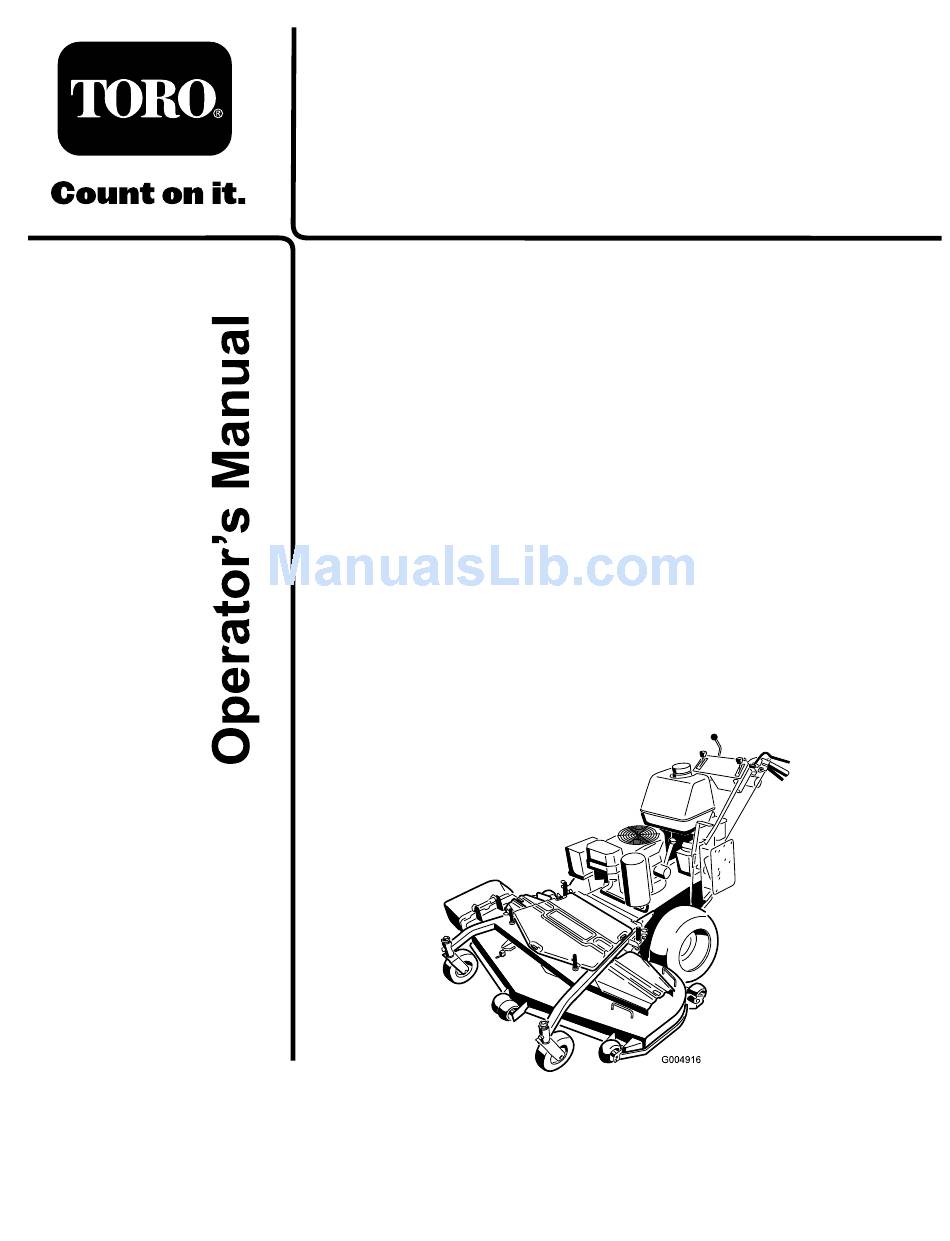

Form No. 3359-497 Rev A
Commercial Walk-Behind Mower
Floating Deck, Pistol Grip, Hydro with 36in,
40in, 48in or 52in TURBO FORCE
®
Cutting
Unit
Model No. 30284—Serial No. 280000001 and Up
Model No. 30286—Serial No. 280000001 and Up
Model No. 30288—Serial No. 280000001 and Up
Model No. 30289—Serial No. 280000001 and Up
Register at www.Toro.com.
Original Instructions (EN)
