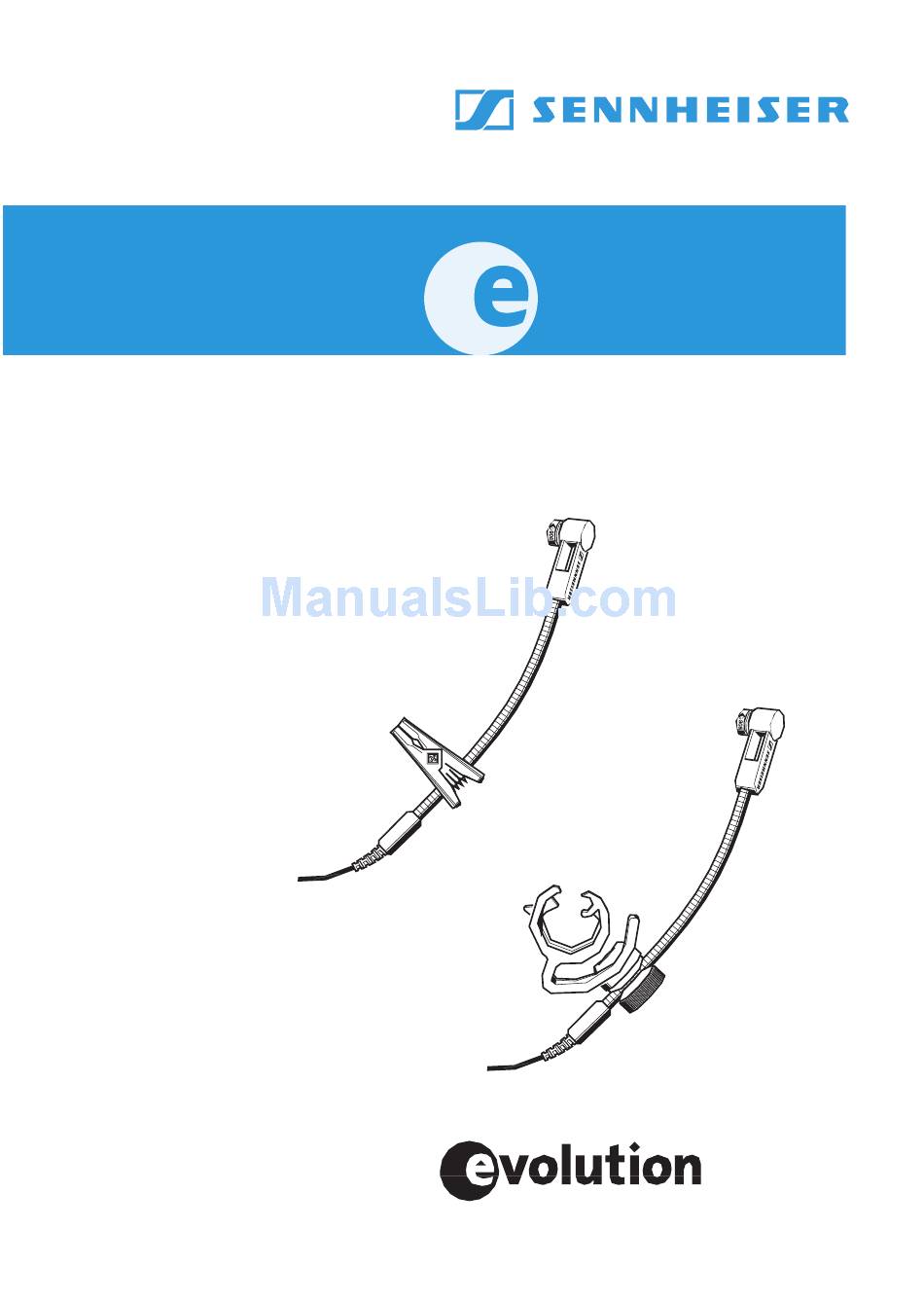

Page 1
Bedienungsanleitung Instructions for use Notice d‘emploi Istruzioni per l‘uso Instrucciones para el uso Gebruiksaanwijzing...
Page 2
908 B / 908 D / 908 B ew / 908 T ew Diese Mikrofone sind professionelle dauerpolarisierte Kondensator-Mikrofone. Ihr weiter Dynamikumfang und der sorgfältig abgestimmte Frequenzgang sorgen für ausgezeichnete Signalqualität mit Durchsetzungsvermö- gen und hoher Verzerrungsfreiheit. Die über den gesam- ten Frequenzbereich konstante Richtwirkung gewährlei- stet höchste Lautstärken ohne Rückkopplung.
Page 3
Mit den langen, flexiblen Schwanenhälsen können die Mi- krofone optimal am Instrument ausgerichtet werden. Merkmale außergewöhnlich lebendiger und klarer Klang langer, flexibler Mikrofonarm zur optimalen Ausrichtung am Instrument unempfindlich gegen Tritt- und Körperschall durch federnde Kapsellagerung Metallgehäuse reißfestes Kabel Anschluss an evolution Taschensender oder Mikrofon- speiseadapter MZA 900 P Lieferumfang 908 D...
Mikrofon platzieren Blasinstrumente ( 908 B / 908 B ew / 908 T ew) Positionierung Klangresultat Kommentar reduzierte Mikrofon mit der Nebengeräusche Klammer MZH 908 B am Trichter des In- struments befesti- gen und direkt auf den Schalltrichter ausrichten. klarer, kraftvoller Sound ausgeglichener, Ausrichtung teil-...
Page 5
Schlagzeug/Percussion ( 908 D) Positionierung Klangresultat Kommentar viel Grundton, Positionierung an wenig Obertöne der Trommel: 3 – 5 cm über dem Fell, Ausrichtung zur Fell- mitte. Das Verhält- nis von Grundton zu Obertönen lässt sich wenig Grundton, mit dem Winkel ein- viel Obertöne stellen.
Page 6
Schlagzeugklammer an der Trommel befestigen Schlagzeug/Percussion ( 908 D) Positionierung Kommentar Die Schlagzeugklammer MZH 908 D wird durch Aufschnappen auf den Spannreifen der Trommel befestigt. Führen Sie zunächst den oberen Schnapper auf den Spannreifen (1) und rasten Sie dann die Schlagzeugklammer nach unten ein (2). Mikrofon an der Schlagzeugklammer befestigen Schlagzeug/Percussion ( 908 D) Positionierung...
Page 7
Optimale Positionierung des Mikrofons Die vielfältigen Einstellmöglichkeiten der Klammern MZH 908 D und MZH 908 B in Verbindung mit dem flexi- blen Schwanenhals bieten Ihnen die Möglichkeit, das Mi- krofon optimal an der Schallquelle zu positionieren (siehe Pfeile der Abbildungen). MZH 908 D MZH 908 B...
Page 9
Technische Daten 908 B / 908 D / 908 B ew / 908 T ew Wandlerprinzip dauerpolarisiertes Kondensatormikrofon Übertragungsbereich 40 – 20.000 Hz Richtcharakteristik Niere Freifeld-Leerlauf- 4,0 mV/Pa Übertragungsfaktor (1kHz) 0,56 mV/Pa ( 908 T ew) 100 Ω (symmetrisch)* Nennimpedanz Min.
Page 10
* mit MZA 900 P ( 908 B / 908 D) 908 B ew / T ew zum Direktanschluss an ew-Sender Anschlussbelegung Stecker 908 B, 908 D 3,5 mm 3,5 mm 908 B ew, 908 T ew 3,5 mm...
Page 12
Herstellererklärungen Garantie 2 Jahre Konformitätserklärung Sennheiser electronic GmbH & Co. KG erklären, dass dieses Ge- rät die anwendbaren CE-Normen und Vorschriften erfüllt. Akkus und Batterien Alte Akkus und Batterien bitte nur leer über den Fachhandel oder Batteriecontainer entsorgen. WEEE-Erklärung Bitte entsorgen Sie dieses Gerät am Ende seiner Nutzungsdau- er bei Ihrer örtlichen kommunalen Sammelstelle oder im Re-...
Page 14
908 B / 908 D / 908 B ew / 908 T ew These microphones are professional pre-polarised condenser microphones. An extended dynamic range and a well balanced frequency response deliver an out- standing signal quality with excellent projection and the lowest possible distortion.
Features Exceptionally vivid, clear sound Optimum positioning on the instrument due to flexible gooseneck Shock-mounted capsule provides low sensitivity to impact and handling noise Rugged metal body Extremely robust connection cable Can optionally be used with any evolution bodypack transmitter or the MZA 900 P phantom power adaptor Delivery includes 908 D...
Positioning the microphone Wind instruments ( 908 B / 908 B ew / 908 T ew) Position Resulting sound Commentary Reduced ambient Use the MZH 908 B noise clamp to attach the microphone to the bell of the instrument. To reduce ambient Clear, powerful noise (at the sound...
Page 17
Drums / Percussions ( 908 D) Position Resulting sound Commentary More fundamental, Position on the little overtones drum: 3–5 cm above the drumskin, directed towards the center of the drumskin, the fundamental to Less fundamental, overtones ratio can many overtones be adjusted by changing the angle of the microphone.
Page 18
Attaching the drum clamp to the drum Drums / Percussions ( 908 D) Position Commentary To attach the MZH 908 D drum clamp, snap it onto the rim of the drum as follows: Put the upper part of the clip (1) onto the rim and clip on by pushing down in a rota- ting action (2) until it clips into place.
Page 19
Optimum positioning of the microphone The various adjustment possibilities of the MZH 908 D and MZH 908 B clamps together with the flexible goose- neck enable the microphone to be optimally positioned on the sound source (see arrows in the diagrams below). MZH 908 D MZH 908 B...
Page 21
Specifications 908 B / 908 D / 908 B ew / 908 T ew Transducer principle pre-polarised condenser microphone Frequency response 40–20,000 Hz Pick-up pattern cardioid Sensitivity 4.0 mV/Pa (free field, no load at 1 kHz) 0.56 mV/Pa ( 908 T ew) 100 Ω...
Page 22
* with MZA 900 P ( 908 B / 908 D) 908 B ew / T ew for direct connection to ew trans- mitters Pin assignment of connectors 908 B, 908 D 3,5 mm 3,5 mm 908 B ew, 908 T ew 3,5 mm...
Manufacturer declarations Warranty 2 years Approval Sennheiser electronic GmbH & Co. KG declare that this device is in compliance with the applicable CE standards and regula- tions. Batteries or rechargeable batteries Please dispose of batteries or rechargeable batteries as special waste or return them to your specialist dealer.
Page 26
908 B / 908 D / 908 B ew / 908 T ew Ces sont des microphones professionnels de type électrostatique à polarisation permanente. La dynamique très étendue et la réponse en fréquence très régulière assurent un signal de haute qualité, d'une présence maximale, sans distorsion audible.
Les cols de cygne longs et flexibles permettent un placement optimal des micros sur les instruments. Caractéristiques Son très vivant, d'une clarté exceptionnelle Placement optimal sur l'instrument grâce au col de cygne flexible Capsule à suspension : faible sensibilité aux bruits d'impacts et de manipulation Robuste corps métallique Câble de raccordement très robuste...
Page 28
Mise en place du microphone Instruments à vent ( 908 B / 908 B ew / 908 T ew) Positionnement Tonalité Commentaire Réduction du Utiliser la pince bruit ambiant MZH 908 B pour fixer le micro sur le corps de l'instrument.
Page 29
Batterie / percussions ( 908 D) Positionnement Tonalité Commentaire Beaucoup de son Positionnement sur fondamental, le fût : 3 à 5 cm peu de sons au-dessus de la harmoniques peau, en visant le milieu. L'équilibre fondamental/ harmoniques se Peu de son dose en faisant fondamental, varier l'angle.
Page 30
Montage de la pince de fixation sur la batterie Batterie / percussions ( 908 D) Positionnement Commentaire Pour mettre en place la pince de fixation MZH 908 D, pincez-la sur le bord du fût comme suit : Guidez le loquet supérieur (1) sur le bord du fût, puis refermez la pince de fixation en appuyant dessus vers le bas (2).
Page 31
Placement optimal du microphone Les diverses possibilités de réglage des pinces MZH 908 D et MZH 908 B, alliées à la souplesse du col de cygne, permettent de placer le micro de façon optimale par rapport à la source sonore (comme indiqué par les flèches dans les schémas ci-dessous).
Caractéristiques techniques 908 B / 908 D / 908 B ew / 908 T ew Principe transducteur microphone électrostatique à polarisation permanente Résponse en fréquence 40–20.000 Hz Directivité cardioïde Sensibilité 4,0 mV/Pa (champ libre, à vide à 1kHz) 0,56 mV/Pa ( 908 T ew) 100 Ω...
Page 34
* avec MZA 900 P ( 908 B / 908 D) 908 B ew / T ew pour le raccordement direct aux émetteurs de la série ew Brochage des connecteurs 908 B, 908 D 3,5 mm 3,5 mm 908 B ew, 908 T ew 3,5 mm...
Page 35
Vue d'ensemble des applications de microphones Modèle Application Chant Chœurs Studio, instruments acoustiques Orchestre Trompette,Trombone Saxophone Guitare acoustique Basse acoustique Ampli de guitare Ampli de basse Leslie Piano, à queue Grosse caisse Caisse claire Tom suspendu Tom sur pied Congas Cymbale Percussions Overhead...
Déclarations du fabricant Garantie 2 ans Certification Sennheiser electronic GmbH & Co. KG déclarons que cet ap- pareil est en conformité avec les normes CE. Piles et accus Déposez les batteries usagées dans un point de collecte spéci- fique ou ramenez-les à votre revendeur.
Page 38
908 B / 908 D / 908 B ew / 908 T ew Questi microfoni sono microfoni a condensatore a polarizzazione permanente per uso professionale. La loro ampia estensione dinamica e la risposta armonica accuratamente sintonizzata offrono una qualità di segnale eccellente con capacità...
Page 39
Caratteristiche suono straordinariamente chiaro e vivace braccio microfono lungo flessibile l'orientamento ottimale sullo strumento insensibile al rumore dei passi e al rumore dovuto alla manipolazione grazie alla sospensione elastica della capsula corpo in metallo cavo antistrappo collegamento al trasmettitore tascabile evolution oppure all'adattatore di alimentazione del microfono MZA 900 P Dotazione...
Page 40
Posizionamento microfono Fiati ( 908 B / 908 B ew / 908 T ew) Posizionamento Risultato sonoro Commento Riduzione dei Fissare il microfono rumori circostanti con la clip MZH 908 B sulla campana dello strumento e orientarlo diretta- mente verso l'interno della Suono chiaro e campana.
Page 41
Percussioni ( 908 D) Posizionamento Risultato sonoro Commento Molte fondamentali, Posizionamento poche armoniche sulla campana: 3 – 5 cm sopra la mem- brana, orientamento verso il centro della membrana. Il rap- porto delle note fon- Poche fondamen- damentali rispetto tali, molte armoni- alle note armoniche può...
Page 42
Fissaggio della clip per percussioni sulla campana Percussioni ( 908 D) Posizionamento Commento La clip per percussioni MZH 908 D viene fis- sata sui morsetti di chiusura della campana mediante un meccanismo a scatto. Per prima cosa, portare il dispositivo di chiu- sura a scatto superiore sul morsetto di chiu- sura (1) e far quindi scattare in posizione la clip per percussioni verso il basso (2).
Page 43
Posizionamento ottimale del microfono Le molteplici possibilità di regolazione delle clip MZH 908 D e MZH 908 B abbinate alla flessibilità del collo di cigno offrono la possibilità di posizionare il microfono in modo ottimale sulla sorgente sonora (ved. frecce nelle figure).
Dati tecnici 908 B / 908 D / 908 B ew / 908 T ew Principio di funzionamento microfono a condensatore a polarizzazione permanente Risposta in frequenza 40 – 20.000 Hz Caratteristica di direttività cardioide Fattore di trasmissione a 4,0 mV/Pa vuoto-campo libero (1kHz) 0,56 mV/Pa ( 908 T ew) 100 Ω...
Page 46
* con MZA 900 P ( 908 B / 908 D) 908 B ew / T ew per il collegamento diretto al trasmettitore ew Assegnazione collegamenti spina 908 B, 908 D 3,5 mm 3,5 mm 908 B ew, 908 T ew 3,5 mm...
Page 47
Panoramica degli utilizzi del microfono Modello Utilizzo Canto Coro Studio, strumenti acustici Orchestra Tromba, Trombone Sassofono Chitarra acustica Basso acustico Amplificatore per chitarra Amplificatore per basso Leslie Piano, pianoforte a coda Kick Drum (tam- buro a cornice) Snare Drum (cassa chiara) Tom sospesi Tom a terra...
Dichiarazione del costruttore Garanzia 2 anni Certificazione Sennheiser electronic GmbH & Co. KG diachiara che questo ap- parecchio è conforme alle normative e alle prescrizioni CE ap- plicabili. Batterie e accumulatori Una volta scarichi, gli accumulatori esausti devono essere smaltiti nei negozi specializzati o in contenitori per la raccolta differenziata delle batterie.
Page 50
908 B / 908 D / 908 B ew / 908 T ew Estos micrófonos son micrófonos de condensador profesionales con polarización permanente. Su amplia dinámica y su respuesta de frecuencia cuidadosamente adaptada aseguran una señal de excelente calidad con una alta potencia y ausencia de distorsiones.
Características Sonido extraordinariamente vivo y claro Brazo de micrófono largo y flexible para el posiciona- miento óptimo en el instrumento Insensible a ruidos de pasos y por manejo gracias al alojamiento elástico de la cápsula Carcasa metálica Cable resistente a la rotura Conexión a transmisores de bolsillo Evolution o a adaptadores de corriente para micrófonos MZA 900 P Volumen de suministro...
Posicionamiento del micrófono Instrumentos de viento ( 908 B / 908 B ew / 908 T ew) Posicionamiento Resultado Comentario Reducción de los rui- Fijar el micrófono dos del entorno en el pabellón del instrumento con la pinza MZH 908 B y orientarlo directa- mente al pabellón.
Page 53
Batería / percusión ( 908 D) Posicionamiento Resultado Comentario mucho tono funda- Posicionamiento en mental, pocos el tambor: 3 – 5 cm armónicos por encima del par- che, orientación al centro del parche. La relación entre el tono fundamental y los poco tono funda- armónicos se puede mental, muchos...
Page 54
Fijación de la pinza para batería en el tambor Batería / percusión ( 908 D) Posicionamiento Comentario La pinza para batería MZH 908 D se abrocha en el aro tensor del tambor. Coloque primero la parte superior en el aro tensor (1) y encaje después la pinza para batería hacia abajo (2).
Page 55
Posicionamiento óptimo del micrófono Las múltiples posibilidades de ajuste de las pinzas MZH 908 D y MZH 908 B en combinación con el cuello de cisne flexible le permiten posicionar el micrófono de forma óptima en la fuente de sonido (ver flechas en las figuras).
Datos técnicos 908 B / 908 D / 908 B ew / 908 T ew Principio transductor Micrófono de condensador con polarización permanente Margen de transmisión 40 – 20.000 Hz Característica direccional ovalada Factor de transmisión de 4,0 mV/Pa campo acústico libre en 0,56 mV/Pa ( 908 T ew) vacío (1kHz) 100 Ω...
Page 58
* con MZA 900 P ( 908 B / 908 D) conexión directa del 908 B ew / T ew al transmisor ew Asignación de terminales del conector 908 B, 908 D 3,5 mm 3,5 mm 908 B ew, 908 T ew 3,5 mm...
Vista general de las aplicaciones del micrófono Modelo Aplicación Canto Coros Estudio, instrumen- tos acústicos Orquesta Trompeta, Trombón Saxofón Guitarra acústica Bajo acústico Amplificador de gui- tarra Amplificador de bajo Leslie Piano, piano de cola Kick Drum Snare Drum Tam-tam suspendido Tam-tam con pie Congas...
Declaración del fabricante Garantia 2 años Autorización Sennheiser electronic GmbH & Co. KG declara que este aparato cumple las normas y directrices de la CE aplicables. Acumuladores y pilas Los acumuladores y las pilas usadas sólo se deben eliminar a través del comercio especializado o contenedores de recogida...
Page 63
908 B / 908 D / 908 B ew / 908 T ew Deze microfoons zijn professionele permanent gepolari- seerde condensatormicrofoons. Hun grote dynamische bereik en het zorgvuldig afgestemde frequentie-bereik zorgen voor een uitstekende signaalkwaliteit met veel vermogen en minder vervorming. De over het totale frequentiebereik constante richtwerking garandeert de hoogste volumes zonder terugkoppeling.
Eigenschappen buitengewoon levendige en heldere klank lange, flexibele microfoonarm voor een optimale uit- lijning op het instrument ongevoelig voor stap- en lichaamsgeluiden door veren- de kapsellagering metalen behuizing breukbestendige kabel aansluiting op evolution zakzender of microfoonvoe- dingsadapter MZA 900 P Omvang levering 908 D 908 B...
Page 65
Microfoon plaatsen Blaasinstrumenten ( 908 B / 908 B ew / 908 T ew) Positionering Klankresultaat Commentaar gereduceerde Microfoon met de nevengeluiden klem MZH 908 B op de trechter van het instrument bevesti- gen en direct op de geluidstrechter rich- ten.
Page 66
Slagwerk/percussie ( 908 D) Positionering Klankresultaat Commentaar veel grondtonen, Positionering bij de weinig boventonen trommel: 3 – 5 cm boven het vel, uit- lijning op het midden van het vel. De ver- houding van de grondtoon ten Weinig grondtoon, opzichte van de veel boventonen boventoon, kan met behulp van de hoek...
Page 67
De slagwerkklem op de trommel bevestigen Slagwerk/percussie ( 908 D) Positionering Commentaar De slagwerkklem MZH 908 D wordt op de spanband van de trommel bevestigd. Zet eerst de bovenste snapper op de span- band (1) en klem dan de slagwerkklem naar onder toe vast (2).
Page 68
Optimale plaatsing van de microfoon De veelzijdige instelmogelijkheden van de klemmen MZH 908 D en MZH 908 B in combinatie met de flexibele zwanenhals bieden u de mogelijkheid om de microfoon optimaal op de geluidsbron in te stellen (zie pijltjes in de afbeeldingen).
Page 70
Technische gegevens 908 B / 908 D / 908 B ew / 908 T ew Omvormerprincipe permanent gepolariseerde condensatormicrofoon Frequentiebereik 40 – 20.000 Hz Richtkarakteristiek nier Vrij veld-onbelast- 4,0 mV/Pa overdrachtsfactor 0,56 mV/Pa ( 908 T ew) 100 Ω (symmetrisch)* Nominale impedantie Min.
Page 71
* met MZA 900 P ( 908 B / 908 D) 908 B ew / T ew voor rechtstreekse aansluiting op een ew-zender Aansluitbezetting stekker 908 B, 908 D 3,5 mm 3,5 mm 908 B ew, 908 T ew 3,5 mm...
Page 72
Overzicht van microfoontoepassingen Model Toepassing Zang Koor Studio, akoest. instrumenten Orkest Trompet, trombone Saxofoon Akoestische gitaar Akoestische bas Gitaarversterker Basversterker Leslie Piano, vleugel Kick-drum Snaardrum Hangende trom Staande trom Conga‘s Bekken Percussie Overhead Conferentietafel, altaar Spreekgestoelte Theaterpodium...
Verklaringen van de fabrikant Garantie 2 jaar Vergunning Sennheiser electronic GmbH & Co. KG verklaren, dat dit toestel voldoet aan de toepasselijke CE-normen en voorschriften. WEEE-verklaring Breng dit apparaat aan het einde van zijn levensduur naar een van de plaatselijke verzamelpunten of naar een kringloopwin- kel.
