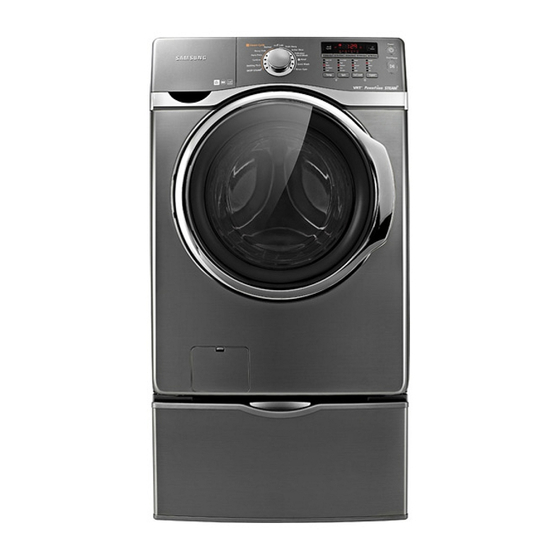

Washing Machine
This manual is made with 100% recycled paper.
YUKON-03074F-06_EN.indd 1
YUKON-03074F-06_EN.indd 1

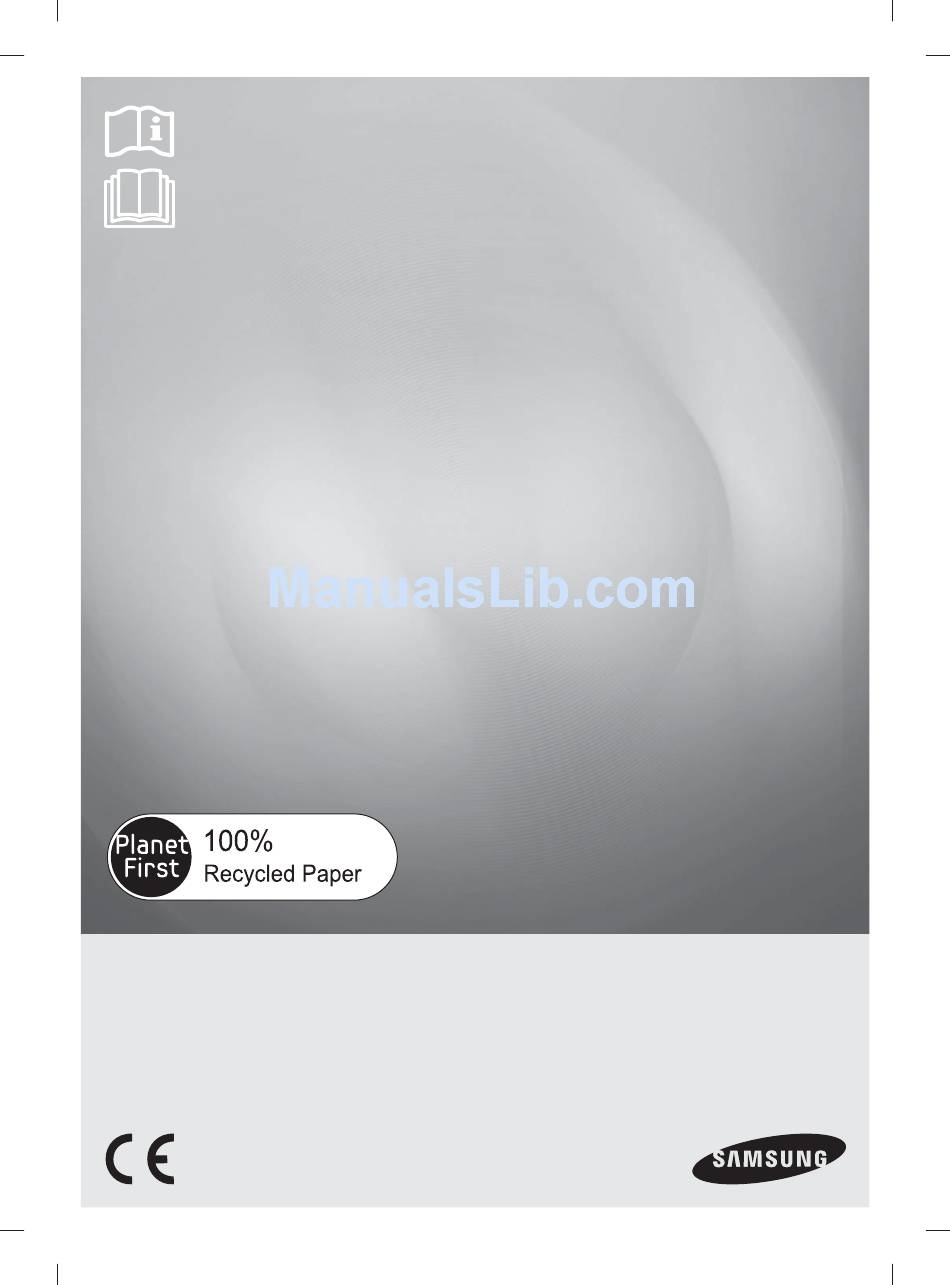

user manual
imagine
the possibilities
Thank you for purchasing this Samsung product.
To receive a more complete service, please
register your product at
www.samsung.com/register
WF431ABP
2013-09-24
2013-09-24
11:54:42
11:54:42

Advertisement

Table of Contents
loading

Related Manuals for Samsung WF431ABP

Summary of Contents for Samsung WF431ABP

  • Page 1 WF431ABP Washing Machine user manual This manual is made with 100% recycled paper. imagine the possibilities Thank you for purchasing this Samsung product. To receive a more complete service, please register your product at www.samsung.com/register YUKON-03074F-06_EN.indd 1 YUKON-03074F-06_EN.indd 1 2013-09-24...
  • Page 2 This Samsung washer performs smoothly at top spin speeds, minimizing noise and vibration. • The Largest Capacity Samsung’s extra-large capacity laundry machine can wash a full set of your bedding, a kingsize comforter, or up to 28 bath towels in a single load. Since you don’t have to do as many loads, you save time, money, water and energy.
  • Page 3 This manual contains important information on the installation, use, and care of your new Samsung washing machine. Refer to it for descriptions of the control panel, instructions on how to use the washing machine, and tips for making the most of its state-of-the-art features and functions.
  • Page 4 Congratulations on your new Samsung washer. This manual contains important information on the installation, use and care of your appliance. Please take time to read this manual to take full advantage of your washer’s many benefi ts and features.
  • Page 5 Do not let children (or pets) play on or in your washing machine. The washing machine door does not open easily from the inside, and children may be seriously injured if trapped inside. This appliance can be used by children aged from WARNING 8 years and above and persons with reduced physical, sensory or mental capabilities or lack...
  • Page 6 safety information SEVERE WARNING SIGNS FOR INSTALLATION WARNING The installation of this appliance must be performed by a qualifi ed technician or service company. - Failure to do so may result in electric shock, fi re, an explosion, problems with the product, or injury.
  • Page 7 Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance. - This may result in electric shock or fi re. Do not pull the power cord, when unplugging the power plug.
  • Page 8 safety information Do not wash items contaminated with gasoline, kerosene, benzene, paint thinner, alcohol or other fl ammable or explosive substances. - This may result in electric shock, fi re or an explosion. Do not open the washer door by force while it is operating (high-temperature washing/ drying/spinning).
  • Page 9 The use for business purposes qualifi es as product misuse. In this case, the product will not be covered by the standard warranty provided by Samsung and no responsibility can be attributed to Samsung for malfunctions or damages resulting from such misuse.
  • Page 10 safety information Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. - This may result in electric shock, fi re, problems with the product, or injury. Do not spray volatile material such as insecticide onto the surface of the appliance.
  • Page 11 Do not use hardened detergent. - If it accumulates inside the washer, it may result in water leakage. For washing machines with ventilation openings in the base, ensure that the opening is not obstructed by carpet or any other obstacles. Make sure that the pockets of all clothing to be washed are empty.

  • Page 12: Table Of Contents

    contents SETTING UP YOUR WASHING Checking the parts MACHINE Meeting installation requirements Electrical supply and grounding Water Supply Drain Flooring Surrounding temperature Alcove or closet installation Installing your washing machine WASHING A LOAD OF LAUNDRY Washing for the fi rst time Basic instructions Using the control panel Child lock...

  • Page 13: Setting Up Your Washing Machine

    Carefully unpack your washing machine, and make sure you’ve received all of the parts shown below. If your washing machine was damaged during shipping, or if you do not have all of the parts, contact Samsung Customer Service or your Samsung dealer. Option...

  • Page 14: Meeting Installation Requirements

    setting up your washing machine MEETING INSTALLATION REQUIREMENTS Electrical supply and grounding Never use an extension cord. Use only the power cord that comes with your washing machine. WARNING When preparing for installation, ensure that your power supply offers: • 220-240 V / 50 Hz fuse or circuit breaker •...

  • Page 15: Drain

    Drain Samsung recommends a standpipe height of 46cm. The drain hose must be routed through the drain hose clip to the standpipe. The standpipe must be large enough to accept the outside diameter of the drain hose. The drain hose is attached at the factory.

  • Page 16: Removing The Shipping Bolts

    setting up your washing machine STEP 2 Removing the shipping bolts Before installing the washing machine, you must remove all shipping bolts from the back of the unit. 1. Loosen all the bolts with the supplied wrench. Option 2. Hold the bolt with the spanner and pull it through the wide Option section of the hole.

  • Page 17: Adjusting The Levelling Feet

    STEP 3 Adjusting the Levelling feet When installing your washing machine, ensure that the power plug, the water supply and the drain are easily accessible. 1. Slide the washing machine into position. 2. Level your washing machine by turning the levelling feet in and out as necessary by hand.
  • Page 18 setting up your washing machine Connecting the water supply hose 1. Remove the adaptor from the water supply hose. Adaptor Water supply hose 2. First, using a ‘+’ type screwdriver, loosen the four screws on the adaptor. Next, take the adaptor and turn part (2) following the arrow until there is a 5 mm gap.
  • Page 19 ✗ 6. Turn on the water supply and ensure that no water leaks from the water valve, tap or adaptor. If there is a water leaks, repeat the previous steps. Do not use your washing machine if there is a water leak. ✗...

  • Page 20: Calibration Mode

    setting up your washing machine Connecting the drain hose The end of the drain hose can be positioned in three ways: 1. Over the edge of a wash basin: The drain hose must be placed at a height of between 60 and 90 cm.

  • Page 21: Washing A Load Of Laundry

    With your new Samsung washing machine, the hardest part of doing laundry will be deciding which load to wash fi rst. WASHING FOR THE FIRST TIME Before washing laundry for the fi rst time, you must run a complete empty cycle (i.e. no laundry).

  • Page 22: Using The Control Panel

    washing a load of laundry USING THE CONTROL PANEL Select the tumble pattern and spin speed for the cycle. For detailed information, refer to “Washing clothes using the cycle selector”. (see page 27) Cotton - For average or lightly soiled cottons, bed linen, table linen, underwear, towels, shirts, etc.
  • Page 23 The large DIGITAL Display is easy to use. It provides instructions and DIGITAL DISPLAY diagnostics while keeping you updated on the cycle status and time remaining. Eco Bubble - Eco Bubble selection is turned on as a default. Press the Eco Bubble option button once to deselect and the Bubble Generator OFF (shown on the panel), press it again to turn the function back ON.

  • Page 24: Child Lock

    washing a load of laundry Child lock The Child Lock function allows you to lock the buttons so that the wash cycle you’ve chosen can’t be changed. Activating/Deactivating If you want to activate or deactivate the Child Lock function, press the Spin and Signal buttons at the same time for 3 seconds.

  • Page 25: My Cycle

    My cycle Allows you to activate your custom wash (temperature, spin, soil level, etc.) with one button convenience. By pushing the My Cycle button, press the My Cycle button to load and use the saved My Cycle options. The chosen course and option lights will fl icker. You can set all options as follows in the My Cycle mode.

  • Page 26: Eco Bubble

    washing a load of laundry Eco Bubble Eco Bubble allows detergent to distribute evenly and penetrate fabrics faster and deeper. Course Bubble function Canceling the bubble function Sanitize, Towels, Delicates, Cotton, Synthetics, Bedding, Quick Wash, Available Water Saving Available Super Eco Wash, Sport Wear, Not available Baby Care, Wool •...

  • Page 27: Washing Clothes Using The Cycle Selector

    Washing clothes using the cycle selector Your new washing machine makes washing clothes easy, using Samsung’s “Fuzzy Control” automatic control system. When you select a wash program, the machine will set the correct temperature, washing time, and washing speed. 1. Turn on your sink’s water tap.

  • Page 28: Washing Clothes Manually

    washing a load of laundry Washing clothes manually You can wash clothes manually without using the Cycle Selector. 1. Turn the water supply on. 2. Press the Power button on the washing machine. 3. Open the door. 4. Load the articles loosely into the drum one at a time, without overfi lling it. 5.
  • Page 29 Determining the load capacity Do not overload the washing machine or your laundry may not wash properly. Use the chart below to determine the load capacity for the type of laundry you are washing. Fabric Type Load Capacity Model WF431 6.0 kg Sanitize 6.0 kg...

  • Page 30: Detergent And Additives Information

    washing a load of laundry DETERGENT AND ADDITIVES INFORMATION Which detergent to use The type of detergent you should use is based on the type of fabric (cotton, synthetic, delicate items, wool), colour, wash temperature, and degree of soiling. Always use “low suds” laundry detergent, which is designed for automatic washing machines.

  • Page 31: Cleaning And Maintaining Your Washing Machine

    cleaning and maintaining your washing machine CLEANING THE EXTERIOR Turn off the water faucets after fi nishing the day’s washing. This will shut off the water supply to your Washer and prevent the unlikely possibility of damage from escaping water. Leave the door open to allow the inside of your Washer to dry out. Use a soft cloth to wipe up all detergent, bleach or other spills as they occur.

  • Page 32: Storing Your Washer

    cleaning and maintaining your washing machine STORING YOUR WASHER Washers can be damaged if water is not removed from hoses and internal components before storage. Prepare your Washer for storage as follows: • Select the Quick Wash cycle and add bleach to the automatic dispenser. Run your Washer through the cycle without a load.

  • Page 33: Cleaning The Door Seal/Bellow

    CLEANING THE DOOR SEAL/BELLOW 1. Open the washer door and remove any clothing or items from the washer. 2. Inspect the gray colored seal/bellow between the door opening and the basket for stained areas. Pull back the seal/bellow to inspect all areas under the seal/bellow and to check for foreign objects.

  • Page 34: Troubleshooting And Information Codes

    troubleshooting and information codes CHECK THESE POINTS IF YOUR WASHING MACHINE... PROBLEM SOLUTION Will not start.. • Make sure the door is fi rmly closed. • Make sure your Washer is plugged in. • Make sure the water source faucets are open. •...
  • Page 35 • Reduce the detergent amount for soft water, Small Load or lightly soiled loads. • Non-HE detergent is NOT recommended. If the problem persists, contact your local Samsung Customer Service. troubleshooting and information codes _35 YUKON-03074F-06_EN.indd Sec6:35 YUKON-03074F-06_EN.indd Sec6:35 2013-09-24...
  • Page 36 “Hot” indication disappeared. For any codes not listed above, or if the suggested solution doesn’t fi x the problem, call your Samsung Service Centre or local Samsung dealer. 36_ troubleshooting and information codes YUKON-03074F-06_EN.indd Sec6:36...

  • Page 37: Cycle Chart

    cycle chart CYCLE CHART  default option,  user option) Functions Temp. (˚C) Rinse Spin Speed(MAX) rpm PROGRAM Cold 1000 1200 Spin           Sanitize Towels       ...

  • Page 38: Appendix

    appendix FABRIC CARE CHART The following symbols provide garment care directions. The care labels include four symbols in this order: washing, bleaching, drying and ironing (and dry cleaning when necessary). The use of symbols ensures consistency among garment manufacturers of domestic and imported items. Follow the care label directions to maximize garment life and reduce laundery problems.

  • Page 39: Sheet Of Household Washing Machines

    2000-2400 Frequency Supplier name Samsung Electronics Co., Ltd. 1) Spin extraction is very important when you use a clothes dryer to dry your clothes. The energy for drying costs much higher than the energy for washing. Wasing with the high spin saves more energy in drying your clothes in a clothes dryer.
  • Page 40 memo YUKON-03074F-06_EN.indd Sec7:40 YUKON-03074F-06_EN.indd Sec7:40 2013-09-24 2013-09-24 11:55:18 11:55:18...
  • Page 41 memo YUKON-03074F-06_EN.indd Sec7:41 YUKON-03074F-06_EN.indd Sec7:41 2013-09-24 2013-09-24 11:55:18 11:55:18...
  • Page 42 memo YUKON-03074F-06_EN.indd Sec7:42 YUKON-03074F-06_EN.indd Sec7:42 2013-09-24 2013-09-24 11:55:18 11:55:18...
  • Page 43 memo YUKON-03074F-06_EN.indd Sec7:43 YUKON-03074F-06_EN.indd Sec7:43 2013-09-24 2013-09-24 11:55:18 11:55:18...
  • Page 44 QUESTIONS OR COMMENTS? Country CALL OR VISIT US ONLINE AT 0330 SAMSUNG (7267864) www.samsung.com Code No. DC68-03074F-06_EN YUKON-03074F-06_EN.indd Sec7:44 YUKON-03074F-06_EN.indd Sec7:44 2013-09-24 2013-09-24 11:55:18 11:55:18...
