- Page 1 NZ84F7NC Series Induction Hob user manual This manual is made with 100 % recycled paper. imagine the possibilities Thank you for purchasing this Samsung product. (Best)NZ84F7NC6AB_EU_DG68-00545A-00_EN.indd 1 05/03/2014 11:26:57...
-
Page 2: Table Of Contents
contents INSTALLING THE HOB Safety instructions for the installer Connecting to the mains power supply Installing into the countertop PARTS AND FEATURES Cooking zones Control panel Components Induction heating The key features of your appliance Safety shutoff Residual heat indicator Temperature detection BEFORE YOU BEGIN Initial cleaning... -
Page 3: Using This Manual
using this manual Please take the time to read this owner’s manual, paying particular attention to the safety information contained in the following section, before using your appliance. Keep this manual for future reference. If transferring ownership of the appliance, please remember to pass the manual on to the new owner. -
Page 4: Safety Instructions
safety instructions The safety aspects of this appliance comply with all accepted technical and safety standards. However, as manufacturers we also believe it is our responsibility to familiarize you with the following safety instructions. WARNING This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision... - Page 5 Do not use harsh abrasive cleaners or sharp metal scrapers to clean the hob glass since they can scratch the surface, which may result in shattering of the glass. Appliance is not intended to be operated by means of an external timer or separate remote-control system. WARNING: The appliance and its accessible parts become hot during use.
- Page 6 The appliance should be serviced only by qualified service personnel. Repairs carried out by unqualified individuals may cause injury or serious malfunction. If your appliance is in need of repair, contact your local service centre. Failure to follow these instructions may result in damage and void the warranty.
- Page 7 Take care when plugging electrical appliances into mains sockets near the hob. Mains leads must not come into contact with the cooktop. Overheated fat and oil can catch fire quickly. Never leave surface units unattended when preparing foods in fat or oil, for example, when cooking chips. Turn the cooking zones off after use.
-
Page 8: Disposal Instructions
disposal instructions DISPOSING OF THE PACKAGING MATERIAL WARNING All materials used to package the appliance are fully recyclable. Sheet and hard foam parts are appropriately marked. Please dispose of packaging materials and old appliances with due regard to safety and the environment. PROPER DISPOSAL OF YOUR OLD APPLIANCE WARNING WARNING : Before disposing of your old appliance, make it... -
Page 9: Installing The Hob
installing the hob Be sure the new appliance is installed and grounded only by WARNING qualified personnel. Please observe this instruction. The warranty will not cover any damage that may occur as a result of improper installation. Technical data is provided at the end of this manual. SAFETY INSTRUCTIONS FOR THE INSTALLER •... -
Page 10: Connecting To The Mains Power Supply
CONNECTING TO THE MAINS POWER SUPPLY Before connecting, check that the nominal voltage of the appliance, that is, the voltage stated on the rating plate, corresponds to the available supply voltage. The rating plate is located on the lower casing of the hob. Shut off power to circuit before connecting wires to WARNING circuit. - Page 11 • 1N ~ • 2N ~ : Separate the 2-phase wires (L1 and L2) before connection. 220-240 V ~ 220-240 V ~ 380-415 V ~ Green/Yellow Green/Yellow Black Blue Black Blue Brown Gray Brown Gray L1 L2 1N ~ 2N ~ 2 x 1N ~ : Separate the wires before connection.
-
Page 12: Installing Into The Countertop
INSTALLING INTO THE COUNTERTOP Make a note of the serial number on the appliance rating plate prior to installation. This number will be required in the case of requests for service and is no longer accessible after installation, as it is on the original rating plate on the underside of the appliance. - Page 13 min. 40 min. 40 min. 50 min. 60 min. 550 min. 35 min. 2 min. 20 min. 20 min. 100 min. 65 min. 5 English _13 (Best)NZ84F7NC6AB_EU_DG68-00545A-00_EN.indd 13 05/03/2014 11:27:00...
- Page 14 14_English (Best)NZ84F7NC6AB_EU_DG68-00545A-00_EN.indd 14 05/03/2014 11:27:01...
-
Page 15: Parts And Features

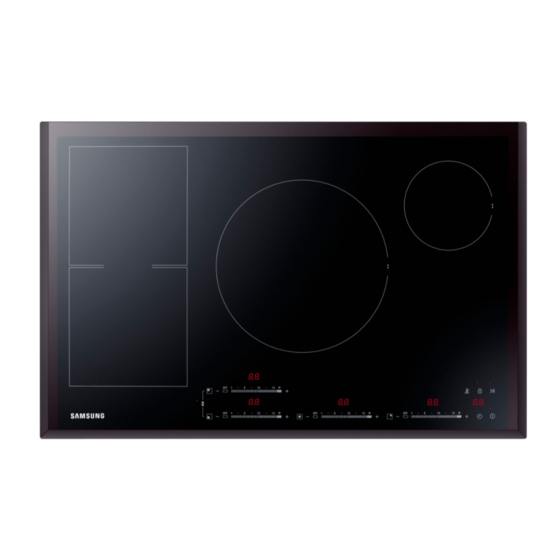

parts and features COOKING ZONES 1. Induction rear Bridge zone 1800 W with Power Boost 2600 W 2. Induction front Bridge zone 1800 W with Power Boost 2600 W 3. Induction complete Bridge zone 3300 W with Power Boost 3600 W 4. -
Page 16: Components
5. Timer control sensor and indicator 6. Indicators for heat settings and residual heat 7. Keep warm 8. Pause 9. Complete Bridge zone selector COMPONENTS Induction hob Bracket Spring Screws INDUCTION HEATING • The Principle of Induction Heating: When you place your cookware on a cooking zone and you turn it on, the electronic circuits in your induction hob produce “induced currents”... -
Page 17: The Key Features Of Your Appliance
THE KEY FEATURES OF YOUR APPLIANCE • Ceramic glass cooking surface : The appliance has a ceramic glass cooking surface and four rapid - response cooking zones. • Touch control sensors : Your appliance is operated using touch control sensors. •... -
Page 18: Safety Shutoff
error message, when the hob is overheated because of abnormal operation. (example : operation with empty cookware) message, cookware is unsuitable or too small or no cookware has been placed on the cooking zone. • Keep warm : Use this function to keep cooked food warm. The display will show ‘... -
Page 19: Residual Heat Indicator
Other reasons why a cooking zone will switch itself off All cooking zones will switch themselves off if liquid boils over and lands on the control panel. The automatic shutoff will also be activated if you place a damp cloth on the control panel. In both of these instances, the appliance will need to be switched on again using the main On/Off control sensor after the liquid or the cloth has been... -
Page 20: Before You Begin
before you begin INITIAL CLEANING Wipe the ceramic glass surface with a damp cloth and ceramic cooktop glass cleaner. Do not use caustic or abrasive cleaners. The surface could be WARNING damaged. hob use COOKWARE FOR INDUCTION COOKING ZONES The induction hob can only be turned on when cookware with a magnetic base is placed on one of the cooking zones. -
Page 21: Suitability Test
SUITABILITY TEST Cookware is suitable for induction cooking, if a magnet sticks to the bottom of the cookware and cookware is labelled as suitable by the cookware manufacturer. SIZE OF PANS Induction cooking zones adapt automatically to the size of the bottom of the cookware up to a certain limit. -
Page 22: Using Suitable Cookware
USING SUITABLE COOKWARE Better pans produce better results. • You can recognise good pans by their bases. The base should be as thick and flat as possible. • When buying new pans, pay particular attention to the diameter of the base. Manufacturers often give only the diameter of the upper rim. -
Page 23: Using The Touch Control Sensors
USING THE TOUCH CONTROL SENSORS To operate the touch control sensors, touch the desired panel with the tip of your pointed finger until the relevant displays illuminate or go out, or until the desired function is activated. Ensure that you are touching only one sensor panel when operating the appliance. -
Page 24: Switching The Appliance Off
If more than one sensor is pressed for longer than 8 seconds, will show in the heat setting display. To reset, touch the On/Off control sensor. SWITCHING THE APPLIANCE OFF To completely switch off the appliance, use approx approx 3 sec. the On/Off control sensor. -
Page 25: Timer
Switching the child safety lock on / off 1. Touch the Lock control sensor for approximately 3 seconds. An acoustic signal will sound as approx confirmation. 3 sec. 2. Touch any control sensor. will appear in the displays, indicating the child safety lock has been activated. 3. -
Page 26: Countdown Timer
cooking zone. will appear in the timer display. The next active cooking zone is selected by touching the Timer control sensor again. 2. Use the Timer setting selectors ( ) to set the desired amount of time, for example, 15 minutes, after which the cooking zone will automatically switch itself off. -
Page 27: Power Boost Control
POWER BOOST CONTROL The power boost function makes additional power available to the each cooking zones. (example : bring a large volume of water to the boil) Cooking zones Max Boost time 280 mm 5 min 145 mm 10 min Front or Rear Bridge 10 min Complete Bridge... -
Page 28: Keep Warm
KEEP WARM 1. Use this function to Keep cooked food Warm. Touch the corresponding cooking zone’s Key. 2. Touch the Keep Warm Key. PAUSE The PAUSE function simultaneously switches all cooking zones that are switched on to the low power setting and then back to the heat setting that was previously set. -
Page 29: Sound On/Off
2. Touch the heat setting selectors ( Heat setting display of left side(front, rear) will be changed together. SOUND ON/OFF 1. Touch the On/Off control sensor for approx 3 seconds. 3 sec. The digital displays will show . 2. Touch the Keep Warm Key for 4 seconds within 10 seconds after approx... -
Page 30: Suggested Settings For Cooking
SUGGESTED SETTINGS FOR COOKING SPECIFIC FOODS The figures in the table below are guidelines. The heat settings required for various cooking methods depend on a number of variables, including the quality of the cookware being used and the type and amount of food being cooked. Switch Cookingmethod Examples for Use... -
Page 31: Cleaning And Care
cleaning and care Cleaning agents must not come into contact with a heated WARNING ceramic glass surface: All cleaning agents must be removed with adequate amounts of clean water after cleaning because they can have a caustic effect when the surface becomes hot. -
Page 32: Stubborn Soiling
Stubborn Soiling 1. To remove food that has boiled over and stubborn splashes, use a glass scraper. 2. Place the glass scraper at an angle to the ceramic glass surface. 3. Remove soiling by scraping with the blade. Glass scrapers and ceramic glass cleaners are available from specialty retailers. -
Page 33: Hob Frame (Option)
HOB FRAME (OPTION) Do not use vinegar, lemon juice or scale remover on the hob WARNING frame; otherwise dull blemishes will appear. 1. Wipe the frame with a damp cloth. 2. Moisten dried debris with a wet cloth. Wipe and rub dry. TO AVOID DAMAGING YOUR APPLIANCE •... -
Page 34: Warranty And Service
warranty and service FAQS AND TROUBLESHOOTING A fault may result from a minor error that you can correct yourself with the help of the following instructions. Do not attempt any further repairs if the following instructions do not help in each specific case. - Page 35 What should I do if, after the cooking zones have been switched off, residual warmth is not indicated in the display? Check for the following possibility: • The cooking zone was only briefly used and therefore did not become hot enough. If the cooking zone is hot, please call the customer service centre.
-
Page 36: Service
SERVICE Before calling for assistance or service, please check the section “Troubleshooting”. If you still need help, follow the instructions below. Is it a technical fault? If so, please contact your customer service centre. Always prepare in advance for the discussion. This will ease the process of diagnosing the problem and also make it easier to decide if a customer service visit is necessary. -
Page 37: Technical Data
technical data TECHNICAL DATA Width 800 mm Appliance dimensions Depth 520 mm Height 56 mm Width 750 mm Worktop cut - out Depth 490 mm dimensions Corner radius 3 mm Connection voltage 220 - 240 V ~ 50 / 60 Hz Maximum connected load power 7.2 kW 15.5 kg... - Page 38 memo (Best)NZ84F7NC6AB_EU_DG68-00545A-00_EN.indd 38 05/03/2014 11:27:11...
