Compact din-rail 21.5 volt regulated power supplies (18 pages)
Summary of Contents for Omega Engineering iDRN-PS-1000
Page 1

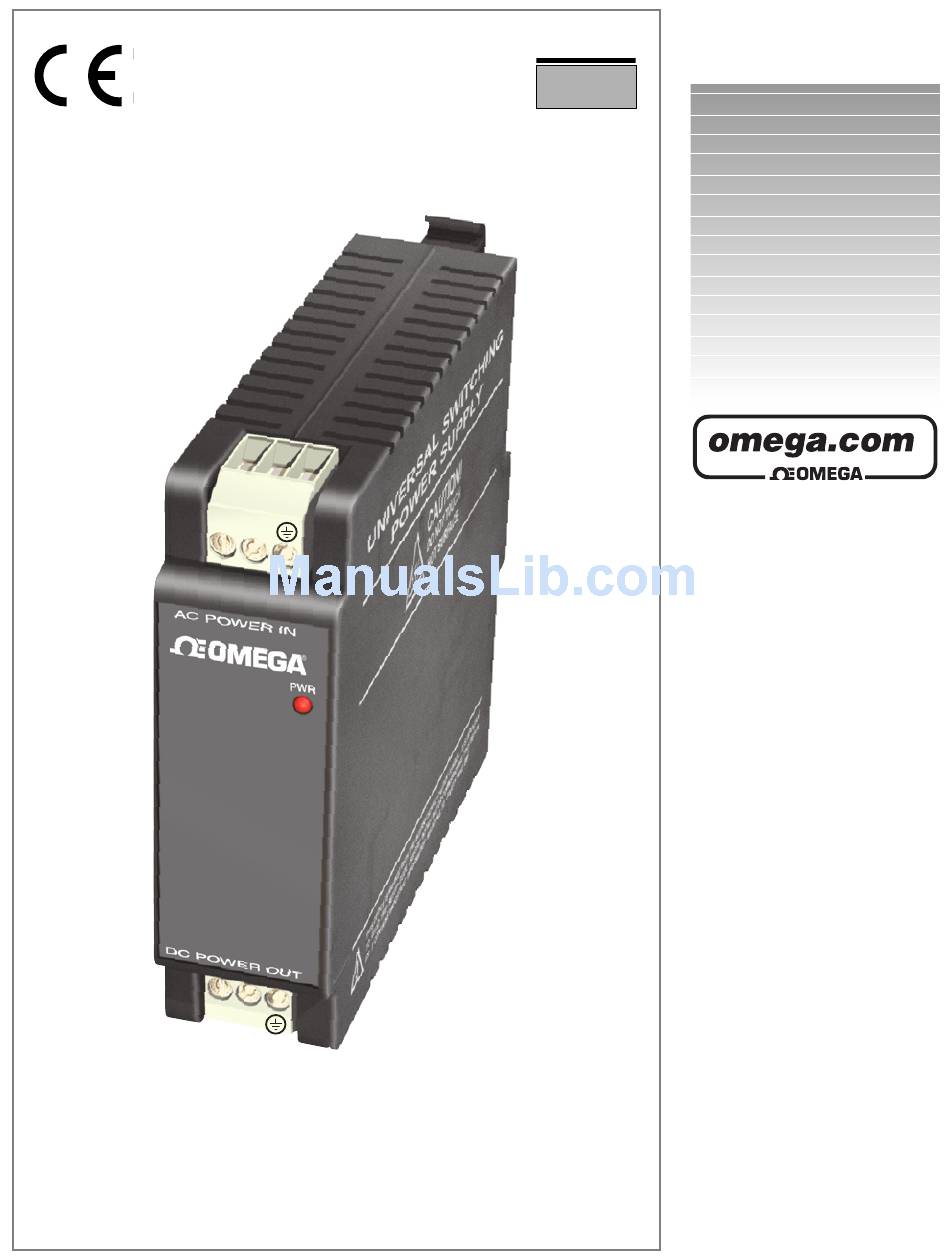

User’ s Guide MADE Shop on line at ® ® www.omega.com e-mail: info@omega.com iDRN-PS-1000 UNIVERSAL SWITCHING POWER SUPPLY Compact DIN-Rail 24 Volt...
Page 8
NSTALLATION AND EMOVAL 3.2 Mounting on DIN Rail To install unit onto DIN Rail 1. Tilt unit, position mounting slot onto DIN Rail, as shown. 2. Push unit towards DIN Rail and it will snap into place. Figure 3.2 Mounting on 35mm DIN Rail —...
Page 9
NSTALLATION AND EMOVAL 3.3 Removal of Unit 1. Insert flat screw-driver into tab and push downwards. 2. Unit will detach from DIN Rail. — Figure 3.3 Removal of Unit...
