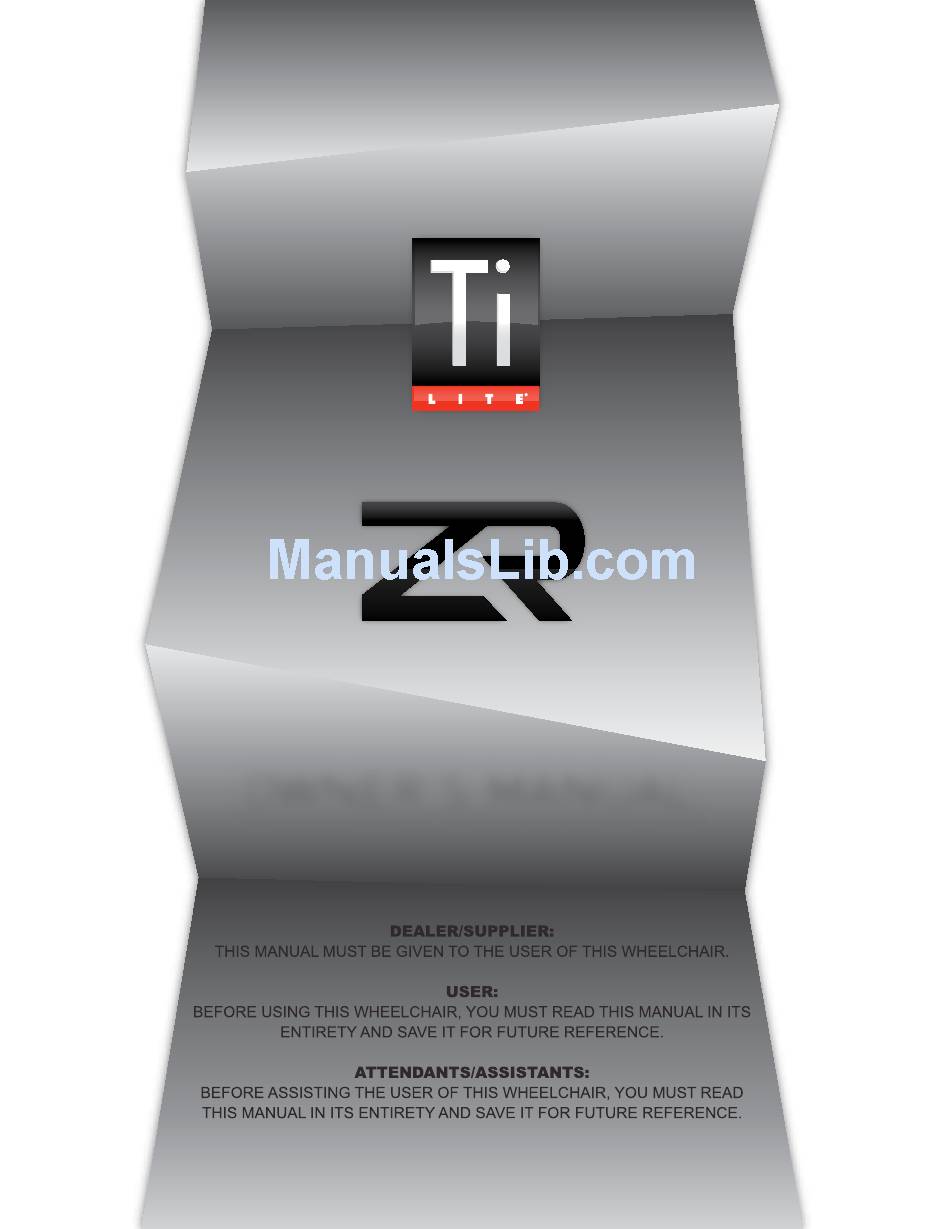

OWNER'S MANUAL
SERIAL NUMBER ______________________

Advertisement

Table of Contents
loading

Related Manuals for TiLite ZR

Summary of Contents for TiLite ZR

  • Page 1 OWNER’S MANUAL SERIAL NUMBER ______________________...
  • Page 2 DEPARTMENT OF TRANSPORTATION HAS NOT APPROVED ANY TIE-DOWN SYSTEM FOR TRANSPORTATION OF A USER WHILE IN A WHEELCHAIR IN A MOVING VEHICLE OF ANY TYPE. IT IS TiLITE’S POSITION THAT USERS OF WHEELCHAIRS SHOULD BE TRANSFERRED INTO APPROPRIATE VEHICLE SEATING FOR TRANSPORTATION AND SHOULD USE THE RESTRAINTS MADE AVAILABLE BY THE AUTO INDUSTRY.
  • Page 3 Dear TiLite Customer: We are glad that you have chosen to be part of the TiLite family. Making the best wheelchairs in the world is our mission. Over the years, we have achieved that mission by putting our heart and soul into every wheelchair that we design and build. Here are just a few examples of where that heart and soul comes from and where it leads: ...
  • Page 4 3. Provide your feedback to TiLite regarding your experience and needs, thereby enabling TiLite to further improve product designs. All information you provide to TiLite when you register will be protected by TiLite as required by applicable laws and regulations and will be used solely by TiLite.

  • Page 5: Product Registration Form

    4. Were your expectations met in the following areas? If not, please specify. FOLD HERE Quality of Service: Timeliness of Delivery: Quality of Product: 5. What additional features, if any, would you like to see on this or future TiLite products? OM_ZR_0913RevA ZR Owner’s Manual...
  • Page 6 FOLD HERE FOLD HERE TiLite Product Registration Form Please Seal with Tape Before Mailing ZR Owner’s Manual OM_ZR_0913RevA...

  • Page 7: Table Of Contents

    E. POSITIONING OR SEAT BELTS 1-13 F. ARMRESTS 1-14 G. FOOTRESTS/HANGERS 1-14 H. REAR WHEELS 1-14 AXLES 1-15 J. PNEUMATIC TIRES 1-15 K. REAR WHEEL LOCKS 1-15 L. CASTER PIN LOCKS 1-16 M. PUSH HANDLES 1-16 OM_ZR_0913RevA ZR Owner’s Manual...
  • Page 8 Adjusting the Backrest Mount Changing the Backrest Angle Adjusting the Backrest Height Replacing the Backrest BOLT-ON PUSH HANDLES Mounting Removing ADJUSTABLE HEIGHT PUSH HANDLES Mounting Removing CHApTER 5: ARMRESTS SWING AWAY ARMREST Adjusting the Angle Adjusting the Height ZR Owner’s Manual OM_ZR_0913RevA...
  • Page 9 TENSION ADJUSTABLE BY STRAPS SEAT SLING UPHOLSTERY Adjusting the Tension Replacing the Upholstery BOLT-ON SEAT SLING Adjusting the Tension Replacing the Upholstery SEAT CUSHIONS Replacing the Foam Insert in the TiLite Seat Cushion VELCRO -STYLE ADJUSTABLE SEAT BELT ® Installation Adjustment Safety Check...
  • Page 10 11-5 ® Replacing Casters 11-5 Replacing the Elastomer Shock 11-5 Replacing Frog Legs 11-5 ® CHApTER 12: REAR WHEELS 12-1 qUICK-RELEASE AXLE 12-1 Removing 12-1 Replacing 12-1 qUAD qUICK-RELEASE AXLE 12-1 Removing 12-1 Replacing 12-1 viii ZR Owner’s Manual OM_ZR_0913RevA...
  • Page 11 Engaging 13-2 Disengaging 13-2 Adjusting 13-3 Removing 13-3 Mounting 13-3 FRONT ROLLER 13-4 Removing 13-4 CHApTER 14: TRANSpORT BRACKET OpTION 14-1 GENERAL WARNINGS 14-1 INTRODUCTION 14-2 SECURING THE WHEELCHAIR TO THE VEHICLE 14-2 WARRANTY MODIFICATION 14-3 OM_ZR_0913RevA ZR Owner’s Manual...

  • Page 13: Chapter 1: Warnings

    BEFORE using the chair. 3. ALWAYS have your chair completely inspected and serviced by an authorized TiLite supplier at least once a year. 4. ALWAYS perform your safety inspections and any maintenance or adjustments while the chair is unoccupied (unless this Manual expressly states otherwise).

  • Page 14: E. Changing/Adjusting Your Wheelchair

    2. Unauthorized modifications to your chair, or the use of parts not supplied or approved by TiLite, may change the chair structure, may cause a safety hazard, including an increased risk of a tip-over, and will void the warranty.

  • Page 15: I. Motor Vehicle Safety

    The additional weight could exceed the weight limit for the chair and damage the chair. If you intend to engage in weight training, TiLite recommends that you utilize weight training equipment with built-in seating and that you transfer to that seating rather than using your chair.

  • Page 16: L. Standing On Your Chair

    L. STANDING ON YOUR CHAIR WARNING Your TiLite wheelchair has been designed for use as a wheelchair, not as a step ladder. NEVER stand on your TiLite wheelchair. If you ignore these Warnings, you may fall, tip over or lose control of the wheelchair and seriously injure yourself or others or damage the wheelchair.

  • Page 17: B. Climbing A Curb Or Single Step

    DO NOT climb a flight of stairs with the user in the wheelchair. However, TiLite recognizes that wheelchair users may, on occasion, have no other choice. Only if you have no alternative, you should follow these steps to climb up a flight of stairs.

  • Page 18: E. Descending A Flight Of Stairs

    WARNING Most falls or tip-overs occur when you go beyond the center of gravity of you and your wheelchair. TiLite wheelchairs are designed to remain stable and upright in normal daily use and activities so long as you do not exceed the center of gravity.

  • Page 19: B. Transferring In And Out Of Your Wheelchair

    However, using a TiLite seat pouch beneath the seat sling to carry heavier items will lower your center of gravity and reduce, but not eliminate, your risk of a tip over.

  • Page 20: C. Dressing/Undressing In Your Chair

    9. If possible, ALWAYS remove the footrests, or swing them out of the way, to ensure your feet do not get caught between the footrests. TiLite strongly recommends that you place your feet on the floor when you are transferring to or from your chair.

  • Page 21: E. Moving Backward

    See “Learning to do a ‘Wheelie’” on page 1-5. If you ignore these Warnings, you may fall, tip over or lose control of the wheelchair and seriously injure yourself or others or damage the wheelchair. ZR Owner’s Manual OM_ZR_0913RevA...

  • Page 22: G. Obstacles

    1. ALWAYS go up or down a slope, hill or ramp as straight as possible. If you try to cut the corner, you will be traversing the slope, hill or ramp sideways to the slope and your risk of tipping over sideways will increase. ZR Owner’s Manual 1-10...

  • Page 23: J. Stairs

    Warnings contained in this Manual. If you ignore these Warnings, you may fall, tip over or lose control of the wheelchair and seriously injure yourself or others or damage the wheelchair. ZR Owner’s Manual 1-11 OM_ZR_0913RevA...

  • Page 24: Warnings Regarding Components And Options

    TiLite also offers a limited number of seat cushions manufactured by other manufacturers. However, the selection of any of these products is a decision to be made by you and your doctor or therapist. TiLite has NO information about your medical condition and assumes no responsibility should you choose the wrong seating system for your medical needs.

  • Page 25: C. Upholstery Fabric

    TiLite chair. In addition, the following Warnings must be followed: 1. If you add a seating system to your TiLite chair, you will affect its center of balance. This may cause the chair to tip over. Therefore, NEVER install a new seating system on your own. Instead, have it installed by an authorized TiLite dealer who can assist you in making other necessary adjustments to ensure your center of balance is maintained as closely as possible to what you are used to.

  • Page 26: F. Armrests

    F. ARMRESTS WARNING Armrests are optional equipment on TiLite wheelchairs. TiLite armrests are detachable and are not designed to support the weight of your wheelchair. Therefore, NEVER lift your chair by its armrests. If you do, they may detach, causing you to drop the chair, or you may break the armrests or cause them to become loose and break at a later time unexpectedly.

  • Page 27: I. Axles

    WARNING Stainless quick-release axles are a standard TiLite wheelchair component. Other axle types are optional equipment. All TiLite axles are designed to make your rear wheels easy to remove quickly. However, if not used properly, they can be dangerous. NEVER use your chair UNLESS you are sure that both rear axles are locked into place in the axle receiver. If an axle is not fully locked into place, the rear wheel may come off during use of the chair and cause you to fall.

  • Page 28: Fasteners

    WARNING Caster pin locks are an optional accessory for TiLite wheelchairs. Caster pin locks are not designed to slow or stop a moving wheelchair – they do not prevent the casters from rotating on the axis of the axle. Caster pin locks are ONLY designed to keep the front casters from rotating on the axis of the stem bolt when your chair is at a complete stop.

  • Page 29: Power Drive

    TiLite, contact TiLite Customer Service. If you intend to install an approved power drive system on your TiLite chair, this must be taken into account when your chair is ordered so TiLite can manufacture your chair with a power-adaptable frame.

  • Page 31: Chapter 2: Safety Inspection, Maintenance & Troubleshooting

    TROUBLESHOOTING Introduction Your TiLite wheelchair is designed, engineered and built to provide you with years of exceptional performance. However, proper maintenance and regular safety inspections are essential in order to make sure your wheelchair is operating properly, safely and at maximum efficiency. In addition, proper maintenance and regular safety inspections will extend the life of your TiLite wheelchair.
  • Page 32 • Inspect to ensure that all hardware is securely attached Anti-tips √ √ • Inspect anti-tip wheel for cracks and wear √ √ • Inspect to ensure that anti-tip receptacle is securely attached Frame √ √ • Inspect for cracks ZR Owner’s Manual OM_ZR_0913RevA...

  • Page 33: Cleaning

    2. Always fully inspect your chair after it has been stored for any period before riding in it. See the chart under “Safety Inspections and Maintenance” on pages 2-1 to 2-2. 3. If you store your chair for more than three (3) months, have your chair inspected by an authorized TiLite supplier. ZR Owner’s Manual...

  • Page 34: Troubleshooting

    If the solutions below do not solve your problem or if you experience a problem not addressed below, please contact an authorized TiLite supplier or TiLite Customer Service. Please note, if more than one solution in the chart below applies to your particular adjustment issue, always try one solution at a time until the problem is solved.

  • Page 35: Chapter 3: Footrests

    Titanium Open Loop Footrest, enclosed with your chair are two 4” squares of self-adhesive Safe Tread. Safe Tread provides a more slip-resistant surface than the footrest of your chair. Use of the Safe Tread is optional, but TiLite recommends you use it in order to reduce the likelihood of your feet slipping off the footrest during use of your chair.

  • Page 36: Adjusting The Height

    Figure 3-2 Figure 3-3 Titanium Footrest Replacement Footrest Height Adjustment Frame Wedge Clamp Washer Allen Screw Footrest Figure 3-4 Footrest Height Adjustment Frame Footrest ZR Owner’s Manual OM_ZR_0913RevA...

  • Page 37: Replacing

    1. Loosen, but do not remove, the two Allen screws that secure the footplate to the clamp. See Figure 3-6. 2. Adjust the footrest to desired angle. 3. Tighten the Allen screws, making sure the screws and the locknuts are secure and will not permit the footplate to move up or down under weight. ZR Owner’s Manual OM_ZR_0913RevA...

  • Page 38: Adjusting Height/Replacing

    3. Tighten the Allen screws and locknuts (or 3/16” Allen screws), making sure the screws and the locknuts (or 3/16” Allen screws) are secure and will not permit the footplate to move up or down under your weight. ZR Owner’s Manual OM_ZR_0913RevA...

  • Page 39: Adjusting The Height/Replacing

    See Figure 3-11. 2. Adjust the footrest to the desired angle. 3. Tighten the Allen screws. Make sure the screws are secure and will not permit the footplate to rotate downward under weight. Allen Screws Stop Clamp ZR Owner’s Manual OM_ZR_0913RevA...

  • Page 40: Adjusting The Height/Replacing

    Velcro® Adjustable Calf Strap/ Velcro® padded Adjustable Calf Strap The Adjustable Calf Strap and Padded Adjustable Calf Straps are shown in Figure 3-13. Install the calf straps as shown in Figure 3-13. Figure 3-13 padded Adjustable Calf Strap ZR Owner’s Manual OM_ZR_0913RevA...

  • Page 41: Chapter 4: Backrests And Push Handles

    Nylock Nut and slightly loosen or tighten the nylock nut with the second Open End wrench. See Figure 4-2. 2. Repeat the procedure on each side of the chair until the Pivot Bolt desired tightness is achieved. ZR Owner’s Manual OM_ZR_0913RevA...

  • Page 42: Changing The Backrest Angle

    4. Make sure both backrest posts are at the same height in the backrest. 5. Reinstall the backrest upholstery. See “Velcro -Style Adjustable Back Upholstery” or “Tension Adjustable by ® Straps Back Upholstery” on pages 7-1 to 7-3. ZR Owner’s Manual OM_ZR_0913RevA...
  • Page 43 VC-3, a locking and sealing coating, to reduce the possibility that they will become loose. You should be able to adjust the backrest height approximately four times without reapplying thread lock to these screws. TiLite requires that you reapply Vibra-TITE VC-3 after every fourth adjustment.

  • Page 44: Replacing The Backrest

    Vibra-TITE ® VC-3, a locking and sealing coating, to reduce the possibility that they will become loose. TiLite requires that you reapply VC-3 each time your backrest is replaced. If Vibra-TITE ®...

  • Page 45: Removing

    (detachable) parts, such as the Adjustable Height Push Handles. If you ignore this Warning, the removable parts, such as the Adjustable Height Push Handles, could detach from the wheelchair causing you to fall, tip over or lose control of the wheelchair and seriously injure yourself or others or damage the wheelchair. ZR Owner’s Manual OM_ZR_0913RevA...

  • Page 46: Removing

    Adjustable Height push Handles Push Handle “Top View” Clamp Allen Screws quick Release Cam Lock Removing Tools Needed: • 3/16” Allen Wrench 1. Remove the four Allen screws. See Figure 4-10. 2. Remove the clamp and cam lock. ZR Owner’s Manual OM_ZR_0913RevA...

  • Page 47: Chapter 5: Armrests

    Block 4. Make sure the locking block teeth are fully engaged with the teeth on the receiver, and securely tighten the nylock nuts. 5. Repeat this procedure on the other side of the chair. Nylock Nuts ZR Owner’s Manual OM_ZR_0913RevA...

  • Page 48: Adjusting The Height

    2. While holding the release lever, lift the desk arm assembly to remove it from the desk arm mount. See Figure 5-5. Replacing Slide the desk arm housing into the desk arm mount. See Figure 5-5. ZR Owner’s Manual OM_ZR_0913RevA...

  • Page 49: Swing Away-Flip Back Armrest

    To replace the armrest, swing it back towards the chair and gently push it back down into place. Note: The Swing Away Armrests pivot on nylon sleeves located inside the armrest receiver. If the armrest does not rotate properly, check the sleeves for wear. ZR Owner’s Manual OM_ZR_0913RevA...

  • Page 50: Adjusting The Armrest Height

    Make sure that the stop clamp is securely tightened before applying weight to the armrest. If you ignore this Warning, you could fall, tip over or lose control of the wheelchair and seriously injure yourself or others or damage the wheelchair. Figure 5-8 Adjusting the Armrest Angle Stop Clamp Allen Screw ZR Owner’s Manual OM_ZR_0913RevA...

  • Page 51: Chapter 6: Side Guards

    See Figure 6-2. To replace, place the bracket into the slot between the side guard mount and the clamp and push down. Figure 6-2 Rigid Side Guards Rigid Removable Side Guard Bracket quad Removable Side Guard Clamp Side Guard Mount ZR Owner’s Manual OM_ZR_0913RevA...

  • Page 52: Adjusting

    2. Insert the Allen screw through the washer, the two halves of the clamp and securely tighten. 3. Insert the side guard bracket into the side guard mount and adjust the two Allen screws as described under “Adjusting” on page 6-2. ZR Owner’s Manual OM_ZR_0913RevA...

  • Page 53: Fold-Down Rigid Side Guards (Aluminum And Carbon Fiber)

    Make sure the rearward end of the side guard is inside the stabilizer tab. See Figure 6-5. To adjust the fendered side guards, see “Adjusting” on page 6-2. ZR Owner’s Manual OM_ZR_0913RevA...

  • Page 54: Adjustable Fendered Side Guard (Aluminum)

    If you repeatedly adjust the cams or remove the sideguard, TiLite requires that you reapply Vibra-TITE® VC-3 after every fourth adjustment. If you ignore this Warning, you could fall, tip over or lose control of the wheelchair and seriously injure yourself or others or damage the wheelchair.

  • Page 55: Mounting Adjusting

    If you repeatedly adjust the cams or remove the sideguard, TiLite requires that you reapply Vibra-TITE® VC-3 after every fourth adjustment. If you ignore this Warning, you could fall, tip over or lose control of the wheelchair and seriously injure yourself or others or damage the wheelchair.

  • Page 57: Chapter 7: Back Upholstery, Seat Upholstery & Seat Cushions

    9. Reinstall the strap(s) and adjust to the desired tautness. 10. Securely attach the padded back to the backrest ears and lower the back flap back into position in front of the rigidizer bar. 11. Replace the seat cushion. ZR Owner’s Manual OM_ZR_0913RevA...

  • Page 58: Tension Adjustable By Straps Back Upholstery

    6. Securely attach the padded back to the backrest ears and lower the back flap back into position in front of the rigidizer bar. Figure 7-4 Adjusting Back Flap Ear Straps Backrest Ears Padded Back Strap Backrest ZR Owner’s Manual OM_ZR_0913RevA...

  • Page 59: Replacing

    “Tension Adjustable by Straps Back Upholstery” on pages 7-2 and 7-3). 3. Carefully tip the chair back until it is resting on its rear wheels and the backrest. 4. Detach one tension adjustable strap, adjust to the desired tension and refasten the strap. See Figure 7-6. ZR Owner’s Manual OM_ZR_0913RevA...

  • Page 60: Replacing The Upholstery

    4. Detach the adjustment flap, adjust the seat upholstery to the desired tension, and re-secure the adjustment using the Velcro -style material. ® 5. Retighten the Allen screws that attach the seat upholstery to the frame. 6. Reattach the back upholstery to the seat upholstery and replace the seat cushion. ZR Owner’s Manual OM_ZR_0913RevA...

  • Page 61: Replacing The Upholstery

    3. Insert the new foam insert into the seat cushion cover. 4. Close the seat cushion cover and replace on the chair. For seat cushions manufactured by manufacturers other than TiLite ( e.g. Corbee, StimuLite, Roho, Varilite), consult the owner’s manual provided by the applicable manufacturer.

  • Page 62: Installation

    5. Move chair through full range of motion, including folding backrest, and rolling. Check for any interference. Maintenance Check periodically for signs of wear in the stitching and webbing. If significant wear is found, contact your supplier for qualified repair or replacement by TiLite. ZR Owner’s Manual OM_ZR_0913RevA...

  • Page 63: Chapter 8: Axle Plates And Camber Plugs (Center Of Gravity; Rear Seat Height)

    (CENTER OF GRAVITY; REAR SEAT HEIGHT) All TiLite rigid wheelchairs are equipped with a camber tube. By adjusting the position of the camber tube, you can adjust the center of gravity of your chair. In some cases, you also can adjust the rear seat height. This chapter explains the various adjustments that are possible.

  • Page 64: Replacing The Camber Tube

    1. Make sure the distance from the end of the camber tube to the camber clamp is identical on both sides of the chair. See Figure 8-3. 2. Make sure the rear wheels are properly inflated. 3. Place the chair on all four wheels with the casters trailing toward the rear of the frame. See Figure 8-4. ZR Owner’s Manual OM_ZR_0913RevA...
  • Page 65 See Figure 8-6. 13. Securely tighten the Allen screws in the camber tube mount. 14. Square the casters to the floor. Figure 8-6 Figure 8-5 Adjusting the Toe-In/Toe-Out Adjusting the Toe-In/Toe-Out Wrench Camber Tube Camber Plug Toe-In/Toe-Out Measurement ZR Owner’s Manual OM_ZR_0913RevA...

  • Page 67: Chapter 9: Axles And Amputee Adapters

    Adjusting WARNING quick-Release Axles are pre-adjusted to permit minimal “play” in the axle. TiLite recommends that you do not adjust the axle. Improperly adjusting the axle could cause it to malfunction—too much “play” can cause the axle to bend and become stuck in the axle sleeve or Zero Play camber tube;...
  • Page 68 If you ignore this Warning, your rear wheel could become loose or fall off and you could fall, tip over or lose control of the wheelchair and seriously injure yourself or others or damage the wheelchair. ZR Owner’s Manual OM_ZR_0913RevA...

  • Page 69: Adjusting The "Play

    Adjusting the “play” WARNING quick-Release Axles are pre-adjusted to permit minimal “play” in the axle. TiLite recommends that you do not adjust the axle. Improperly adjusting the axle could cause it to malfunction—too much “play” can cause the axle to bend and become stuck in the axle sleeve or Zero Play camber tube;...

  • Page 71: Chapter 10: Wheel Locks

    CHAPTER 10: WHEEL LOCKS WARNING TiLite recommends that you remove the wheel locks from your chair frame prior to engaging in any sport. If you ignore this Warning, you may seriously injure yourself or others or damage the wheelchair. WARNING The wheel stop must embed at least 3/16”...

  • Page 72: Compact Pull To Lock

    2. Adjust the position of the wheel lock clamp on the frame so the wheel stop embeds at least 3/16” into the tire when engaged in the locked position. 3. Securely tighten the two Allen screws that secure the wheel lock clamp to the frame. ZR Owner’s Manual 10-2 OM_ZR_0913RevA...

  • Page 73: Replacing

    2. Adjust the position of the wheel lock clamp on the frame so the wheel stop embeds at least 3/16” into the tire when engaged in the locked position. 3. Securely tighten the two Allen screws that secure the wheel lock clamp to the frame. Figure 10-4 Adjusting/Replacing Allen Screws Handle Frame Tire Wheel Stop ZR Owner’s Manual 10-3 OM_ZR_0913RevA...

  • Page 74: Replacing

    Figures 10-8 through 10-11 show the handle in both the engaged (locked) and disengaged (unlocked) positions. Study the Figures to determine which handle configuration will work best for you. Follow the directions below to reconfigure your handle to the desired configuration. ZR Owner’s Manual 10-4 OM_ZR_0913RevA...
  • Page 75 4. Reposition the wheel lock handle to the desired Standard Handle Position 1, 2 or 3 (see Figures 10-8 and 10-9) and replace the Allen screw and locknut. 5. Securely tighten both Allen screws and locknuts. Figure 10-12 Removing the Wheel Lock Handle Handle Locknuts Base Allen Screws ZR Owner’s Manual 10-5 OM_ZR_0913RevA...

  • Page 76: Uni-Lock With Extension Handles

    3. Slide the new Aluminum Scissor Lock into the wheel lock clamp, but do not tighten the two Allen screws. 4. Follow the procedure under “Aluminum Scissor Lock - Adjusting” on page 10-6 to position and secure the new Aluminum Scissor Lock. ZR Owner’s Manual 10-6 OM_ZR_0913RevA...

  • Page 77: Chapter 11: Casters And Forks

    Note: If your chair has 4” or 5” TiLite Performance casters, make sure that Spacer 2 (which is wider than Spacer 1) is positioned on the recessed side of the caster, which should be oriented outwards when the casters are in the trailing position.

  • Page 78: Slipstream Single-Sided Fork

    Replacing Casters” on page 11-1 to mount the casters in the alternative axle holes in the fork. The full range of adjustability will not be available with 5” or 6” casters. Additional adjustability may be achieved with different forks or casters or with fork stem extensions. Contact TiLite Customer Service for assistance. ZR Owner’s Manual...

  • Page 79: Adjusting The Front Seat Height On Slipstream Single-Sided Forks

    ® they will become loose. You should be able to remove and reinstall these screws and axles approximately four times without reapplying the coating. If you repeatedly remove and reinstall these axles, TiLite requires that you reapply Vibra-TITE VC-3 after every fourth adjustment. If you ignore this Warning, you may fall, tip over or lose control of the ®...
  • Page 80 Allen screw on the footrest clamp. If the caster still floats, or if the other caster starts to float, check that the footrest is level and repeat Steps 10 through 13 until the caster no longer floats. 14. If the floater continues and cannot be corrected using these steps, please contact TiLite Customer Service. Figure 11-5...

  • Page 81: Frog Legs

    Note: If your chair has 4” or 5” TiLite performance casters, make sure that Spacer 2 (which is wider than Spacer 1) is positioned on the recessed side of the caster, which should be oriented outwards when the casters are in the trailing position.
  • Page 82 WARNING The fork stems on Frog Legs made for the TiLite ZR are a custom size. Therefore, if you need to replace your Frog ® forks or stems, you must order replacements from TiLite. If you ignore this Warning, the new Frog Legs that ®...

  • Page 83: Chapter 12: Rear Wheels

    3. Insert the axle all the way into axle sleeve. 4. Lock the lever on the quad quick-Release Axle. 5. Pull firmly on the wheel (without unlocking the lever) to make sure the wheel is locked securely in place. ZR Owner’s Manual 12-1 OM_ZR_0913RevA...

  • Page 84: Handrims

    Replacement of solid tires requires specialized equipment. Therefore, if your solid tires need replacement, you must have this done by an authorized TiLite dealer or qualified technician. If you ignore this Warning, you may seriously injure yourself or others or damage the wheelchair.

  • Page 85: Rear Wheel Spacers

    3. After you have adjusted your rear wheel spacing, reinstall the axle sleeve in the camber plug and hand-tighten. 4. Using a Torque wrench, tighten the axle sleeve to 230 inch-pounds. Figure 12-5 Rear Wheel Spacing Camber Plug 1/8” Spacer Lock Washer Camber Tube Axle Sleeve 1/2” Spacer 1/4” Spacer ZR Owner’s Manual 12-3 OM_ZR_0913RevA...

  • Page 87: Chapter 13: Anti-Tips

    WARNING Only an authorized TiLite dealer or qualified technician should install the rear anti-tip receiver. If you ignore this Warning, you may fall, tip over or lose control of the wheelchair and seriously injure yourself or others or damage the wheelchair.

  • Page 88: User-Friendly Anti-Tips

    To disengage the User-Friendly Anti-Tip, grip the anti-tip firmly, pressing down on the release lever, raise the anti-tip until the anti-tip receiver re-engages in the anti-tip mount in the “up” position shown in Figure 13-4. Figure 13-4 Disengaging ZR Owner’s Manual 13-2 OM_ZR_0913RevA...

  • Page 89: Adjusting

    Mounting WARNING Only an authorized TiLite dealer or qualified technician should install the anti-tip receiver. If you ignore this Warning, you may fall, tip over or lose control of the wheelchair and seriously injure yourself or others or damage the wheelchair.

  • Page 90: Front Roller

    Holes Allen Screw Allen Screw Receiver Front Roller Removing Tools Needed: • 1/8” Allen Wrench With an Open Loop Footrest: 1. Remove the two Allen screws. See Figure 13-7. 2. Remove the Front Roller assembly. ZR Owner’s Manual 13-4 OM_ZR_0913RevA...
  • Page 91 Note: If removing the Front Roller from an angle adjustable footrest, you will need to order new, shorter Allen screws and washers to secure the footplate to the clamp. Figure 13-8 Front Roller with Angle Adjustable Footplate Allen Screws Washers Clamp Roller Plate Front Roller Locknuts Allen Screws ZR Owner’s Manual 13-5 OM_ZR_0913RevA...

  • Page 93: Chapter 14: Transport Bracket Option

    Alterations or substitutions should NOT be made to the wheelchair securement points or to structural or frame parts or components. IWARNING TiLite expressly disclaims that use of its Transport Brackets on a TiLite wheelchair will prevent the wheelchair from being damaged in the event of a motor vehicle accident. IWARNING A sudden stop and/or collision may structurally damage your wheelchair.

  • Page 94: Introduction

    However, any adjustment of the rear transport brackets must ALWAYS be performed by an authorized TiLite dealer, and even if such an adjustment is made, you must ALWAYS use the bolts and nuts originally shipped with your wheelchair. If you ZR Owner’s Manual...

  • Page 95: Warranty Modification

    WARRANTY MODIFICATION A copy of the TiLite Limited Warranty was enclosed with your new wheelchair when it was shipped from our factory. Our warranty is also available on our website, www.tilite.com. That Limited Warranty applies to your TiLite wheelchair with the Wheelchair Transport Bracket Option, with the following modification: The warranty is void if the wheelchair is damaged as a result of transit use.
