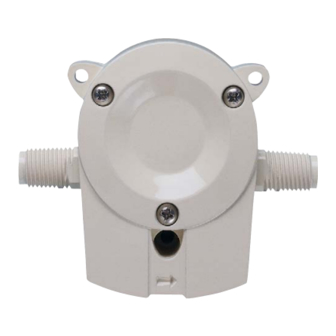

- Page 1 User’ s Gui d e Shop online at www.omega.com e-mail: info@omega.com FP-5060 Series Micro-Flow Sensors...
- Page 2 CE mark to every appropriate device upon certifi cation. The information contained in this document is believed to be correct, but OMEGA Engineering, Inc. accepts no liability for any errors it contains, and reserves the right to alter specifi cations without notice.
-
Page 3: Safety Instructions
OMEGA FP-5060 Series Micro-Flow Sensors SAFETY INSTRUCTIONS Do not remove from pressurized lines. Do not exceed maximum temperature/pressure specifi cations. Do not install/service without following installation instructions (see sensor manual). Wear safety goggles and faceshield during installation/service. Do not alter product construction. Failure to follow safety instructions could result in severe personal injury! 1. - Page 4 3. Surface Mount Instructions Mounting surface 4. Fitting Installation CAUTION: • Maximum pipe fi tting torque: 10 ft - lbs (13 N m). • DO NOT overtighten. Failure to observe torque specifi cation may permanently damage sensor ports. Pipe Pipe fitting Technical Notes: •...
- Page 5 6. Specifi cations General Flow range: 5061 and 5062: 0.11 to 2.6 lpm (0.03 to 0.7 gpm) 5063 and 5064: 1.13 to 12.11 lpm (0.3 to 3.2 gpm) Linearity: ±1.2% of full range Repeatability: ±0.5% of full range Connections: ¼ in. NPT (male) or ISO 7/1 - R¼ (male) Cable length: 8 m (25 ft.), can splice up to 300 m (1000 ft.) max.
- Page 6 NOTES: page 6 OMEGA FP-5060 Series Micro Flow Sensor...
- Page 7 OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a period of 13 months from date of purchase. OMEGA’s WARRANTY adds an additional one (1) month grace period to the normal one (1) year product warranty to cover handling and shipping time. This ensures that OMEGA’s customers receive maximum coverage on each product.
