4-2-6.Audio signal processing, KEY, and LED

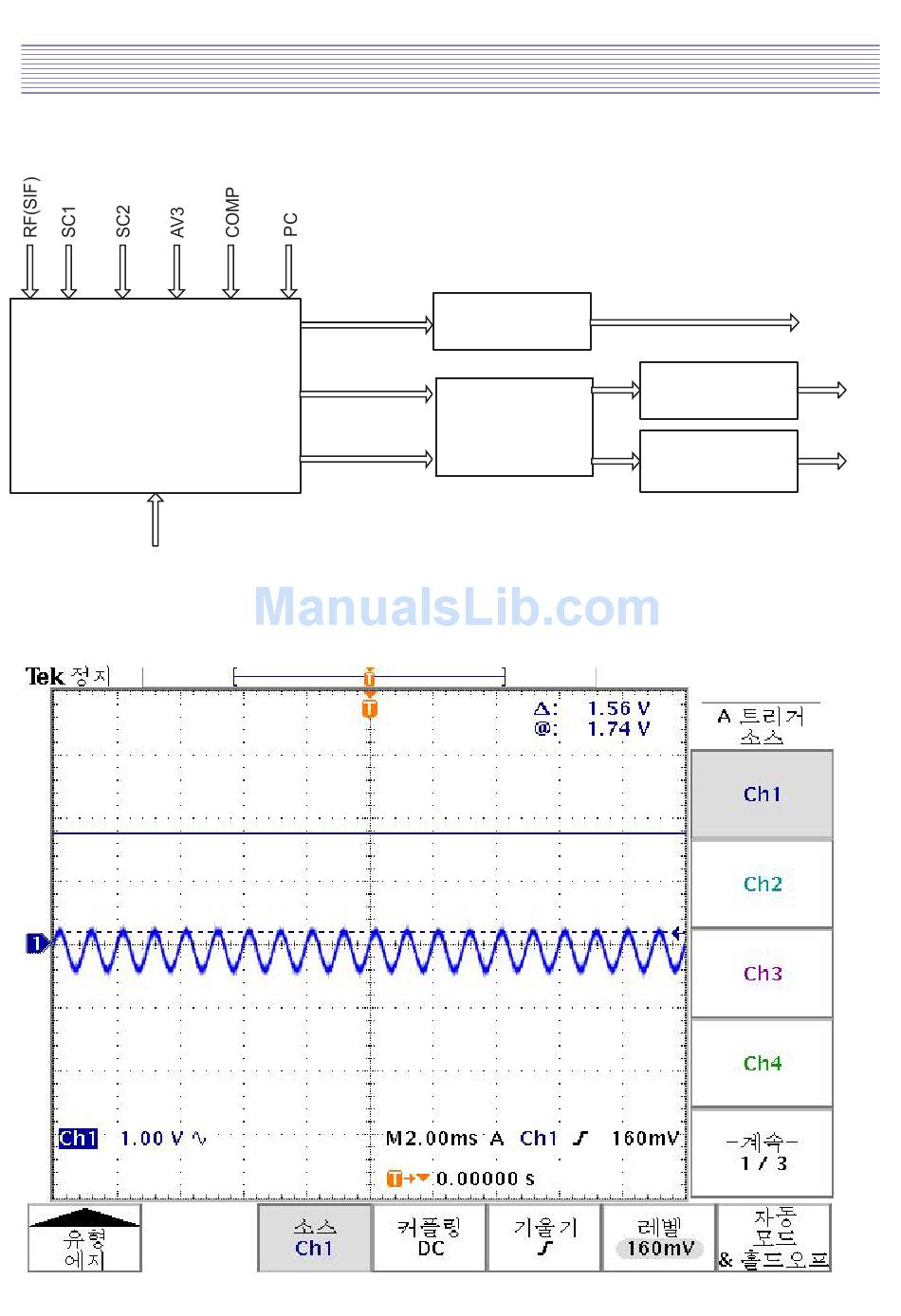

-Flow Chart of Audio Signal
U8
M ST96889LD
HDMI
Pre AMP input
Location:CE38, CE39
12S U1
W M 8521
Sound L
U13
TD A1308
Sound R
-17-
SC1-OUT
Speaker L &
Headphone L
U12
TD A8931T
Speaker R&
Headphone R
U14
TD A8931T
