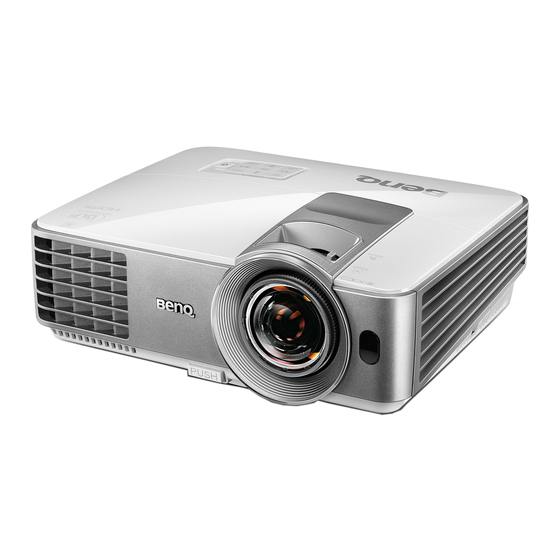

BenQ MS630ST Quick Start Manual

Hide thumbs Also See for MS630ST:
Table of Contents

Advertisement

Available languages
  • EN

Available languages

  • ENGLISH, page 6

Quick Links

Download this manual See also: User Manual

Advertisement

Table of Contents
loading

Related Manuals for BenQ MS630ST

Summary of Contents for BenQ MS630ST

  • Page 2: Wichtige Sicherheitshinweise

    Schrauben von der Decke fällt. Der BenQ-Deckenmontagesatz für den Projektor ist im selben Fachgeschäft erhältlich, in dem Sie auch den BenQProjektor erworben haben. BenQ empfiehlt, dass Sie außerdem ein separates, mit dem Kensington-Schloss kompatibles Sicherheitskabel kaufen und dieses ordnungsgemäß in der Aussparung für das Kensington-Schloss am Projektor und an der Grundplatte des Deckenmontagegestells anbringen.

  • Page 4: Remote Control

    Remote control Source selection buttons Keystone Auto adjustment Menu/Exit Left Right Mode/Enter Source Eco Blank Keystone Down Laser MHL control buttons Microphone volume +/ Zoom +/Zoom - Microphone volume - Mute Page +/Page - Aspect ratio Freeze SmartEco Network setting Numeric buttons Quick install (For Japan)
  • Page 5 (VGA) (DVI)

  • Page 6: Projection Dimensions

    All measurements are approximate and may vary from the actual sizes. BenQ recommends that if you intend to permanently install the projector, you should physically test the projection size and distance using the actual projector in situ before you permanently install it, so as to make allowance for this projector's optical characteristics.
  • Page 7 All measurements are approximate and may vary from the actual sizes. BenQ recommends that if you intend to permanently install the projector, you should physically test the projection size and distance using the actual projector in situ before you permanently install it, so as to make allowance for this projector's optical characteristics.

  • Page 8: Ceiling Mount Installation

    Ceiling mount installation Ceiling Mount screw: M4 (Max L = 25 mm; Min L = 20 mm) Unit: mm 199.6 74.52 84.41 144.04 247.49 287.86...
  • Page 12 Table of contents English ................... 13 Français ..................14 Deutsch ..................15 Italiano ................... 16 Español ..................17 Português ..................18 Svenska ..................19 ..................20 Nederlands ................... 21 Polski ....................22 Türkçe ................... 23 Čeština ..................24 ....................25 繁體中文...

  • Page 14: Specifications

    Specifications All specifications are subject to change without notice. Optical Control Resolution RS-232 serial control 800 x 600 SVGA (MS630ST) 9 pin x 1 1024 x 768 XGA (MX631ST) IR receiver x 2 1280 x 800 WXGA (MW632ST) Display system...

  • Page 15: Caractéristiques

    Toutes les caractéristiques peuvent être modifiées sans notification préalable. Caractéristiques optiques Commande Résolution Contrôle série RS-232 800 x 600 SVGA (MS630ST) 1 à 9 broches 1024 x 768 XGA (MX631ST) 2 récepteurs IR 1280 x 800 WXGA (MW632ST) Système d’affichage Terminaux d’entrée...

  • Page 16: Technische Daten

    MS630ST_MX631ST_MW632ST_QSG.fm Page 15 Wednesday, March 18, 2015 10:35 AM Technische Daten Alle Daten können ohne Bekanntmachung geändert werden. Optische Daten Steuerung Auflösung Serielle RS-232-Steuerung 800 x 600 SVGA (MS630ST) 9-polig x 1 1024 x 768 XGA (MX631ST) IR-Empfänger x 2 1280 x 800 WXGA (MW632ST) Anzeigesystem Eingänge...

  • Page 17: Specifiche Tecniche

    Tutte le specifiche sono soggette a modifiche senza preavviso. Parte ottica Controllo Risoluzione Controllo seriale RS-232 800 x 600 SVGA (MS630ST) 9 pin x 1 1024 x 768 XGA (MX631ST) Ricevitore infrarossi x 2 1280 x 800 WXGA (MW632ST) Sistema di visualizzazione...

  • Page 18: Especificaciones

    Todas las especificaciones están sujetas a cambio sin previo aviso. Óptico Control Resolución Control de serie RS-232 800 x 600 SVGA (MS630ST) 9 patillas x 1 1024 x 768 XGA (MX631ST) Receptor de infrarrojos (IR) x 2 1280 x 800 WXGA (MW632ST) Sistema óptico...
  • Page 19 Todas as especificações estão sujeitas a alteração sem aviso prévio. Ópticas Controlo Resolução Controlo de série RS-232 800 x 600 SVGA (MS630ST) 9 pinos x 1 1024 x 768 XGA (MX631ST) Receptor IR x 2 1280 x 800 WXGA (MW632ST) Sistema de ecrã...
  • Page 20 MS630ST_MX631ST_MW632ST_QSG.fm Page 19 Wednesday, March 18, 2015 10:35 AM Specifikationer Alla specifikationer kan ändras utan föregående meddelande. Optik Kontroll Upplösning RS-232-seriekontroll 800 x 600 SVGA (MS630ST) 9 stift x 1 1024 x 768 XGA (MX631ST) IR-mottagare x 2 1280 x 800 WXGA (MW632ST) Visningssystem Ingångskontakter 1-CHIP DMD Datoringång...

  • Page 21: Технические Характеристики

    Технические характеристики Все характеристики могут быть изменены без предварительного уведомления. Оптические характеристики Управление Разрешение Управление через последовательный порт 800 x 600 SVGA (MS630ST) RS-232 1024 x 768 XGA (MX631ST) 9 контактов x 1 1280 x 800 WXGA (MW632ST) ИК-приемник x 2 Проекционная...
  • Page 22 MS630ST_MX631ST_MW632ST_QSG.fm Page 21 Wednesday, March 18, 2015 10:35 AM Specificaties Alle specificaties kunnen zonder voorafgaande kennisgeving worden gewijzigd. Optisch Besturing Resolutie RS-232 seriële besturing 800 x 600 SVGA (MS630ST) 9-pin x 1 1024 x 768 XGA (MX631ST) IR-ontvanger x 2 1280 x 800 WXGA (MW632ST) Weergavesysteem Ingangen...

  • Page 23: Dane Techniczne

    Dane techniczne Wszystkie specyfikacje mogą ulec zmianie bez powiadomienia. Parametry optyczne Sterowanie Rozdzielczość Port szeregowy RS-232 800 x 600 SVGA (MS630ST) 9 styków x 1 1024 x 768 XGA (MX631ST) Odbiornik podczerwieni x 2 1280 x 800 WXGA (MW632ST) System wyświetlacza Wejścia...
  • Page 24 MS630ST_MX631ST_MW632ST_QSG.fm Page 23 Wednesday, March 18, 2015 10:35 AM Spesifikasyonlar Tüm spesifikasyonlar, haber verilmeden değiştirilebilir. Optik Kumanda Çözünürlük RS-232 seri kumanda 800 x 600 SVGA (MS630ST) 9 pin x 1 1024 x 768 XGA (MX631ST) IR alıcısı x 2 1280 x 800 WXGA (MW632ST) Görüntü sistemi Giriş terminalleri 1-CHIP DMD Bilgisayar girişi...

  • Page 25: Technické Údaje

    Veškeré technické údaje se mohou změnit bez předchozího upozornění. Optické parametry Ovládání Rozlišení Sériové rozhraní RS-232 800 x 600 SVGA (MS630ST) 9 pinů x 1 1024 x 768 XGA (MX631ST) Infračervené čidlo x 2 1280 x 800 WXGA (MW632ST) Systém zobrazování...
  • Page 26 ÃкºÍÍ»μÔ ¤ ¡ÒäǺ¤Ø Á ¤ÇÒÁÅÐàÍÕ Â ´ ¡ÒäǺ¤Ø Á Í¹Ø ¡ ÃÁ RS-232 800 x 600 SVGA (MS630ST) 9 pin x 1 1024 x 768 XGA (MX631ST) μÑ Ç ÃÑ º Ê−−Ò³ÍÔ ¹ ¿ÃÒàô x 2 1280 x 800 WXGA (MW632ST) ÃкºáÊ´§ÀÒ¾...
  • Page 27 MS630ST_MX631ST_MW632ST_QSG.fm Page 26 Wednesday, March 18, 2015 10:35 AM 規格 所有規格如有變更，恕不另行通知。 光學 控制 解析度 RS-232 序列控制 800 x 600 SVGA (MS630ST) 9 針 x 1 1024 x 768 XGA (MX631ST) 紅外線接收器 x 2 1280 x 800 WXGA (MW632ST) 顯示系統 輸入端子...
  • Page 28 MS630ST_MX631ST_MW632ST_QSG.fm Page 27 Wednesday, March 18, 2015 10:35 AM 规格 所有规格如有更改，恕不另行通知。 光学 控制 分辨率 RS-232 串口控制 9 针 x 1 800 x 600 SVGA (MS630ST) 1024 x 768 XGA (MX631ST) 红外接收器 x 2 1280 x 800 WXGA (MW632ST) 显示系统 输入端子 1-CHIP DMD 电脑输入...
  • Page 29 MS630ST_MX631ST_MW632ST_QSG.fm Page 28 Wednesday, March 18, 2015 10:35 AM 仕様 仕様はすべて予告なしに変更されることがあります。 光学仕様 コントロール RS-232 シリアル コントロール 解像度 800 x 600 SVGA (MS630ST) 9 pin x 1 1024 x 768 XGA (MX631ST) IR 受信機 x 2 1280 x 800 WXGA (MW632ST) ディスプレイ システム 入力端子...
  • Page 30 모든 사양은 사전 통보 없이 변경될 수 있습니다 . 광학 사양 컨트롤 RS-232 직렬 컨트롤 해상도 800 x 600 SVGA (MS630ST) 9 핀 x 1 1024 x 768 XGA (MX631ST) IR 수신기 x 2 1280 x 800 WXGA (MW632ST) 디스플레이 시스템...
  • Page 31 … h ‘ H H g l P ” H g j ‘ z ¢ j s g ” L H g ¬ r f ¢ ¬ f h P ¬ ‘ H ¬ U ¬ H g P G • j Œ...
  • Page 32 For further information, please refer to the enclosed User Manual.
