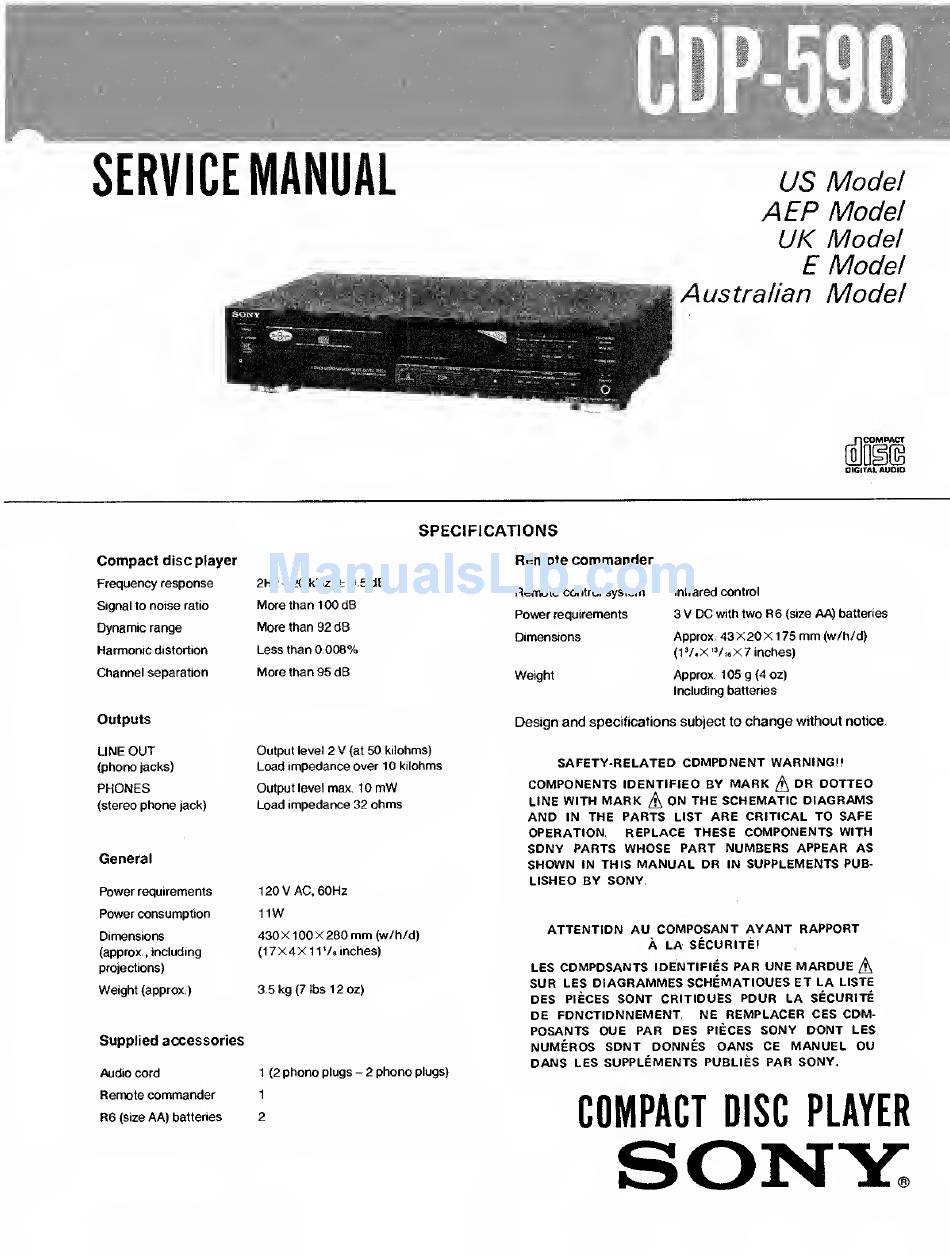

SERVICE
MANUAL
US
Model
AEP
Model
UK
Model
E
Model
Australian
Model
(o]d§®
DIGITAL
AUDIO
SPECIFICATIONS
Compact
disc player
Frequency response
Signal to
noise
ratio
Dynamic
range
Hamionic
distortion
Channel
separation
2Hz-20kH2±0-5
dB
More
than
1
00
dB
More
than
92
dB
Less
than
0.008%
More
than
95
dB
Outputs
LINE
OUT
(phono
jacks)
PHONES
(stereo
phone
jack)
General
Power
requirements
Power consumption
Dimensions
(approx., including
projections)
Weight
(approx.)
Output
level
2
V
(at
50
kilohms)
Load impedance
over 10
kilohms
Output
level
max. 10
mW
Load impedance 32
ohms
120
VAC.
60Hz
11W
430
X
1
00
X
280
mm
(w/h/d)
(17X4X11V*
inches)
3.5
kg
(7
lbs12oz)
Supplied accessories
Audio cord
1
(2
phono
plugs
-
2
phono
plugs)
Remote commander
1
R6
(size
AA)
batteries
2
Remote commander
Remote
control
system
Power
requirements
Dimensions
Weight
Infrared control
3
V DC
with
two
R6
(size
AA)
batteries
Approx.
43
X
20
X
1
75
mm
(w/h/d)
(1
V.X'Vi
6X7
inches)
Approx.
1
05 g
(4
oz)
Including batteries
Design
and
specifications subject to
change
without
notice.
SAFETY-RELATED
COMPONENT
WARNING!!
COMPONENTS
IDENTIFIED
BY
MARK
^
OR DOTTED
LINE
WITH
MARK
^
ON
THE SCHEMATIC DIAGRAMS
AND
IN
THE PARTS
LIST
ARE
CRITICAL
TO SAFE
OPERATION.
REPLACE THESE COMPONENTS WITH
SONY
PARTS
WHOSE
PART
NUMBERS
APPEAR AS
SHOWN
IN
THIS
MANUAL OR
IN
SUPPLEMENTS
PUB-
LISHED
BY
SONY.
ATTENTION
AU COMPOSANT AY ANT
RAPPORT
A LA
SECURITE!
LES
COMPOSANTS
IDENTIFIES
PAR UNE
MARQUE
^
SUR
LES
DIAGRAMMES SCHEMATIQUES
ET
LA
LISTE
DES
PIECES
SONT
CRITIQUES
POUR LA
SECURITE
DE FONCTIONNEMENT.
NE REMPLACER CES COM-
POSANTS QUE PAR DES
PIECES
SONY DONT
LES
NUMEROS
SONT DONNES DANS
CE
MANUEL OU
DANS
LES
SUPPLEMENTS
PUBLIES
PAR
SONY.
COMPACT
DISC
PLAYER
