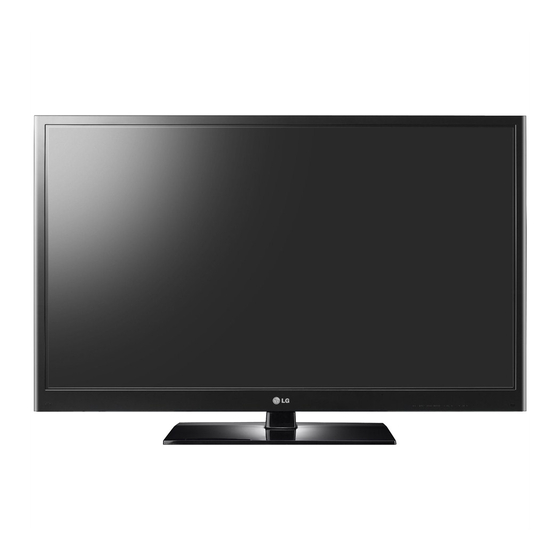

LG 42PT200 Owner's Manual

Hide thumbs Also See for 42PT200:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , Owner's Manual
OWNER'S MANUAL
PLASMA TV
Please read this manual carefully before operating
your set and retain it for future reference.
42PT200
50PT200
42PT330
50PT330
42PT350
50PT350
P/NO : SAC34173308 (1102-REV01)
Downloaded From TV-Manual.com Manuals
50PV400
42PT250U
60PV400
50PT250U
50PV430
50PV550U
60PV430
60PV550U
50PV450
60PV450
42PT350C
50PT350C
50PV450C
60PV450C
www.lg.com

Advertisement

Table of Contents
loading

Related Manuals for LG 42PT200

Summary of Contents for LG 42PT200

  • Page 1 OWNER’S MANUAL PLASMA TV Please read this manual carefully before operating your set and retain it for future reference. 42PT200 50PV400 42PT250U 42PT350C 50PT200 60PV400 50PT250U 50PT350C 42PT330 50PV430 50PV550U 50PV450C 50PT330 60PV430 60PV550U 60PV450C 42PT350 50PV450 50PT350 60PV450 www.lg.com P/NO : SAC34173308 (1102-REV01) Downloaded From TV-Manual.com Manuals...

  • Page 2: Warning / Caution

    Do not attempt to modify this product in any way cable ground shall be connected to the grounding system without written authorization from LG Electronics. of the building, as close to the point of the cable entry Unauthorized modification could void the user’s as practical.

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Protect the power cord from being walked on or pinched particularly at plugs, convenience Keep these instructions. receptacles, and the point where they exit from Heed all warnings. the apparatus. Follow all instructions. Do not use this apparatus near water.
  • Page 4 SAFETY INSTRUCTIONS Never touch this apparatus or antenna during WARNING - To reduce the risk of fire or electrical a thunder or lighting storm. shock, do not expose this product to rain, moisture or other liquids. Do not touch the TV with wet hands.
  • Page 5 A A N N T T E E N N N N A A S S V V e e n n t t i i l l a a t t i i o o n n O O u u t t d d o o o o r r a a n n t t e e n n n n a a g g r r o o u u n n d d i i n n g g Install your TV where there is proper ventila- tion.

  • Page 6: Table Of Contents

    CONTENTS WARNING / CAUTION - Add / Delete Channel (Manual Tuning) ........- Channel Editing .
  • Page 7 SOUND & LANGUAGE CONTROL APPENDIX Troubleshooting 1 12 Auto Volume Leveler (Auto Volume) ..........

  • Page 8: Feature Of This Tv

    HDTV formats include 1080i and 720p Unlike other sensors which can only sense brightness resolutions. of ambient light, LG’s “Intelligent Sensor” uses 4,096 sensing steps to evaluate its surroundings. Using a This TV contains the detailed calibrations necessary sophisticated algorithm, the LG processes picture...

  • Page 9: Preparation

    PREPARATION ACCESSORIES Ensure that the following accessories are included with your TV. If an accessory is missing, please contact the dealer where you purchased the TV. The accessories included may differ from the images below. Protection Cover and Tape Ferrite Core Power Cord Owner’s Manual (Refer to P.14)

  • Page 10: Front Panel Information

    PREPARATION FRONT PANEL INFORMATION Image shown may differ from your TV. Intelligent Sensor Adjusts picture according to the surrounding conditions. Remote Power/Standby Indicator Control Sensor Illuminates red in standby mode. The LED is off while the TV remains on. ENTER HOME ENTER CHANNEL...

  • Page 11: Back Panel Information

    BACK PANEL INFORMATION Image shown may differ from your TV. (For 42/50PT250U, 42/50PT350, (For 42/50PT200, 42/50PT330, 42/50PT350C, 50/60PV450, 50/60PV400, 50/60PV430) 50/60PV450C, 50/60PV550U) AV IN 2 AV IN 2 OPTICAL AUDIO IN DIGITAL AV IN 1 REMOTE (RGB/DVI) AUDIO OUT CONTROL IN VIDEO L/MONO /MONO...
  • Page 12 PREPARATION HDMI/DVI IN COMPONENT IN Digital Connection. Supports HD video and Analog Connection. Supports HD. Digital audio. Doesn’t support 480i. Uses a red, green, and blue cable for video & red Accepts DVI video using an adapter or HDMI to and white for audio.

  • Page 13: Stand Instruction

    STAND INSTRUCTION Image shown may differ from your TV. Installation Carefully place the TV screen side down on a cushioned surface to protect the screen from damage. Assemble the parts of the Stand Body with the Stand Body Stand Base of the TV. Stand Base M5x14.5 M5x24...
  • Page 14 PREPARATION Detachment Carefully place the TV screen side down on a cushioned surface to protect the screen from damage. Loose the screws from TV. M4x28 M4x26 (For 42/50PT200, 42/50PT330, 42/50PT350, (For 60PV400, 60PV430, 60PV450, 60PV450C, 60PV550U) 42/50PT350C, 42/50PT250U, 50PV400, 50PV430, 50PV450, 50PV450C, 50PV550U) Detach the stand from TV.

  • Page 15: Cable Management

    CABLE MANAGEMENT Image shown may differ from your TV. Install the power cord holder and power cord. It will help prevent the power cable from being removed by accident. Gather and bind the cables with the cable holder. POWER CORD CABLE HOLDER HOLDER CAUTION...

  • Page 16: Desktop Pedestal Installation

    PREPARATION DESKTOP PEDESTAL INSTALLATION Image shown may differ from your TV. For proper ventilation, allow a clearance of 4 inches on all four sides from the wall. 4 inches 4 inches 4 inches 4 inches CAUTION Ensure adequate ventilation by following the clearance recommendations. Do not mount near or above any type of heat source.

  • Page 17: Vesa Wall Mounting

    If installed on a ceiling or slanted wall, it may fall and result in severe personal injury. We recommend that you use an LG brand wall mount when mounting the TV to a wall. LG recommends that wall mounting be performed by a qualified professional installer.

  • Page 18: Securing The Tv To The Wall To Prevent Falling When The Tv Is Used On A Stand

    PREPARATION SECURING THE TV TO THE WALL TO PREVENT FALLING WHEN THE TV IS USED ON A STAND You should purchase necessary components to prevent the TV from tipping over (when not using a wall mount). Image shown may differ from your TV. We recommend that you set up the TV close to a wall so it cannot fall over if pushed backwards.

  • Page 19: Antenna Or Cable Connection

    To prevent damage do not connect to the power outlet until all connections are made between the devices. ANTENNA OR CABLE CONNECTION 1. Antenna (Analog or Digital) Wall Antenna Socket or Outdoor Antenna without a Cable Box Connection. For optimum picture quality, adjust antenna direction if needed. Multi-family Dwellings/Apartments Wall (Connect to wall antenna socket)

  • Page 20: External Equipment Setup

    EXTERNAL EQUIPMENT SETUP To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment. Image shown may differ from your TV. HD RECEIVER SETUP This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if you do receive digital signals from a digital set-top box or other digital external device, refer to the figure as shown below.
  • Page 21 HDMI Connection HDMI-DTV OUTPUT 1. How to connect Connect the digital set-top box to H H D D M M I I / / D D V V I I I I N N 1 1 , 2 2 , or H H D D M M I I I I N N 3 3 jack on the TV. No separate audio connection is necessary.
  • Page 22 EXTERNAL EQUIPMENT SETUP DVI to HDMI Connection 1. How to connect Connect the DVI output of the digital set-top box to the H H D D M M I I / / D D V V I I I I N N 1 1 or 2 2 jack on the TV. OPTICAL AUDIO IN DIGITAL...

  • Page 23: Dvd Setup

    DVD SETUP Component Connection 1. How to connect Connect the video outputs ( Y, P ) of the DVD to the C C O O M M P P O O N N E E N N T T I I N N V V I I D D E E O O 1 1 jacks on the TV. Match the jack colors ( Y = green, P = red ) .
  • Page 24 EXTERNAL EQUIPMENT SETUP HDMI Connection 1. How to connect HDMI-DVD OUTPUT Connect the HDMI output of the DVD to the H H D D M M I I / / D D V V I I I I N N 1 1 , 2 2 , or H H D D M M I I I I N N 3 3 jack on the TV. No separate audio connection is necessary.

  • Page 25: Vcr Setup

    VCR SETUP Antenna Connection 1. How to connect ANTENNA/ Connect the RF antenna out socket of the CABLE VCR to the A A N N T T E E N N N N A A / / C C A A B B L L E E I I N N socket on the TV.

  • Page 26: Other A/V Source Setup

    EXTERNAL EQUIPMENT SETUP OTHER A/V SOURCE SETUP Camcorder 1. How to connect Video Game Set Connect the A A U U D D I I O O /V V I I D D E E O O jacks between TV and external equipment. Match the jack colors.

  • Page 27: Audio Out Connection

    AUDIO OUT CONNECTION Send the TV’s audio to external audio equipment via the Audio Output port. 1. How to connect Connect one end of the optical cable to the TV’s O O P P T T I I C C A A L L port of D D I I G G I I T T A A L L A A U U D D I I O O O O U U T T .

  • Page 28: Pc Setup

    EXTERNAL EQUIPMENT SETUP PC SETUP REMOTE OPTICAL AUDIO IN CONTROL IN VIDEO DIGITAL (RGB/DVI) AUDIO OUT VGA (D-Sub 15 pin) Connection 1. How to connect Connect the VGA output of the PC to the R R G G B B I I N N ( ( P P C C ) ) jack on the TV.
  • Page 29 NOTE Depending on the graphics card, DOS mode may Avoid keeping a fixed image on the screen for a not work if a HDMI to DVI Cable is in use. long period of time. The fixed image could become permanently imprinted on the screen. In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or bright- The synchronization input form for Horizontal and...

  • Page 30: Screen Setup For Pc Mode

    EXTERNAL EQUIPMENT SETUP Screen Setup for PC mode Selecting Resolution You can choose the resolution in RGB-PC mode. The P P o o s s i i t t i i o o n n , P P h h a a s s e e , and S S i i z z e e can also be adjusted. Screen Prev.

  • Page 31: Auto Configure

    Auto Configure Automatically adjusts picture position and minimizes image instability. After adjustment, if the image is still not correct, try using the manual settings or a different resolution or refresh rate on the PC. Screen Move Prev. PICTURE Move Enter •...
  • Page 32 EXTERNAL EQUIPMENT SETUP Adjustment for screen Position, Size, and Phase If the picture is not clear after auto adjustment and especially if characters are still trembling, adjust the picture phase manually. This feature operates only in RGB-PC mode. Screen PICTURE Move Prev.
  • Page 33 Screen Reset (Reset to original factory values) Returns P P o o s s i i t t i i o o n n , S S i i z z e e , and P P h h a a s s e e to the default factory settings. This feature operates only in RGB-PC mode.

  • Page 34: Watching Tv / Channel Control

    WATCHING TV / CHANNEL CONTROL REMOTE CONTROL FUNCTIONS When using the remote control, aim it at the remote control sensor on the TV. The remote control may differ from the images below. Turns the TV on from standby or off to standby. POWER LIGHT LIGHT...

  • Page 35: Installing Batteries

    VOLUME UP Adjusts the volume. /DOWN FAV/MARK Scroll through the programmed Favorite channels. p p . . 4 4 5 5 Select the input to apply the Picture Wizard setting. Use to mark or unmark a photo/music/movie. RATIO Changes the aspect ratio. MUTE Switches the sound on or off.

  • Page 36: Turning On Tv

    WATCHING TV / CHANNEL CONTROL WATCHING TV / CHANNEL CONTROL TURNING ON TV First, connect power cord correctly. At this moment, TV is in standby mode. In standby mode to turn TV on, press the I I N N P P U U T T C C H H ( ( button on the TV or press the P P O O W W E E R R...

  • Page 37: Initial Setting

    Step1. Welcome Step4. Time setting Time Setting WELCOME ! Auto Current Time Setting Thank you for choosing LG Year 2007 Month Next Date Hour...

  • Page 38: On-Screen Menus Selection

    WATCHING TV / CHANNEL CONTROL ON-SCREEN MENUS SELECTION Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual. Except 42/50PT250U, 50/60PV550U CHANNEL PICTURE AUDIO Move Enter Move Enter Move Enter Aspect Ratio : 16:9 Auto Volume : Off Auto Tuning Picture Wizard...

  • Page 39: Quick Menu

    QUICK MENU Your TV's OSD (On Screen Display) may differ slightly from what is shown in this manual. Q.Menu (Quick Menu) is a menu of features which users might use frequently. A A s s p p e e c c t t R R a a t t i i o o : Selects your desired picture format. Q.Menu P P i i c c t t u u r r e e M M o o d d e e : Selects the factory preset picture Aspect Ratio...

  • Page 40: Channel Setup

    WATCHING TV / CHANNEL CONTROL WATCHING TV / CHANNEL CONTROL CHANNEL SETUP Auto Scan (Auto Tuning) Automatically finds all channels available through antenna or cable inputs, and stores them in memory on the channel list. Run this function if you change your residence or move the TV. Also, make sure to run this function with the antenna connected during TV broadcasting hours.

  • Page 41: Add/Delete Channel (Manual Tuning)

    Add/Delete Channel (Manual Tuning) If you select DTV or CADTV input signal, you can view the on-screen signal strength monitor to see the quali- ty of the signal being received. CHANNEL CHANNEL Move Enter Move Enter Auto Tuning Auto Tuning Manual Tuning Manual Tuning Channel Edit...

  • Page 42: Channel Editing

    WATCHING TV / CHANNEL CONTROL Channel Editing When a channel number is deleted, it means that you will be unable to select it using CH button during TV viewing. If you wish to select the deleted channel, directly enter the channel number with the NUMBER buttons or select it in the Channel Edit menu.

  • Page 43: Channel List

    CHANNEL LIST You can check channels which are stored in the memory by displaying the channel list. Channel List This padlock is displayed when the channel is locked with parental control. Exit Displaying Channel List Display the C C h h a a n n n n e e l l L L i i s s t t . LIST Selecting a channel in the channel list Select a channel.

  • Page 44: Favorite Channel Setup

    WATCHING TV / CHANNEL CONTROL FAVORITE CHANNEL SETUP Your TV's OSD (On Screen Display) may differ slightly from what is shown in this manual. Favorite Channels are a convenient feature that lets you quickly select channels of your choice without waiting for the TV to select through all the in-between channels.

  • Page 45: Favorite Channel List

    FAVORITE CHANNEL LIST Displaying the favorite channel list Favorite List MARK Display the Favorite channel list. Selecting a channel in the favorite channel list Select a channel. Switch to the chosen channel number. ENTER Exit Paging through a favorite channel list Turn the pages.

  • Page 46: Brief Information

    WATCHING TV / CHANNEL CONTROL BRIEF INFORMATION Brief Info shows the present screen information. INFO ENTER Show the Brief Info on the screen. EXIT Return to TV viewing Brief Info Title Test.. 10:40 AM DOLBY DIGITAL Sat, Feb 21, 2009 10:10 AM 11:40 AM Multilingual...

  • Page 47: Input List

    INPUT LIST Only these input signals which are connected to a TV can be activated and selected. Component1 Component2 INPUT ENTER Select the desired input source. Component1 Component2 HDMI1 RGB-PC HDMI3 HDMI2 Disconnected inputs are inactive (grayed out) Select a desired input source (except T T V V ). Component1 Component2 Then, you can select your desired I I n n p p u u t t...

  • Page 48: Input Label

    WATCHING TV / CHANNEL CONTROL INPUT LABEL This indicates which device is connected to which input port. OPTION OPTION Move Enter Move Enter Language Language Input Label Input Label SIMPLINK : On SIMPLINK : On Key Lock : Off Key Lock : Off Component1 Caption...

  • Page 49: Av Mode

    AV MODE AV Mode toggles through preset Video and Audio settings. Cinema Game Sport AV MODE Press the A A V V M M O O D D E E button repeatedly to select the desired source. ENTER If you select “C C i i n n e e m m a a ” in AV mode, C C i i n n e e m m a a will be selected both for “PIC- TURE menu - Picture Mode”...

  • Page 50: Simplink

    WATCHING TV / CHANNEL CONTROL Simplink allows you to control and play other AV devices connected with HDMI cable without additional cables and settings. This TV may work with devices with HDMI-CEC support, but only devices with the logo are fully supported. SIMPLINK can be turned on and off in the user menus.
  • Page 51 SIMPLINK Functions D D i i r r e e c c t t P P l l a a y y : : After connecting AV devices to the TV, you can directly control the devices and play media with- out additional settings.

  • Page 52: Usb

    - For 42/50PT350, 42/50PT350C, 50/60PV450, 50/60PV450C, 42/50PT250U, 50/60PV550U ENTRY MODES When you connect a USB device, this screen is displayed automatically. In USB device, you can not add a new folder or delete the existing folder. Connect the USB device to the U U S S B B I I N N When removing the USB device jacks on the side of TV.

  • Page 53: Photo List

    PHOTO LIST You can view ( * .JPG) files from USB storage devices. The On Screen Display on your model may be slightly different. Supported photo file: * .JPG You can play JPG files only. Only baseline scan is supported among JPG. Screen Components Select P P h h o o t t o o L L i i s s t t .
  • Page 54 Photo Selection and Popup Menu USB Device PHOTO LIST Page 1/1 No Marked Free Space 150MB Top Folder DriveA DriveA 2 folder, 4 file(s) Up Folder Move PopUp Menu Move Page MARK Mark Exit USB Device PHOTO LIST When you select a file (not folder), this Popup Page 1/1 No Marked Free Space 150MB...
  • Page 55 Full Screen Menu You can change the Photo List view so that it fills the screen. More operations are available in full screen mode. USB Device PHOTO LIST Page 1/1 No Marked Free Space 150MB Top Folder DriveA DriveA 2 folder, 4 file(s) Up Folder Move Move Page...
  • Page 56 Select the S S l l i i d d e e s s h h o o w w , B B G G M M , ENTER ( ( R R o o t t a a t t e e ) ) , D D e e l l e e t t e e , or H H i i d d e e . . button to select the previous or next photo.
  • Page 57 Using the Photo List Option Choose option Set photo view. Set video. 1/17 Set audio. Q.MENU Option Slide show Delete Hide Exit Show the Popup menu. Q.MENU Select S S e e t t P P h h o o t t o o V V i i e e w w , S S e e t t V V i i d d e e o o , or S S e e t t A A u u d d i i o o . ENTER When you select the S S e e t t P P h h o o t t o o V V i i e e w w .
  • Page 58 When you select the S S e e t t V V i i d d e e o o . Set video. Vivid Picture Mode Contrast Brightness Sharpness Color Tint Color Temperature Medium Noise Reduction Reset Prev. Show the P P i i c c t t u u r r e e M M o o d d e e . ENTER APS mode is not supported in Set Video Make appropriate adjustments.

  • Page 59: Music List

    MUSIC LIST You can use the Music List menu to play MP3 files from a USB storage device. This TV cannot play back copy-protected files. The On Screen Display on your model may be slightly different. Supported music file: * .MP3 Bit rate range 8Kbps - 320Kbps •...
  • Page 60 Music Selection and Popup Menu Up to 6 music titles are listed per page. USB Device MUSIC LIST P P l l a a y y (During stop): Play the selected music Page 1/1 No Marked Free Space 150MB Title Duration file.
  • Page 61 Using the Music List Option USB Device MUSIC LIST Set audio. No Marked Page 1/1 Free Space 150MB Title Duration Arirang Sound Mode Up Folder Cinema Arirang 04:12 Auto Volume Good Bye 05:30 00:00 / 04:16 Clear Voice ll Up Folder Balance Option MARK...

  • Page 62: Movie List

    MOVIE LIST - For 42/50PT250U, 50/60PV550U The movie list is activated once a USB drive is detected. It is used when playing movie files on the TV. Displays the video files in the USB folder that it recognizes as a video file. Editing such as delete and add is not allowed.

  • Page 63: Screen Components

    Screen Components Select M M o o v v i i e e L L i i s s t t . Select U U S S B B . ENTER ENTER Home Moves to upper level folder. USB Device MOVIE LIST Page 1/1 No Marked...
  • Page 64 Movie Selection and Popup Menu USB Device MOVIE LIST Page 2/3 No Marked Free Space 150MB DriveA Title Duration Butterfly Up Folder Butterfly 00:03:33 B001 00:04:45 B002 00:01:13 640x480, 707MB B003 00:03:13 Up Folder B004 00:02:51 Navigation PopUp Menu Page Change Mark Exit MARK...

  • Page 65: Using The Remote Control

    Using the remote control You can adjust various method during movie play. When playing, repeatedly press the R R E E W W ( ( ) ) button to speed up F F F F F F F F -> F F F F F F ->...
  • Page 66 Using The Movie List Option Choose option Set video play. Set video. Set audio. Option Q.MENU Exit NOTE If you select “Off” for TV speaker, S S e e t t A A u u d d i i o o features in choose options will not work. Show the Popup menu.
  • Page 67 When you select the S S e e t t V V i i d d e e o o . Set video. Picture Mode Standard Contrast Brightness Sharpness Color Tint Color Temperature Noise Reduction Reset Prev. ENTER Show the P P i i c c t t u u r r e e M M o o d d e e . Make appropriate adjustments.

  • Page 68: Divx Registration Code

    DIVX REGISTRATION CODE - For 42/50PT250U, 50/60PV550U Confirm the DivX registration code number of the TV. Using the registration number, movies can be rented or purchased at www.divx.com/vod. DRM protected DivX files must be matched with the registration code of this TV are playable. DivX files regis- tered for another TV will not play.

  • Page 69: Deactivation

    DEACTIVATION - For 42/50PT250U, 50/60PV550U Delete the existing authentication information to receive a new DivX user authentication for TV. Once this function is executed, a DivX user authentication is required again to see DivX DRM files. Move Enter Move Enter Photo List Photo List Music List...

  • Page 70: Picture Control

    PICTURE CONTROL PICTURE SIZE (ASPECT RATIO) CONTROL This feature lets you choose the way an analog picture with a 4:3 aspect ratio is displayed on your TV. RGB-PC input only supports 4:3 and 16:9 aspect ratio. Q.Menu Aspect Ratio 16:9 Vivid Picture Mode Set By Program...
  • Page 71 16:9 Adjust the picture horizontally, in a linear pro- Choose 4:3 when you want to view a picture with portion to fill the entire screen. an original 4:3 aspect ratio. Just Scan Zoom Normally the edges of video signals are cropped 1-2%.

  • Page 72: Picture Wizard

    PICTURE CONTROL PICTURE WIZARD - Except 42/50PT250U, 50/60PV550U This feature lets you adjust the picture quality of the original image. Use this to calibrate the screen quality by adjusting the Black and White Level etc. You can calibrate the screen quality by easily following each step.
  • Page 73 i.e) Complete Horizontal Sharpness Select (an) input(s) to apply the settings. Set the screen above identical to the Recommended sample below. Recommended High Component1 Component2 • H Sharpness HDMI1 Previous Next HDMI2 HDMI3 Warning: The picture quality may vary according to Adjust H H o o r r i i z z o o n n t t a a l l the different types of signal and inputs.

  • Page 74: Energy Saving

    PICTURE CONTROL ENERGY SAVING It reduces the TV’s power consumption. You can increase the brightness of your screen by adjusting the Energy Saving level or by setting the P P i i c c t t u u r r e e M M o o d d e e . This feature is disabled in “P P i i c c t t u u r r e e M M o o d d e e - - C C i i n n e e m m a a ”.

  • Page 75: Preset Picture Settings(Picture Mode)

    PRESET PICTURE SETTINGS (PICTURE MODE) There are factory presets for picture settings available in the user menus. You can use a preset, change each setting manually. Q.Menu Aspect Ratio 16:9 Vivid Picture Mode Vivid Standard Standard Sound Mode Auto Power Save Caption English Multi Audio...

  • Page 76: Manual Picture Adjustment-User Mode

    PICTURE CONTROL MANUAL PICTURE ADJUSTMENT-USER MODE Adjust the picture appearance to suit your preference and viewing situations. PICTURE Move Enter Aspect Ratio : 16:9 Picture Wizard Energy Saving : Intelligent Sensor Picture Mode : Standard • Contrast • Contrast Enter •...

  • Page 77: Picture Improvement Technology

    PICTURE IMPROVEMENT TECHNOLOGY You can calibrate the screen for each Picture Mode or set the video value according to the special video screen. You can set the video options differently for each input. To reset to the factory default screen after making adjustments to each video mode, execute the “Reset” func- tion for each Picture Mode.

  • Page 78: Expert Picture Control

    PICTURE CONTROL EXPERT PICTURE CONTROL E E x x p p e e r r t t 1 1 and E E x x p p e e r r t t 2 2 provide even more advanced picture settings for users. This may also be used be a professional to help optimize the TV performance in the environment the TV is in.
  • Page 79 Adjusts the contrast to keep it at the best level according to the brightness of the Dynamic Contrast screen. The picture is improved by making bright parts brighter and dark parts darker. Adjusts screen colors so that they look livelier, richer and clearer. This feature enhances Dynamic Color hue, saturation and luminance so that red, blue, green and white look more vivid.

  • Page 80: Picture Reset

    PICTURE CONTROL PICTURE RESET Settings of the selected picture modes return to the default factory settings. PICTURE PICTURE Move Enter Move Enter • Contrast • Contrast • Brightness • Brightness • H Sharpness 60 • H Sharpness 60 • V Sharpness 60 •...

  • Page 81: Image Sticking Minimization (Ism) Method

    IMAGE STICKING MINIMIZATION (ISM) METHOD A frozen still picture displayed on the screen for prolonged periods can result in a ghost image. You can use Orbiter to help prevent image sticking. The other two functions are for removing a ghost image. OPTION OPTION Move...

  • Page 82: Sound & Language Control

    SOUND & LANGUAGE CONTROL AUTO VOLUME LEVELER (AUTO VOLUME) Auto Volume makes sure that the volume level remains consistent whether you are watching a commercial or a regular TV program. Because each broadcasting station has its own signal conditions, volume adjustment may be needed every time the channel is changed.

  • Page 83: Clear Voice Ii

    CLEAR VOICE II By differentiating the human sound range from others, it improves the sound quality of voices. AUDIO AUDIO Move Enter Move Enter Auto Volume : Off Auto Volume : Off Clear Voice II : Off Clear Voice II : Off Clear Voice II Balance...

  • Page 84: Preset Sound Settings (Sound Mode)

    SOUND & LANGUAGE CONTROL PRESET SOUND SETTINGS (SOUND MODE) Sound Mode lets you enjoy the best sound without any special adjustment as the TV sets the appropriate sound options based on the program content. Q.Menu Aspect Ratio 16:9 Vivid Picture Mode Standard Sound Mode Standard...

  • Page 85: Sound Setting Adjustment - User Mode

    SOUND SETTING ADJUSTMENT - USER MODE Adjust the sound to suit your taste and room situations. AUDIO AUDIO Move Enter Move Enter Auto Volume : Off Auto Volume : Off Clear Voice II : Off Clear Voice II : Off Balance Balance Sound Mode...

  • Page 86: Infinite Surround

    SOUND & LANGUAGE CONTROL INFINITE SURROUND Select this option to sound realistic. AUDIO AUDIO Move Move Enter Enter Auto Volume : Off Auto Volume : Off Clear Voice II : Off Clear Voice II : Off Balance Balance Sound Mode : Standard Sound Mode : Standard...

  • Page 87: Balance

    BALANCE Adjust the left/right sound of speaker to suit your taste and room situations. AUDIO AUDIO Move Enter Move Enter Auto Volume : Off Auto Volume : Off Clear Voice II : Off Clear Voice II : Off Balance Balance Balance Sound Mode : Standard...

  • Page 88: Tv Speakers On/Off Setup

    SOUND & LANGUAGE CONTROL TV SPEAKERS ON/OFF SETUP Turn the TV speakers off if using external audio equipment. AUDIO AUDIO Move Enter Move Enter Auto Volume : Off Auto Volume : Off Clear Voice II : Off Clear Voice II : Off Balance Balance...

  • Page 89: Audio Reset

    AUDIO RESET Settings of the selected Sound Mode return to the default factory settings. AUDIO AUDIO Move Enter Move Enter Auto Volume : Off Auto Volume : Off Clear Voice II : Off Clear Voice II : Off Balance Balance Sound Mode : Standard Sound Mode...

  • Page 90: Stereo/Sap Broadcast Setup

    SOUND & LANGUAGE CONTROL STEREO/SAP BROADCAST SETUP For Analog only: This TV can receive MTS stereo programs and any SAP (Secondary Audio Program) that accom- panies the stereo program if the station transmits an additional sound signal. Mono sound is automatically used if the broadcast is only in Mono.

  • Page 91: Audio Language

    AUDIO LANGUAGE Other languages may be available if a digital signal is provided by the broadcasting station. This feature operates only in DTV/CADTV mode. OPTION OPTION Move Enter Move Enter Language Language Menu English Input Label Input Label Audio English SIMPLINK : On SIMPLINK...

  • Page 92: On-Screen Menus Language Selection

    SOUND & LANGUAGE CONTROL ON-SCREEN MENUS LANGUAGE SELECTION The menus can be shown on the screen in the selected language. OPTION OPTION Move Enter Move Enter Language Language English Menu Input Label Input Label SIMPLINK : On SIMPLINK : On Audio English Key Lock...

  • Page 93: Caption Mode

    CAPTION MODE Analog Broadcasting System Captions Captions are provided to help people with hearing loss watch TV. Select a caption mode for displaying cap- tioning information if provided on a program. Analog caption displays information at any position on the screen and is usually the program's dialog.

  • Page 94: Digital Broadcasting System Captions

    SOUND & LANGUAGE CONTROL Digital Broadcasting System Captions Choose the language you want the DTV/CADTV Captions to appear in. Other Languages can be chosen for digital sources only if they are included on the program. This function in only available when Caption Mode is set On. OPTION OPTION Move...

  • Page 95: Caption Option

    Caption Option Customize the DTV/CADTV captions that appear on your screen. This function in only available when Caption Mode is turned On. OPTION OPTION Move Enter Move Enter Language Language Custom Input Label Input Label Size A Standard SIMPLINK : On SIMPLINK : On Key Lock...

  • Page 96: Time Setting

    TIME SETTING CLOCK SETTING Auto Clock Setup The time is set automatically from a digital channel signal. The digital channel signal includes information for the current time provided by the broadcasting station. Set the clock manually if the current time is set incorrectly by the auto clock function. TIME TIME Move...

  • Page 97: Manual Clock Setup

    Manual Clock Setup If the current time setting is wrong, set the clock manually. TIME TIME Move Move Enter Enter Manual Clock Clock Off Time : Off Off Time : Off Year 2008 On Time : Off On Time : Off Month Sleep Timer : Off Sleep Timer : Off...

  • Page 98: Auto On/Off Time Setting

    TIME SETTING AUTO ON/OFF TIME SETTING This function operates only if the current time has been set. The O O f f f f T T i i m m e e function overrides the O O n n T T i i m m e e function if they are both set to the same time. The TV must be in standby mode for the O O n n T T i i m m e e to work.

  • Page 99: Sleep Timer Setting

    SLEEP TIMER SETTING The Sleep Time turns the TV off at the preset time. Note that this setting is cleared when the TV is turned off. Q.Menu Aspect Ratio 16:9 Picture Mode Vivid Standard Sound Mode Caption English Multi Audio Sleep Timer Del/Add/Fav Eject...

  • Page 100: Parental Control / Ratings

    PARENTAL CONTROL / RATINGS Parental Control can be used to block specific channels, ratings and other viewing sources. The Parental Control Function (V-Chip) is used to block program viewing based on the ratings sent by the broad- casting station. The default setting is to allow all programs to be viewed. Viewing can be blocked by choosing the type of the program and the categories.

  • Page 101: Lock System

    Lock System Enables or disables the blocking scheme you set up previously. LOCK LOCK Move Enter Move Enter Lock System : Off Lock System : On Set Password Set Password Block Channel Block Channel Movie Rating Movie Rating TV Rating-Children TV Rating-Children TV Rating-General TV Rating-General...

  • Page 102: Set Password

    PARENTAL CONTROL / RATINGS Set Password Change the password by inputting a new password twice. LOCK LOCK Move Enter Move Enter Lock System : Off Lock System : Off Set Password Set Password Block Channel Block Channel Confirm Movie Rating Movie Rating TV Rating-Children TV Rating-Children...

  • Page 103: Channel Blocking

    CHANNEL BLOCKING Blocks any channels that you do not want to watch or that you do not want your children to watch. LOCK Move Enter Lock System : Off Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Downloadable Rating Input Block Ch.Change Move Page...

  • Page 104: Movie & Tv Rating

    PARENTAL CONTROL / RATINGS MOVIE & TV RATING Movie Rating (MPAA) - Depending on model Blocks movies according to the movie ratings limits specified, so children cannot view certain movies. You can set the ratings limit by blocking out all the movies with the ratings above a specified level. Keep in mind that the movie ratings limit only applies to movies shown on TV, not TV programs, such as soap operas.
  • Page 105 TV Rating Children - Depending on model Prevents children from watching certain children's TV programs, according to the ratings limit set. The children rating does not apply to other TV programs. Unless you block certain TV programs intended for mature audi- ences in the TV Rating - sub menu, your children can view those programs.
  • Page 106 PARENTAL CONTROL / RATINGS TV Rating General - Depending on model Based on the ratings, blocks certain TV programs that you and your family do not want to view. LOCK LOCK Move Enter Move Enter Lock System : Off Lock System : Off Set Password Set Password...
  • Page 107 TV Rating English - Depending on model Selecting the English rating system. LOCK LOCK Move Enter Move Enter Blocking off : Permits all Lock System : Off Lock System : Off programs Set Password Set Password Block Channel Block Channel TV Rating-English TV Rating-English TV Rating-French...
  • Page 108 PARENTAL CONTROL / RATINGS TV Rating French - Depending on model Selecting the Canadian French rating system. LOCK LOCK Move Enter Move Enter Lock System : Off Lock System : Off Blocking off : Permits all Set Password Set Password programs Block Channel Block Channel...

  • Page 109: Downloadable Rating

    DOWNLOADABLE RATING This function is available only for digital channels. This function operates only when TV has received Region5 Rating data. LOCK LOCK Move Enter Move Enter Lock System : Off Lock System : Off Set Password Set Password Humor Block Channel Block Channel Sport...

  • Page 110: External Input Blocking

    PARENTAL CONTROL / RATINGS EXTERNAL INPUT BLOCKING Enables you to block an input. LOCK LOCK Move Enter Move Enter Lock System : Off Lock System : Off Set Password Set Password Block Channel Block Channel Component1 Movie Rating Movie Rating Component2 TV Rating-Children TV Rating-Children...

  • Page 111: Key Lock

    KEY LOCK The TV can be set up so that it can only be used with the remote control. This feature can be used to prevent unauthorized viewing by locking out the front panel controls. This TV is programmed to remember which option it was last set to even if you turn the TV off. OPTION OPTION Move...

  • Page 112: Appendix

    APPENDIX TROUBLESHOOTING A A b b n n o o r r m m a a l l O O p p e e r r a a t t i i o o n n Check to see if there is any object between the product and the remote control causing obstruction.
  • Page 113 A A u u d d i i o o P P r r o o b b l l e e m m s s Press the VOL or VOLUME button. Sound muted? Press MUTE button. Picture OK & No sound Try another channel.

  • Page 114: Maintenance

    If you expect to leave your TV dormant for a long time (such as a vacation), it’s a good idea to unplug the power cord to protect against possible damage from lightning or power surges. PRODUCT SPECIFICATIONS 42PT200 (42PT200-UB) 50PT200 (50PT200-UB) MODEL...
  • Page 115 50PT330 (50PT330-UB) 42PT330 (42PT330-UB) MODEL 50PT350 (50PT350-UD) 42PT350 (42PT350-UD) 50PT350C (50PT350C-UD) 42PT350C (42PT350C-UD) With stand 991.8 mm x 667 mm x 230.5 mm 1 1 76.1 mm x 774.7 mm x 289.8 mm Dimensions x 26.2 (46.3 x 30.5 x 1 1.4 inch inch inch...

  • Page 116: Ir Codes

    APPENDIX IR CODES (This feature is not available for all models.) 1. How to Connect Connect your wired remote control to the Remote Control port on the TV. 2. Remote Control IR Codes Output waveform Single pulse, modulated with 37 .917KHz signal at 455KHz Carrier frequency FCAR = 1/TC = fOSC/12 Duty ratio = T1/TC = 1/3...
  • Page 117 Code Code Function Note Function Note (Hexa) (Hexa) POWER Remote control Button (Power On/Off) Discrete IR Code Q.MENU Remote control Button (TV Input Selection) HOME Remote control Button POWER ON Discrete IR Code INPUT Remote control Button (Only Power On) 10-19 Number Key 0-9 Remote control Button...

  • Page 118: External Control Through Rs-232C

    APPENDIX EXTERNAL CONTROL THROUGH RS-232C The RS-232C port allows you connect the RS-232C input jack to an external control device (such as a computer or an A/V control system) to control the TV’s functions externally. Note: RS-232C on this unit is intended to be used with third party RS-232C control hardware and software. The instructions below are provided to help with programming software or to test functionality using telenet software.
  • Page 119 RS-232C Configurations Either cable below can be used. 7-Wire Configuration 3-Wire Configurations ( Serial female-female NULL modem cable ) ( Not standard ) D-Sub 9 D-Sub 9 D-Sub 9 D-Sub 9 Set ID Use this function to specify a TV ID number. Refer to ‘Real Data Mapping’.

  • Page 120: Command Reference List

    APPENDIX Command Reference List DATA DATA C C O O M M M M A A N N D D 1 1 C C O O M M M M A A N N D D 2 2 C C O O M M M M A A N N D D 1 1 C C O O M M M M A A N N D D 2 2 (Hexadecimal) (Hexadecimal) 13.
  • Page 121 0 0 1 1 . . P P o o w w e e r r ( ( C C o o m m m m a a n n d d : : k k a a ) ) Data 01: Volume mute off (Volume on) Acknowledgement [e][ ][Set ID][ ][OK/NG][Data][x] To control Power On/Off of the TV.
  • Page 122 APPENDIX 1 1 2 2 . . O O S S D D S S e e l l e e c c t t ( ( C C o o m m m m a a n n d d : : k k l l ) ) 1 1 8 8 .
  • Page 123 Data 05: Main/Sub Two/One Using Physical Step Part Channel Picture Channel Reserved Main NTSC Air No Use NTSC Cable ATSC Air ATSC Cable_std ATSC Cable_hrc ATSC Cable_irc ATSC cable_auto Reserved Reserved 2 2 2 2 . . C C h h a a n n n n e e l l A A d d d d / / D D e e l l ( ( C C o o m m m m a a n n d d : : m m b b ) ) The table above lists the binary code which must be To add and delete the channels.
  • Page 124 The model and serial number of the TV is located on the back and one side of the TV. Record it below should you ever need service. MODEL SERIAL Downloaded From TV-Manual.com Manuals...

This manual is also suitable for:

50pt33050pt20042pt35050pt35050pv40060pv400 ... Show all

Table of Contents
