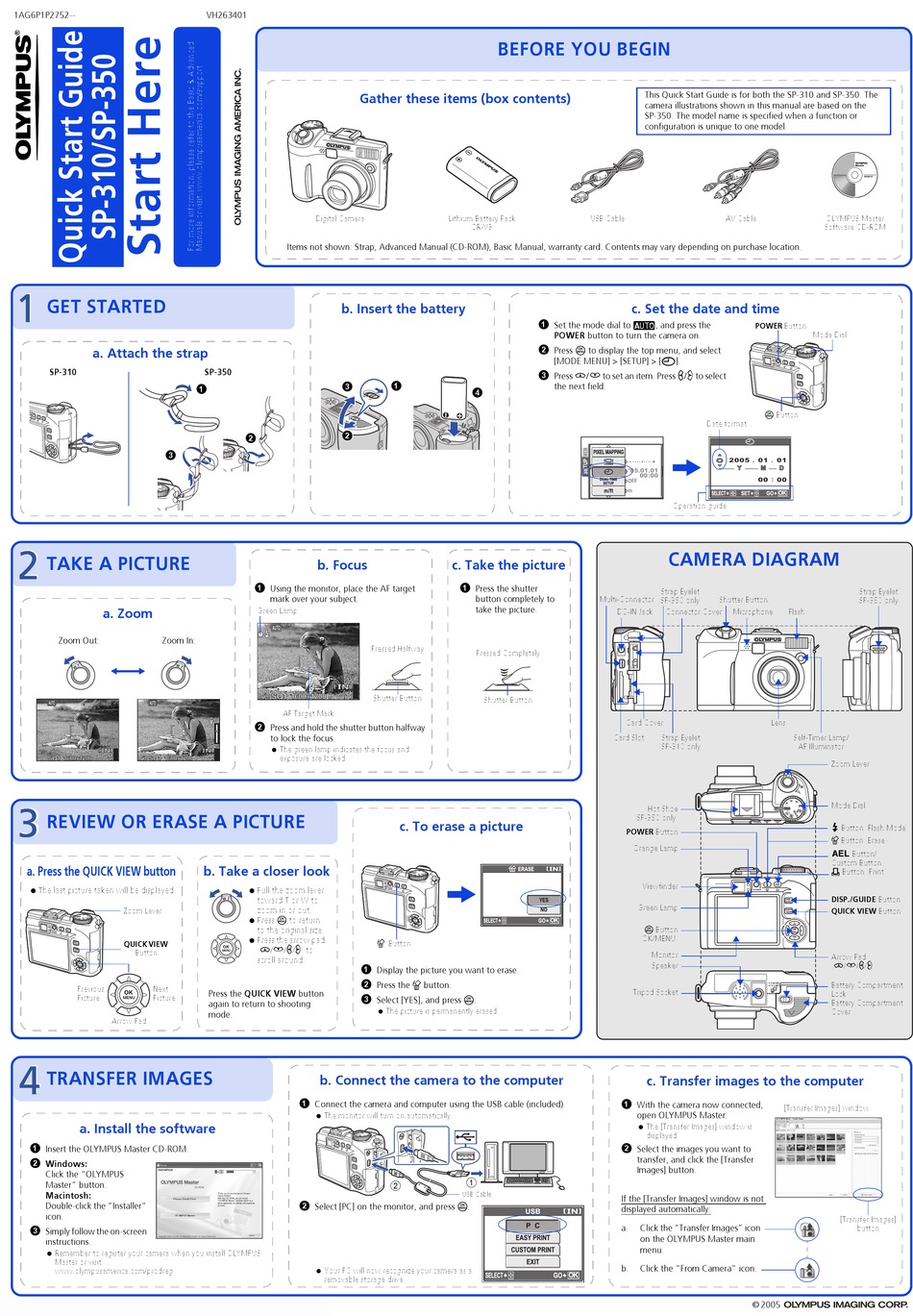

Olympus SP-310 Quick Start Manual

1AG6P1P2752--

GET STARTED

a. Attach the strap
SP-310
3

TAKE A PICTURE

a. Zoom
Zoom Out: Zoom In:
4 4
SQ1 SQ1 1600 1600×1200 1200 SQ1 SQ1 1600 1600×1200 1200
REVIEW OR ERASE A PICTURE
a. Press the QUICK VIEW button
The last picture taken will be displayed.
Zoom Lever
QUICK VIEW
Button
Previous Next
Picture Picture
Arrow Pad

TRANSFER IMAGES

a. Install the software
1
Insert the OLYMPUS Master CD-ROM.
2
Windows:
Click the "OLYMPUS
Master" button.
Macintosh:
Double-click the "Installer"
icon.
3
Simply follow the on-screen
instructions.
Remember to register your camera when you install OLYMPUS
Master or visit:
www.olympusamerica.com/prodreg
Printed in Japan
VH263401
Gather these items (box contents)
Digital Camera
Items not shown: Strap, Advanced Manual (CD-ROM), Basic Manual, warranty card. Contents may vary depending on purchase location.
b. Insert the battery
SP-350
3
1
2
2
b. Focus
1
Using the monitor, place the AF target
mark over your subject.
Green Lamp
(Pressed Halfway)
4 4
SQ1 SQ1 1600 1600 × 1200 1200
AF Target Mark
2
Press and hold the shutter button halfway
to lock the focus.
The green lamp indicates the focus and
4 4
exposure are locked.
b. Take a closer look
Pull the zoom lever
toward T or W to
zoom in or out.
Press Z to return
to the original size.
Press the arrow pad
(s/r/p/q) to
scroll around.
1
2
Press the QUICK VIEW button
3
again to return to shooting
mode.
b. Connect the camera to the computer
1
Connect the camera and computer using the USB cable (included).
The monitor will turn on automatically.
2
Select [PC] on the monitor, and press Z.
Your PC will now recognize your camera as a
removable storage drive.

BEFORE YOU BEGIN

Lithium Battery Pack
(CR-V3)
1
2
3
1
4
c. Take the picture
1
Press the shutter
button completely to
take the picture.
(Pressed Completely)
Shutter Button
Shutter Button
c. To erase a picture
ERASE
YES
NO
SELECT GO
S Button
Display the picture you want to erase.
Press the S button.
Select [YES], and press Z.
The picture is permanently erased.
1
2
USB Cable
USB
P C
EASY PRINT
CUSTOM PRINT
EXIT
SELECT
This Quick Start Guide is for both the SP-310 and SP-350. The
camera illustrations shown in this manual are based on the
SP-350. The model name is specified when a function or
configuration is unique to one model.
USB Cable AV Cable
c. Set the date and time
Set the mode dial to h, and press the
POWER button to turn the camera on.
Press Z to display the top menu, and select
[MODE MENU] > [SETUP] > [X].
Press s/r to set an item. Press p/q to select
the next field.
Date format
PIXEL MAPPING
'05.01.01
00:00
DUAL TIME
OFF
SETUP
m/ft m
SELECT
Operation guide

CAMERA DIAGRAM

Strap Eyelet
Multi-Connector
(SP-350 only) Shutter Button
DC-IN Jack Connector Cover
Card Cover
Card Slot Strap Eyelet
(SP-310 only)
Hot Shoe
(SP-350 only)
POWER Button
Orange Lamp
Viewfinder
Green Lamp
OK
Z Button
(OK/MENU)
Monitor
Speaker
Tripod Socket
c. Transfer images to the computer
1
With the camera now connected,
open OLYMPUS Master.
The [Transfer Images] window is
displayed.
2
Select the images you want to
transfer, and click the [Transfer
Images] button.
If the [Transfer Images] window is not
displayed automatically:
a. Click the "Transfer Images" icon
on the OLYMPUS Master main
menu.
b. Click the "From Camera" icon.
OK
GO
OLYMPUS Master
Software CD-ROM
POWER Button
Mode Dial
Z Button
2005 . 01 . 01
Y M D
00 : 00
SET GO OK
Strap Eyelet
(SP-350 only)
Microphone Flash
Lens
Self-Timer Lamp/
AF Illuminator
Zoom Lever
Mode Dial
# Button (Flash Mode)
S Button (Erase)
[ Button/
Custom Button
< Button (Print)
DISP./GUIDE Button
QUICK VIEW Button
Arrow Pad
(s/r/p/q)
Battery Compartment
Lock
Battery Compartment
Cover
[Transfer Images] window
[Transfer Images]
button
© 2005
