Summary of Contents for JVC HA-W600RF-J/C

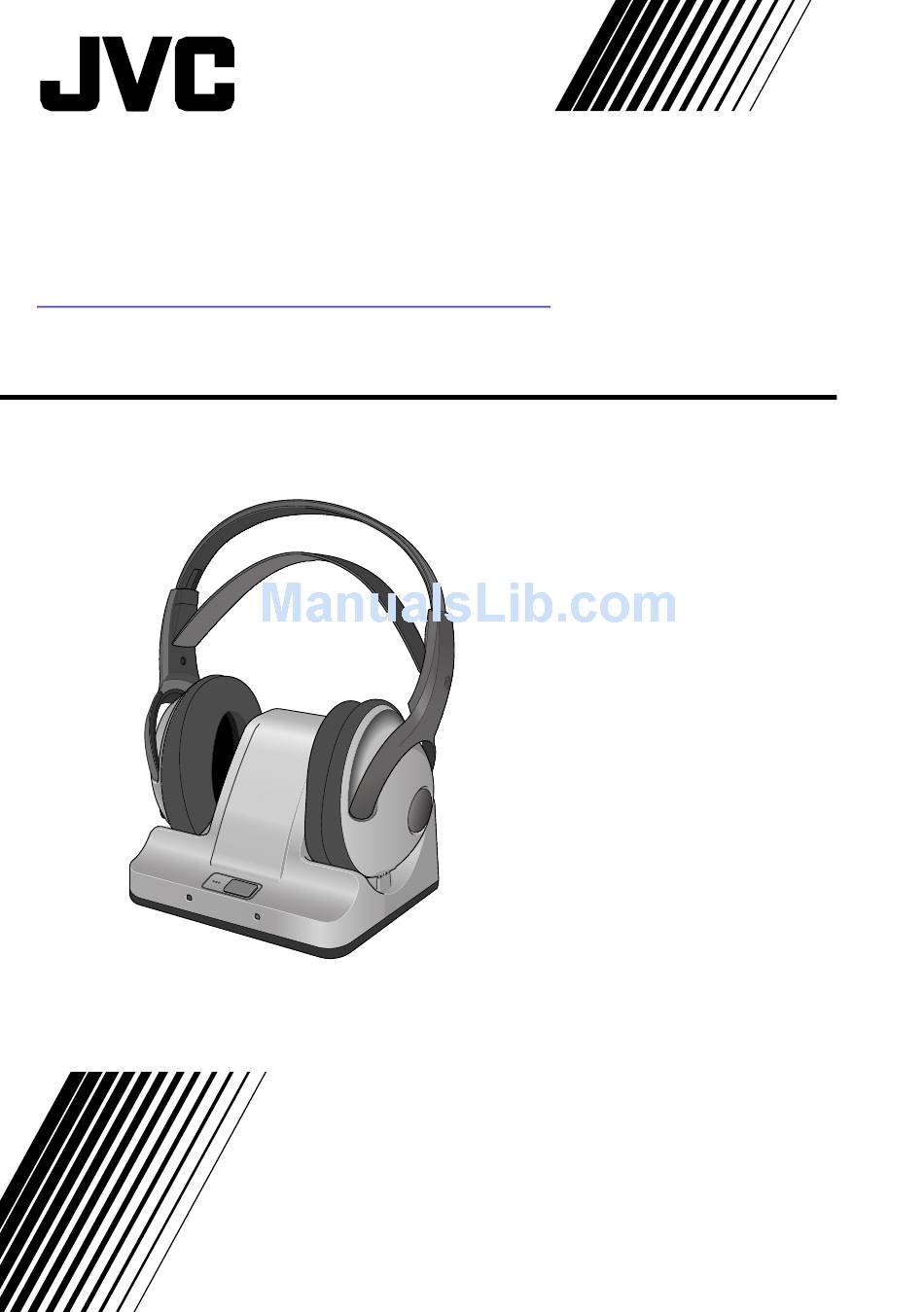

- Page 1 FM CORDLESS HEADPHONES HA-W600RF-J/C INSTRUCTIONS...
- Page 2 Precautions Important cautions Battery precautions • Be sure to use the supplied exclusive battery. Do not use any other rechargeable or dry cell CAUTION battery. To reduce the risk of electrical shocks, fire, etc.: • Use only the type of battery the manufacturer 1.
-
Page 3: Parts Identification
Parts identification See pages in parentheses for details. Base station (transmitter and battery charging unit) Back side The battery charging terminal on the base station is covered with the protection cap when purchasing. Take off the cap before charging. 1 CHARGE indicator (6) 5 Battery charging terminal (6) 2 Microphone (8) 6 CHANNEL selector (8) - Page 4 Connection Be sure to connect the AC adaptor after all other connections are complete. Connect the base station to the AV equipment. Connect the AC adaptor to the base station. Connect the AC adaptor to the AC outlet. Connection cord Conversion cord for (supplied) stereo pin jack...
-
Page 5: Battery Installation
Battery installation Take off the ear pad of the right Put on the battery covers. headphone. Put on the ear pad. 1 Insert the hem of the ear pad into the slit on the headphone. Take off the battery covers. Install the batteries. -
Page 6: Charging The Battery
Charging the battery The base station works as the battery charging Confirm the CHARGE indicator unit. Charge the rechargeable battery before lights up. starting to use the headphones. You can continuously use the headphones for If the charge indicator does not light up, about 10 hours after full battery charge. -
Page 7: Basic Operations
Basic operations • No sound is heard while Auto Tuning. It Listening to the sound from the base takes a few seconds to tune in. station • Press AUTO SCAN when the sound does not come out The base station works as the FM transmitter properly. - Page 8 Basic operations Selecting a better reception channel Call through the base station When the playback sound is noisy, you can You can call the one using the headphones with choose one of the other two channels to the microphone on the base station. transmit signals on the base station.
-
Page 9: Troubleshooting
Troubleshooting What appears to be trouble is not always serious. Check the following points before calling a service center. Symptom Cause/Remedy No sound comes out at all. • Turns on the power of the headphones. • Start playback on the AV equipment connected to the base station. -
Page 10: Specifications
Mass: 250 g (8.8 oz) Usable area (with rechargeable (distance to reach): Max. 50 m (164 ft.) battery) (using JVC measurement systems, Supplied Accessories under controlled • Instructions x 1 ambient conditions) • Exclusive AC adaptor x 1 Frequency response: 25 Hz –... - Page 11 FM CORDLESS HEADPHONES HA-W600RF-G INSTRUCTIONS...
- Page 12 Precautions Important cautions Battery precautions • Be sure to use the supplied exclusive battery. Do not use any other rechargeable or dry cell CAUTION battery. To reduce the risk of electrical shocks, fire, etc.: • Use only the type of battery the manufacturer 1.
- Page 13 Parts identification See pages in parentheses for details. Base station (transmitter and battery charging unit) Back side 1 CHARGE indicator (6) 4 CHANNEL selector (8) 2 POWER indicator (7) 5 AUDIO IN jack (4) 3 Battery charging terminal (6) 6 DC IN jack (4) Headphones Right...
- Page 14 Connection Be sure to connect the AC adaptor after all other connections are complete. Connect the base station to the AV equipment. Connect the AC adaptor to the base station. Connect the AC adaptor to the AC outlet. Connection cord Conversion cord for (supplied) stereo pin jack...
- Page 15 Battery installation Take off the ear pad of the right Put on the battery covers. headphone. Put on the ear pad. 1 Insert the hem of the ear pad into the slit on the headphone. Take off the battery covers. Install the batteries.
- Page 16 Charging the battery The base station works as the battery charging Confirm the CHARGE indicator unit. Charge the rechargeable battery before lights up. starting to use the headphones. You can continuously use the headphones for If the charge indicator does not light up, about 10 hours after full battery charge.
- Page 17 Basic operations • No sound is heard while Auto Tuning. It Listening to the sound from the base takes a few seconds to tune in. station • Press AUTO SCAN when the sound does not come out The base station works as the FM transmitter properly.
- Page 18 Basic operations Selecting a better reception channel Listening area The headphones can receive the FM signal When the playback sound is noisy, you can of the base station 100 m away from it at choose one of the other two channels to maximum (when no interference or obstacles transmit signals on the base station.
- Page 19 Troubleshooting What appears to be trouble is not always serious. Check the following points before calling a service center. Symptom Cause/Remedy No sound comes out at all. • Turns on the power of the headphones. • Start playback on the AV equipment connected to the base station.
- Page 20 864.5 MHz (Channel 3) Mass: 250 g Usable area (with rechargeable (distance to reach): Max. 100 m battery) (using JVC measurement systems, Supplied Accessories under controlled • Instructions x 1 ambient conditions) • Exclusive AC adaptor x 1 Frequency response: 25 Hz –...
- Page 21 FM CORDLESS HEADPHONES HA-W600RF-B INSTRUCTIONS...
-
Page 22: Supplied Accessories
Precautions Important cautions Battery precautions • Be sure to use the supplied exclusive battery. Do not use any other rechargeable or dry cell CAUTION battery. To reduce the risk of electrical shocks, fire, etc.: • Use only the type of battery the manufacturer 1. - Page 23 Parts identification See pages in parentheses for details. Base station (transmitter and battery charging unit) Back side 1 CHARGE indicator (6) 4 CHANNEL selector (8) 2 POWER indicator (7) 5 AUDIO IN jack (4) 3 Battery charging terminal (6) 6 DC IN jack (4) Headphones Right...
-
Page 24: Connect The Base
Connection Be sure to connect the AC adaptor after all other connections are complete. Connect the base station to the AV equipment. Connect the AC adaptor to the base station. Connect the AC adaptor to the AC outlet. Connection cord Conversion cord for (supplied) stereo pin jack... -
Page 25: Install The Batteries
Battery installation Take off the ear pad of the right Put on the battery covers. headphone. Put on the ear pad. 1 Insert the hem of the ear pad into the slit on the headphone. Take off the battery covers. Install the batteries. - Page 26 Charging the battery The base station works as the battery charging Confirm the CHARGE indicator unit. Charge the rechargeable battery before lights up. starting to use the headphones. You can continuously use the headphones for If the charge indicator does not light up, about 10 hours after full battery charge.
- Page 27 Basic operations • No sound is heard while Auto Tuning. It Listening to the sound from the base takes a few seconds to tune in. station • Press AUTO SCAN when the sound does not come out The base station works as the FM transmitter properly.
- Page 28 Basic operations Selecting a better reception channel Listening area The headphones can receive the FM signal When the playback sound is noisy, you can of the base station 100 m away from it at choose one of the other two channels to maximum (when no interference or obstacles transmit signals on the base station.
- Page 29 Troubleshooting What appears to be trouble is not always serious. Check the following points before calling a service center. Symptom Cause/Remedy No sound comes out at all. • Turns on the power of the headphones. • Start playback on the AV equipment connected to the base station.
- Page 30 864.5 MHz (Channel 3) Mass: 250 g Usable area (with rechargeable (distance to reach): Max. 100 m battery) (using JVC measurement systems, Supplied Accessories under controlled • Instructions x 1 ambient conditions) • Exclusive AC adaptor x 1 Frequency response: 25 Hz –...
