Parts (Indoor Unit) - Fujitsu ASU9RLS2 Service Manual
Split type
room air conditioner
wall mounted type
Hide thumbs
Also See for ASU9RLS2:
- Design & technical manual (48 pages) ,
- Service manual (23 pages) ,
- Warranty statement (1 page)
Table of Contents
Advertisement

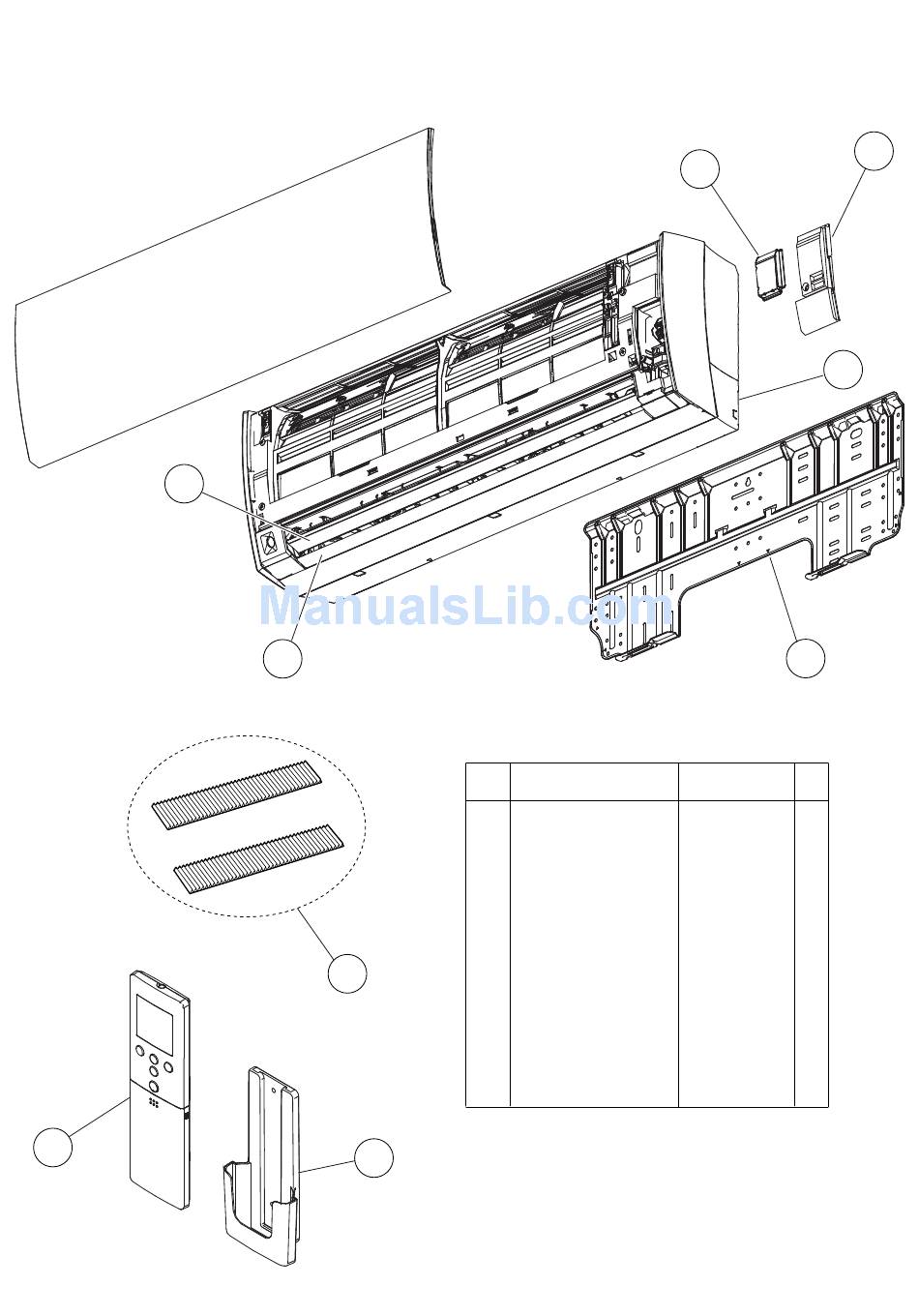

PARTS
INDOOR UNIT
8
2011.12.28
5
6
7
Ref. Description
1
Bracket Panel
2
Wire Cover
3
Wire Shield
4
Under Cover
5
Louver (Upper)
6
Louver (Lower)
7
Air Clean Filter Assy
8
Remote Control
9
Remote Control Holder
9
13
3
4
1
Part number
9318913002
9318911008
9318919004
9318879001
9318880007
9318881004
9317250009
9319634005
9318912005
2
