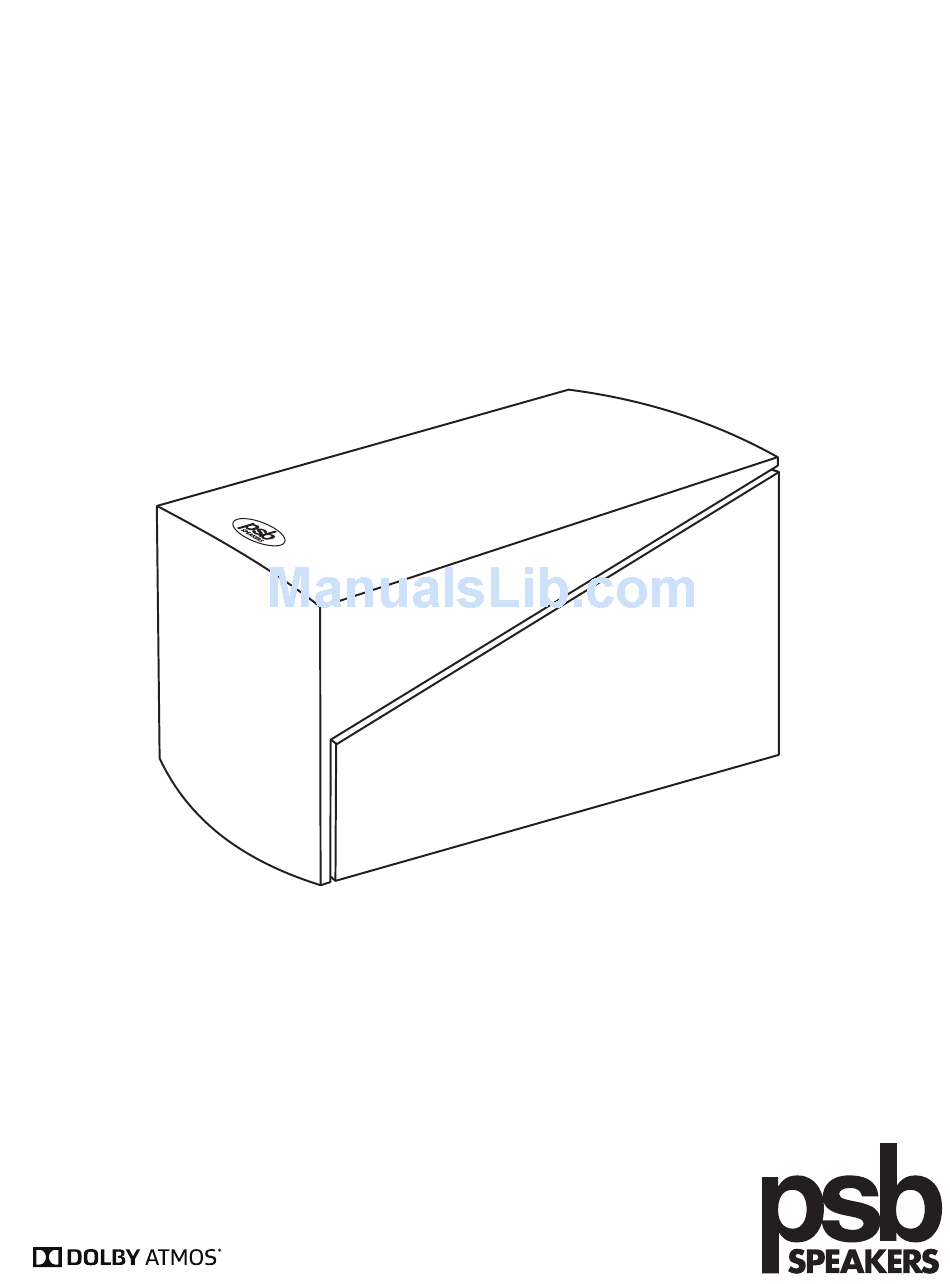

- Page 1 Imagine XA Dolby Atmos Speaker ® Owner’s Manual...
-
Page 3: Unpacking The Speakers
The speaker is designed to fit perfectly on top of PSB Speakers’ Imagine XT2, XT and XB speakers, creating an integrated, “one-piece” look. Additionally, the Imagine XA are well suited to being used on top of any other quality speaker brand, or wall mounted as “stand-alone” Dolby Atmos-enabled speakers... -
Page 4: Placement In A Dolby Atmos-Enabled System
We will cover three basic configurations for Dolby Atmos systems. 1) 5.1.2 system, in which there are two Imagine XA speakers in addition to the existing five speakers... - Page 5 2) 5.1.4 system, in which there are four Imagine XA speakers in addition to the existing five speakers 3) 7.1.4 system, in which there are four Imagine XA speakers in addition to the existing seven speakers...
- Page 6 Position the Imagine XA inline with the wall-mounting bracket with bracket on the rear of the speaker and let the speaker slide straight down, allowing the speaker to slide-and-lock into the slot for a secure mount.
-
Page 7: Protecting Your Investment
Be sure to connect your Imagine XA speaker to your system in an identical manner for proper connection: Red or (+) amplifier/receiver terminal to Red (+) speaker terminal, Black (-) amplifier/receiver terminal to Black (-) terminal. -
Page 8: Care And Cleaning
Dolby Atmos sound and send the signal to your speakers. If you require service please visit your local authorised PSB service centre, or go to PSBspeakers.com to open a support ticket. If you have moved since your purchase, the nearest authorised PSB dealer will be able to assist you.
