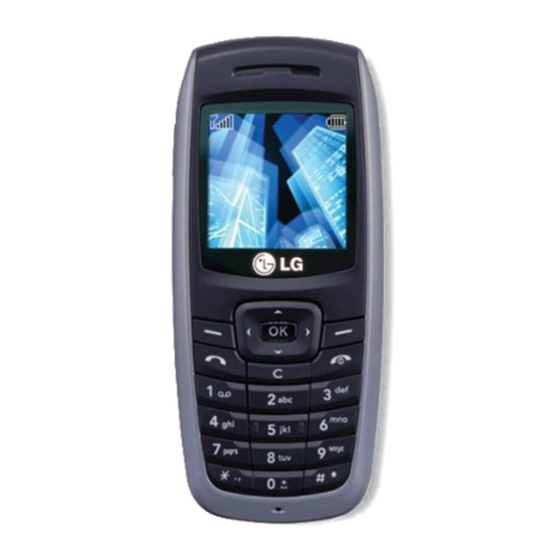

LG KG110 Service Manual

Hide thumbs Also See for KG110:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
KG110_Cover_Eng
2006.8.9
3:57 PM
Page 1
Service Manual
KG110/KG115/
MG110a/MG110b
Date : Aug 2006 / Issue 1.0
P/N : MMBD0061701
