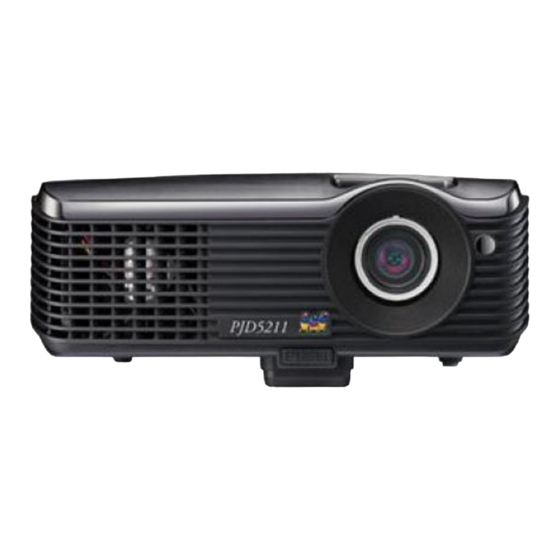

ViewSonic PJD5211 User Manual
Hide thumbs
Also See for PJD5211:
- Quick start manual (2 pages) ,
- User manual (69 pages) ,
- Buyer's manual (12 pages)
Table of Contents
Advertisement
ViewSonic
PJD5211/PJD5221/
PJD5231/PJD5122
DLP Projector
IMPORTANT: Please read this User Guide to obtain important information on install-
ing and using your product in a safe manner, as well as registering your product for
future service. Warranty information contained in this User Guide will describe your
limited coverage from ViewSonic Corporation, which is also found on our web site
at http://www.viewsonic.com in English, or in specific languages using the Regional
selection box in the upper right corner of our website.
"Antes de operar su equipo lea cuidadosamente las instrucciones en este manual"
Downloaded From projector-manual.com Viewsonic Manuals
®
- User Guide
- Guide de l'utilisateur
- Bedienungsanleitung
- Guía del usuario
- Guida dell'utente
- Guia do usuário
- Användarhandbok
- Käyttöopas
- Руководство пользователя
- 使用手冊 (繁體)
- 使用手冊 (簡體)
- 사용자 안내서
- Podręcznik użytkownika
- Kullanιcι kιlavuzu
Model No. : VS13304/VS13305
VS13306/VS13308
Advertisement
Table of Contents
Related Manuals for ViewSonic PJD5211
Summary of Contents for ViewSonic PJD5211
- Page 1 - Podręcznik użytkownika future service. Warranty information contained in this User Guide will describe your limited coverage from ViewSonic Corporation, which is also found on our web site - Kullanιcι kιlavuzu at http://www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right corner of our website.
-
Page 2: Compliance Information
If the batteries, accumulators and button cells included with this equipment, display the chemical symbol Hg, Cd, or Pb, then it means that the battery has a heavy metal content of more than 0.0005% Mercury or more than, 0.002% Cadmium, or more than 0.004% Lead. Downloaded From projector-manual.com Viewsonic Manuals... -
Page 3: Declaration Of Rohs Compliance
4. Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium containing up to 0.4% lead by weight and as a cooper alloy containing up to 4% lead by weight. Downloaded From projector-manual.com Viewsonic Manuals... -
Page 4: Product Registration
PS/2, VGA and XGA are registered trademarks of International Business Machines Corporation. Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product. -
Page 5: Table Of Contents
Optimizing the image......29 Hiding the image........ 33 Locking control keys......33 Freezing the image ......34 Operating in a high altitude environment ........34 Personalizing the projector menu display ..........35 Table of contents Downloaded From projector-manual.com Viewsonic Manuals... -
Page 6: Important Safety Instructions
- Locations near fire alarms - Locations with an ambient temperature above 40°C / 104°F - Locations where the altitudes are higher than 3000 m (10000 feet). Important safety instructions Downloaded From projector-manual.com Viewsonic Manuals... - Page 7 Kensington lock slot on the projector and the base of the ceiling mount bracket. This will perform the secondary role of restraining the projector should its attachment to the mounting bracket become loose. Important safety instructions Downloaded From projector-manual.com Viewsonic Manuals...
-
Page 8: Introduction
• The lamp brightness will decline over time and may vary within the lamp manufacturers specifications. This is normal and expected behavior. Introduction Downloaded From projector-manual.com Viewsonic Manuals... -
Page 9: Shipping Contents
The supplied accessories will be suitable for your region, and may differ from those illustrated. Projector Power Cord VGA Cable Multi-language user manual Quick Start Guide Remote Control & Battery Pull the tab before using the remote control. Optional accessories Ceiling mount Replacement lamp Soft carry case Introduction Downloaded From projector-manual.com Viewsonic Manuals... -
Page 10: Projector Exterior View
If a fault should occur during operation of the unit, operate the disconnect device to switch the power supply off, or disconnect the power plug. Introduction Downloaded From projector-manual.com Viewsonic Manuals... -
Page 11: Controls And Functions
See "Indicators" on page MENU/EXIT for details. Turns on the On-Screen Display (OSD) menu. Goes back to previous OSD menu, exits and saves menu settings. See "Using the menus" on page 21 for details. Introduction Downloaded From projector-manual.com Viewsonic Manuals... - Page 12 Freezes the projected image. See "Freezing the image" on page 34 details. Selects the desired menu items and makes adjustments. See "Using the menus" on page 21 for details. MENU Turns on the On-Screen Display (OSD) menu. Introduction Downloaded From projector-manual.com Viewsonic Manuals...
-
Page 13: Remote Control Effective Range
• If the battery is dead or if you will not be using the remote control for a long time, remove the battery to prevent damage to the remote control from possible battery leakage. Introduction Downloaded From projector-manual.com Viewsonic Manuals... -
Page 14: Positioning Your Projector
Note that a special rear projection screen is required. Set Rear Table in the SYSTEM SETUP: Basic > Projector Position menu after you turn the projector on. Positioning your projector Downloaded From projector-manual.com Viewsonic Manuals... -
Page 15: Projection Dimensions
This will help you determine the exact mounting position so that it best suits your installation location. Positioning your projector Downloaded From projector-manual.com Viewsonic Manuals... -
Page 16: Connection
Once connected, the audio can be controlled by the projector On-Screen Display (OSD) menus. The final connection path should be like that shown in the following diagram: Notebook or desktop computer Speakers VGA cable Audio Audio cable cable Connection Downloaded From projector-manual.com Viewsonic Manuals... -
Page 17: Connecting A Monitor
• To use this connection method, make sure the Active VGA Out and Active Audio Out functions are turned on. See "Active VGA Out" on page 41 "Audio Settings" on page for details. Connection Downloaded From projector-manual.com Viewsonic Manuals... -
Page 18: Connecting Video Source Devices
If you have a separate sound system, you will most likely want to connect the audio output of your Video source device to that sound system, instead of to the mono audio projector. Connection Downloaded From projector-manual.com Viewsonic Manuals... -
Page 19: Connecting A Component Video Source Device
If the selected video image is not displayed after the projector is turned on and the correct video source has been selected, check that the Video source device is turned on and operating correctly. Also check that the signal cables have been connected correctly. VGA-Component adapter • (ViewSonic P/N: CB-00008906) Connection Downloaded From projector-manual.com Viewsonic Manuals... - Page 20 S-Video source device using Component Video connections, you need not connect to this device using an S-Video connection as this makes an unnecessary second connection of poorer picture quality. See "Connecting Video source devices" on page 15 for details. Connection Downloaded From projector-manual.com Viewsonic Manuals...
-
Page 21: Connecting A Composite Video Source Device
Also check that the signal cables have been connected correctly. • You need only connect to this device using a composite Video connection if Component Video and S-Video inputs are unavailable for use. See "Connecting Video source devices" on page 15 for details. Connection Downloaded From projector-manual.com Viewsonic Manuals... -
Page 22: Operation
To maintain the lamp life, once you turn the projector on, wait at least 5 minutes before turning it off. If the projector is activated for the first time, select your OSD language following the on- screen instructions. Switch all of the connected equipment on. Operation Downloaded From projector-manual.com Viewsonic Manuals... - Page 23 'Out of Range' displayed on a blank screen. Please change to an input signal which is compatible with the projector's resolution or set the input signal to a lower setting. "Timing chart" on page 52 for details. Operation Downloaded From projector-manual.com Viewsonic Manuals...
-
Page 24: Using The Menus
*The first press leads you back to the main menu and the second press closes the OSD menu. : DISPLAY : SYSTEM SETUP: Basic : PICTURE : SYSTEM SETUP: Advanced : SOURCE : INFORMATION Operation Downloaded From projector-manual.com Viewsonic Manuals... -
Page 25: Utilizing The Password Function
See "Entering the password recall procedure" on page 23 details. If you enter an incorrect password 5 times in succession, the projector will automatically shut down in a short time. Operation Downloaded From projector-manual.com Viewsonic Manuals... -
Page 26: Entering The Password Recall Procedure
'Off' shown in the row of Power On Lock. You will not have to enter the password next time you turn on the projector. • If the password is incorrect, the password error message is displayed lasting for three seconds, and the message 'INPUT PASSWORD' is displayed for your Operation Downloaded From projector-manual.com Viewsonic Manuals... -
Page 27: Switching Input Signal
Any other resolutions will be scaled by the projector depending upon the 'aspect ratio' setting, which may cause some image distortion or loss of picture clarity. See "Selecting the aspect ratio" on page 27 for details. Operation Downloaded From projector-manual.com Viewsonic Manuals... -
Page 28: Adjusting The Projected Image
3 seconds. • The screen will be blank while AUTO is functioning. • This function is only available when PC signal (analog RGB) is selected. Operation Downloaded From projector-manual.com Viewsonic Manuals... -
Page 29: Correcting Keystone
MODE/ENTER on the projector or Enter Press Press on the remote control. The Keystone correction page is displayed. Press to correct keystoning at the top of the image or press to correct keystoning at the bottom of the image. Operation Downloaded From projector-manual.com Viewsonic Manuals... -
Page 30: Magnifying And Searching For Details
To change the projected image ratio (no matter what aspect the source is): Press MENU/EXIT on the projector or MENU on the remote control and then press until the DISPLAY menu is highlighted. Operation Downloaded From projector-manual.com Viewsonic Manuals... - Page 31 16:9 aspect ratio. This is most suitable for images which are already in a 16:9 aspect, like high definition TV, as it displays them without aspect alteration. 16:9 picture Operation Downloaded From projector-manual.com Viewsonic Manuals...
-
Page 32: Optimizing The Image
(little light) home cinema or lounge room environment. User 1/User 2 mode: Recalls the settings customized based on the current available picture modes. See "Setting the User 1/User 2 mode" on page 30 for details. Operation Downloaded From projector-manual.com Viewsonic Manuals... -
Page 33: Adjusting Brightness
Highlight the PICTURE > Contrast menu and press The higher the value, the greater the contrast. Use this to set the peak white level after you have previously adjusted the Brightness setting to suit your selected input and viewing environment. Operation Downloaded From projector-manual.com Viewsonic Manuals... -
Page 34: Adjusting Color
“color temperature”. A white color with a low color temperature appears to be reddish white. A white color with a high color temperature appears to have more blue in it. Operation Downloaded From projector-manual.com Viewsonic Manuals... -
Page 35: Color Management
Repeat steps 3 to 6 for other color adjustments. Make sure you have made all of the desired adjustments. Press MENU/EXIT on the projector or Exit on the remote control to exit and save the settings. Operation Downloaded From projector-manual.com Viewsonic Manuals... -
Page 36: Hiding The Image
Keys on the remote control are still functional when panel key lock is enabled. • If you press POWER to turn off the projector without disabling panel key lock, the projector will still be in locked status the next time it is turned on. Operation Downloaded From projector-manual.com Viewsonic Manuals... -
Page 37: Freezing The Image
In cases like this, you should switch to High Altitude Mode to solve these symptoms. However, this is not to state that this projector can operate under any and all harsh or extreme conditions. Operation Downloaded From projector-manual.com Viewsonic Manuals... -
Page 38: Personalizing The Projector Menu Display
If the projector is not properly shut down, to protect the lamp, when you attempt to re-start the projector, the fans will run for a few minutes to cool down. Press POWER again to start the projector after the fans stop and the POWER indicator light flashes blue. Operation Downloaded From projector-manual.com Viewsonic Manuals... -
Page 39: Menu Operation
Video source: Brightest/Gaming/ViewMatch/ Cinema/User 1/User 2 PC source: Brightest/Daylight/ViewMatch/Cinema Reference Mode Video source: Brightest/Gaming/ViewMatch/ Cinema Brightness PICTURE Contrast Color Tint Sharpness Brilliant Color On/Off Color Temperature T1/T2/T3/T4 Save Settings 3. SOURCE Quick Auto Search On/Off Operation Downloaded From projector-manual.com Viewsonic Manuals... -
Page 40: System Setup
Reset Lamp Timer Equivalent Lamp Hour Change Password Security Settings Power On Lock On/Off Reset All Settings On/Off • Source • Color Mode Current System Status • Resolution INFORMATION • Color System • Equivalent Lamp Hour Operation Downloaded From projector-manual.com Viewsonic Manuals... -
Page 41: Description Of Each Menu
3D Sync When you discover the inversion of the image depth, enable this Invert function to correct the problem. (For TI 3D DLP Link only) Color "Color Management" on page 32 for details. Management Operation Downloaded From projector-manual.com Viewsonic Manuals... -
Page 42: Color Mode
"Selecting a Color Temperature" on page 31 for details. Temperature Save Saves the settings made for the User 1 or User 2 mode. Settings Quick Auto "Switching input signal" on page 24 for details. Search Operation Downloaded From projector-manual.com Viewsonic Manuals... -
Page 43: High Altitude Mode
30 minutes and 12 hours. Allows you to select which logo screen will be displayed during Splash projector start-up. Three options are available: ViewSonic logo, Screen Black screen, or Blue screen. Selecting On displays the current information on the screen Message when the projector is detecting or searching for a signal. -
Page 44: Audio Settings
S-Video input signal is selected and its system format is NTSC. Caption Version Selects a preferred closed captioning mode. To view captions, select CC1, CC2, CC3, or CC4 (CC1 displays captions in the primary language in your area). Operation Downloaded From projector-manual.com Viewsonic Manuals... -
Page 45: Reset All
System Shows the native resolution of the input signal. Status Color System Shows input system format, NTSC, PAL, SECAM, or RGB. Equivalent Lamp Hour Displays the number of hours the lamp has been used. Operation Downloaded From projector-manual.com Viewsonic Manuals... -
Page 46: Maintenance
Remove the battery from the remote control. • Pack the projector in its original packing or equivalent. Transporting the projector It is recommended that you ship the projector with its original packing or equivalent. Maintenance Downloaded From projector-manual.com Viewsonic Manuals... -
Page 47: Lamp Information
To set Auto Power Off, go into the SYSTEM SETUP: Basic > Auto Power Off menu and press . If the preset time lengths are not suitable for your presentation, select Disable. The projector will not automatically shut down in a certain time period. Maintenance Downloaded From projector-manual.com Viewsonic Manuals... -
Page 48: Timing Of Replacing The Lamp
4000 hours usage. The lamp MUST be replaced before the projector Notice will operate normally. Lamp usage time exceeded Replace lamp (refer to User Manual) Then reset lamp timer Maintenance Downloaded From projector-manual.com Viewsonic Manuals... -
Page 49: Replacing The Lamp
Be careful of sharp edges in the lamp compartment. Wash hands after lamp replacement. • Only ViewSonic certified lamps are tested with this projector. Use of other lamps may cause electrical shock and fire. Turn the power off and disconnect the projector from the wall socket. - Page 50 Insert the new lamp into the lamp compartment and make sure it fits in the projector. Reconnect the lamp connector and place it back into its slot to be flush with the projector. Maintenance Downloaded From projector-manual.com Viewsonic Manuals...
-
Page 51: Resetting The Lamp Timer
Highlight Reset and press MODE/ENTER on the projector or Enter on the remote control. The lamp time will be reset to '0'. CAUTION Do not reset if the lamp is not new or replaced as this could cause damage. Maintenance Downloaded From projector-manual.com Viewsonic Manuals... - Page 52 Green The projector has shut down automatically. If you try to re- Green start the projector, it will shut down again. Please contact Blue your dealer for assistance. Blue Green Purple Purple Green Green Maintenance Downloaded From projector-manual.com Viewsonic Manuals...
-
Page 53: Troubleshooting
Replace the battery with a new one. There is an obstacle between the Remove the obstacle. remote control and the projector. You are too far away from the Stand within 8 meters (26 feet) of the projector. projector. Troubleshooting Downloaded From projector-manual.com Viewsonic Manuals... -
Page 54: Specifications
Product name Digital Projector Optical Resolution • PJD5122: 800 x 600 SVGA • PJD5211/PJD5221/PJD5231: 1024 x 768 XGA Display system 1-CHIP DMD Lens F/Number F = 2.57 to 2.65, f = 21 to 23.1 mm PJD5122/PJD5211/PJD5221: 220 W lamp (RLC-055) Lamp •... -
Page 55: Dimensions
43.269 85.008 VGA_85 24.688 49.673 19.75 VGA_50 61.91 119.518 52.5 VGA_120 37.879 60.317 SVGA_60 48.077 72.188 SVGA_72 46.875 49.5 SVGA_75 800 x 600 53.674 85.061 56.25 SVGA_85 30.998 49.916 30.75 SVGA_50 77.425 119.854 SVGA_120 Specifications Downloaded From projector-manual.com Viewsonic Manuals... - Page 56 Horizontal Vertical Frequency Color sub-carrier Video mode Frequency (kHz) (Hz) Frequency (MHz) NTSC 15.73 3.58 15.63 4.43 SECAM 15.63 4.25 or 4.41 PAL-M 15.73 3.58 PAL-N 15.63 3.58 PAL-60 15.73 4.43 NTSC4.43 15.73 4.43 Specifications Downloaded From projector-manual.com Viewsonic Manuals...
-
Page 57: Copyright Information
Copyright 2010. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of ViewSonic Corporation. Disclaimer... -
Page 58: Appendix
Right Color Mode Volume+ Volume- Auto Source Blank Menu Magnify + Magnify - Enter Exit Mute VGA1 VGA2 Video Keystone + Keystone - RS232 command table <Pin assignment for this two end> Description Description Appendix Downloaded From projector-manual.com Viewsonic Manuals... - Page 59 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x21 0x00 0x7F Write 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x21 0x01 0x80 3D Sync 3D Sync Invert Read Invert 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x21 0x80 Status Appendix Downloaded From projector-manual.com Viewsonic Manuals...
- Page 60 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x08 0x02 0x68 temperature color temperature 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x08 0x03 0x69 color Read temperature 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x08 0x67 status Appendix Downloaded From projector-manual.com Viewsonic Manuals...
- Page 61 0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x00 0x01 0x60 Write Freeze off 0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x00 0x00 0x5F Freeze Freeze Read 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x13 0x00 0x60 status Appendix Downloaded From projector-manual.com Viewsonic Manuals...
- Page 62 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0f 0x70 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x10 0x71 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x11 0x72 Read Language 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x15 0x00 0x62 Appendix Downloaded From projector-manual.com Viewsonic Manuals...
- Page 63 Lamp Time Lamp usage Read 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x15 0x01 0x63 hour Read error Error status Read 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x0C 0x0D 0x66 status Appendix Downloaded From projector-manual.com Viewsonic Manuals...
-
Page 64: Customer Support
Renta y Datos, 29 SUR 721, COL. LA PAZ, 72160 PUEBLA, PUE. Tel: 01.222.891.55.77 CON 10 LINEAS Electroser, Av Reforma No. 403Gx39 y 41, 97000 Merida, Yucatan. Tel: 01.999.925.19.16 Other places please refer to http://www.viewsonic.com/la/soporte/index.htm#Mexico Latin America (Peru) www.viewsonic.com/la/ T= 0800-54565 soporte@viewsonic.com... -
Page 65: Limited Warranty
If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components. - Page 66 2. To obtain warranted service, you will be required to provide (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product. 3. Take or ship the product freight prepaid in the original container to an authorized ViewSonic service center or ViewSonic.
-
Page 67: Mexico Limited Warranty
Exclusion of damages: ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for: Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages. - Page 68 Av Ferrocarril Sonora #3780 L-C 381 Brea Canyon Road, Walnut, CA. 91789 USA Col 20 de Noviembre Tel: 800-688-6688 (English); 866-323-8056 (Spanish); Tijuana, Mexico Fax: 1-800-685-7276 E-Mail: http://www.viewsonic.com 4.3: ViewSonic Mexico Limited Warranty PRJ_LW03 Rev. 1A 06-25-07 Downloaded From projector-manual.com Viewsonic Manuals...
- Page 69 Downloaded From projector-manual.com Viewsonic Manuals...
