Summary of Contents for Comprehensive CP-HDACPR10

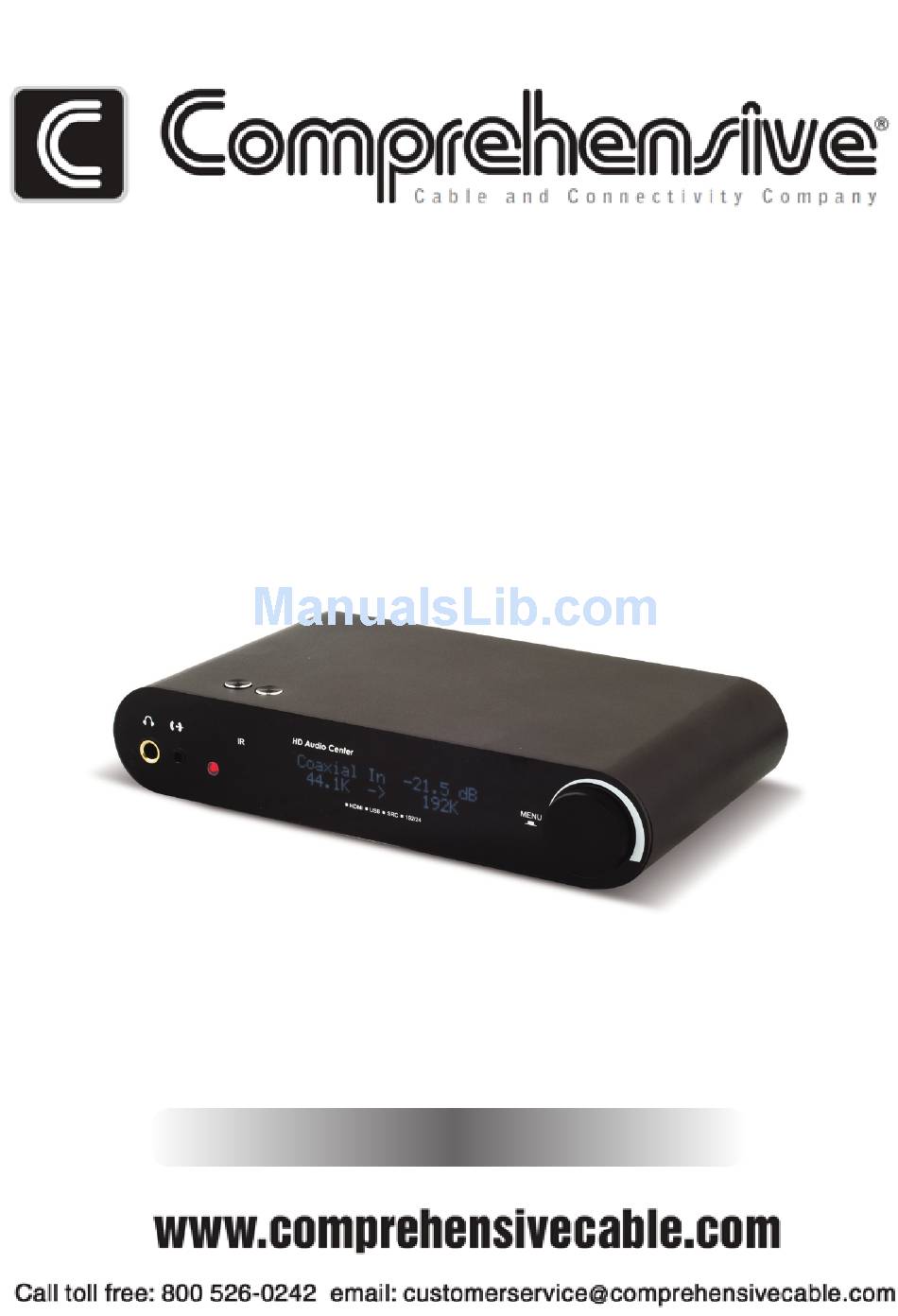

- Page 1 CP-HDACPR10 HD Audio Center Operation Manual Operation Manual...
-
Page 2: Copyright Notice
Cypress also makes no commitment to update or to keep current the information contained in this document. Comprehensive Cable reserves the right to make improvements to this document and/or product at any time and without notice. COPYRIGHT NOTICE... -
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • electrical shock and injury to persons. •... -
Page 4: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......2 5. Features ..........2 6. Operation Controls and Functions ..4 6.1 Front Panel ........4 6.2 Rear Panel .........5 6.3 Top Panel ..........6 6.4 Remote Control ........6 6.5 OLED Menu ........7 7. -
Page 5: Introduction
1. INTRODUCTION The HD Audio Center is designed to allow multiple audio sources to be controlled, switched and output to a variety of audio equipment. With its 6 audio inputs (including an HDMI input) and 6 audio outputs (including a 6.3mm headphone output) you can integrate and active speakers. -
Page 6: System Requirements
4. SYSTEM REQUIREMENTS Input source equipment such as PC (USB) or DVD player with relevant headphones 5. FEATURES Main • 6 Input, 6 Output HD Audio Center • 4 Digital Inputs, 2 Analog Inputs • 3 Digital Outputs, 2 Analog Outputs and Headphone Output •... - Page 7 Misc • IR Remote with direct source, power and mute buttons • HDMI audio embedding or de-embedding • Volume control of analog and headphone outputs or just headphone output via remote or main control dial • Direct power and mute button on unit •...
-
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel MENU MENU 6.3mm Headphone Output: Connect to 6.3mm professional headphone set for user to enjoy the individual professional audio sound. 3.5mm Front Input: Connect 3.5mm mini-jack cable to any audio equipment for stereo input audio signal. IR: IR receiver window. -
Page 9: Rear Panel
6.2 Rear Panel COAX. COAX. HDMI OUT HDMI OUT DC 5V DC 5V OPT. OPT. XLR OUT XLR OUT XLR OUT XLR OUT HDMI IN HDMI IN DC 5V: Plug the 5V DC power supply into the unit and connect the adaptor to an AC outlet. -
Page 10: Top Panel
6.3 Top Panel POWER MUTE POWER: Press this button to switch on the device or set to standby mode. MUTE: Press this button to mute or unmute the audio volume instantly. 6.4 Remote Control POWER: Press the button to turn On or to set the device to standby mode. -
Page 11: Oled Menu
1ST LAYER FULL NAME 2ND LAYER Source In HDMI In Source Selection USB In Optical In Coaxial In Line In (L/R In) Front In Return SRC Set Bypass Sampling Rate Conversion Setup 192 kHz 176.4 kHz 96 kHz 88.2 kHz 48 kHz 44.1 kHz Return... -
Page 12: Connection Diagram
7. CONNECTION DIAGRAM Headphones Headphone Output FRONT MENU MENU Line-level Input Smartphone or MP3 Player Display Mac PC Set-top Box CD Player Stereo Analog Input Digital Audio Input Input HDMI Output REAR COAX. COAX. HDMI OUT HDMI OUT DC 5V DC 5V Power OPT. -
Page 13: Specifications
8. SPECIFICATIONS Input Ports 1×HDMI, 1×USB, 1×Coaxial, 1×Optical, 1×L/R, 1×Mini-jack in (L/R) Output Ports 1×HDMI, 1×Coaxial, 1×Optical, 1×L/R, 1×L/R Balanced XLR, 1×6.3mm Headphone jack Digital Audio I/O Support LPCM 2CH Stereo Audio I/O Level 2 Vrms ±0.2 XLR Blanced I/O Level 4 Vrms ±0.2 Headphone Impedance 16 Ω... -
Page 14: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM COAX Coaxial HDMI Optical...
