OPERATING
MANUAL
SWING
TURBO
QUIET
ON
CANCEL
FAN
MODE
SLEEP
TIMER
OFF
CLOCK
CANCEL
Bedienungsanleitung
Drahtloses Handgerät
Manuale Di Funzionamento
Manual De Instrucciones
Auricular Inalámbrico
Руководство По Зксплуатации
Беспроводное Дистанционное Управление
Operating Manual
English
Handset Wireless
Mode D'emploi
Français
Combiné sans fi l
Deutsch
Italiano
Ricevitore senza fili
Español
Pycckий
Kullanım Kılavuzu
Türkçe
Kablosuz Kumanda
OM-GS02-1011(4)-DAIKIN
Part No.: R08019037090D
Advertisement
Table of Contents
Related Manuals for Daikin R08019037090D
Summary of Contents for Daikin R08019037090D
-
Page 1: Operating Manual

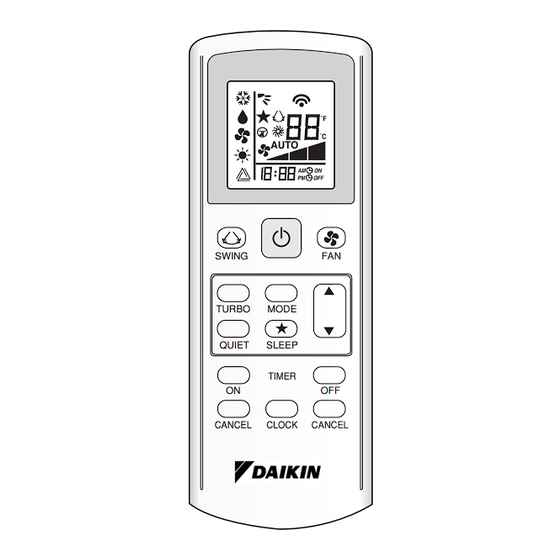

Drahtloses Handgerät Manuale Di Funzionamento Italiano Ricevitore senza fili SWING Manual De Instrucciones Español Auricular Inalámbrico TURBO MODE QUIET SLEEP Руководство По Зксплуатации Pycckий Беспроводное Дистанционное Управление TIMER Kullanım Kılavuzu Türkçe Kablosuz Kumanda CANCEL CLOCK CANCEL OM-GS02-1011(4)-DAIKIN Part No.: R08019037090D... - Page 2 BRC52A61/62/63 Remote Control Indication Indication De Télécommande BRC52A61/62/63 BRC52A61/62/63-Fernbedienungsanzeige Indicazioni Telecomando BRC52A61/62/63 Indicación Del Mando A Distancia BRC52A61/62/63 Индикация пульта дистанционного управления BRC52A61/62/63 BRC52A61/62/63 Uzaktan BRC52A61/62/63 Uzaktan Kumanda Göstergeleri Kumanda Göstergeleri SWING TURBO MODE QUIET SLEEP TIMER CANCEL CLOCK CANCEL...
- Page 3 HOW TO MOUNT ONTO THE WALL / COMMENT INSTALLER SUR LE MUR / ANBRINGEN DER FERNSTEUERUNG AN DER WAND / COME FISSARE L’ASTUCCIO DEL TELECOMANDO ALLA PARETE / MONTAJE SOBRE LA PARED / КАК УСТАНОВИТЬ НА СТЕНУ / DUVARA NASIL DUVARA NASIL YERLEfiT‹R‹L‹R YERLEfiT‹R‹L‹R...
-
Page 4: Installation
REMOTE CONTROLLER LOSS PREVENTION WITH BALL CHAIN (OPTIONAL) / PRÉVENTION CONTRE LA PERTE DE LA TÉLÉCOMMANDE PAR CHAÎNETTE À BOULES (FACULTATIF) / DIE FERNBEDIENUNG IST DURCH EINE KUGELKETTE VOR VERLUST GESICHERT (OPTIONAL) / PREVENZIONE PERDITA TELECOMANDO CON CATENA A SFERA (OPZIONALE) /PREVENCIÓN DE PÉRDIDA DEL CONTROL REMOTO CON CADENA DE BOLAS (OPCIONAL) / ПРЕДОТВРАЩЕНИЕ... -
Page 5: Instalación
Installation Instalación Faites correspondre l’anneau de Una el anillo del fi nal de la cadena l’extrémité de la chaînette à boules de bolas con el agujero del tornillo avec le trou de vis situé au dos de de la parte trasera del control remoto la télécommande et fi... - Page 7 OPERATING GUIDE Transmission source • The source where the signal will be transmitted. Signal transmission indication • Blink to confirm that the last setting has been transmitted to the unit. “ON/OFF” Button • Press once to start the air conditioner unit. •...
- Page 8 OFF timer setting • Press the OFF TIMER button will activate the off timer function. • Set the desired off time by pressing the OFF TIMER button continuously. • Press the CANCEL button to cancel the off timer setting. Quiet function (model dependent) •...
-
Page 9: Fault Diagnosis
FAULT DIAGNOSIS (For Inverter only) FAULT DIAGNOSIS BY REMOTE CONTROLLER The temperature display sections indicate corresponding codes. When the ON TIMER CANCEL button or OFF TIMER CANCEL button is held down for 5 seconds, a “ ” indication flashes on the temperature display section. SWING TURBO MODE... - Page 10 ERROR CODE MEANING OUTDOOR AIR THERMISTOR SHORT/OPEN PRESSURE SENSOR ERROR COMPRESSOR DISCHARGE PIPE THERMISTOR SHORT/OPEN/MISPLACED SUCTION PIPE THERMISTOR SHORT/OPEN OUTDOOR HEAT EXCHANGER THERMISTOR SHORT/OPEN SUBCOOLING HEAT EXCHANGER THERMISTOR SHORT/OPEN LIQUID PIPE THERMISTOR SHORT/OPEN GAS PIPE THERMISTOR SHORT/OPEN INVERTER OUTDOOR PCB ERROR OUTDOOR CONTROL BOX OVERHEAT HEAT SINK OVERHEAT IPM ERROR/IGBT ERROR...
- Page 11 MEMO / LE MÉMO / MITTEILUNG / PROMEMORIA / EL MEMORÁNDUM / ПАМЯТКА / NOT...
- Page 12 Kita-ku, Osaka, 530-8323 Japan Tokyo office: JR Shinagawa East Bldg., 2-18-1, Konan, P.O.Box 18674, Galleries 4, 11th Floor, Minato-ku, Tokyo, 108-0075 Japan Downtown Jebel Ali, Dubai, UAE. http://www.daikin.com/global/ Importer for Turkey Hürriyet Mahallesi Yakacık D-100 Kuzey Yanyol Caddesi No:49/1-2 Kartal − İstanbul...
