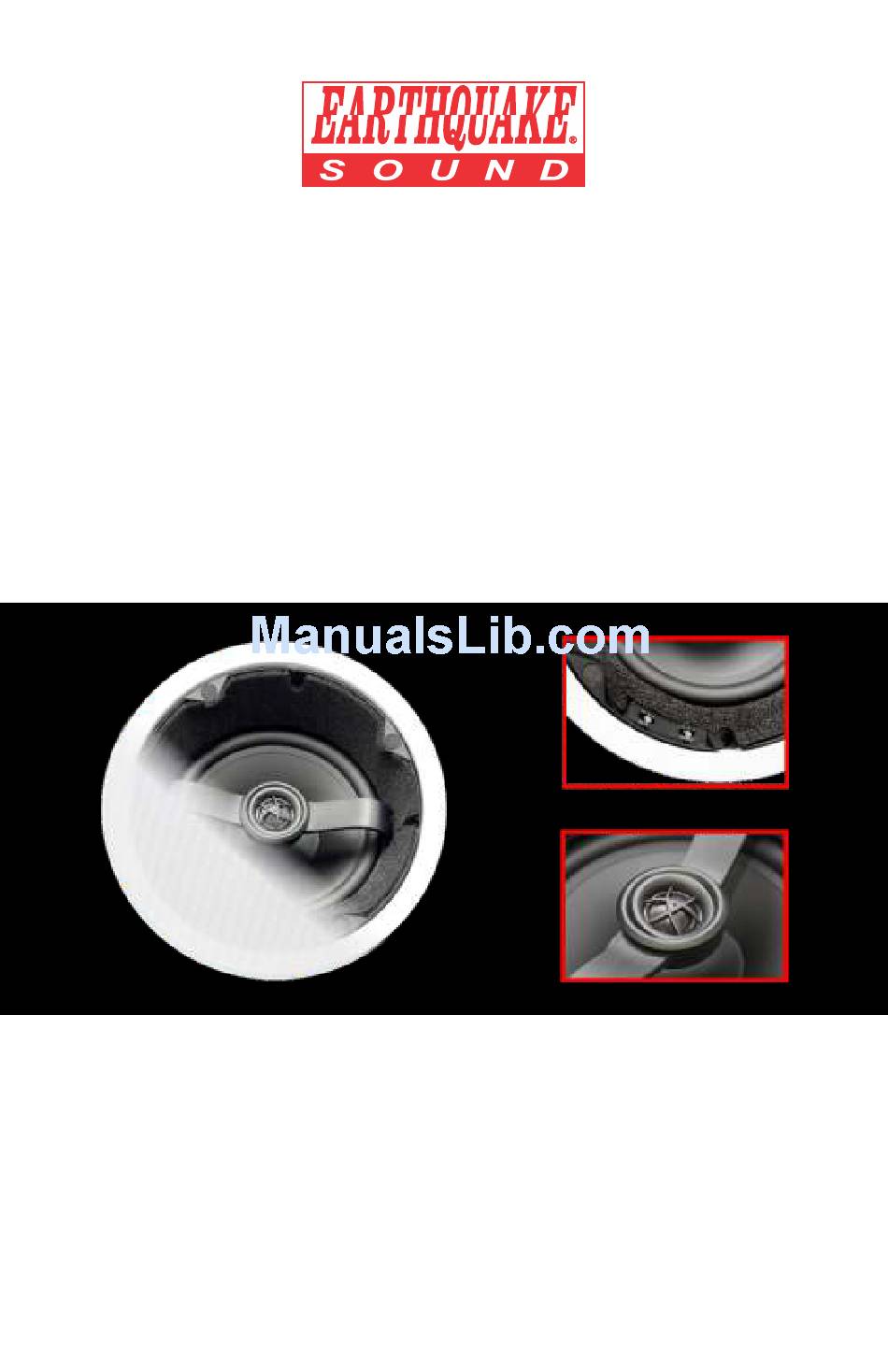

Page 1: Installation Manual
The Sound That Will Move You ECSSS82 Edgeless High Performance 8” Angled In-Ceiling Speaker Installation Manual www. earthquake sound.com... - Page 2 Dear Valued Customer, Thank you for purchasing the ECS-SS82, Edgeless 8” SweetSpot In- Ceiling Speaker; one of Earthquake Sound's most valued in-ceiling speaker lines. Designed with aesthetics and sound quality in mind, the ECS-SS82 seamlessly blends into its surrounding as it provides a lifetime of durability and high-end performance.
- Page 3 Grille Painting & Placement Considerations Speaker Placement The ECS-SS82 Edgeless 8” SweetSpot In-Ceiling Speakers are designed to be flush mounted in walls or ceilings. For optimal acoustical performance, simply follow these guidelines: 1. Place speakers at an equal distance (left/right) from listener. 2.
- Page 4 Easy Installation Steps Cut the hole: using the provided cut out template Wire the speaker: using the non-obtrusive spring-loaded speaker terminals Mount the speaker: by utilizing the Turn-N-Lock™ installation mechanisms Simply tighten the screws by hand using a screwdriver to prevent the mounting ears from snapping. Some resistance may occur the first few turns of the screw as it makes its path through the plastic.
- Page 5 Specifications E C S - S S 8 2 S P E C I F I C A T I O N S Frequency Response: 30Hz - 30kHz Sensitivity: 91dB @ 1W/1M Nominal Impedance: 8-Ohm Power Handling: 30 - 300 Watts Enclosure Material / Type: Impact resist ABS Plastic Driver Components:...
- Page 6 (as shown on the original sales receipt with serial number affixed/written on it). The five (5) year limited warranty period is valid only if an authorized Earthquake dealer properly installs the product and the warranty registration card is properly filled out and sent to Earthquake Sound Corporation.
-
Page 7: Technical Support
(at the ongoing rates). Shipper claims regarding items damaged in transit must be presented to carrier. Earthquake Sound Corporation reserves the right to refuse improperly packed product. A copy of the original sales receipt must accompany product returned to service. - Page 8 The Sound That Will Move You Earthquake Sound reserves the right to amend details of the specifications without notice. Copyright © Earthquake Sound Corporation Earthquake Sound Corporation • 2727 McCone Avenue Hayward CA, 94545 Phone: 510-732-1000 Fax: 510-732-1095...
