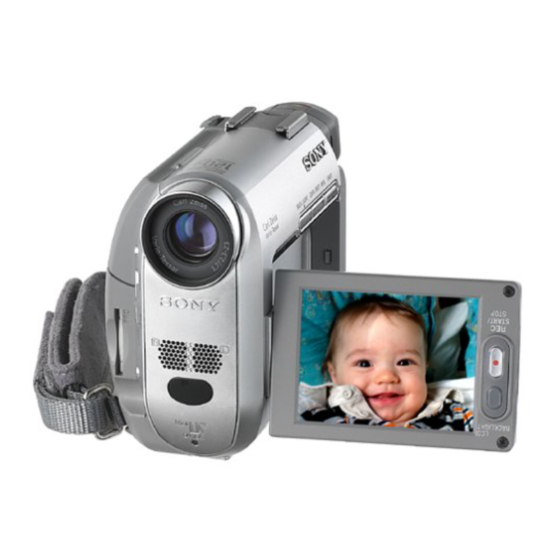

Sony DCR-HC30 Service Manual

Digital video camera recorder

Hide thumbs Also See for DCR-HC30:

Operation manual (148 pages)

Specifications (2 pages)

Release note (2 pages)

Table Of Contents

Table of Contents

Quick Links

Summary of Contents for Sony DCR-HC30

Page 1 DCR-HC30/HC30E RMT-831 SERVICE MANUAL LEVEL US Model Ver 1.2 2004. 07 Canadian Model Brazilian Model Revision History Revision History Korea Model Japanese Model DCR-HC30 AEP Model How to use How to use UK Model Acrobat Reader Acrobat Reader East European Model...
Page 2: Specifications
DCR-HC30/HC30E ENGLISH JAPANESE ENGLISH JAPANESE SPECIFICATIONS Video camera recorder Focal length Operating temperature 2.3 - 23 mm (3/32 - 29/32 in.) 0° C to 40° C (32° F to 104° F) When converted to a 35 mm still camera Storage temperature In CAMERA-TAPE: -20°...
Page 3 DCR-HC30/HC30E ENGLISH JAPANESE ENGLISH JAPANESE — 3 —...
Page 4 MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS DANS LES SUPPÉMENTS PUBLIÉS PAR SONY.
Page 5 DCR-HC30/HC30E ENGLISH JAPANESE ENGLISH JAPANESE — 5 —...
Page 6: Table Of Contents
DCR-HC30/HC30E TABLE OF CONTENTS SERVICE NOTE 4-3. PRINTED WIRING BOARDS ····································· 4-61 • CD-489 (CCD IMAGER) 1-1. SERVICE NOTE ····························································· 1-1 PRINTED WIRING BOARD ······················· 4-61 NOTE FOR REPAIR ······················································· 1-1 • IR-051 (REMOTE COMMANDER RECEIVER, POWER SUPPLY DURING REPAIRS ·························· 1-2...
Page 7: Service Note
DCR-HC30/HC30E SECTION 1 ENGLISH JAPANESE ENGLISH JAPANESE SERVICE NOTE 1-1. SERVICE NOTE NOTE FOR REPAIR Make sure that the flat cable and flexible board are not cracked of When remove a connector, don't pull at wire of connector. bent at the terminal.
Page 8: Power Supply During Repairs
DCR-HC30/HC30E ENGLISH JAPANESE ENGLISH JAPANESE POWER SUPPLY DURING REPAIRS In this unit, about 10 seconds after power is supplied to the battery terminal using the regulated power supply (8.4V), the power is shut off so that the unit cannot operate.
Page 9 DCR-HC30/HC30E SECTION 1 ENGLISH JAPANESE ENGLISH JAPANESE SERVICE NOTE...
Page 10 DCR-HC30/HC30E ENGLISH JAPANESE ENGLISH JAPANESE CN9102 1-4E...
Page 11: Disassembly
DCR-HC30/HC30E 2. DISASSEMBLY Link Link DISASSEMBLY CIRCUIT BOARDS LOCATION DISASSEMBLY CIRCUIT BOARDS LOCATION SERVICE POSITION SERVICE POSITION FLEXIBLE BOARDS LOCATION FLEXIBLE BOARDS LOCATION HELP HELP...
Page 12 DCR-HC30/HC30E 2. DISASSEMBLY 2. DISASSEMBLY The following flow chart shows the disassembly procedure. 2-1. DISASSEMBLY - 3 5 - 3 5 1 Two tapping screws (M1.7x6) black 2 Hinge blind 1 Shoe cover 3 LCD section 2 Two special screws (M2x2.8) silver...
Page 13 DCR-HC30/HC30E 2. DISASSEMBLY 2. DISASSEMBLY 2-2. SERVICE POSITION [SERVICE POSITION TO CHECK THE VTR SECTION] Connection to Check the VTR Section To check the VTR section, set the VTR to the "Forced VTR power ON" mode. Operate the VTR functions using the touch panel. (When the control key block (SS6300) is removed, the function buttons of the adjustment remote commander are not effective even if the HOLD switch of the adjustment remote commander is set to the OFF position.)
Page 14 DCR-HC30/HC30E 2. DISASSEMBLY 2. DISASSEMBLY [PD-213 BOARD SERVICE POSITION] Adjustment remote commander (RM-95) LANC PD-213 board AC power AC IN adaptor...
Page 15: Circuit Boards Location
DCR-HC30/HC30E 2. DISASSEMBLY 2. DISASSEMBLY 2-3. CIRCUIT BOARDS LOCATION LB-095 SE-141 CD-489 JK-260 MS-200 VC-351 IR-051 PD-213 NAME FUNCTION CD-489 CCD IMAGER IR-051 REMOTE COMMANDER RECEIVER, MIC IN JK-260 JACK LB-095 EVF RELAY MS-200 MS CONNECTOR, INDICATOR PD-213 LCD RGB DRIVE, BACKLIGHT...
Page 16: Flexible Boards Location
DCR-HC30/HC30E 2. DISASSEMBLY 2. DISASSEMBLY 2-4. FLEXIBLE BOARDS LOCATION The flexible boards contained in the lens block is not shown. FP-831 FP-827 CONTROL KEY BLOCK (CF6300) FP-836 CONTROL KEY BLOCK (SB6300) FFC-036 CONTROL KEY BLOCK (SS6300) FP-832 FP-830 FP-835 FP-833...
Page 17: Help (List Of Caution Points Is Shown Here.)
DCR-HC30/HC30E HELP Sheet attachment positions and procedures of processing the flexible boards/harnesses are shown. HELP 01 (disassembly of the Hinge section) 1 Peel off the adhesive surface. Adhesive surface 3 Hinge (63) assembly 2 Unwind the FP-835 flexible board wide open.
Page 18 DCR-HC30/HC30E HELP 02 (disassembly of the EVF section) 2 Three screws 3 Slide the VF cabinet upper assembly, (M1.7 × 3), etc, direction of the arrow. silver FP-831 flexible board VF flexible fixfed sheet FP-831 flexible board 1 VF flexible fixfed sheet Remove the VF cabinet upper assembly in the direction of the arrow.
Page 19: Block Diagrams
DCR-HC30/HC30E 3. BLOCK DIAGRAMS Link Link OVERALL BLOCK DIAGRAM (1/4) POWER BLOCK DIAGRAM (1/2) OVERALL BLOCK DIAGRAM (1/4) POWER BLOCK DIAGRAM (1/2) OVERALL BLOCK DIAGRAM (2/4) OVERALL BLOCK DIAGRAM (2/4) POWER BLOCK DIAGRAM (2/2) POWER BLOCK DIAGRAM (2/2) OVERALL BLOCK DIAGRAM (3/4)
Page 20 DCR-HC30/HC30E SECTION 3 3. BLOCK DIAGRAMS 3. BLOCK DIAGRAMS BLOCK DIAGRAMS 3-1. OVERALL BLOCK DIAGRAM (1/4) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located. FP-827 JK-260 CD-489 BOARD...
Page 21 DCR-HC30/HC30E 3. BLOCK DIAGRAMS 3. BLOCK DIAGRAMS ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located. 3-2. OVERALL BLOCK DIAGRAM (2/4) VC-351 BOARD(2/4) PD-213 BOARD(1/2) FP-835 (FLEXIBLE) (1/2) CN1106...
Page 22 DCR-HC30/HC30E 3. BLOCK DIAGRAMS 3. BLOCK DIAGRAMS 3-3. OVERALL BLOCK DIAGRAM (3/4) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located. CN1107 Z MECHA DECK FOR ADJUSTMENTS (MDX-Z200) VC-351 BOARD(3/4)
Page 23 DCR-HC30/HC30E 3. BLOCK DIAGRAMS 3. BLOCK DIAGRAMS ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located. 3-4. OVERALL BLOCK DIAGRAM (4/4) VC-351 BOARD(4/4) XCC DOWN CONTROL KEY (5/19) S001-003...
Page 24 DCR-HC30/HC30E 3. BLOCK DIAGRAMS 3. BLOCK DIAGRAMS 3-5. POWER BLOCK DIAGRAM (1/2) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located. FP-830 VC-351 BOARD (1/2) (FLEXIBLE) BT901 BATTERY CN2001...
Page 25 DCR-HC30/HC30E 3. BLOCK DIAGRAMS 3. BLOCK DIAGRAMS ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located. 3-6. POWER BLOCK DIAGRAM (2/2) FFC-036 IR-051 BOARD FP-835 LCD901 PD-213 BOARD (FLAT CABLE) 2.5 INCH...
Page 26: Printed Wiring Boards And Schematic Diagrams
DCR-HC30/HC30E 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS 4-3. PRINTED WIRING BOARDS 4-3. PRINTED WIRING BOARDS SECTION 4 PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS 4-1. FRAME SCHEMATIC DIAGRAM (1/2) CN4101 CN1107 FC_XB RF_MON FC_B FC_XA FC_A XCS_EEP NIGHTSHOTO_VCC EEP_SCK (FOR CHECK)
Page 27 DCR-HC30/HC30E 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS 4-3. PRINTED WIRING BOARDS 4-3. PRINTED WIRING BOARDS FRAME SCHEMATIC DIAGRAM (2/2) SE-141 BOARD CN1106 CN601 REG_GND A_2.8V PANEL_R PANEL_R TEST2 PITCH_AD VST_C_RESET PANEL_G PANEL_G REG_GND YAW_AD PANEL_B PANEL_B YAW_AD REG_GND REG_GND REG_GND...
Page 28: Schematic Diagrams
DCR-HC30/HC30E 4-2. SCHEMATIC DIAGRAMS Link Link IR-051 BOARD IR-051 BOARD CD-489 BOARD CD-489 BOARD (CCD IMAGER) (CCD IMAGER) (REMOTE COMMANDER RECEIVER, MIC IN) (REMOTE COMMANDER RECEIVER, MIC IN) MS-200 BOARD MS-200 BOARD PD-213 BOARD PD-213 BOARD (LCD RGB DRIVE, BACKLIGHT)
Page 29: Schematic Diagram
DCR-HC30/HC30E 4-2. SCHEMATIC DIAGRAMS ENGLISH JAPANESE 4-2. SCHEMATIC DIAGRAMS ENGLISH JAPANESE (ENGLISH) THIS NOTE IS COMMON FOR SCHEMATIC DIAGRAMS (In addition to this, the necessary note is printed in each block) (For schematic diagrams) 1. Connection • All capacitors are in µF unless otherwise noted. pF : µ...
Page 30: Schematic Diagram
DCR-HC30/HC30E 4-2. SCHEMATIC DIAGRAMS ENGLISH JAPANESE 4-2. SCHEMATIC DIAGRAMS ENGLISH JAPANESE (JAPANESE) 1.0 m CD-489 CD-489...
Page 31 DCR-HC30/HC30E 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS CD-489 PRINTED WIRING BOARD CD-489 PRINTED WIRING BOARD 4-2. SCHEMATIC DIAGRAMS For Schematic Diagram • Refer to page 4-61 for printed wiring board. IC101 q; IC101 qs,qd CD-489 BOARD IC101 CCD IMAGER NO MARK:REC/PB MODE 23.0 Vp-p...
Page 32 DCR-HC30/HC30E 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS PD-213 PRINTED WIRING BOARD PD-213 PRINTED WIRING BOARD For Schematic Diagram • Refer to page 4-67 for printed wiring board. D604 PD-213 BOARD Q609 LCD RGB DRIVE,BACKLIGHT 2SA2029T2LQ/R LCD B+ SWITCHING XX MARK:NO MOUNT...
Page 33 DCR-HC30/HC30E 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS LB-095 BOARD LB-095 BOARD SE-141 BOARD SE-141 BOARD For Schematic Diagram • Refer to page 4-65 for printed wiring board. SIGNAL PATH LB-095 BOARD EVF_RELAY VIDEO SIGNAL XX MARK:NO MOUNT CHROMA Y/CHROMA D303...
Page 34 DCR-HC30/HC30E 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS JK-260 PRINTED WIRING BOARD JK-260 PRINTED WIRING BOARD For Schematic Diagram • Refer to page 4-63 for printed wiring board. JK-260 BOARD JACK XX MARK:NO MOUNT D703 R701 CN704 CN702 1SS357(T3SONY1) USB_DET (USB)
Page 35 DCR-HC30/HC30E 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS IR-051 BOARD IR-051 BOARD MS-200 BOARD MS-200 BOARD For Schematic Diagram • Refer to page 4-61 for printed wiring board of IR-051 board. • Refer to page 4-69 for printed wiring board of MS-200 board.
Page 36 DCR-HC30/HC30E 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS 4-3. PRINTED WIRING BOARDS 4-3. PRINTED WIRING BOARDS CONTROL KEY BLOCK(CF6300) CONTROL KEY BLOCK(SS6300) S001 (PANEL OPEN/CLOSE) FUNCTION KEY FUNCTION KEY XX MARK:NO MOUNT XX MARK:NO MOUNT RV001 DUMMY DUMMY LND001 LND001 N.C.
Page 37 Schematic diagram of the VC-351 board are not shown. Pages from 4-19 to 4-56 are not shown.
Page 38 DCR-HC30/HC30E 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS FP-228/FP-467/FP-826 FLEXIBLE BOARD FP-228/FP-467/FP-826 FLEXIBLE BOARD For Schematic Diagram • Refer to page 4-75 for flexible wiring board. (PAGE 4-39 of LEVEL 3) TO VC-351 BOARD(11/19) CN9102 M903 LOADING MOTOR LM_LOAD FP-467 LM_UNLOAD...
Page 39: Printed Wiring Boards
DCR-HC30/HC30E 4-3. PRINTED WIRING BOARDS Link Link CD-489 BOARD SE-141 BOARD CD-489 BOARD SE-141 BOARD IR-051 BOARD IR-051 BOARD PD-213 BOARD PD-213 BOARD JK-260 BOARD MS-200 BOARD JK-260 BOARD MS-200 BOARD LB-095 BOARD FP-228/FP-467/FP-826 BOARD LB-095 BOARD FP-228/FP-467/FP-826 BOARD COMMON NOTE FOR PRINTED WIRING BOARDS...
Page 40: Printed Wiring Board
DCR-HC30/HC30E 4-3. PRINTED WIRING BOARDS 4-3. PRINTED WIRING BOARDS (ENGLISH) THIS NOTE IS COMMON FOR WIRING BOARDS (In addition to this, the necessary note is printed in each block) (For printed wiring boards) • Chip parts • : Uses unleaded solder.
Page 41: Mounted Parts Location
DCR-HC30/HC30E MOUNTED PARTS LOCATION 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS 4-3. PRINTED WIRING BOARDS 4-3. PRINTED WIRING BOARDS MOUNTED PARTS LOCATION 4-3. PRINTED WIRING BOARDS • : Uses unleaded solder. • Refer to page 4-59 for common note for printed wiring board.
Page 42 DCR-HC30/HC30E MOUNTED PARTS LOCATION 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS 4-3. PRINTED WIRING BOARDS 4-3. PRINTED WIRING BOARDS MOUNTED PARTS LOCATION • : Uses unleaded solder. • Refer to page 4-59 for common note for printed wiring board. JK-260 BOARD(SIDE A)
Page 43 DCR-HC30/HC30E MOUNTED PARTS LOCATION 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS 4-3. PRINTED WIRING BOARDS 4-3. PRINTED WIRING BOARDS MOUNTED PARTS LOCATION • : Uses unleaded solder. • Refer to page 4-59 for common note for printed wiring board. LB-095 BOARD...
Page 44 DCR-HC30/HC30E MOUNTED PARTS LOCATION 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS 4-3. PRINTED WIRING BOARDS 4-3. PRINTED WIRING BOARDS MOUNTED PARTS LOCATION • : Uses unleaded solder. • Refer to page 4-59 for common note for printed wiring board. PD-213 BOARD...
Page 45 DCR-HC30/HC30E MOUNTED PARTS LOCATION 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS 4-3. PRINTED WIRING BOARDS 4-3. PRINTED WIRING BOARDS MOUNTED PARTS LOCATION • : Uses unleaded solder. • Refer to page 4-59 for common note for printed wiring board. MS-200 BOARD(SIDE A)
Page 46 DCR-HC30/HC30E Ver 1.2 2004. 07 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS 4-3. PRINTED WIRING BOARDS 4-3. PRINTED WIRING BOARDS • : Uses unleaded solder. • Refer to page 4-59 for common note for printed wiring board. Q902 TAPE TOP SENSOR...
Page 47 DCR-HC30/HC30E 4-3. PRINTED WIRING BOARDS 4-3. PRINTED WIRING BOARDS 4-4. MOUNTED PARTS LOCATION no mark : side A * mark : side B IR-051 BOARD JK-260 BOARD SE-141 BOARD PD-213 BOARD C601 CN701 B-2 C401 C601 R603 C602 CN702 B-4...
Page 48: Pages From 4-79 To 4-80 Are Not Shown
DCR-HC30/HC30E 4-3. PRINTED WIRING BOARDS 4-3. PRINTED WIRING BOARDS no mark : side A * mark : side B MS-200 BOARD BT501 * CN501 A-5 * CN502 C-3 * CN503 B-2 * D501 * R501 * S501 * VDR501 C-4...
Page 49: Repair Parts List
DCR-HC30/HC30E NOTE NOTE 5. REPAIR PARTS LIST NOTE: Characters A to Z of the electrical parts list indicate location of exploded views in which the desired part is shown. EXPLODED VIEWS EXPLODED VIEWS Link Link OVERALL CABINET (R) SECTION LCD SECTION BAT.
Page 50 DCR-HC30/HC30E 5. REPAIR PARTS LIST 5. REPAIR PARTS LIST (ENGLISH) (ENGLISH) When indicating parts by reference number, NOTE: please include the board name. • -XX, -X mean standardized parts, so they may have some differences from the original one. (JAPANESE) •...
Page 51: Overall Section
DCR-HC30/HC30E Ver 1.2 2004. 07 5. REPAIR PARTS LIST 5. REPAIR PARTS LIST 5-1. EXPLODED VIEWS 5-1-1. OVERALL SECTION ns : not supplied BAT. EVF section (See page 5-6) Cabinet (L) section (See page 5-8) Lens section (See page 5-7)
Page 52: Cabinet (R) Section
DCR-HC30/HC30E 5. REPAIR PARTS LIST 5. REPAIR PARTS LIST 5-1-2. CABINET (R) SECTION ns : not supplied LCD section (See page 5-5) Ref. No. Part No. Description Ref. No. Part No. Description 3-080-204-31 SCREW, TAPPING, P2 X-3954-068-2 CABINET R ASSY (SILVER)(EXCEPT HC30:J)
Page 53: Lcd Section
DCR-HC30/HC30E 5. REPAIR PARTS LIST 5. REPAIR PARTS LIST 5-1-3. LCD SECTION ns : not supplied LCD901 ND901 - 2 1 Ref. No. Part No. Description Ref. No. Part No. Description X-3954-192-1 CABINET (C) ASSY, P (SILVER) (HC30) 3-089-480-11 COVER (C), HINGE (ORANGE)
Page 54: Bat. Evf Section
DCR-HC30/HC30E 5. REPAIR PARTS LIST 5. REPAIR PARTS LIST 5-1-4. BAT. EVF SECTION ns : not supplied LCD902 BT901 J901 Ref. No. Part No. Description Ref. No. Part No. Description X-3954-078-1 VF SLIDE ASSY 3-089-418-01 SHEET, VF FLEXIBLE FIXED 3-057-082-21 SCREW (M1.7), P2...
Page 55: Lens Section
DCR-HC30/HC30E 5. REPAIR PARTS LIST 5. REPAIR PARTS LIST 5-1-5. LENS SECTION IC101 Be sure to read “Precautions upon replacing CCD imager” on page 4-5 when changing the CCD imager. Ref. No. Part No. Description Ref. No. Part No. Description 3-084-523-11 SCREW (M1.7 EG LOCK (BLACK))
Page 56: Cabinet (L) Section
DCR-HC30/HC30E Ver 1.2 2004. 07 5. REPAIR PARTS LIST 5. REPAIR PARTS LIST 5-1-6. CABINET (L) SECTION ns : not supplied SP901 Mechanism deck (See page 5-9 to 5-11) BT501 : BT501 (Lithium battery) MS-200 board on the mount position. (See page 4-69) CAUTION : Danger of explosion if battery is incorrectly replaced.
Page 57: Overall (Mechanism Deck-Z200)
DCR-HC30/HC30E Ver 1.2 2004. 07 5. REPAIR PARTS LIST 5. REPAIR PARTS LIST 5-1-7. OVERALL (MECHANISM DECK-Z200) ns : not supplied M901 LS chassis block assembly (See page 5-10) Mechanical chassis block assembly (See page 5-11) Ref. No. Part No.
Page 58: Ls Chassis Block Assembly
DCR-HC30/HC30E 5. REPAIR PARTS LIST 5. REPAIR PARTS LIST 5-1-8. LS CHASSIS BLOCK ASSEMBLY ns : not supplied MIC902 Q901 D901 FP-826 (Note) H901 Q902 H902 S903 Note: FP-826 is included in the LS block assy and is attached to chassis by hot-press.
Page 59: Mechanical Chassis Block Assembly
DCR-HC30/HC30E 5. REPAIR PARTS LIST 5. REPAIR PARTS LIST 5-1-9. MECHANICAL CHASSIS BLOCK ASSEMBLY ns : not supplied M902 S902 Ref. No. Part No. Description Ref. No. Part No. Description 3-079-314-01 SPRING (EJ), EXTENSION 3-079-308-01 SHAFT, WORM 3-079-327-01 ARM, EJ...
Page 60 DCR-HC30/HC30E 5. REPAIR PARTS LIST 5. REPAIR PARTS LIST • EXCEPT J MODEL Checking supplied accessories. Make sure that the following accessories are supplied with your camcorder. Lid Battery Case (3-083-973-01) Power cord (Main lead) (1) AC adaptor (1) Rechargeable battery pack (1)
Page 61 DCR-HC30/HC30E 5. REPAIR PARTS LIST 5. REPAIR PARTS LIST • J MODEL 5-13...
Page 62: Electrical Parts List
DCR-HC30/HC30E CD-489 FP-836 IR-051 JK-260 LB-095 5-2. ELECTRICAL PARTS LIST Ref. No. Part No. Description Ref. No. Part No. Description A-7112-116-A CD-489 BOARD, COMPLETE < IC > *********************** (IC101 is not included in this COMPLETE board) IC601 8-742-221-00 HYB IC SBX3055-01 <...
Page 63 DCR-HC30/HC30E Ver 1.2 2004. 07 LB-095 MS-200 PD-213 Ref. No. Part No. Description Ref. No. Part No. Description < DIODE > C623 1-127-760-11 CERAMIC CHIP 4.7uF 6.3V C624 1-125-777-11 CERAMIC CHIP 0.1uF 10.00% 10V D302 8-719-074-67 DIODE EDZ-TE61-5.6B C626 1-165-908-11 CERAMIC CHIP...
Page 64: Electrical Parts List Of The Pages From 5-17 To 5-24 Are Not Shown
DCR-HC30/HC30E PD-213 SE-141 VC-351 Ref. No. Part No. Description Ref. No. Part No. Description R617 1-218-953-11 RES-CHIP 1/16W < RESISTOR > R619 1-208-647-11 METAL CHIP 0.5% 1/16W R620 1-218-969-11 RES-CHIP 1/16W R402 1-218-989-11 RES-CHIP 1/16W R623 1-208-647-11 METAL CHIP 0.5%...
Page 65 DCR-HC30/HC30E 2004G1600-1 Sony EMCS Co. 9-876-702-31 ©2004.7 — 86 — Published by DI Technical Support Section...
Page 66 Hong Kong Model Australian Model Chinese Model DCR-HC30/HC30E E Model Tourist Model SUPPLEMENT-1 Link File this supplement-1 with the service manual. (PV04-007) • Addition of Self diagnosis function 2004G1600-1 ©2004.7 Sony EMCS Co. 9-876-702-82 Published by DI Technical Support Section...
Page 67 E : Corrected by service E.g. engineer 31 ..Reload the tape. 32 ..Turn on power again. Note: The “self-diagnosis display” data will be kept even if the lithium battery (BT501 of MS-200 board) is removed. DCR-HC30/HC30E — 2 —...
Page 68 Inspect pitch angular velocity sensor (SE401 of SE-141 board) (With pitch angular velocity sensor output peripheral circuits. stopped.) Steadyshot function does not work well. Inspect yaw angular velocity sensor (SE402 of SE-141 board) (With yaw angular velocity sensor output peripheral circuits. stopped.) DCR-HC30/HC30E — 3 —...
Page 69 DCR-HC30/HC30E — 4 —...
Page 70 DCR-HC30/HC30E — 5 —...
Page 71 ENGLISH JAPANESE ENGLISH JAPANESE [Description of main button functions on toolbar of the Adobe Acrobat Reader Ver5.0 (for Windows)] Toolbar Printing a text Reversing the screens displayed once • To reverse the previous screens (operation) one by one, click 1. Click the Print button 2.
Page 72 ENGLISH JAPANESE ENGLISH JAPANESE...
Page 73: Revision History
Reverse 987670233.pdf Revision History S.M. Rev. Ver. Date History Contents issued 2004.01 Official Release — — 2004.07 Supplement-1 • Addition of Self diagnosis function 2004.07 Correction-1 • Correction of Printed wiring board • Correction of Exploded views S.M. correction: Page 4-75, 5-3, 5-8, 5-9, 5-15...
