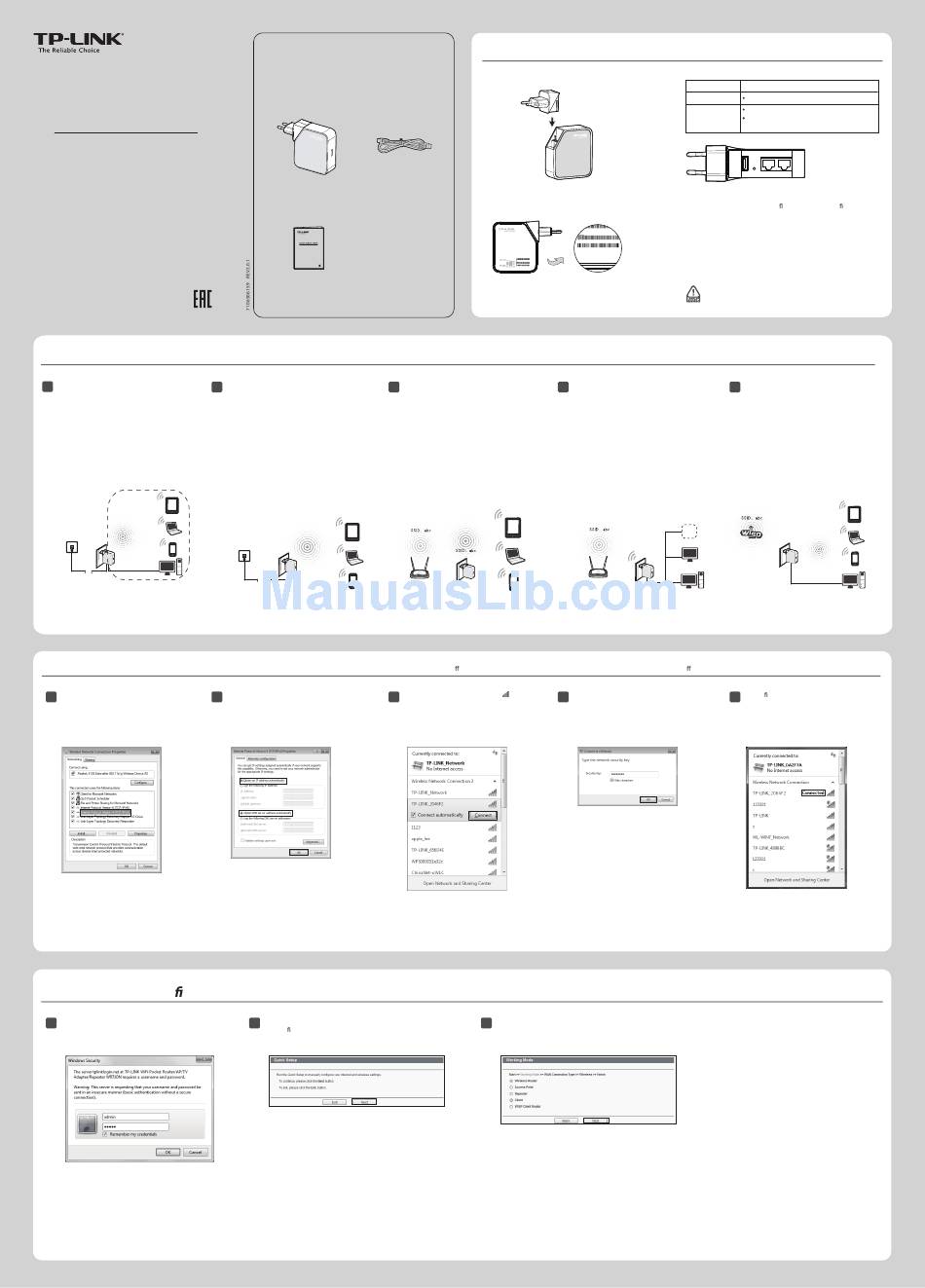

TP-Link TL-WR710N Quick Installation Manual

Quick Installation Guide

WiFi Pocket Router/AP/TV Adapter/Repeater
TL-WR710N
MODEL NO.

Hardware Connection

Wireless Router Mode (Default)
1 2
Create an instant private wireless network
and share Internet to multiple Wi-Fi
devices.This mode is suitable for hotel rooms
and home networks.
(Note: if the hotel's Internet has an
authentication process, you will need to
authenticate only once and only on one
device.)
Wired Ethernet
Connection
Protected by
NAT Firewall
Cable
Instant Wireless Connection
Go to Start > Control Panel > View
1 2
network status and tasks > Change
adapter settings. Right click Wireless
Network Connection, and select
Properties. Double click Internet Protocol
Version 4 (TCP/IPv4) in the item list.
Operation Mode Con guration
Open a Web browser and go to the page
1
http://tplinklogin.net. Enter admin for both user
name and password. Click OK.

Package Contents

Note: The provided power plug may differ from the picture due
to different regional power specifications. Here we use the
EU version as an example.
TL-WR710N Ethernet Cable
WiFi Pocket Router/AP/TV Adapter/Repeater
TL-WR710N
MODEL NO.
QIG
Access Point Mode
3
Create a wireless network from an Ethernet
connection. This mode is suitable for dorm
rooms or homes where there's already a wired
router but you need a wireless hotspot.
(Note: if the hotel's Internet has an authentica-
tion process, you will need to authenticate it
on EACH device.)
Wired Ethernet
Connection
Cable
(The examples illustrated below are from Windows 7. If you are using a di erent Windows, or a Mac Operating System, your screenshots may look di erent, but the procedure is the same.)
Set up the TCP/IP Protocol by selecting "Obtain
3
an IP address automatically" and "Obtain
DNS sever address automatically" on your PC.
Click OK.
After a successful login, click "Quick Setup" from the menu
2
to con gure your TL-WR710N. Click "Next".

Physical Description

Connect the plug directly to the TL-WR710N to finish
hardware connection.
After hardware connection, please write down the
Wireless Password and SSID on the label of your
Router for later use. Both are case-sensitive.
WiFi Pocket Router/AP/TV Adapter/Repeater
Model:TL-WR710N
S/N:XXXXXXXXXXXX
Default Access:
http://tplinklogin.net
Username: admin
Password : admin MAC:B0487A663D6C
Wireless Password/PIN:12345678
FCC ID: TE7WR710N
SSID:TP-LINK_663D6C
IC: 8853A-WR710N
WiFi Pocket Router/AP/TV Adapter/Repeater
Model:TL-WR710N Ver:2.0
S/N:XXXXXXXXXXXX
Default Access:
Username: admin http://tplinklogin.net
Password : admin MAC:B0487A663D6C
FCC ID: TE7WR710N Wireless Password/PIN:12345678
IC: 8853A-WR710N SSID:TP-LINK_663D6C
* Wireless Password/PIN: Default Password
* SSID: Default Wireless Network Name
Client Mode
Repeater Mode 4
In this mode, this device can be connected to
Repeat signal from an existing wireless
another device via Ethernet cable and act as
network. This mode is suitable to extend
an adapter to grant your wired devices
wireless coverage, reaching devices that
access to a wireless network, especially for a
were previously too far from your primary
Smart TV, Media Player, or Game console
router to maintain a stable wireless
only with an Ethernet port.
connection.
The repeated signal will display the same
network name and password as your existing
wireless network.
Click the Wireless Network icon on your Enter the Default Password. Click OK or
4
desktop. Select the Default SSID of the Next.
TL-WR710N, then click Connect.
Choose the Working Mode you need, then click "Next" and
3
refer to the corresponding mode on the back page for
further instruction.
TL-WR710N LED:
Status
Solid Green The device is working properly.
System is booting.
Blinking
The Ethernet Cable or USB Device is
connecting to the product.
USB Reset LAN/WAN LAN
USB：It is used to connect USB ash or hard disk for le sharing and
Mobile devices for charging.
Reset：It is used to reset the Router to its factory defaults.
Ver:2.0
LAN/WAN
: Must use this port to connect to your Modem while in
Router mode. For all other modes, use it as an additional LAN port.
LAN
: Connect your ethernet enabled devices for wired network
access. In client mode, use it to give wireless access to a wired-only
device. In access point mode, use it to receive network access from
your local network.
For more detailed information about Reset, please refer to
Appendix: Troubleshooting.
WISP Client Router Mode
5
Use as a client router to receive Internet
access from a Wireless Internet Service
Provider (WISP), and share that access with
local devices.
The gure below indicates you have
4
successfully connected to your network.
Indication
SSID: def
