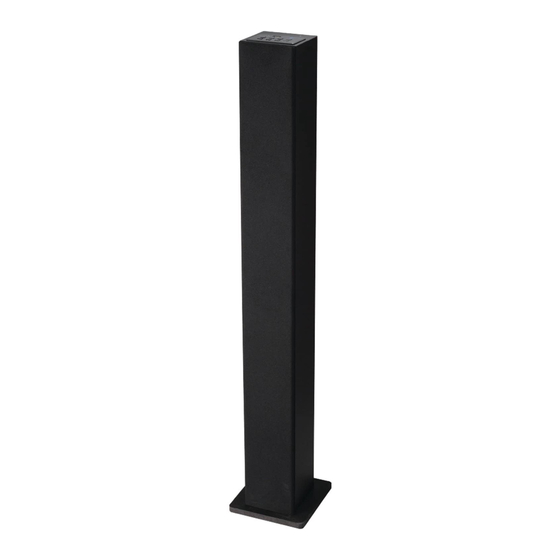

- Page 1 BLUETOOTH TOWER MODEL: SP263G INSTRUCTION MANUAL PLEASE READ CAREFULLY BEFORE OPERATING THIS EQUIPMENT Downloaded from www.Manualslib.com manuals search engine...
- Page 2 The lighting flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT The exclamation point within an equilateral triangle REMOVE COVER (OR BACK).
- Page 3 Downloaded from www.Manualslib.com manuals search engine...
-
Page 4: Installation
INSTALLATION 1. Remote Sensor 2. Speakers 3. Base 4. Screws 5. Washers Note: Assemble the wooden base to the main body by the supplied screws and washers. Downloaded from www.Manualslib.com manuals search engine... -
Page 5: Location Of Controls
LOCATION OF CONTROLS MAIN UNIT 1. AUX IN jack 8. VOL+ (Volume Up) button 2. Indicator /TUNE+(Next) button 3. ST/MO(Stereo/Mono)button /TUNE-(Previous) button POWER button (Play/Pause) button 5. SOURCE button 12. Antenna 6. USB CHARGE Port 13. DC IN Jack 7. VOL- (Volume Down) button USB CHARGE INDICATOR AUX IN... - Page 6 LOCATION OF CONTROLS REMOTE CONTROL POWER SOURCE TUNE- TUNE+ ST/MO POWER button (Mute) button (Previous)/TUNE- button (Next)/TUNE+ button 3. VOL (Volume)+/- buttons (Play/Pause) button 4. SOURCE button 8. ST/MO (Stereo/Mono) button 9. EQ(Equalizer) Downloaded from www.Manualslib.com manuals search engine...
-
Page 7: Battery Installation--- Remote Control
BATTERY INSTALLATION--- REMOTE CONTROL -First Time Use Remove and discard the insulation tab as figure on the right -Replacing Batteries For Remote Control 1. Push and slide out the battery holder as figure 1 below. 2. Replace the battery with a new CR2025 button cell as the polarity markings on the rear of the Remote Control. -
Page 8: General Operations
GENERAL OPERATIONS 1. Insert the AC/DC Adapter plug into a conveniently located AC outlet having 100-240V~50/60Hz. The Indicate (Red) will light. 2. Press the Power button on the unit or remote control to power on the unit. 3. Press the SOURCE button repeatedly to switch to desired mode.The color of Indicator turns corresponding color as below: ~ Red: Standby... - Page 9 FM RADIO Power on the unit and press the SOURCE button on remote control or the SOURCE button on control plate until the indicator light turns Green. 1. Press /TUNE- or TUNE+ button on remote control to search manually to play the searched station.
- Page 10 BT Player (For details pairing procedures, please refer to the user’s manual of your BT device.). C. When the external BT player searched the Speaker, our model number “SP263G” will appear on the display of external BT device. Select it and make pairing.
- Page 11 LISTEN TO EXTERNAL AUDIO DEVICES AUX IN USB CHARGE INDICATOR SOURCE VOL- VOL+ ST/MO POWER TUNE+ TUNE- 1. Connect one end of supplied audio connection cable to the AUX IN jack on the top of the unit as the figure above. 2.
-
Page 12: Usb Charge
USB CHARGE AUX IN USB CHARGE INDICATOR SOURCE VOL- VOL+ ST/MO POWER TUNE+ TUNE- Insert one end of the USB charging cable to the USB CHARGE port, insert the other end to the external device to charge. NOTE: The output power is 5V, 2.1A. Downloaded from www.Manualslib.com manuals search engine... -
Page 13: Troubleshooting Guide
TROUBLESHOOTING GUIDE Check the followings before requesting service SYMPTOM POSSIBLE CAUSE POSSIBLE SOULTION AC/DC adapter plug not No power Plug to the wall outlet. connected to the wall outlet Raise volume level by pressing the VOL Volume in minimum position (Volume) + button Play the music/movie in the connected The connected device is not... -
Page 14: Technical Specifications
TECHNICAL SPECIFICATIONS AC/DC Adapter Input......................AC 100-240V~50/60Hz Output....................DC 12V 1.5 A Speakers ..........................5W x 2 FM 87.5 -108.0 MHz Radio Coverage....................Bluetooth Working Distance...................Up to 30 feet (Measured in open area. Wall and structures may affect the effective range.) Remote Working Distance....................Up to 15 feet Accessories 1 x User Manual 1 x Remote Control... - Page 15 Downloaded from www.Manualslib.com manuals search engine...
