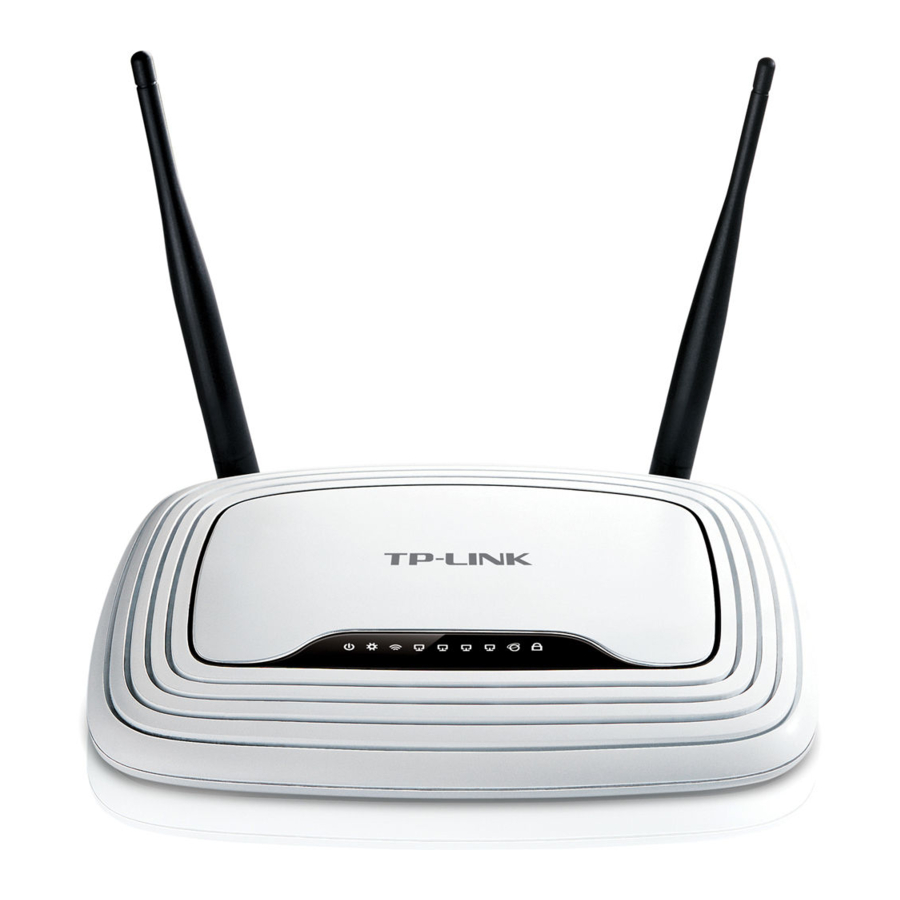

TP-Link TL-WR841N Quick Installation Manual

Quick Installation Guide
300Mbps Wireless N Router
TL - WR841N / TL - WR841ND
7106505289 REV6.0.1

Connecting the Hardware

If your Internet connection is through an Ethernet cable from the wall
instead of through a DSL / Cable / Satellite modem, connect the Ethernet
cable directly to the router's WAN port.
Internet
Modem
Power adapter
Power adapter
4
Turn on the router.
1
Turn off the modem,
and remove the backup
battery if it has one.
2
Connect the modem to the
Internet port on your router with
an Ethernet cable.
3
Turn on the modem, and
then wait 2 minutes for
it to restart.
Connect to
the computer
5
Verify that the hardware
connection is correct by
checking these LEDs.
Power WLAN WAN
On Flashing On/Flashing
Note: If the WLAN LED is not ashing,
please press the WIFI ON/OFF button for
4 seconds.
