Page 1: Table Of Contents
Description of the appliance, 4 Overall view Control panel Start-up and use, 5 Starting the oven The electronic cooking programmer, 6 Cooking modes, 7-9 SE861X/1 Cooking modes Practical cooking advice SH83CK Cooking advice table SH83CZ Precautions and tips, 10 SH83K...
Page 2: Installation
Installation ! Before placing your new appliance into operation Ventilation please read these operating instructions carefully. They contain important information for safe use, for To ensure good ventilation, the back panel of the installation and for care of the appliance. cabinet must be removed.
Page 3: Electrical Connection
Electrical Connection Electrical connection Power cable supply connection to the electrical mains: The electrical connection to the mains must be made on the appliance. The power voltage and frequency We recommend you use a power supply cable which are as indicated on the rating plate. is long enough to allow you to take the oven out of its recess in the event of maintenance operations (only use HAR - H 05 - RRF quality cables fitted with a plug...
Page 4: Description Of The Appliance
Description of the appliance Overall view Control panel Control panel Control panel Control panel Control panel GUIDES GUIDES GUIDES GUIDES GUIDES for the sliding racks position 5 position 5 position 5 GRILL GRILL GRILL position 5 position 5 GRILL GRILL position 4 position 4 position 4...
Page 5: Start-Up And Use
Start-up and use ! The first time you use your appliance, heat the Cooling ventilation empty oven with its door closed at its maximum temperature for at least half an hour. Ensure that the In order to cool down the external temperature of the room is well ventilated before switching the oven off oven, some models are fitted with a cooling fan that and opening the oven door.
Page 6: The Electronic Cooking Programmer
The electronic cooking programmer Programming cooking ! A cooking mode must be selected before DISPLAY programming can take place. •• •• END OF CLOCK icon Programming the cooking duration COOKING icon DURATION TIMER icon 1. Press the button several times until the icon icon and the three digits on the DISPLAY begin to flash.
Page 7: Cooking Modes
Cooking modes Cooking modes PIZZA PIZZA PIZZA mode PIZZA PIZZA ! A temperature value can be set for all cooking The heating elements (bottom and circular) and the modes between 60°C and Max, except for fan come on. This combination heats the oven rapidly by producing a considerable amount of heat, •...
Page 8: Practical Cooking Advice
Practical cooking advice ! Do not place racks in position 1 and 5 during fan- assisted cooking. Excessive direct heat can burn temperature sensitive foods. ! In the BARBECUE and GRATIN cooking modes, particularly when using the rotisserie, place the dripping pan in position 1 to collect cooking residues (fat and/or grease).
Page 9: Cooking Advice Table
Cooking advice table Cooking Foods Weight Rack Position Pre-heating Recommended Cooking modes (in kg) time temperature time (minutes) (minutes) Leavening process of dough made with Leavening yeas t or baking powder (brioches, bread, sugar pie, crois sants, etc.) Duck 65-75 Roast veal or beef 70-75 Traditional...
Page 10: Precautions And Tips
Precautions and tips ! The appliance was designed and manufactured in • Do not rest heavy objects on the open oven door. compliance with international safety standards. The • The appliance should not be operated by people following warnings are provided for safety reasons (including children) with reduced physical, and must be read carefully.
Page 11: Maintenance And Care
Maintenance and care Switching the appliance off Replacing the light bulb Disconnect your appliance from the electricity supply To replace the oven light bulb: before carrying out any work on it. 1. Remove the glass cover of the lamp-holder. 2. Remove the Cleaning the appliance light bulb and replace it with a...
Page 12: After Sales Service
After Sales Service No one is better placed to care for your Hotpoint appliance during the course of its working life than us – the manufacturer. Essential Contact Information Hotpoint Service We are the largest service team in the country offering you access to 400 skilled telephone advisors and 1000 fully qualified engineers on call to ensure you receive fast, reliable, local service.
Page 13: Guarantee
5 Year Parts Guarantee Hotpoint also offers you a free 5 year parts guarantee. This additional guarantee is conditional on you registering your appliance with us and the parts being fitted by one of our authorised engineers. There will be a charge for our engineer’s time.
Page 14 Notes...
Page 15 Notes...
Page 16 Notes 01/2010 - 195068436.01 XEROX FABRIANO...

This manual is also suitable for:

Sh83ck Sh83cx Sh83k Sh83x

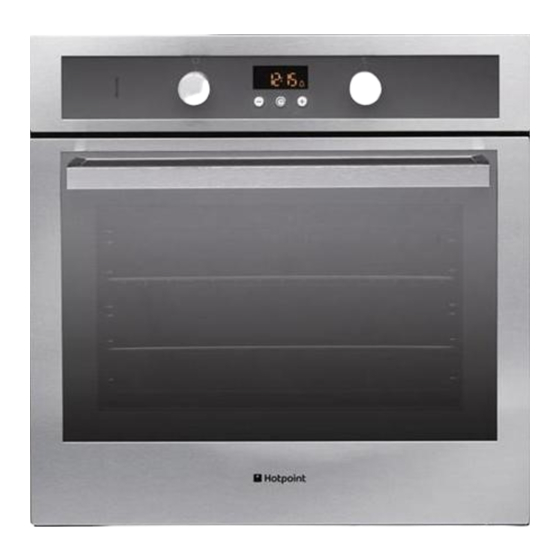

Hotpoint SE861X/1 Operating Instructions Manual
