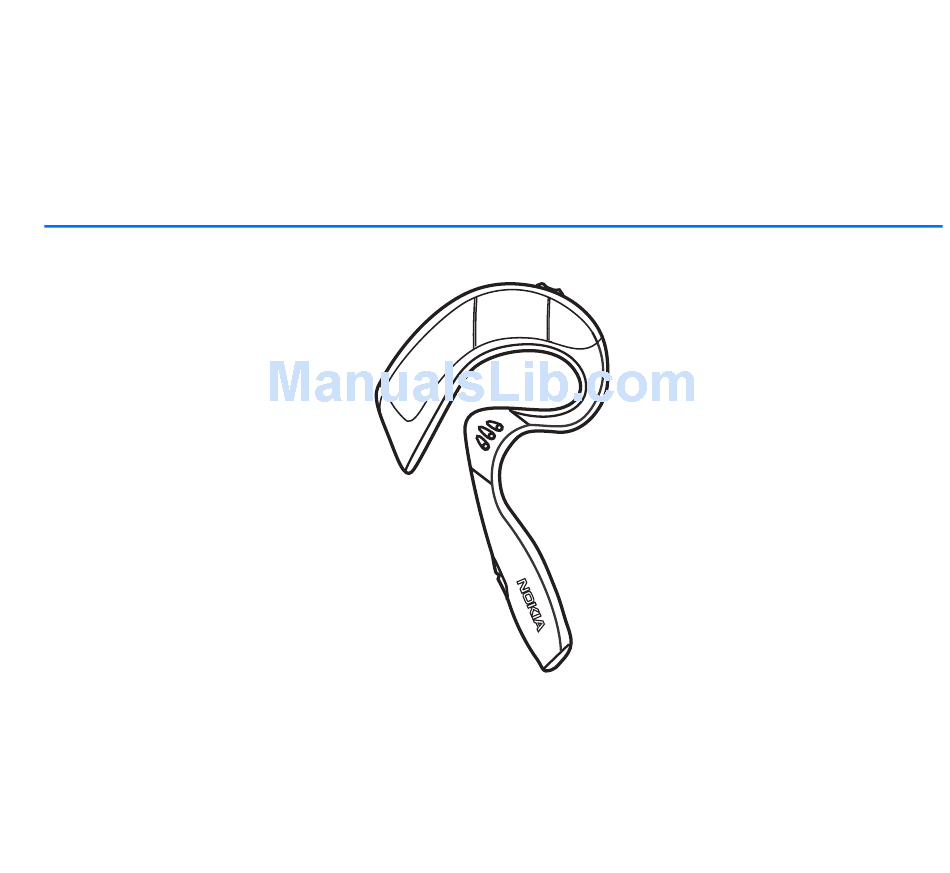

User Guide for the Wireless Boom Headset (HS-4W) 9231046 Issue 1...
Page 2
Nokia operates a policy of continuous development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice. Under no circumstances shall Nokia be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused.
Contents Introduction... 4 Bluetooth wireless technology ... 4 Bluetooth passcode... 5 1. Getting started ... 6 Overview ... 6 Chargers and batteries... 8 Charging the battery ... 9 When the battery charge falls low... 10 Pairing the headset with a compatible phone ... 10 Disconnecting the headset from the phone ...
Keep the headset out of reach of small children. ■ Bluetooth wireless technology The Wireless Boom Headset HS-4W is specially designed for compatible Nokia phones that support Bluetooth technology. The headset can, however, be used with any compatible Bluetooth devices that support the compatible Handsfree or Headset profiles.
I n t r o d u c t i o n metres of each other. Connections can be subject to interference from obstructions, such as walls, or other electronic devices. The Wireless Boom Headset HS-4W is compliant with and adopts the Bluetooth Specification 1.1.
G e t t i n g s t a r t e d 1. Getting started Note: The use of wireless devices may be restricted in some situations. Observe any restrictions and obey all signs and instructions concerning use of wireless devices. ■...
Page 7
G e t t i n g s t a r t e d The headset contains the following parts, as shown in Figure 1. 1 - Power key: Switches the headset on and off, or mutes the ongoing call. 2 - Speaker: Relays the caller’s voice.
G e t t i n g s t a r t e d ■ Chargers and batteries Check the model number of any charger before using it with this device. The Wireless Boom Headset HS-4W is intended for use with the following chargers: AC-1, ACP-7, ACP-8, ACP-9, ACP-12, and LCH-12.
Warning! Use only batteries and chargers approved by Nokia for use with this particular enhancement. The use of any other types will invalidate any approval or warranty applying to the enhancement, and may be dangerous. For availability of approved batteries and chargers, please check with your local dealer.
4. Set the phone to search for Bluetooth devices as instructed in the user guide of the phone. 5. Select the Nokia HS-4W from the list. 6. Enter the generic passcode 0000 to associate ("pair") and connect the headset to the phone.
Once you have entered the passcode, the phone becomes the default phone for the headset, if the headset has not been previously paired with another phone. See also Using the headset with several paired phones on page 17. The headset beeps once and an active Bluetooth connection is displayed by a blinking yellow indicator light.
Note that switching on the headset creates the connection automatically only if you have set the phone to accept Bluetooth connection requests without your permission. In Nokia phones this can be done by changing your paired devices settings in the Bluetooth menu.
Page 13
• The pairing information list of the headset may be full. The headset can store the information of up to 8 phones at a time. If the list becomes full, reset the headset to the original settings. See Resetting the headset on page 18. •...
U s i n g t h e h e a d s e t 2. Using the headset Note: The use of wireless devices may be restricted in some situations. Observe any restrictions and obey all signs and instructions concerning use of wireless devices.
U s i n g t h e h e a d s e t Placing the headset over the ear Slide the headset onto your ear as shown in Figure 3. ■ Call functions When the headset is connected to the phone, make a call by using the phone in the normal way.
U s i n g t h e h e a d s e t Answering and ending a call When you receive a call, you hear a ringing tone through the headset. Press the answer/end key to answer the call or to end the currently active call. You can also answer or end the call using the phone.
U s i n g t h e h e a d s e t Voice dialling When no call is in progress, press and hold the answer/end key until you hear a tone that indicates that you can say the desired name ("voice tag"). Say the voice tag.
U s i n g t h e h e a d s e t The phone that was first paired with the headset is called the "default phone". The phone that was last used with the headset is called the "last used phone". If the headset is switched on within 10 metres of several paired phones, the headset will try to connect to the "default phone"...
B a t t e r y i n f o r m a t i o n 3. Battery information Your headset is powered by a rechargeable battery. Take good care of the battery and follow the guidelines below. ■...
Page 20
B a t t e r y i n f o r m a t i o n Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic object (coin, clip or pen) causes direct connection of the + and - terminals of the battery (metal strips on the battery), for example, when you carry a spare battery in your pocket or purse.
Care and maintenance Your headset is a product of superior design and craftsmanship and should be treated with care. The suggestions below will help you to fulfil any warranty obligations and to enjoy this product for many years. • Keep all accessories out of the reach of small children. •...
Page 22
C a r e a n d m a i n t e n a n c e • Do not paint the headset. Paint can clog the moving parts and prevent proper operation. If the headset is not working properly, take it to your nearest qualified service facility. The personnel there will assist you and, if necessary, arrange for service.
