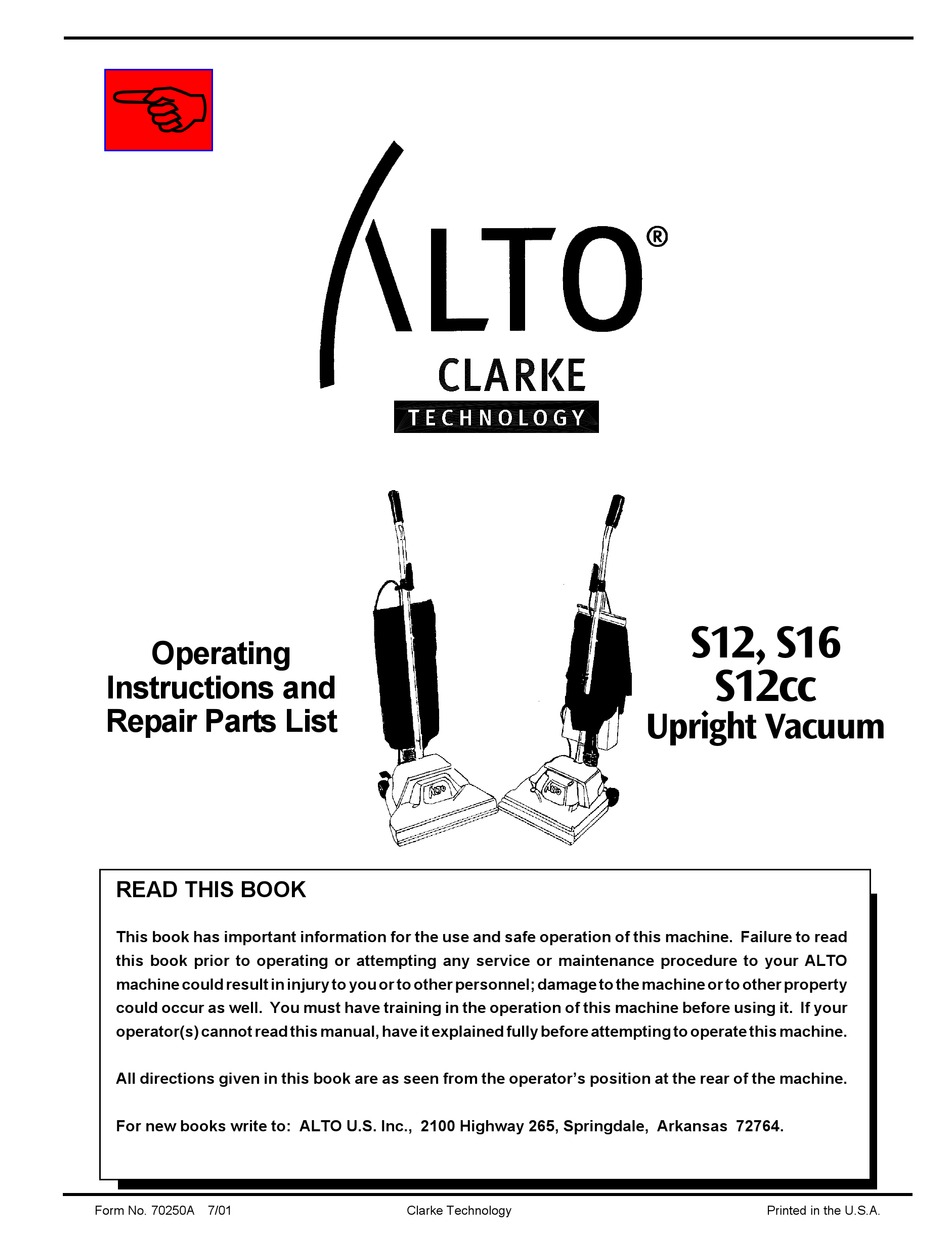

S12, S16
Operating
S12cc
Instructions and
Repair Parts List
Upright Vacuum
READ THIS BOOK
This book has important information for the use and safe operation of this machine. Failure to read
this book prior to operating or attempting any service or maintenance procedure to your ALTO
machine could result in injury to you or to other personnel; damage to the machine or to other property
could occur as well. You must have training in the operation of this machine before using it. If your
operator(s) cannot read this manual, have it explained fully before attempting to operate this machine.
All directions given in this book are as seen from the operator's position at the rear of the machine.
For new books write to: ALTO U.S. Inc., 2100 Highway 265, Springdale, Arkansas 72764.
Form No. 70250A 7/01
Clarke Technology
Printed in the U.S.A.
Advertisement
Table of Contents
Related Manuals for Alto S12
Summary of Contents for Alto S12
- Page 1 S12, S16 Operating S12cc Instructions and Repair Parts List Upright Vacuum READ THIS BOOK This book has important information for the use and safe operation of this machine. Failure to read this book prior to operating or attempting any service or maintenance procedure to your ALTO machine could result in injury to you or to other personnel;...
-
Page 2: Table Of Contents
Operator Safety Instructions ... 3 Grounding Instructions ... 5 Consignes de sécurité de l'utilisateur ... 6 Instructions visant la mise a la terra ... 8 How to Prepare the Machine For Operation ... 9 How to Operate the Machine ... 9 Maintenance ... -
Page 3: Operator Safety Instructions
5. Use only as described in this manual. Use only manufacturer's recommended attachments. 6. Do not use with damaged cord or plug. If vacuum cleaner is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center. -
Page 4: Save These Instructions
WARNING: To reduce the risk of fire, electric shock, or injury: 16. Belt pulleys can become hot during normal use. To prevent burns, avoid touching the belt pulley when servicing the drive belt. 17. Do not use to pick up flammable or combustible liquids such as gasoline, or use in areas where they may be present. -
Page 5: Grounding Instructions
GROUNDING INSTRUCTIONS Preparation: The following are instructions for connection to the power supply and the electrical ground. This machine must be connected to the electrical ground to protect the operator from electrical shock. The machine has an approved power cord with three conductors and a plug with three terminals. -
Page 6: Consignes De Sécurité De L'utilisateur
CONSIGNES DE SÉCURITÈ DE L'UTILISATEUR Pour utiliser cet appareil en toute sécurité, il faut lire et coprendre tous les consignes de danger, d'avertissement et d'attention. Soyez attentif aux symboles que voici. DANGER: Ne pas respecter les consignes d'un avis de DANGER, peut occasionner la mort ou des lesions corporelles graves pour l'utilisateur et/ou d'autres pesonnes. - Page 7 AVERTISSEMENT: 16. Ne remassez pas de objets qui brûient ou fument comme les cigarettes, les allumettes ou les cendres chaudes. 17. Les poulies de la courroie peuvent devenir chaudes pendant l'utilisation normale. Pour prévenir des brûlures, évitez de toucher la poulie lors de l'entretien de la courroie. CONSERVEZ CES INSTRUCTIONS CLARKE TECHNOLOGY Symphony Upright Vacuum Operator's Manual Pour réduire le risque de feu, de choc électrique, ou de blessure:...
-
Page 8: Instructions Visant La Mise A La Terra
INSTRUCTIONS VISANT LA MISE A LA TERRE PREPARATION: Consignes pour brancher l'appareil a la source d'energie et pour la mise à la terre. Cet appareil doit être mise à la terre afin d'eviter le risque de choc électrique. Cet appareil est pourvu d'un cordon muni de trois conducteurs et d'une fiche munie de trois bornes. -
Page 9: How To Prepare The Machine For Operation
HOW TO PREPARE THE MACHINE FOR OPERATION Assemble the Handle Attach upper (A) and lower (B) handle to handle socket (C) by aligning holes and securing with 2 part screws (D). See figure 1. Install the Bag Assembly Position the bag coupling into the left bag support (A) and turn the bag knob (B) counterclockwise to secure bag to base. -
Page 10: Maintenance
MAINTENANCE This section describes the procedures that must be done by the operator. WARNING: To prevent injury, always turn off the switch and remove the electrical plug from the electrical outlet before changing the brush, belt, or filter bag and before leaving the machine. -
Page 11: What To Do About The Wear Of The Brush
MAINTENANCE (CONT.) 9. Place the rubber end cap covers over both end caps (flat side against end cap). Align holes and secure. Then, slant the brush roll forward so the end caps are in line with the slots in the cleaner base. -
Page 12: Steel Core Brush
MAINTENANCE (CONT.) Steel Core Brush WARNING: Turn off the switch and disconnect unit from electrical supply before replacing brush strips. 1. New brush strips inserts are supplied in sets. To replace, first disconnect the machine from the electrical outlet. 2. Remove the brush roll, see the section "How to Replace the Belt."... -
Page 13: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE PROBLEM Motor does not run. 1) Not firmly plugged in. 2) Bad On-Off switch. 3) Line open. 4) Motor open. 5) Fan locked by material. Motor runs but cleaner 1) Belt broken. does not pick up. 2) Blocked air system. 3) Fan broken. -
Page 14: Collector Cup Assembly Drawing 7/01
CLARKE TECHNOLOGY Symphony Upright Vacuum Collector Cup Assembly Drawing 7/01 Page -14- CLARKE TECHNOLOGY Symphony Upright Vacuum Operator's Manual... -
Page 15: Collector Cup Assembly Parts List 7/01
Ref. Part No. Description NOTE: u indicates a change has been made since the last publication of this manual. CLARKE TECHNOLOGY Symphony Upright Vacuum Operator's Manual CLARKE TECHNOLOGY Symphony Upright Vacuum Collector Cup Assembly Parts List 7/01 80065A Screw (M4 *10) 56489A Screw (M4 *15) E-clip... -
Page 16: Base Assembly Drawing 1/01
CLARKE TECHNOLOGY Symphony Upright Vacuum Base Assembly Drawing 1/01 Page -16- CLARKE TECHNOLOGY Symphony Upright Vacuum Operator's Manual... -
Page 17: Base Assembly Part List
Ref. Part No. Description 51229A Hood and Graphics 80065A Screw (M4 *10) 51949A Cable Clip 80066A Screw (M4* 18.5) Washer (4.2 *12*1) 51348A Motor Assembly 51230A Motor Exhaust (LH) 30161A Exhaust Foam 40178A Power Switch 51245A Switch Clip Screw (M3 *12) 30157A Strain Relief Bushing 30135A... -
Page 18: Handle And Filter Bag Assembly Drawing 7/01
CLARKE TECHNOLOGY Symphony Upright Vacuum\ Handle and Filter Bag Assembly Drawing 7/01 Page -18- CLARKE TECHNOLOGY Symphony Upright Vacuum Operator's Manual... -
Page 19: Handle And Filter Bag Assembly Parts List 7/01
Handle and Filter Bag Assembly Parts List 7/01 Ref. 100 660638u Bag, Paper Filter 3 pk 101 52360Au Bag, Cloth, Zipper 102 52361Au Cable, Tie, Reuseable 103 30147Au Exhaust Hose 104 619221u Cable Tie 105 30150Au Hose, Inlet NOTE: u indicates a change has been made since the last publication of this manual. - Page 20 NOTES Page -20- CLARKE TECHNOLOGY Symphony Upright Vacuum Operator's Manual...
