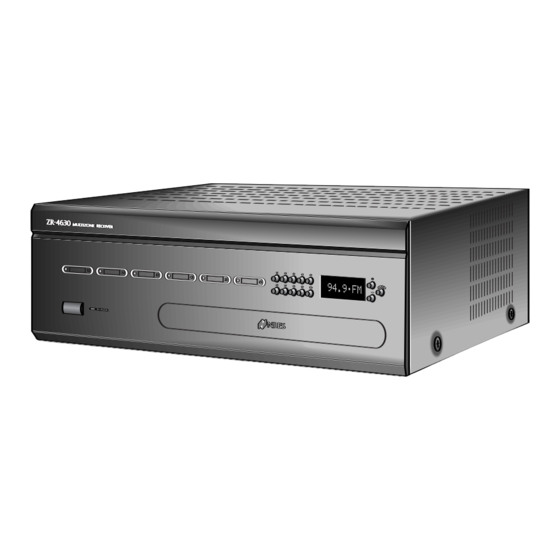

- Page 1 I N S T A L L A T I O N & O P E R A T I O N G U I D E ZR-4630 ZR-4630 MultiZone Receiver Four-Source, Six-Zone, 30W Per Channel AM/FM Receiver ™ L E N D I N G E C H N O L O G Y A N D R C H I T E C T U R E...
-
Page 2: Table Of Contents
Congratulations! Thank you for purchasing the Niles ZR-4630 MultiZone Receiver, one of the most flexible and convenient audio components ever offered. The ZR-4630, like all Niles products, is built to the highest standards of quality and reliability. With proper installation and operation, you'll enjoy years of trouble-free use. Niles manufactures the industry’s most complete line of custom installation components and accessories for audio/video systems. - Page 3 TABLE OF CONTENTS SOURCE POWER SYNCHRONIZATION ............28 CHOOSING A SYNCHRONIZATION METHOD .
- Page 4 TABLE OF CONTENTS OPERATING A SYSTEM WITH MULTIPLE ZR-4630’s ..........41 OPERATION A SYSTEM INTEGRATED WITH A HOME THEATER .
- Page 5 TABLE OF CONTENTS PROGRAMMING OVERVIEW ..............51 Installer Programming Panel .
-
Page 6: Introduction
INTRODUCTION Niles Audio has recognized the need for a simple to use, cost-effective multi-zone system that can provide years of listening pleasure to music-lovers. Our engineering and product development departments have joined forces to produce an innovative multi-zone receiver that incorporates six separate zones of amplifier power, a built-in AM/FM tuner, and connections for three additional audio-source components. -
Page 7: Features And Benefits
FEATURES AND BENEFITS Multi-zone/Multi-source The ZR-4630 MultiZone Receiver incorporates matrix preamplifier technology to provide as many as three source components and the built-in tuner to six listening zones simultaneously. Finally, Dad can relax to the sound of his favorite music in the den while the kids are listening to their favorite music by the pool. 12-Channel 30W Amplifier for Six Zones of Stereo Sound The ZR-4630 MultiZone Receiver is an integrated solution for multi-zone applications. -
Page 8: R-4 Remote
FEATURES AND BENEFITS The R-4 Remote - The R-4 Remote provides system control via an ergonomic hand-held IR remote control. Zones that have been installed with Niles IR Sensors can take advantage of the R-4 Remote, providing system control from anywhere in the room. System-Wide Operation The ZR-4630 MultiZone Receiver incorporates system-wide control to activate all zones to a particular source component. - Page 9 PARTS GUIDE (ZR-4630) LED Zone ON/OFF Indicator Zone Label Slots Tuner Controls Main Power Switch Removable Programming Cover Tuner Display Sensor for Capturing Zone All On/Page IR Commands Enable Switches Programming Controls DB-9 Computer and Indicators Interface Keypad Inputs Flasher Outputs Audio Inputs Sync...
- Page 10 PARTS GUIDE (ZR-4630) LED Zone ON/OFF Indicators Provides individual ON/OFF indication for each zone. Zone Label Slots Coined slot for placing included zone labels for easy identification. Tuner Controls Radio station up/down, radio station preset, and AM/FM band shift buttons for tuner control. Tuner Display Displays the currently selected radio station and reception mode (stereo vs.
-
Page 11: Parts Guide
PARTS GUIDE (R-4 REMOTE Zone Volume Buttons Zone Mute Button Removable Power Cord An IEC removable power cord provides for easy handling during installation. Source Buttons A quick tap of any of these buttons causes the zone to turn on and a source component to be selected. Pressing and holding these buttons for longer than three seconds causes all enabled zones to turn on. -
Page 12: Solo
PARTS GUIDE ( ™ SOLO MASTER Master Keys Function Keys Zone Off Key Mute Key Zone Volume Key IntelliPad Ci Master Keypad Module Master Keys A quick tap of any of these keys causes the zone to turn on and a source component to be selected. Pressing and holding these keys for longer than three seconds causes all enabled zones to turn on. -
Page 13: System Configurations
SYSTEM CONFIGURATIONS CONFIGURATION 1 - SIX ZONES Figure 4 This is the simplest of the ZR-4630 configurations (see Figure 4). It depicts one Niles ZR-4630 MultiZone Receiver installed to provide sound to six listening zones. Each zone consists of one room with one pair of speakers. One Solo ™... - Page 14 SYSTEM CONFIGURATIONS Keypads and IR Sensors Keypads and IR sensors enable the user to control the Niles ZR-4630 MultiZone Receiver and its connected source components. Source component IR commands are programmed into the Niles ZR-4630 MultiZone Receiver. These commands are then triggered when the user presses a keypad button or issues a Niles IR command to an IR sensor. Each zone on the ZR-4630 has a corresponding RJ-45 keypad connector that is used to connect one Solo Keypad Module.
-
Page 15: Configuration 2 - Adding Zones Using Multiple Zr-4630'S
SYSTEM CONFIGURATIONS CONFIGURATION 2 – ADDING ZONES USING MULTIPLE ZR-4630’S More than one ZR-4630 can be used if the system requires more than six zones. A maximum of three ZR-4630’s, providing up to 18 zones, can be combined to create a larger multi-zone/multi-source system. One ZR-4630 is designated as the Master and the others as Slaves (see Installation Settings on page 58 for more details). -
Page 16: Configuration 3 - Distributing Source-Component Audio Signals
SYSTEM CONFIGURATIONS CONFIGURATION 3 – DISTRIBUTING SOURCE-COMPONENT AUDIO SIGNALS When sharing source components with three ZR-4630’s (see Figure 6) or two ZR-4630’s and a Home Theater system (see Figure 7), a Niles AVDA-3 Audio/Video Distribution Amplifier is required for each source. Figure 6 Designated as the Master... - Page 17 SYSTEM CONFIGURATIONS CONFIGURATION 3 – DISTRIBUTING SOURCE-COMPONENT AUDIO SIGNALS If you are installing three ZR-4630’s with an integrated Home Theater Zone (refer to Figure 8), the cascade output on each AVDA-3 may be connected to the third ZR-4630. Important Note: An AVDA-3 is required whenever you are sharing source components with a Home Theater receiver that shorts its audio inputs.
-
Page 18: Configuration 4 - Integrating An Ir-Controlled Home Theater
SYSTEM CONFIGURATIONS CONFIGURATION 4 – INTEGRATING AN IR-CONTROLLED HOME THEATER An IR-controlled Home Theater surround-sound receiver can be integrated to share source components in a system with the ZR-4630. Niles MF1 MicroFlasher MSU250 Distributing Audio Signals Audio signals for the shared source components are connected to both the ZR-4630 and the Home Theater receiver using RCA Y-adapters (Figure 8). -
Page 19: Configuration 5 - Integrating A Home Theater Using An Intellicontrol
SYSTEM CONFIGURATIONS CONFIGURATION 5 – INTEGRATING A HOME THEATER USING AN INTELLICONTROL A Home Theater system controlled by a Niles IntelliControl can be integrated to share source components in a system with the ZR-4630. Figure 9 Audio Signals Audio signals for the shared source components are connected to both the ZR-4630 and the Home Theater receiver using RCA Y-adapters (Figure 9). -
Page 20: Configuration 6 - Multiple Solo Master Keypad Modules In A Zone
SYSTEM CONFIGURATIONS CONFIGURATION 6 – MULTIPLE SOLO ™ MASTER KEYPAD MODULES IN A ZONE The single zone of a Niles ZR-4630 MultiZone Receiver can be expanded to contain multiple Solo Master ™ Keypad Modules providing control from many locations within the zone. A Niles IntelliPad Ci Expander ®... -
Page 21: Configuration 7 - Multiple Listening Areas In A Zone
SYSTEM CONFIGURATIONS CONFIGURATION 7 – MULTIPLE LISTENING AREAS IN A ZONE A single zone of the ZR-4630 can be set up to contain more than one listening area (i.e., an adjacent living room and dining room). This configuration is chosen when the speakers in the zone are not required to be played at separate volume levels or to be on/off separately. -
Page 22: Configuration 8 - External Amplifier In A Zone For More Power
SYSTEM CONFIGURATIONS CONFIGURATION 8 – EXTERNAL AMPLIFIER IN A ZONE FOR MORE POWER Each zone of the ZR-4630 provides RCA preamplifier output connections for the connection of external ampli- fiers. External amplifiers can be used to provide more power in a zone. RCA Audio Cables Four-Pair Twisted Cable Niles SI-245... -
Page 23: Configuration 9 - External Amplifier In A Zone For Multiple Listening Areas
SYSTEM CONFIGURATIONS CONFIGURATION 9 – EXTERNAL AMPLIFIER IN A ZONE FOR MULTIPLE LISTENING AREAS A zone of the ZR-4630 can be set up to contain more than one listening area by adding an external amplifier (i.e., an adjacent living room and dining room area). This configuration is chosen when the speakers included in the zone are not required to be played at separate volume levels or to be ON/OFF separately. -
Page 24: Configuration 10 - External Amplifier In A Zone For Multiple Rooms
SYSTEM CONFIGURATIONS CONFIGURATION 10 – EXTERNAL AMPLIFIER IN A ZONE FOR MULTIPLE ROOMS The preamplifier output connectors on the ZR-4630 for zones 4, 5 and 6 have a fixed/variable setting. Using the fixed setting with an external amplifier enables a zone to be divided up into individual rooms using convention- al Niles Impedance Matching Volume Controls. -
Page 25: Configuration 11 - System Paging With An External Telephone System
SYSTEM CONFIGURATIONS CONFIGURATION 11 – SYSTEM PAGING AND EXTERNAL TELEPHONE SYSTEM A Paging Input connection on the rear panel of the ZR-4630 provides a connection for the paging output signal of pop- ular telephone systems for voice paging through the speakers in the listening zones (see Figure 15). Paging volume level can be adjusted by the ZR-4630 (see Installation Settings on page 59 for more information). -
Page 26: Configuration 12 - Ir Repeating For Control Of Local Components
SYSTEM CONFIGURATIONS CONFIGURATION 12 – IR REPEATING FOR CONTROL OF LOCAL COMPONENTS An IR Repeating System can be integrated into a room connected to the Niles ZR-4630 (see Figure 17). This enables a single IR Sensor (installed in that room) to control local components with a hand-held IR remote control. In Figure 17, a Niles IR Sensor is connected to a Niles MSU250 for control of local components and to a Niles ZR-4630 for control of distributed components. -
Page 27: Component Compatibility
COMPONENT COMPATIBILITY Infrared Command Compatibility IR control testing was conducted on many equipment brands to determine their compatibility with the ZR-4630. Typical A/V source components (i.e., CD, DVD, DSS, Cable Boxes, etc.) from each brand were chosen for the test. All brands listed below passed the test. Adcom APEX Kenwood... -
Page 28: Source Power Synchronization
SOURCE POWER SYNCHRONIZATION WHAT IS SOURCE-POWER SYNCHRONIZATION? The ZR-4630 has been designed to keep track of the ON/OFF condition of the three source components connected to the system. This enables source components that utilize the same IR command for ON and OFF to be automated. For this feature to function as designed, you need “synchronization (sync)”... -
Page 29: Choosing A Synchronization Method
SOURCE POWER SYNCHRONIZATION CHOOSING A SYNCHRONIZATION METHOD Once you establish that all source components in the system have compatible IR commands, the next step is to choose the appropriate Sync Method for each component. There are two ways to detect when a component is ON or OFF: Video or Voltage Sync. DIGITAL AUDIO VIDEO PHONE... -
Page 30: Voltage Sync
SOURCE POWER SYNCHRONIZATION Voltage Sync Voltage Sync is also a reliable method of synchronization if chosen and implemented correctly. The Sync Inputs can detect the control out voltage from a Niles Signal Sensing product interfaced to the source component. Obtaining Voltage Sync Current Sensing Current Sensing synchronizes a component by detecting the changes in the AC power draw that occurs with a component when it turns ON and OFF. -
Page 31: Light Sensing
SOURCE POWER SYNCHRONIZATION Light Sensing Using a light sensor (LS-1) to synchronize your components is usually your last choice, simply because the other choices are more reliable. The Niles LS-1 Light Sensor can synchronize a component by sensing changes in light. The 12V output of the LS-1 is then connected to the ZR-4630’s Sync Input dedicated for that component, a mini- plug to RCA adapter is required for this connection (see Connections for more information). -
Page 32: Operational Overview
OPERATIONAL OVERVIEW MASTER KEYS/SOURCE BUTTONS The Master Keys available on the Solo Remote (Figure 21) provide “one-touch activation” of the ZR-4630 and source components. The Master Keys on the Solo Master Keypad Module are equipped with back lighting LEDs for indicating Zone ™... -
Page 33: Master Key/Source Button Events
OPERATIONAL OVERVIEW Master Key/Source Button Events When you press a Master Key on a Solo Remote, as many as four events occur. The first event is factory programmed and activates the zone which you are located. The second event is facto- ry programmed and selects the proper source input corresponding to the Master Key or Source Button pressed (1 = Tuner, 2 = Input 2, 3 = Input 3, 4 = Input 4). -
Page 34: Master Key/Source Button Operation
OPERATIONAL OVERVIEW MASTER KEY/SOURCE BUTTON OPERATION The Master Key/Source Buttons have three methods for operating the system. Single Zone Operation The first method, a quick tap of a Master Key/Source Button in a zone (holding the Key/Button for less than three seconds), causes only that zone to turn ON. -
Page 35: Off Key Events
OPERATIONAL OVERVIEW OFF Key Events When you press the OFF Key/Button, as many as two events occur. The first event is factory programmed and is responsible for turning the zone or all zones OFF every time the OFF Key/Button is pressed. The second event is responsible for turning OFF the source components and only occurs if the zone turning OFF was the last zone ON in the system (including the Home Theater Zone sharing source components). -
Page 36: Volume Keys/Volume Buttons
OPERATIONAL OVERVIEW VOLUME KEYS/VOLUME BUTTONS The Volume Keys on the Solo Master Keypad Module and the Volume Buttons on the hand-held R-4 Remote ™ provide control of volume for individual zones. Volume Buttons on the hand-held R-4 Remote Volume Keys/Volume Buttons Operation Pressing the Volume + or the Volume - Keys/Buttons raises and lowers the speaker output and the preamplifier output for the zone in which you are located. -
Page 37: Mute Key/Mute Button
OPERATIONAL OVERVIEW MUTE KEY/MUTE BUTTON The Mute Key/Button provides a method of turning the sound ON/OFF for a brief moment in an individual zone without turning the zone OFF (this also prevents the source component from being turned OFF). Mute Button on on the hand-held R-4 Remote Mute Key/Mute Button Operation... -
Page 38: Function Keys/Buttons
OPERATIONAL OVERVIEW FUNCTION KEYS/BUTTONS The Solo Master Keypad Module, the Numeric Accessory Keypad Module, and the hand-held R-4 Remote ™ ™ include various function keys for control of the built-in tuner and the connected source components. Figure 26 illustrates the available function keys for all of the control devices. Function Keys on the Solo™... -
Page 39: Function Key/Button Operation For The Built-In Tuner
OPERATIONAL OVERVIEW Function Key/Button Operation for the Built-in Tuner The commands for operation of the built-in tuner from the function keys/Buttons are pre-programmed. Figure 27 depicts the available commands for the tuner, their function key/button location, and a description of their action on the tuner. -
Page 40: Front-Panel Tuner Operation
OPERATIONAL OVERVIEW FRONT PANEL TUNER OPERATION Preset Buttons Station Scan Buttons Band Shift Button Frequency Indicator Band Indicator Stereo Indicator Figure 27 Band-Shift Button The Band Shift Button toggles the selected tuning band between AM and FM. Station Scan Buttons A quick tap of the Station Scan Buttons increments the tuner one frequency step. -
Page 41: Identical Source Components
OPERATIONAL OVERVIEW IDENTICAL SOURCE COMPONENTS The ZR-4630 routes the individual source component IR commands with which it has been programmed to specific Flasher Outputs. This provides individual control of identical source components (i.e., two DSS receivers of the same brand and model). These programmed IR commands are routed to the individual Flasher Outputs based on the source components for which they were programmed. -
Page 42: Operation A System Integrated With A Home Theater
OPERATIONAL OVERVIEW OPERATING A SYSTEM INTEGRATED WITH A HOME THEATER Operation from the Stereo Zones Provided by the ZR-4630 User operation from the zones provided by ZR-4630’s, are not affected when integrating a Home Theater to share source components (see System Configurations 4 & 5). Solo independently operate the zone to which they are dedicated (i.e., Zone ON/OFF, Volume Up/Down, Mute). -
Page 43: Integrated Home Theater Without Home Theater Sync And Using Niles R-4 Commands
OPERATIONAL OVERVIEW When the Home Theater turns ON, it provides a 12V Status signal that is connected to the Home Theater Sync Input on the rear panel of the ZR-4630. This 12V Status signal provides the ON/OFF status of the Home Theater to the ZR-4630. -
Page 44: Installation
INSTALLATION PLACEMENT Place the ZR-4630 on a flat, level surface such as a table or shelf, with its weight equally distributed on each of its four feet. Placing the weight of the amplifier on the rear or front panel for even an instant will result in damage to the amplifier's connectors and controls. -
Page 45: Terminating Four-Pair Twisted Cable
CONNECTIONS TERMINATING FOUR-PAIR TWISTED CABLE The Solo Master Keypad Modules, the Expander, and the ZR-4630’s System Expansion connections require a ™ four-pair twisted cable with a one-to-one wiring configuration. To maintain consistency throughout all Intellipad Ci installations, we recommend the color-coding pattern described in Figure 31. However, you may follow the color-coding pattern of your choice, as long as it is used consistently throughout the system. -
Page 46: Connecting Ir Sensors
CONNECTIONS CONNECTING IR SENSORS An IR sensor can be connected to a Solo instructions employing T568A architecture. Connecting IR Receivers WS-100 Master Keypad Module with a CAT 5 cable. See Figure 34 for wiring ™ 1 = Blue/White - 12V 2 = Green - DATA 3 = Orange/White - GROUND 4 = Green/White - EMPTY... -
Page 47: Source-Component Power And Home Theater Synchronization Signals
CONNECTIONS SOURCE-COMPONENT POWER AND HOME THEATER SYNCHRONIZATION SIGNALS 1. Video Synchronization from a Source Component to a ZR-4630 Sync Input An RCA Y-adapter is used to split the video output of a source component for connection to one of the three Source Sync Inputs of the ZR-4630 (2, 3, or 4). -
Page 48: System Expansion
CONNECTIONS SYSTEM EXPANSION 5. System Expansion Input to System Expansion Output Four-pair twisted cable, terminated with male RJ-45 plugs, connects multiple ZR-4630's using the System Expansion Input and Output terminals. Connections are made from the Input of one of the ZR-4630's to the Output of another, and so on (for more information on Terminating Four-Pair Twisted Cable, refer to page 44). -
Page 49: Connecting An Ir Sensor For Local System Control
CONNECTIONS CONNECTING AN IR SENSOR FOR LOCAL SYSTEM CONTROL IR Sensors installed in zones for hand-held IR remote control of the ZR-4630 and its source components can also be used to control local components (i.e., a TV, DSS, DVD, and a surround-sound system located in the master bedroom zone as shown in figure 38). -
Page 50: Connecting An A/B Amplifier Switch For Local System Selection
CONNECTIONS CONNECTING AN A/B AMPLIFIER SWITCH FOR LOCAL SYSTEM SELECTION A Niles SPK-1 Voltage Activated Speaker Level A/B Switcher connects to both the ZR-4630 and a local system to provide sound from each system to the same speakers located in a single zone. The local system only con- nects to the speakers when the local system is turned on. -
Page 51: Programming Overview
PROGRAMMING OVERVIEW INSTALLER PROGRAMMING PANEL IR commands needed for control of connected external source-components are programmed into the ZR-4630’s program memory using the hidden programming controls on the front panel (see figure 42). Hidden Installer Programming Panel Figure 42 Source Components IR Remote Control (supplied by manufacturer) Niles hand-held... -
Page 52: Zr-4630 Programming Worksheet
PROGRAMMING OVERVIEW ZR-4630 Programming Worksheet A completed Tuner and Zone Label Programming Worksheet is required for each ZR-4630 installed in a system. The programming information that should be included is detailed in figure 43. Mr. Smith Document the customer’s name. Kitchen Patio Document the Master, Slave 1, or Slave 2 setting. -
Page 53: Zr-4630 Source-Component Programming Worksheet
PROGRAMMING OVERVIEW ZR-4630 Source-Component Programming Worksheet A completed source-component Programming Worksheet is required for each source-component included in the system. The programming information that should be included is detailed in figures 44, 45, and 46. Mr. Smith Document the customer’s name. Document the number of the Master Key PROGRAM FUNCTION KEY IR COMMANDS Document the brand and model number of the source component that is associated with the Master Key... -
Page 54: Function Keys/Buttons Programming
PROGRAMMING OVERVIEW Function Keys/Buttons Programming Figure 45 depicts the section of the Programming Worksheet that corresponds to the source-component function key/button programming. Each programmed source component has one worksheet filled out specifying what par- ticular IR commands have been programmed and to which function key/button they have been assigned. PROGRAM FUNCTION KEY IR COMMANDS FUNCTION KEY/BUTTON SOURCE IR COMMAND... -
Page 55: Programming A Learning Remote For Zone Operation
PROGRAMMING OVERVIEW PROGRAMMING A LEARNING REMOTE FOR ZONE OPERATION Learning remote controls can be taught the IR commands of the Niles R-4 Remote to provide individual zone operation. These IR commands operate the ZR-4630 and its associated source components from any zone equipped with an IR Sensor. -
Page 56: Method 1-Controlling Shared-Source Compnts. W/Ir Repeating & 12V Home Theater Status
PROGRAMMING OVERVIEW Method #1– Controlling Shared Source Components with IR Repeating and 12V Home Theater Status When using IR Repeating, IR programming for the source components can be accomplished by pro- gramming the actual IR commands from the source component’s included remote control into the Home Theater learning remote control. -
Page 57: Method 3-Controlling Shared-Source Compnts. W/Niles R-4 Commands & W/Out 12V Home Theater Status
PROGRAMMING OVERVIEW Method #3 – Controlling Shared Source Components with Niles R-4 Commands and without 12V Home Theater Status A third method of programming is available in situations where a 12V DC status signal is not available from the Home Theater. With this method, you must teach some of the Niles R-4 Remote Control IR commands to the Home Theater learning remote. -
Page 58: Installation Settings
JOB TITLE UNIT MODE AND ZONE LABELS CHOOSE ONLY ONE (A) MASTER (B) SLAVE 1 (C) SLAVE 2 TUNER PRESETS 1 _______________ 6 _______________ 2 _______________ 7 _______________ 3 _______________ 8 _______________ 4 _______________ 9 _______________ 5 _______________ 10 _______________ TUNER SEQUENCE STEP TUNER COMMAND... -
Page 59: Programming Zone Linking
JOB TITLE UNIT MODE AND ZONE LABELS CHOOSE ONLY ONE (A) MASTER (B) SLAVE 1 (C) SLAVE 2 TUNER PRESETS 1 _______________ 6 _______________ 2 _______________ 7 _______________ 3 _______________ 8 _______________ 4 _______________ 9 _______________ 5 _______________ 10 _______________ TUNER SEQUENCE STEP TUNER COMMAND... -
Page 60: Volume Settings
JOB TITLE UNIT MODE AND ZONE LABELS CHOOSE ONLY ONE (A) MASTER (B) SLAVE 1 (C) SLAVE 2 TUNER PRESETS 1 _______________ 6 _______________ 2 _______________ 7 _______________ 3 _______________ 8 _______________ 4 _______________ 9 _______________ 5 _______________ 10 _______________ TUNER SEQUENCE STEP TUNER COMMAND... - Page 61 JOB TITLE UNIT MODE AND ZONE LABELS CHOOSE ONLY ONE (A) MASTER (B) SLAVE 1 (C) SLAVE 2 TUNER PRESETS 1 _______________ 6 _______________ 2 _______________ 7 _______________ 3 _______________ 8 _______________ 4 _______________ 9 _______________ 5 _______________ 10 _______________ TUNER SEQUENCE STEP TUNER COMMAND...
- Page 62 JOB TITLE CHOOSE MASTER KEY MASTER KEY NUMBER (2, 3, 4): _________ __ PROGRAM SOURCE COMPONENT POWER COMPONENT BRAND: __________________________________ COMPONENT SYNC J Yes J No If Yes, SYNC TYPE: J Video PROGRAM FUNCTION KEY IR COMMANDS FUNCTION KEY/BUTTON SOURCE IR COMMAND Play Stop Pause...
- Page 63 JOB TITLE CHOOSE MASTER KEY MASTER KEY NUMBER (2, 3, 4): _________ __ PROGRAM SOURCE COMPONENT POWER COMPONENT BRAND: __________________________________ COMPONENT SYNC J Yes J No If Yes, SYNC TYPE: J Video PROGRAM FUNCTION KEY IR COMMANDS FUNCTION KEY/BUTTON SOURCE IR COMMAND Play Stop Pause...
- Page 64 JOB TITLE CHOOSE MASTER KEY MASTER KEY NUMBER (2, 3, 4): _________ __ PROGRAM SOURCE COMPONENT POWER COMPONENT BRAND: __________________________________ COMPONENT SYNC J Yes J No If Yes, SYNC TYPE: J Video PROGRAM FUNCTION KEY IR COMMANDS FUNCTION KEY/BUTTON SOURCE IR COMMAND Play Stop Pause...
- Page 65 JOB TITLE CHOOSE MASTER KEY MASTER KEY NUMBER (2, 3, 4): _________ __ PROGRAM SOURCE COMPONENT POWER COMPONENT BRAND: __________________________________ COMPONENT SYNC J Yes J No If Yes, SYNC TYPE: J Video PROGRAM FUNCTION KEY IR COMMANDS FUNCTION KEY/BUTTON SOURCE IR COMMAND Play Stop Pause...
-
Page 66: All On/Page Dip Switch Settings
INSTALLATION SETTINGS ALL ON/PAGE DIP SWITCH SETTINGS There are six All ON/PAGE switches located on the hidden programming panel of the ZR-4630. Each of the ZR-4630's zones has a corresponding numbered switch (see Figure 40). The switches enable (Up) or disable (Down) the individual zones from responding to ALL ON commands and incom- ing audio pages. -
Page 67: Program Editing Steps
INSTALLATION SETTINGS PROGRAMMING ZONE LINKING The ZR-4630 has a feature called Zone Linking. Zone Linking allows the Installer to permanently link several Zones/Rooms into one group. To Link together a group of Zones/Rooms, follow the steps below: 1. Press and Hold the PROGRAM button for two seconds. The Enter IR LED lights RED, the Program LED lights RED, the Source 2 LED lights RED and the Power/ON LED blinks RED. - Page 68 INSTALLATION SETTINGS VOLUME SETTINGS The ZR-4630 has three useful volume features with customizable settings. The following is a list of the three volume features along with their default values and a description of their purpose. Maximum Turn ON and Source Change Volume Level Maximum Turn ON and Source Change Volume prevents a zone from playing too loudly when it is first turned on or if the zone changes the currently selected source.
-
Page 69: System Programming Steps
SYSTEM PROGRAMMING STEPS PROGRAMMING THE SOURCE COMPONENTS Step 1 - Press and hold the PROGRAM button for two seconds. Step 2 - If Source Two is turned ON/OFF with IR commands, go directly to Step 3. If Source Two is not turned ON/OFF via IR Commands, press the NEXT button twice and move ahead to Step 8. - Page 70 SYSTEM PROGRAMMING STEPS Step 4 - You can test the IR command by pressing the TEST IR button. The source will operate if the command has been taught correctly. If it does not, reteach the IR command until the source operates. Repositioning the remote control while reteaching can help to capture the command accurately.
- Page 71 SYSTEM PROGRAMMING STEPS Step 7 - Press the NEXT button once. Step 8 - Issue a Niles Function Key/Button IR command that will correspond to a Source IR command into the IR Sensor Window. Step 9 - Teach the corresponding IR command from Source Two’s factory remote control and test it as described in Step 4.
- Page 72 SYSTEM PROGRAMMING STEPS Step 10 - Press the NEXT button once. Step 11 - Press each Function Key/Button that corresponds to each step of the Sequence you wish to program for Source Two in the same order they will occur. Note: To insert delays, use the Volume –...
- Page 73 SYSTEM PROGRAMMING STEPS Step 13 - Repeat Steps 2-11 to complete the IR programming for Source Three. Step 14 - You have now completed the IR programming for Source Three. Press the NEXT button once. Step 15 - Repeat Steps 2-11 to complete the IR programming for Source Four.
- Page 74 SYSTEM PROGRAMMING STEPS Step 16 - Press the NEXT button once. Step 17 - Press each Function Key/Button that corresponds to each step of the Sequence you wish to program for the Tuner in the same order they will occur. Note: To insert delays, use the Volume –...
-
Page 75: Source-Power Editing
PROGRAM EDITING STEPS SOURCE-POWER EDITING These are the steps for editing the power ON/OFF commands for the source components. Step 1. Press and Hold the Program button. The Program LED lights RED, the Source 2 LED lights RED, Power/On LED Blinks RED, and the Enter IR lights RED. -
Page 76: Sequence Editing
PROGRAM EDITING STEPS SEQUENCE EDITING These are the steps for programming the Sequences for control of the source components. Step 1. Press and Hold the PROGRAM button. The Program LED lights RED, the Source 2 LED lights RED, the Power/On LED Blinks RED, and the Enter IR lights RED. -
Page 77: Accessories
PROGRAM EDITING STEPS Erasing All Programming Step 1. Press and Hold the PROGRAM button. The Program LED lights RED, the Source 2 LED lights RED, the Power/On LED Blinks RED, and the Enter IR lights RED. Step 2. Press and hold the PROGRAM, the NEXT, and ZR-4630 SYSTEM ACCESSORIES Solo ™... - Page 78 ZR-4630 SYSTEM ACCESSORIES NET-2D Computer Network Convenience Outlets ColorStock# Almond FG00858 Bone FG00840 White FG00842 Two eight-wire (RJ-45) modular jacks for computer net- work or IntelliPad Ci Master Keypad connections. Decora-style faceplate. SYNC ACCESSORIES Many of the components in your system should have their power status “synced” to the ZR-4630. The following accessories either sense that a component is on/off or actually turn the component(s) on/off.
-
Page 79: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING THE ZR-4630 Problem The receiver has no lights on. The LCD Display shows error E1, E2, E3, E4, E5, E6. The LCD Display shows error E7 . Error E7 means one or more of the front-panel control or programming The LCD Display shows error SYSTEM INSTALLATION TROUBLESHOOTING Problem... -
Page 80: Specifications
SPECIFICATIONS ZR-4630 MultiZone Receiver AMPLIFIER SECTION Continuous Average Power Output (FTC) All Channels: 30W per channel min. RMS at 8 ohms, any two channels driven from 20 Hz to 20 kHz with no more than .08% THD. 37W per channel min. RMS at 4 ohms, any two channels driven from 20 Hz to 20 kHz with no more than .8% THD. - Page 81 NOTES...
- Page 82 Visit us on the web at www.nilesaudio.com © 2005 Niles Audio Corporation. All rights reserved. Niles, the Niles logo, Blending Technology and Architecture, IntelliControl, IntelliPad, Jobsite, and Systems Integration Amplifier are registered trademarks of Niles Audio Corporation. Expander, FloodFlasher, MicroFlasher, MicroSensor, Numeric, Select, and Solo are trademarks of Niles Audio Corporation.
