Niles Multi-Room Audio System RVL-6 RMP Installation Manual

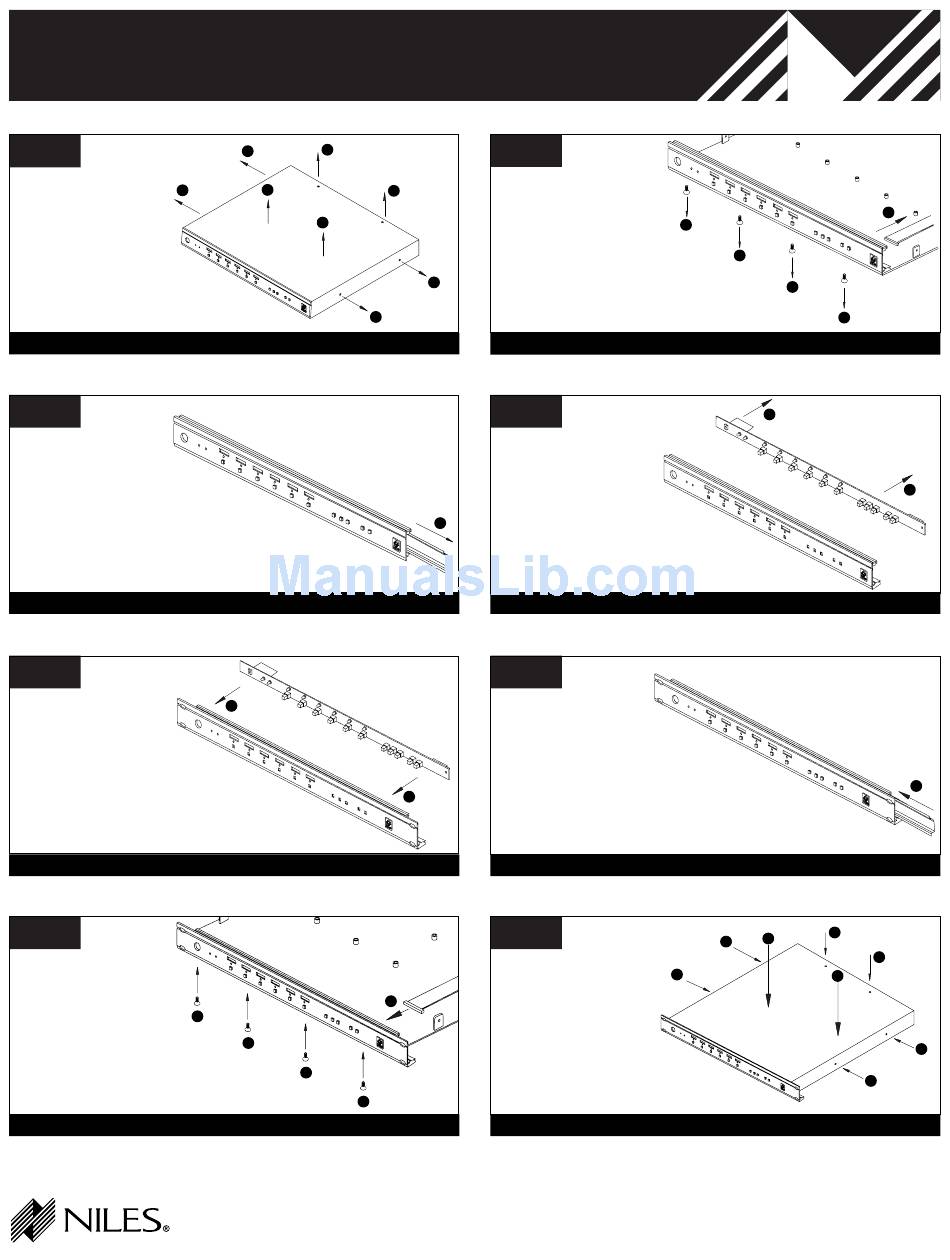

Installing the
RVL-6 RMP
Step 1
CAUTION! Unit must
A
be unplugged before
cover is removed
A: Remove screws from
the RVL-6 chassis
B: Raise the cover off
of the unit
Step 3
E: Slide out the plastic
retainer
Step 5
G: Gently line up and
place circuit board
with the rack-mount
panel
Step 7
I: Plug in the ribbon
connector
J
J: Replace the screws
to the bottom of the
rack-mount panel
Niles Audio Corporation
© 1999 Niles Audio Corporation. All rights reserved. Because Niles constantly strives to improve the quality of its products, Niles reserves the right to
change product specifications without notice. Niles and the Niles logo are registered trademarks of Niles Audio Corporation. Printed in the USA 5/96
DS00171A
A
A
B
A
B
A
G
G
I
J
J
J
12331 SW 130th Street Miami, Florida 33186 Tel: (305) 238-4373 Fax: (305) 238-0185
www.nilesaudio.com
Step 2
C: Unplug the ribbon
connector, pull away
from the front panel
D: Remove screws from
the bottom of the
A
front panel and
detach from chassis
Step 4
F: Pull the circuit
board away from the
front panel
E
Step 6
H: Slide the plastic
retainer back into
place
Step 8
K: Replace the cover
onto the unit
L: Replace the screws
to the RVL-6 cover
D
D
D
D
F
L
K
L
L
K
C
F
H
L
L
L
