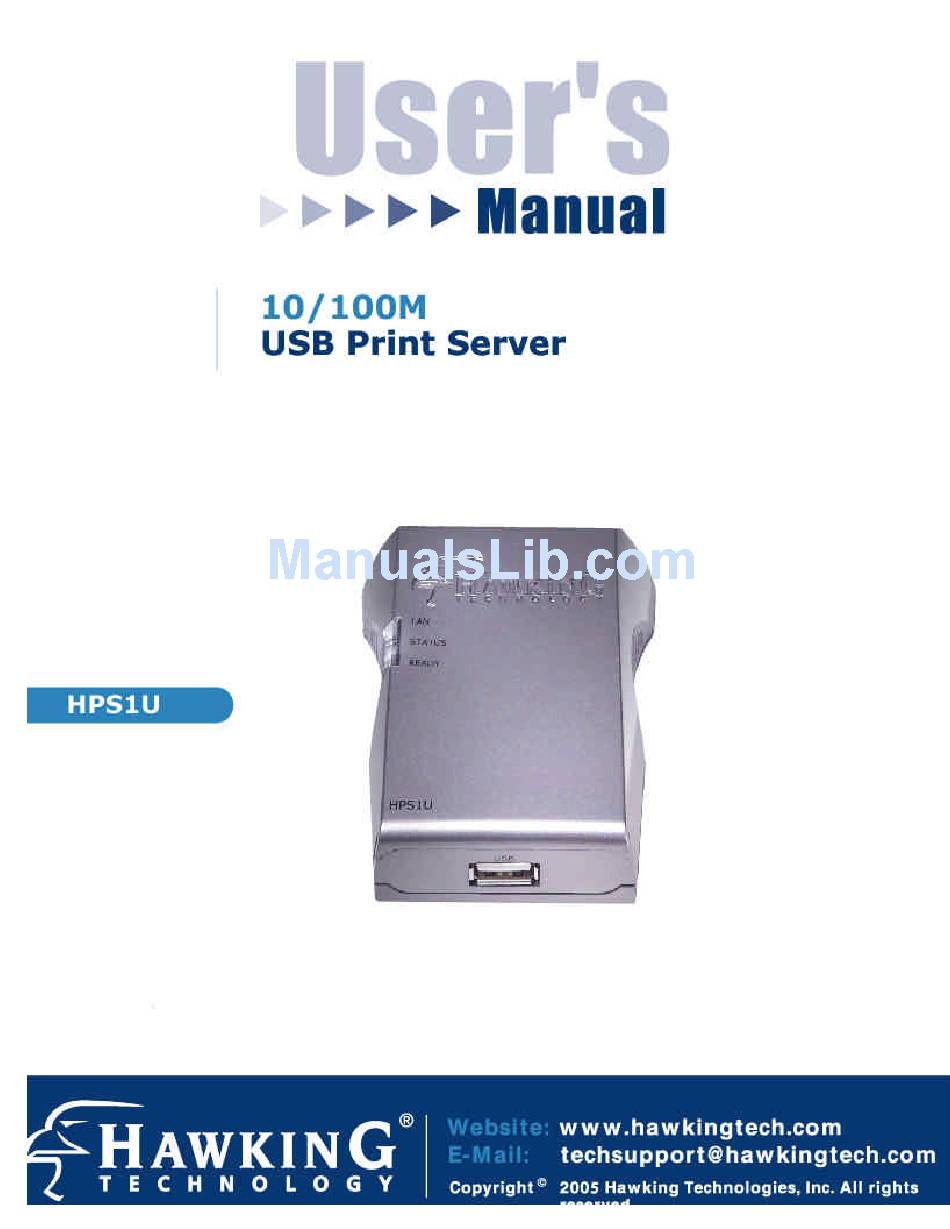

Hawking HPS1U User Manual

Hide thumbs Also See for HPS1U:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Hawking HPS1U

Summary of Contents for Hawking HPS1U

  • Page 2 VCCI Mark Warning LIMITED WARRANTY Hawking Technology guarantees that every HPS1U 1 USB Port 10/100M Print Server is free from physical defects in material and workmanship under normal use for two (2) years from the date of purchase. If the product proves defective during this two-year warranty period, call Hawking Customer Service in order to obtain a Return Authorization number.

  • Page 3: Table Of Contents

    Table of Contents 1. INTRODUCTION TO THE HPS1U ........7 Product Introduction ............8 Product Package ..............9 Network Printing Architecture........10 1.3.1 Print Server Network Functions ........... 11 1.3.3 Network Printing Functions for a Network Server ...... 14 Network Printing Environment........15 Contents of the User’s Manual ........
  • Page 4 Setup the HPS1U’s IP Address........69 6.3.1 DHCP ................... 69 6.3.2 BOOTP ..................69 Verify the HPS1U’s IP Address ........72 Configure Remote lpd Printing on the Host ....73 CONFIGURATION UTILITY ..........75 Introduction..............76 Search – Search for All Available Print Servers..78 Status - Print Server Status..........
  • Page 5 8.3.4 SMB ................... 108 8.3.7 AppleTalk ................... 111 SETUP WIZARD............112 8.5.1 System..................112 8.5.2 TCP/IP..................115 8.5.3 NetWare ..................117 8.5.4 AppleTalk ................... 119 8.5.6 Save Settings ................121 System Tools ..............122 8.6.1 Load Default ................122 8.6.2 Upgrade Firmware ..............123 9.
  • Page 6 12.2 Mac or Mac + PC Environment ........159...

  • Page 7: Introduction To The Hps1U

    1 . I n t r o d u c t i o n t o t h e H P S 1 U...

  • Page 8: Product Introduction

    10/100M Print Server. The Hawking HPS1U is a powerful and convenient network printing solution that will connect your USB printer to a wired network. The HPS1U has a 10/100Mbps auto-sensing port, allowing you to attach it to a 10Base-T or 100Base-TX network without the need for a dedicated PC print server.

  • Page 9: Product Package

    Product Package...

  • Page 10: Network Printing Architecture

    Network Printing Architecture This section illustrates how a print server functions over a network environment. Before you install and use the HPS1U print server, it is strongly suggested that you read this section completely and select only the chapters that pertain to your specific operating system.

  • Page 11: Print Server Network Functions

    Windows NT Server NetWare Server Windows NT Windows 2000 Windows 98 Workstation Because the HPS1U print server supports IPX, TCP/IP, Telnet, NetBEUI and AppleTalk protocols, any networked computer can print directly through the print server from any of the installed protocols.
  • Page 12 Windows 98 Workstation Windows 95/98/Me/NT/2000/XP The HPS1U provides a PTPP (Peer -to -Peer Printing) driver and utilities for Windows 95/98/NT/2000 /XP users. The PTPP (Peer -to-Peer Printing) supports the TCP/IP protocol. In the client installation procedure, after the PTPP (Peer-to-...
  • Page 13 DECUnix, IBM AIX and others) and Linux use the system- standard LPR to print to your HWPS12U. MAC OS The MAC OS can use the system-standard AppleTalk network to print through your HPS1U. Mac OS X + can take advantage of TCP/IP configurations as well.

  • Page 14: Network Printing Functions For A Network Server

    The HPS1U provides a PTPP (Peer -to -Peer Printing) driver with utilities for Windows NT and Windows 2000. After PTPP is installed, the server can directly print to the HPS1U print server. Adding this printing function into your Windows NT/2000 Server allows for print queuing, user authority management, and many other advanced features.

  • Page 15: Network Printing Environment

    Network Printing Environment Common network printing environments use the following: Windows Peer -to-Peer Network The client’s PPTP driver will use the TCP/IP protocol to print to the print server. Windows NT/2000 Network The network printing function will become available after the PTPP driver is installed into Windows NT/2000.
  • Page 16 Print Queue * TCP/IP Windows 98 * IPX Windows NT Server PTPP * NetBEUI TCP/IP TCP/IP Windows 2000 NetWare Network (see below) Print Queue * TCP/IP Windows 98 * IPX NetWare 3.x/4.x/5.x * NetBEUI IPX / IP Windows 2000...

  • Page 17: Contents Of The User's Manual

    Chapter 6. UNIX System Network You may select the appropriate chapters and sections to read depending on your networks printing requirements. Chapter 7 and chapter 8 introduce the HPS1U’s management and configuration utilities for both Windows and your local web browser.

  • Page 18: Firmware & Printing Function

    Firmware & Printing Function The HPS1U provides a complete network printing solution based on the feature set listed below: PTPP (Peer -to-Peer-Printing) TCP/IP (LPR) IPP Printing NetWare Bind ery Printing AppleTalk SMB Printing...

  • Page 19: Hardware Installation

    H a r d w a r e I n s t a l l a t i o n 1. Unpack the HPS1U’s packaging and check all the items listed in section 1.2. 2. Connect the HPS1U to the printer you want to share on your network. 3. Connect the power adapter to the print server.

  • Page 20: Windows Network Structure

    W i n d o ws N e t w o r k S t r u c t u r e...

  • Page 21: System Architecture

    System Architecture The HPS1U supports Windows Peer -to -Peer network printing mode, which is suitable for most medium and small network environments. Through Hawking’s quick and simple installation procedure, users can immediate ly enjoy the convenience of network printing. The installation procedure is separated into the following two parts: 1.
  • Page 22 2. Client Installation and Configuration (refer to section 3 for more detailed information). Client users must install the Windows PTPP driver (Peer-to- Peer Printing) for network printing. In addition, after PTPP is installed, the system will automatically search for all print servers on the network, and add all printing ports (P1/U2/U3) of the print server into Windows’...

  • Page 23: Administrator Installation And Setup

    1. Insert the Windows 95/98/ME/NT/2000/XP Setup CD into your CD-ROM drive. (Windows should execute the Autorun.exe program automatically. If not, run Autorun.exe manually from your CD-ROM drive’s root directory.) 2. The Hawking Installation Windows manager will pop up on your screen as follows:...
  • Page 24 3. Click on “Setup Wizard” and the Setup program will proceed to install the Print Server Utility program package. 4. Click “Next” to start the installation of the Print Server Utilit ies software and Easy Installation Wizard.
  • Page 25 5. Click “Next,” to specify the destination folder where the HPS1U utility files will be installed. 6. Click “Next,” and select the components you wish to install. It is highly recommended to install all provided software utilities and drivers.
  • Page 26 7. Click “Next,” to specify the program folder where the program icons will be added. 8. Click “Next” to start the utility file installation. The “Print Server Utilities” program will finish installing.
  • Page 27 9. After this installation is complete, please click on “Finish” to bring up the Easy Setup Wizard. 10. Once the Setup Wizard is activated, it will make sure you have the necessary components to proceed with installation. Please make sure you have connected your print server to your network via an Ethernet connection, powered up your printer and print server, and have connected the print server to your printer.
  • Page 28 12. The “Print Server List” screen will list all available Hawking Technology print servers that the Wizard finds on your Network. Please choose the prin t server you wish to configure and press “Next.” You may always hit the “Refresh”...
  • Page 29 13. Once a Print Server is selected from the list, the login username/password screen will appear. Please type in your login and password and then press “OK”. The standard default Login/Password for Hawking print Servers is: Login: 1234 Password: admin 14.
  • Page 30 The General settings windows will allow you to edit the following: Print Server Name : Name you wish to give to your print server to make it recognizable. SMB Group Name: The Windows group na me you wish to associate your print server with. Please click in the SMB Group Name box for more information.
  • Page 31 15. The intelligent Wizard will try to determine your network settings. If a DHCP sever is present on your network, the Prin t Server Wizard will obtain your network settings and configure your print server to operate on the same IP network settings. If there is no DHCP server present, the Wizard will poll your computer’s internal network settings and suggest an appropriate sta tic IP address to assign to the print server.
  • Page 32 16. Summary of Setting Changes The following page is a summary of configuration changes that are going to be saved to the print server. Please press “Save” to reboot the print server and save all modified settings.
  • Page 33 17. The next screen allows you to attach your printer to your print server. The “Printer Port Setup” page displays each port’s printer model if detected. If no printers are displayed, please make sure your printer is turned on and connected to the print server.
  • Page 34 Please select which option to choose and highlight the appropriate printer driver if it is present on the scrollable list of printer drivers. Press “Install” to complete the binding process.
  • Page 35 19. Once your printer is properly bound to the print server, you will see a checkmark by the installed printer indicating a successful installation. 20. Once you have bound your printer to the print server, you may press the “Finish” button to proceed.
  • Page 36 21. The final configuration screen will allow you to print a test page using the newly installed print server. Please highlight the appropriate printer and press the “Print Test” button to verify that your print server is properly configured. There may be a short delay the first time you print to the print server.

  • Page 37: Manual Printer Port Configuration

    3.2.2 Manual Printer Port Configuration WINDOWS 98/NT/Me/2000 Click the Start button, choose Setting è Printers Step1. Step2. Double click on Add Printer Select Local printer è click Next. Step3. Step4. Select your printer manufacturer and model, and then click Next.
  • Page 38 Step5. Choose the Print Server’s Network Port, which was created by the administrator or client installation process, and click Next. Step6. Complete the rest of the questions to finish the network printer setup.
  • Page 39 WINDOWS XP Setup Step1. Click the Start button; choose Control Panel è Printers and Faxes Step2. Click on Add a Printer Step3. The Add Printer Wizard will appear è Press Next. Step4. Select “Local printer attached to this computer” è Press Next.
  • Page 40 Step7. Please continue through the next couple of installation steps by pressing Next until your new printer is added to your computer. Press the finish button to finalize your configuration. Please repeat “add Printer” steps for every printer attached to the HPS1U.

  • Page 41: Administrator Utilities

    Administrator Utilities After the Administrator Installation is completed, there will be six utilities in print server’s Program folder. Network Ports Quick Setup - Local printer port management tool (see section 3.5). Remote Ports - Remote printer port management tool (see section 3.5). NetWare Quick Setup - NetWare quick installation software (see chapter 5).

  • Page 42: Client Installation And Setup

    Client Installation and Setup 1. Insert the CD shipped along with the HPS1U into your CD-ROM drive. The Autorun.exe program will execute automatically. If it does not start automatically, run Autorun.exe manually from your CD-ROM drive’s root directory. 2. The "Installation Manager" will be displayed on the screen as follows.
  • Page 43 4. Click “Next” and specify the destination folder where the utilities will be installed. 5. Click “Next” and specify the program folder where the program icons will be added. 6. Click “Next” to start the installation.
  • Page 44 7. You have completed the software installation process. The configuration Wizard will guide you through the rest of your client installation. 1. The next screen allows you to attach your printer to your print server. The “Printer Port Setup” page displays each port’s printer model if detected.
  • Page 45 you two selection options. You may install a new printer driver to your system or you may select your printer driver from the existing list of printer drivers currently on your system. Please select which option to choose and highlight the appropriate printer driver if it is present on the scrollable list of printer drivers.
  • Page 46 Once your printer is properly bound to the print server, you will see a checkmark by the installed printer indicating a successful installation. You may choose to install additional printers to the other printer ports if available. Once you have bound all of your printers to the print server, you may press the “Finish”...
  • Page 47 3. The final configuration screen will allow you to print a test page to the print server. Please highlight the appropriate printer and press the “Print Test” button to verify that your print server is properly configured. There may be a short delay the first time you print to the print server.

  • Page 48: Client Utilities

    Client Utilities After Client Installation is completed, there will be three tools located in the print server’s Program folder. 1) Network Ports Quick S etup 2) Remote Ports 3) Uninstall Network Driver The Uninstall Network Driver tool will assist you in removing all installed client software.
  • Page 49 If you have just installed another new print server on your network, you must run this program first. This program will search for new print servers and allow you to add the new network printer port into the client’s computer. Perform the standard Add Printer procedure, and you will be able to print directly to the printer through the newly installed print server port.

  • Page 50: Remote Ports (Utility)

    Please be aware that Network Ports Quick Setup Utility can only det ect and configure all print servers on the same network; it cannot search and configure print servers on other subnets across network segments. You must use the Remote Ports Utility described in the next section to manage remote (across network segments) print servers.
  • Page 51 Step3. Press OK to add the remote printer port into your computer’s printer ports. In order to use the remote printing function, you will have to proceed with the normal Add Printer procedure and select your printer port as the newly added remote printer port.

  • Page 53: Windows Nt/2000 Network

    W i n d o w s N T / 2 0 0 0 N e t w o r k...

  • Page 54: System Architecture

    System Architecture Peer-to-Peer network printing and Server -Based Printing is available for machines using the Wind ows NT/2000 server. Only one Windows NT/2000 is required to have the Windows PTPP (Peer -to-Peer Printing) driver installed to share the printing service on the network. Other network users can simply connect to the server and access the shared printer.

  • Page 55: Windows Nt/2000 Server Installation And Setup

    Setup Please follow the procedures described below for installation of a peer -to -peer connection (PTPP) between a W indows NT/2000 Server and the HPS1U. Step1. If this is your first time installing the print server, please install the administrator software on your Windows NT/2000 server first.
  • Page 56 Step3. Share the above server’s printer with the network by performing the standard Windows printer sharing installation process.

  • Page 57: User Installation And Setup

    User Installation and Setup After the server side installation is completed, the client side will be able to find the server’s shared printer in your Network Neighborhood. You will then need to perform Window’s standard Add New Printer procedure. Select “Network Printer”...

  • Page 58: Netware Network

    N e t W a r e N e t w o r k...

  • Page 59: System Architecture

    System Architecture We implemented the NetWare printer sharing functionality into the HPS1U, to allow one or more printers attached to the print server to be connected to your network. The HPS1U can support NetWare print server functions: - The embedded print server, which emulates the “queue management functionality”...
  • Page 60 Relief of NetWare’s file server burden. Each print server should log into a NetWare server before servicing the print jobs. Each print server will occupy a user account with which it can log into the NetWare server.

  • Page 61: Netware 3.X/4.X/5.X Installation & Setup

    NetWare 3.x/4.x/5.x Installation & Setup Once your print server is connected to your Ethernet network, you can set it up for use with your networking software 5.2.1 Installation Using PSETUP 5.2.1.1 Configuring in Print Server Mode For more complex setup needs, you can use the PSETUP program in conjunction with the NetWare PCONSOLE program.
  • Page 62 5. Select the Print server in the Printing mode field. 6. Change the Alias of the print server if you wish. 7. Set the Primary File Server to be the file server where the print server’s queue will be located. 8.
  • Page 63 You have now successfully created the print queue that your print server will serve. Press the Escape key until the Available Options main menu is displayed. 15. Select “Print Server Information.” 16. Press the Insert key to add a new NetWare print server object.
  • Page 64 19. Select “Printer Configuration.” 20. Select Printer 0 (or Printer 1, Printer 2), and press Enter, then select Parallel LPT1 (or LPT2, LPT3) in the Type field. If your prin t server has only one port, you do not need to configure this Type field.
  • Page 65 24. Repeatedly press Escape to exit the PCONSOLE program. 25. Reset the print server to have the changes take effect. NOTE: If the print server you have is with multiple printer connectors, you may create multiple print queues and printer objects.

  • Page 66: Unix System Network

    U N I X S y s t e m N e t w o r k...

  • Page 67: Introduction

    Introduction The HPS1U can use TCP/IP printing through the Unix lpd (Line Printer Daemon) protocol. The lpd protocol is based on the BSD version of Unix and is supported under most versions of Unix. This chapter explains how to configure the print server for TCP/IP operation, and how to modify configuration files on your Unix system to allow printing to the print server.

  • Page 68: Enable The Hps1U's Tcp/Ip Support

    Enable The HPS1U’s TCP/IP Support The default configuration of the HPS1U has TCP/IP support enabled. You can configure the HPS1U to enable TCP/IP support using the configuration program or PSETUP program included on the HPS1U C D-ROM.

  • Page 69: Setup The Hps1U's Ip Address

    Setup the HPS1U’s IP Address The print server must have a unique IP address in order to be recognized by the network. You can set up the IP address on various Unix systems using any one of the following methods: 1.
  • Page 70 :ip=print_server_ip_address: Lines should be indented with tabs. Where hostname is the device name of the HPS1U; the ht=1 tag specifies that the hardware type is Ethernet. The ha= tag specifies that the Ethernet address of the HPS1U is the Node ID located on the print server.
  • Page 71 Node ID: 0000B4010101 (this implies Ethernet address is 0000B4010101), IP address: 203.66.191.12 The entry for this print server in the /etc/bootptab file should PS010101:\ :ht=1:\ :ha=0000B4010101:\ :ip=203.66.191.12:...

  • Page 72: Verify The Hps1U's Ip Address

    Verify the HPS1U’s IP Address To verify that your print server is responding to the newly assigned IP address, use a PING command to check the HPS1U’s response: ping ip-address...

  • Page 73: Configure Remote Lpd Printing On The Host

    Configure Remote lpd Printing on the Host You can use this procedure to configure your Unix host(s) to allow printing to your network. The procedure below can be used for Unix variants that are related to BSD Unix, like SunOS or Linux. For other versions of Unix, consult your system documentation, keeping in mind that: 1.
  • Page 74 The rp= entry should correspond to the port name of the remote printer. The values should be lpt1, lpt2, or lpt3, depending on which printer port your printer is attached to. The HPS1U should now be available for printing from your Unix host.

  • Page 75: Configuration Utility

    C o n f i g u r a t i o n U t i l i t y...

  • Page 76: Introduction

    This utility provides complete management and configuration functio ns for the print server. This utility only provides configuration functions for the HPS1U itself; it does not include configuration functions for client side or other file server or NetWare server in the network environment.
  • Page 77 SNMP Config uration: Configuration through the SNMP protocol Setup Wizard: Guide You Through All the Settings Report : Lists the Status of all Available Print Servers on the Network We will explain each function separately in the following section.

  • Page 78: Search - Search For All Available Print Servers

    Search – Search for All Available Print Servers After you start up Hawking’s HPS1U configuration utility, click the “Search” icon on the tool bar. The configuration utility will delay for several seconds to search for all p rint servers on the network. All available print servers will be listed under the “Print Server Group ”...

  • Page 79: Status - Print Server Status

    Status - Print Server Status Click the “Status ” icon on the tool bar to view the current status of the selected print server. Informa tion about the selected print server is displayed including the MAC ID, model type, firmware version, status of each printer port, NetWare file server name, NetWare file server polling interval, NetWare printer queue names, IP address, subnet mask, default gateway, AppleTalk printer type,...
  • Page 80 You can restart the print server by pressing the “Reboot” button.

  • Page 81: Setting Up The Print Server

    You can modify the HPS1U’s settings here. Please Note: Default password and login is requested when configuration settings are changed or modified -...

  • Page 82: Appletalk Configuration

    AppleTalk is a data communication protocol often used by Macintosh computers . The HPS1U can use this protocol to join the AppleTalk network and share your printer to other AppleTalk workstations . You will have to setup the “Zone Name”...
  • Page 83 Printer Type : This is the type of printer attached to each printer port. You can get the printer type information from the manufacturer of your attached printer.

  • Page 84: General Configuration

    “Print Server Name, ” “User Name,” “Password ,” and “SMB Group name” here. Print Server Name: This is the name of your HPS1U. You can use this name to identify the HPS1U when you are searching for your print server through the administration and client utilities.
  • Page 85 User Name / Password is used to authenticate the administrator through the Web administration tool.

  • Page 86: Netware Print Server Configuration

    NetWare server for each printer port. Polling Time is the polling interval time that the HPS1U waits before printing jobs on the NetWare server. Attached Queue is the name of the printer queue on the...
  • Page 87 NetWare server. You have to assign a printer queue for each printer port of the HPS1U. NetWare Server is the name of the NetWare file server that provides printer queues.

  • Page 88: System Configuration

    System Configuration Double Click “System” icon and the System configuration window wil l be displayed . From the System configuration page, you can select to enable/disable each printing protocol, assign name for each printer port, and upgrade to a new firmware version. Port Name : This is the name of your printer port.
  • Page 89 button and select the correct firmware version file . After selecting the firmware file, click the “ Upgrade” button to finish the firmware update process. Wireless Function: You can select “Enable ” or “Disable ” to manually enable or disable the wireless functionality of the Wireless Print Server (HWPS12UG and HWPS1UG models).

  • Page 90: Tcp/Ip Configuration

    TCP/IP Configuration...
  • Page 91 You can configure the print server to automatically get its IP address from your networks DHCP server or manually specify a static print server IP. The HPS1U also has a built -in DHCP server. You can enable this DHCP server and let it manage your print server IP addresses for you.

  • Page 92: Snmp Configuration

    7.11 SNMP Configuration Double Click the “SNMP” icon and the SNMP configuration window will pop-up. Contact: You can enter the print server administrator’s contact information here. This information will be displayed in the SNMP management tool. Location: You can enter the installed location of the print server here.

  • Page 93: Wizard

    7.12 Wizard Click the “Wizard ” icon on the tool bar and the setup wizard of the current selected print server will be shown on the right side of the information window. Double click the “Print Server Wizard ” and the setup wizard will guide you through the setup process.
  • Page 94 Step 2 : Select to enable the required printing protocol. Please refer to section 7.8 for detailed information.
  • Page 95 Step 3 : Setup the IP address of the HPS1U and the DHCP server. Please refer to section 7.9 for detailed information. Step 4 : Setup NetWare printing. Please refer to section 7.7 for detailed information.
  • Page 96 Step 5 : Setup AppleTalk printing. Please ref er to section 7.5 for detailed information.
  • Page 97 Step 6 (For Wireless Models Only) : Select the Wireless Adapter mode and set up wireless LAN settings. Please refer to section 7.10 for detailed information.
  • Page 99 Step 7 : Click “Set” to finalize your settings.

  • Page 101: Report

    7.13 Report Click the “Report ” icon on the tool bar and the Report window will pop-up. The report lists basic information of all available print servers on the network. The information includes Device Name, MAC ID, Model Type, Firmware Version, and print server status.

  • Page 102: Web Management

    W e b M a n a g e m e n t...

  • Page 103: Introduction

    Introduction The HPS1U can be configured and managed via the Web. Through the Local Area Network, or even the Internet, an administrator can easily configure and manage the HPS1U’s functions through a web browser. Simply enter the print server’s IP address into your browser’ s URL field to manage...

  • Page 104: Web Management Of Print Server

    Login You can use any Web Browser to review the status or configure the settings of the HPS1U. After entering the IP address of the print server, a login page will be displa yed. You have to enter correct “ User Name” and “Password ” before accessing the Web Management pages.

  • Page 105: Device Status

    Device Status 8.3.1 System The System Information includes “Device Name, ” “Print Server Name, ” “Model Type, ” “System Up Time,” “Firmware Version, ” and “ MAC Address.”...

  • Page 106: Printer

    8.3.2 Prin ter This page lists printer information for the printers connected to the HPS1U’s port.

  • Page 107: Tcp/Ip

    8.3.3 TCP/IP This page lists all TCP/IP settings which include your HPS1U’s “IP Address,” “Subnet Mask, ” and “Gateway. ” It also lists the HPS1U’s DHCP server settings including your “Start IP,” “End IP, ” and “Domain. ”...

  • Page 108: Smb

    8.3.4 S M B This page lists the current SMB group name settings.
  • Page 109 8.3.5 SNMP This page displays the current SNMP settings.
  • Page 110 8.3.6 NetWare This page lists the HPS1U’s NetWare settings including “Polling Time,” “ Name of the File Server, ” and “Queue Name of each Port. ”...

  • Page 111: Appletalk

    8.3.7 AppleTalk This page lists the HPS1U’s AppleTalk settings includ ing “AppleTalk Zone Names” and your “Printer Type. ”...

  • Page 112: Setup Wizard

    System You also can configure the “Print Server Name,” assign a name for each printer port of the HPS1U, and Enable or Disable the print server’s wireless functionality. Printer Server Name: This is the name of the print server. You...
  • Page 113 8.5.1.1 Admin Password This is where you set the Administrative user name and password for the print server. User Name / Password is used to authenticate the administrator through the Web administration tool.
  • Page 114 8.5.1.2 Advanced Settings From the Advanced Settings page you can select to enable/disable each printing protocol or data protocol.

  • Page 115: Tcp/Ip

    -in DHCP server. You can enable this DHCP server and let it manage your IP address for you. If you need the HPS1U to automatically get an IP address from the DHCP server, select “ Auto IP.” You also can select “Specify IP”...
  • Page 116 “Gateway, ” and “DNS. ” The HPS1U will assign a unique IP address for each client.

  • Page 117: Netware

    8.5.3 NetWare The HPS1U supports the NetWare Bindery Printing method. The print server periodically polls the NetWare server printer queues for printing jobs. You have to assign the NetWare server name, print server polling interval, and the name of queue on the NetWare server for each printer port.
  • Page 118 NetWare Server is the name of the NetWare file server that provides printer queues.

  • Page 119: Appletalk

    AppleTalk workstations . You have to setup the “ Zone Name ” and “Printer Type” for each printer port of this print server. Zone Name: The HPS1U has to join an AppleTalk zone before it can be shared with other workstations. Only workstations in the same zone can share the printer.
  • Page 120 Printer Type: This is the type of printer attached to each printer port. You can get the printer type from the manufacturer of the printer.

  • Page 121: Save Settings

    8.5.6 Save Settings The “Save Settings” page will be displayed after you have finished and saved system configuration. You can click the “Save Settings” button to restart the system.

  • Page 122: System Tools

    System Tools 8.6.1 Load Default You can use this page to restore the factory default settings. All of your previous setup will be cleared.

  • Page 123: Upgrade Firmware

    8.6.2 Upgrade Firmware You can upgrade new firmware for the HPS1U from this page. Click “ Browse” to select the new firmware from your hard drive or CD and then click “O K.” T he firmware will take several minutes to update.

  • Page 124: Adding Printers Manually Through Windows

    A d d i n g P r i n t e r s M a n u a l l y t h r o u g h W i n d o w s...

  • Page 125: Windows 98/Nt/Me/2000

    WINDOWS 98/NT/Me/2000 Click the Start button, choose Setting è Printers Step7. Step8. Double click on Add Printer Select Local printer è click Next. Step9. Step10. Select your printer manufacturer and model, and then click Next.
  • Page 126 Step11. Choose the Print Server’s Network Port, which was created by the administrator or client installation process, and click Next. Step12. Complete the rest of the questions to finish the network printer setup.

  • Page 127: Windows Xp Setup

    Windows XP Setup Step1. Click the Start button; choose Control Panel è Printers and Faxes Step2. Click on Add a Printer Step3. The Add Printer Wizard will appear è Press Next. Step4. Select “Local printer attached to this computer” è Press Next.
  • Page 128 Step7. Please continue through the next couple of installation steps by pressing Next until your new printer is added to your computer. Press the finish button to finalize your configuration. Please repeat “add Printer” steps for every printer attached to the HPS1U.

  • Page 129: Ipp Printing

    1 0 . I P P P r i n t i n g...

  • Page 130: Introduction

    IPP printing functions through the operating system’s internal IPP functionality. IPP printing will let you share your network printer with any PC that can access the HPS1U print server by IP. You can even share your printer with users over the Internet who know your printer model, printer port, and IP address of your HPS1U.

  • Page 131: System Setup

    10.2 System Setup 10.2.1 Print Server Side It is not necessary to modify your IPP settings on the print server sid e. Make sure you know your print server’s IPP settings and make sure they are correctly set to your network’s IP settings .

  • Page 132: Client Side

    “ Next.” Select “Connect to a printer on the Internet or on a home or office network” and enter the URL of your HPS1U print server. The URL format will be “ ”. The IP portion h t t p : / / I P : 6 3 1/ L P T _ P O R T of the URL will be the print server’s IP address.
  • Page 133 complete the remaining configuration settings to access the shared network printer.

  • Page 134: Telnet Management

    1 1 . T e l n e t M a n a g e m e n t...

  • Page 135: Introduction

    11.1 Introduction The HPS1U Print server can be configured and managed through Telnet.

  • Page 136: Login

    11.2 Login Execute the Telnet client tool and connect to the print server IP. telnet 192.168.2.1 Then you will be prompted to enter the username and password. After you successfully enter the correct username and password, the following prompt will be displayed and you can start to manage this print server through command line statements .

  • Page 137: Get Setting Values - "Get" Command

    11.3 Get Setting Values – “get” Command The “get ” command is used to get the setting values of this print server. The format of the “ get” command is as follows : get argument The argument value will then be displayed after the command. For example, if I want to get the IP address of the print server, I type in the “get ip ”...
  • Page 138 USER_PASSWORD= ’1234’ username Login username admin# get username USER_NAME= ’admi n’ wlfunc Wireless LAN admin# get wlfunc function is enabled WIRELESS_FUNCTI or disabled ON=2 0: disabled 1: enabled 2: auto wlmode Wireless LAN mode admin# get wlmode is Infrastructure or AP_MODE=1 Ad Hoc 0: Infrastructure...
  • Page 139 channel Channel number used admin# get channel by wireless LAN CHANNEL=11 The mode of WEP admin# get wep 0: disable WEP=0 1: 64 bit WEP enabled 2: 128 bit WEP enabled defkey Default WEP key admin# get defkey number WEP_DEFAULT_KE 0: key 1 1: key 2 2: key 3...
  • Page 140 key642 64 bit WEP key 2 admin# get key641 WEP64_KEY2=0123 456789 key643 64 bit WEP key 3 admin# get key641 WEP64_KEY3=0123 456789 key644 64 bit WEP key 4 admin# get key641 WEP64_KEY4=0123 456789 key1281 128 bit WEP key 1 admin# get key1281 WEP128_KEY1=012 3456789 abcdef0123456789a...
  • Page 141 key1283 128 bit WEP key 3 admin# get key1283 WEP128_KEY3=012 3456789 abcdef0123456789a key1284 128 bit WEP key 4 admin# get key1284 WEP128_KEY4=012 3456789 abcdef0123456789a IP of the print server admin# get ip AP_ADDR=’192.168 .2.1’ gateway Default gateway of admin# get gateway the print server DEFAULT_GATEW AY=’192.168.2.254’...
  • Page 142 polling Polling interval (in admin# get polling second) of the print PORT1_POLLTIME server for waiting printing jobs on the NetWare server Name of the printer admin# get aq1 queue on the PORT1_ QNAME=’P NetWare server Q1’ applezone The name of admin# get AppleTalk zone that applezone...
  • Page 143 SNMPC The administrator admin# get SNMPC contact information SNMP_CONTACT=’ of this print server sbdjohn@hotmail.co for SNMP m’ SNMPL The installed admin# get SNMPL location of this print SNMP_LOCATION= server for SNMP ’Room 301’ port1 The port name of admin# get port1 this print server PORT1_LPTNAME= ’lpt1’...
  • Page 144 1: enable appletalk AppleTalk printing admin# get appletalk is enabled or APPLE_ENABLE=0 disabled 0: disable 1: enable SMBD SMB printing is admin# get SMBD enabled or disabled SMBD_ENABLE=1 0: disable 1: enable SNMP SNMP management admin# get SNMP protocol is enabled SNMP_ENABLE=1 or disabled 0: disable...
  • Page 145 0: disable 1: enable LPR printing is admin# get LPD enabled or disabled LPD_ENABLE=1 0: disable 1: enable IPP printing is admin# get IPP enabled or disabled IPP_ENABLE=1 0: disable 1: enable RAW printing is admin# get RAW enabled or disabled RAW_ENABLE=1 0: disable 1: enable...

  • Page 146: Modifying The Setting Values - "Set" Command

    11.4 Modifying the Setting Values – “set” Command The “set ” command is used to modify the setting values of this print server. The format of the “set” command is as follows : set argument_name value The value will be written into the system configuration. For example, if you want to set the IP address of the print server to 192.168.1.250, type the “set ip ‘192.168.1.250’”...
  • Page 147 wlfunc Enable or disable the set wlfunc auto wireless LAN function. The value should be “disabled ”, “enabled ” or “auto ” wlmode Wireless LAN mode set wlmode ad hoc is Infrastructure or Ad Hoc. The value should be “inf” or “ad hoc” ESSID ESSID of the set ESSID ‘default’...
  • Page 148 or “wep128” defkey Default WEP key set defkey 0 number. The value should be 0~3. 0: key 1 1: key 2 2: key 3 3: key 4 key641 64 bit WEP key 1. set key641 0123456789 The value should be 10 digit Hex value key642 64 bit WEP key 2.
  • Page 149 10 digit Hex value key644 64 bit WEP key 4. set key641 0123456789 The value should be 10 digit Hex value key1281 128 bit WEP key 1. set key1281 0123456789ab The value should be 26 dig it Hex value cdef0123456789a key1282 128 bit WEP key 2.
  • Page 150 IP of the print server set ip ‘192.168.2.1’ gateway Default gateway of set gateway the print server ‘192.168.2. 254’ submask Subnet mask of the set submask print server ‘255.255. 255.0’ polling Polling interval (in set polling 3 second) of the print server for waiting printing jobs on the NetWare server...
  • Page 151 printertype1 The type of the set printertype1 printer attached to ‘LaserW this print server riter’ SMBDG The name of the set SMBDG ‘default’ SMB group name that this print server joins to SNMPC The administrator set SNMPC contact information ‘sbdjohn@hotm of this print server ail.com’...
  • Page 152 “enabled ”. DHCP Enable or disable to set DHCP disable get dynamic IP by DHCP. The value should be “disabled ” or “enabled ”. appletalk Enable or disable set appletalk disable AppleTalk printing The value should be “disabled ” or “enabled ”.
  • Page 153 “enabled ”. Enable or disable set IPX enable NetWare Bindery printing The value should be “disabled ” or “enabled ”. Enable or disable set LPD enable LPR printing The value should be “disabled ” or “enabled ”. Enable or disable set IPP enable IPP printing The value should be...
  • Page 154 “enabled ”.

  • Page 155: Other Commands

    11.5 Other Commands 11.5.1 ipconfig The “ ipconfig ” command is used to quickly get the IP settings (IP, subnet mask, default gateway) of the print server: admin# ipconfig IP_ADDR=192.168.2.1 SUBNET_MASK=255.255.255.0 DEFAULT_GATEWAY=192.168.2.254 11.5.2 reboot The “reboot” command is used to restart the print server: admin# reboot 11.5.3 exit The “exit ”...
  • Page 156 set argument value get argument ipconfig reboot exit...

  • Page 157: Mac Os X Installation

    Windows compatible software. Give your print server a recognizable IP address that corresponds to your network. For this example, we will use 192.168.1.250 which is the default IP address for the Hawking print server line.

  • Page 158: Mac Only Environment

    12.1 Mac Only Environment If you are installing your print server in a “Mac only” environment and you have not previously configured the print server, please make sure you press down the “reset button” for 10 seconds continuously to reset the print server to the factory default settings with an IP address of 192.168.1.250.
  • Page 159 12.2 Mac or Mac + PC Environment 1) Open the "Applications:Utilities:Print Center" on your Mac computer 2) Click 'Add' (to add a new printer) 3) Select 'IP Printing' from the upper pop-down (If you have Mac os 10.3, make sure select LPD/LPR). 4) Enter print your server IP address: 192.168.1.250 (or whatever your print server is set to) in the 'Printer Address' field.

Table of Contents
