Nikon D2H Brochure & Specs

Nikon Digital SLR Camera D2 Specifications
H

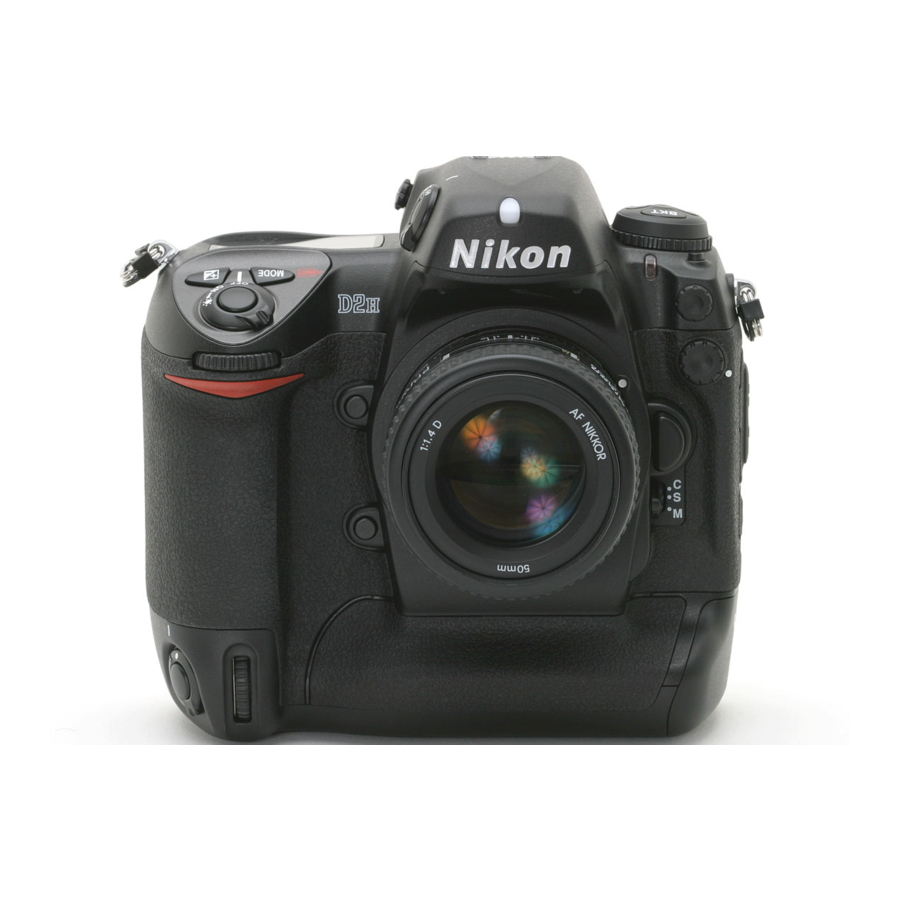

Type of Camera Lens-interchangeable digital SLR camera
Effective Pixels 4.1 million
Image Sensor JFET image sensor LBCAST, 23.3 x 15.5mm size, 4.26 million total pixels
Recording Pixels [L] 2,464 x 1,632-pixel / [M] 1,840 x 1,224-pixel
Sensitivity ISO equivalency 200 to 1,600 (variable in 1/2, 1/3, or 1EV steps),
Sensitivity can be extended by 1 or 2 steps beyond ISO 1,600
Storage System NEF (12-bit RAW uncompressed or lossless compression),
Exif 2.2 file (uncompressed TIFF-RGB or compressed JPEG)
Storage Media CompactFlash™ (CF) Card (Type I / II) and Microdrive™
Shooting Modes 1) Single frame shooting [S] mode: advances one frame for each shutter release
2) Continuous high shooting [C H ] mode: 8 frames per second (fps)
[up to 40 (JPEG) / 25 (RAW:NEF) consecutive shots]
3) Continuous low shooting [C ] mode: 1 to 7 fps (selectable from menus)
L
4) Self-timer mode: time duration can be set
5) Mirror up mode: first press: mirror up, second press: release
6) Playback mode: Menu mode
7) PC mode: data transfer via personal computer
8) Interval timer (Intervalometer) mode provided
White Balance 1) Auto (hybrid with 1,005-pixel CCD, LBCAST image sensor and
external Ambience Light Sensor
2) Manual (6 steps with fine tuning)
3) Preset (5 settings)
4) Color temperature setting in Kelvin (select from 31steps)
5) White Balance Bracketing (2 to 9 frames adjustable in 10,20,30 MIRED steps)
LCD Monitor 2.5-in., 211,200-dot, low temp. polysilicon TFT LCD with white LED backlighting;
Backlight/brightness adjustment available
Playback Function 1) Full frame, 2) Thumbnail (4/9 segments), 3) One-touch zoom,
4) Slideshow, 5) Histogram indication, and Highlight point display
Delete Function 1) Card format, 2) All frames delete, 3) Selected frames delete
Video Output NTSC or PAL (switchable)
Interface USB 2.0 (Hi-Speed) (Mini-B connector)
FTP file transfer available with optional Wireless Transmitter WT-1(IEEE 802.11b)
Voice Memo Record mode: Automatic or manual recording at shooting or playback, Max.
recording time: 60 seconds
Playback mode: Built-in speaker or Audio/Video cable
File format: Mono WAV file
Text Input Up to 30 characters of alphanumeric text input is available with LCD monitor and
multi-selector; stored in Exif header
Usable Lenses 1) AF Nikkor (including AF-S, DX, VR and D-/G-type) : All functions possible
2) D-type Manual-Focus Nikkor: All functions except autofocus and some
exposure modes available
3) AF Nikkor other than D-/G-type: All functions except 3D Color Matrix
Metering and 3D Multi-Sensor Balanced Fill-Flash possible
4) AI-P Nikkor: All functions except 3D Color Matrix Metering,
3D Multi-Sensor Balanced Fill-Flash and AF possible
5) Non-CPU AI Nikkor : Usable in [A] or [M] mode with Matrix-Metering,
Center-Weighted and Spot metering available. Indication of aperture No.,
after user inputs the aperture f/No. and focal length f=mm by multi-selector
operation.
Electronic Rangefinder usable with maximum aperture of f/5.6 or faster
Picture Angle Approx. 1.5x focal length in 35mm [135] format equivalent
Viewfinder Optical-type fixed eye-level pentaprism; Built-in diopter adjustment(-3 to +1m
Eyepiece shutter provided
Eyepoint 19.9mm (at -1.0m -1 )
Focusing Screen B-type BrightView Clear Matte Screen III;
Interchangeable with optional E-type finder screen with grid
Viewfinder Frame Coverage Approx. 100%
Viewfinder Magnification Approx. 0.86x with 50mm f/1.4 lens set to infinity and -1.0m -1
Reflex Mirror Automatic, instant-return type
Lens Aperture Instant-return type, with depth-of-field preview button
Autofocus TTL phase detection, Nikon Multi-CAM2000 autofocus module;
Detection range: EV -1 to +19 (ISO 100 equivalent, at normal temperature)
Lens Servo 1) Single Servo AF [S] , 2) Continuous Servo AF [C], 3) Manual focus [M]
Focus Tracking automatically activated by subject's status in [S] or [C] AF
Focus Area Selectable from 11 focus areas
AF Area Mode 1) Single Area AF, 2) Dynamic AF with Focus Tracking and Lock-on
3) Closest Subject Priority Dynamic AF, 4) Group Dynamic AF
Focus Lock Focus is locked by pressing AE/AF Lock button or lightly pressing shutter release
button in [S]AF .
TM
Digital DEE is a technology developed by Applied Science Fiction. CompactFlash
names are trademarks or registered trademarks of their respective companies. Images on LCDs and monitors shown in this brochure are simulated.
Specifications and equipment are subject to change without any notice or obligation on the part of the
manufacturer. August 2003
c 2003 NIKON CORPORATION
TO ENSURE CORRECT USAGE, READ MANUALS CAREFULLY BEFORE USING
WARNING
YOUR EQUIPMENT. SOME DOCUMENTATION IS SUPPLIED ON CD-ROM ONLY.
Fuji Bldg., 2-3, Marunouchi 3-chome, Chiyoda-ku,
Tokyo 100-8331, Japan
www.nikon-image.com/eng/
Printed in Japan (0308/A) Code No.00000000
Exposure Metering System TTL full-aperture exposure metering system;
1) D-/G-type Nikkor lenses support 3D Color Matrix Metering using the
1,005-pixel RGB CCD while other AF Nikkor lenses with built-in CPUs support
Matrix Metering (Non-CPU lenses require manual input of lens data)
2) Center-Weighted Metering (75% of the meter's sensitivity concentrated
on the 8mm dia. circle)
3) Spot Metering (3mm dia. circle, approx. 2% of entire frame); metering
position can be linked to the focus area when using Nikkor lenses with
built-in CPU
Exposure Metering Range 1) 3D Color Matrix Metering: EV 0 to 20
2) Center-Weighted Metering: EV 0 to 20
3) Spot Metering: EV 2 to 20
o o
[at normal temperature (20 C/68 F), ISO 100 equivalent, f/1.4 lens]
Exposure Meter Coupling CPU and AI (Automatic maximum aperture Indexing)
Exposure Mode 1) [P] Programmed Auto (Flexible program possible)
2) [S] Shutter-Priority Auto
3) [A] Aperture-Priority Auto
4) [M] Manual
Exposure Compensation Exposure compensated in ±5.0 EV range in 1/3, 1/2 or 1 EV steps
Auto Exposure Lock Detected exposure value locked by pressing AE-L/AF-L button
Auto Exposure Bracketing Number of shots: 2 to 9 frames
Compensation steps: 1/3, 1/2, 2/3, or 1EV steps
Shutter Electromagnetically controlled vertical-travel focal-plane shutter,
30 to 1/8,000 s and bulb
Sync Contact X-contact only: flash synchronization up to 1/250 s
Flash Control 1) New Creative Lighting System: i-TTL Balanced Fill-Flash controlled by
five-segment TTL Multi Sensor with Nikon Speedlight SB-800: Advanced
Wireless Lighting, FV (Flash Value) -lock, Flash Color Information
Communication for Auto White Balance, Auto FP High-Speed Flash
Sync, Modeling Flash
2) D-TTL Balanced Fill-Flash: When used with the Speedlight SB-80DX/50DX
and in accordance with the mounted lens, five-segment TTL Multi
Sensor control makes available 3D Multi-Sensor Balanced Fill-Flash,
Multi-Sensor Balanced Fill-Flash, and Standard D-TTL Balanced Fill-Flash
3) AA (Auto Aperture)-type Flash available when used with SB-800/80DX
and lens with built-in CPU
4) Non-TTL Auto Flash (A-type Flash) with a Speedlight
such as SB-30/27/22s etc.
Flash Sync Mode 1) Front-Curtain Sync (normal sync), 2) Red-Eye Reduction,
3) Red-Eye Reduction with Slow Sync, 4) Slow Sync, 5) Rear-Curtain Sync
Ready-light Lights up when flash fully charged with Speedlight SB-800/80DX/50DX/30/28/
27/22s; blinks for full output warning
Accessory Shoe ISO 518 standard-type hot shoe contact; Safety lock mechanism provided
Sync Terminal ISO 519 standard terminal, lock screw provided
Self-timer Electronically controlled; Timer duration: 2, 5, 10, and 20 seconds
Depth-of-field Preview Button Stop-down lens aperture by pressing depth-of-field preview button
Remote Control Via 10-pin remote terminal
Power Requirements Exclusive Rechargeable Li-ion Battery EN-EL4 (11.1V DC),
Battery Charger MH-21, Exclusive AC Adapter EH-6
Tripod Socket 1/4 in. (ISO1222)
Battery Monitoring System The LCD monitor on the camera back displays the following information
-1 ), about the EN-EL4 battery: 1) Remaining charge (%); 2) No. of shots taken
since last charge; 3) Calibration status (Recommended/Not required);
4) Battery life (5 stages)
Dimensions (W x H x D) Approx. 157.5 x 149.5 x 85.5mm (6.2 x 5.9 x 3.4 in.)
Weight (without battery) Approx. 1,070g (2.4lbs)
Supplied Accessories* Li-ion Battery EN-EL4, Quick Charger MH-21, Body Cap, Camera Strap
AN-D2H, AV Cable EG-D2, USB Cable UC-E4, LCD Monitor Cover BM-3,
Nikon View Software CD-ROM
Optional Accessories Wireless Transmitter WT-1/1A, Extension Antenna WA-E1, AC Adaptor EH-6,
E-type Finder Screen, Anti-fog Finder Eyepiece DK-17A, Eyepiece Correction
Lens DK-17C series, Speedlight SB-800/80DX/50DX, Nikon Capture 4 software,
CompactFlash™ card
*Supplied accessories may differ in each country or area
TM ,
Note:
DX Nikkor lenses are designed exclusively for Nikon digital SLRs and their DX format Sensor.
When selecting a lens for use on a Nikon D-Series SLR, pay special attention to the angle of
view that is possible with each selected focal length.
All Nikon D-Series SLRs will provide the same angle of view with each DX Nikkor and AF Nikkor
lens. The shorter focal length DX Nikkor optics provide the widest available angle of view.
TM
is a trademark of SanDisk Corporation. Products and brand
