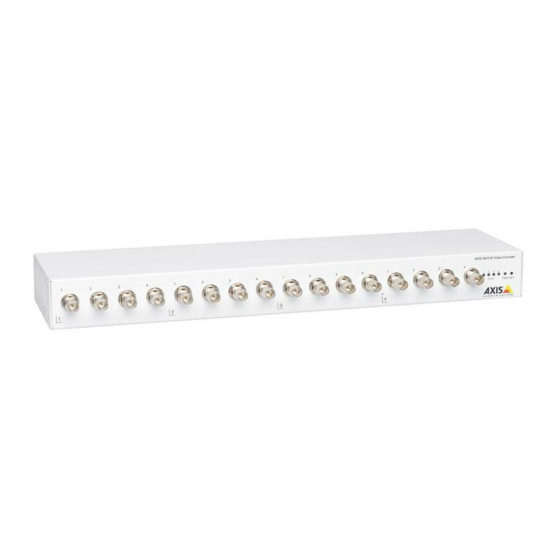

AXIS M7016 Video Encoder

User Manual

Advertisement

Table of Contents
loading

Related Manuals for Axis M7016

Summary of Contents for Axis M7016

  • Page 1: User Manual

    AXIS M7016 Video Encoder User Manual...
  • Page 2 This manual is intended for administrators and users of the • Low Voltage (LVD) Directive 2014/35/EU. See Safety on page 2 . AXIS M7016 Video Encoder, and is applicable to firmware 5.90 and • Restrictions of Hazardous Substances (RoHS) Directive 2011/65/EU.
  • Page 3 • find answers to resolved problems in the FAQ database. Search by product, category, or phrase • report problems to Axis support staff by logging in to your private support area • chat with Axis support staff •...

  • Page 4: Table Of Contents

    Camera Tampering ..........AXIS Video Motion Detection ....... . .
  • Page 5 AXIS M7016 Video Encoder Table of Contents Advanced ............

  • Page 6: Safety Information

    AXIS M7016 Video Encoder Safety Information Safety Information Hazard Levels DANGER Indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

  • Page 7: Hardware Overview

    AXIS M7016 Video Encoder Hardware Overview Hardware Overview Video input connector BNC x16 Status LED 1–4 Power LED Network activity LED RJ45 Restart button Power connector Network connector RJ45 Card slot microSD x4 RS-485/422 connector x4 Control button x4 Protective earth Connectors and Buttons For technical specifications, see page 60.

  • Page 8: Led Indicators

    Resetting the product to factory default settings. See page 54. • Connecting to an AXIS Video Hosting System service. See page 46. To connect, press and hold the button for about 3 seconds until the Status LED flashes green. •...
  • Page 9 AXIS M7016 Video Encoder Hardware Overview Power LED Indication Green Normal operation. Amber Flashes green/amber during firmware upgrade.

  • Page 10: Access The Product

    If you do not know the IP address, use AXIS IP Utility to locate the product on the network. For information about how to discover and assign an IP address, see the document Assign an IP Address and Access the Video Stream on Axis Support web at www.axis.com/techsup...

  • Page 11: Set The Root Password

    Set the Root Password To access the Axis product, you must set the password for the default administrator user root. This is done in the Configure Root Password dialog, which opens when the product is accessed for the first time.
  • Page 12 2. Under Action Buttons, select Show manual trigger button. AXIS Media Control viewer toolbar The AXIS Media Control viewer toolbar is available in Internet Explorer only. See AXIS Media Control (AMC) on page 14 for more information. The toolbar displays the following buttons: The Play button connects to the Axis product and starts playing a media stream.
  • Page 13 AXIS M7016 Video Encoder Access the Product Focus bar – Click on a position on the focus bar to set the focus position. This will disable the product’s autofocus. To re-enable, use the PTZ control panel which is opened by clicking the Ctrl panel button (see above). If autofocus is enabled, Auto is visible next to the Focus bar.

  • Page 14: Media Streams

    Note also that all multicast viewers count as one unicast viewer in the maximum total of 20 simultaneous connections. AXIS Media Control negotiates with the Axis product to determine the transport protocol to use. The order of priority, listed in the AMC Control Panel, can be changed and the options disabled, to suit specific requirements.

  • Page 15: Alternative Methods Of Accessing The Video Stream

    AXIS M7016 Video Encoder Media Streams The AMC Control Panel can be used to configure various video settings. Please see the AXIS Media Control User’s Manual for more information. The AMC Control Panel is automatically installed on first use, after which it can be configured. Open the AMC Control Panel from: •...
  • Page 16 • The Axis product supports QuickTime 6.5.1 and later. • QuickTime may add latency to the video stream. • It may be possible to use other players to view the H.264 stream using the paths above, although Axis does not guarantee this.

  • Page 17: Set Up The Product

    Set Up the Product Set Up the Product The Axis product can be configured by users with administrator or operator rights. To open the product’s Setup pages, click Setup in the top right-hand corner of the Live View page. •...

  • Page 18: Video

    Maximum frame rate. To avoid bandwidth problems, the frame rate allowed to each viewer can be Limited to a fixed amount. Alternatively, the frame rate can be set as Unlimited, which means the Axis product always delivers the highest frame rate possible under the current conditions.

  • Page 19: Quad Stream

    The GOP length is the number of frames between two consecutive I-frames. Increasing the GOP length may save considerably on bandwidth requirements in some cases, but may also have an adverse affect on image quality. The Axis product supports the following H.264 profile(s): •...

  • Page 20: Onvif Media Profiles

    To add a new ONVIF media profile, click Add and enter the required information. You can also modify or remove a profile from this page. Camera Settings The Video > Camera Settings page provides access to advanced image settings for the Axis product. Image Appearance To change Image Appearance go to the menus under Setup > Video > Camera Settings.

  • Page 21: Privacy Mask

    Privacy masks cannot be bypassed using the VAPIX® application programming interface (API). The Privacy Mask List (Video > Privacy Mask) shows all the masks that are currently configured in the Axis product and indicates if they are enabled.

  • Page 22: Configure The Live View Page

    Viewer Settings To configure options for the viewer, go to Live View Config > Viewer Settings. • Select Show viewer toolbar to display the AXIS Media Control (AMC) or the QuickTime viewer toolbar under the video image in your browser. •...
  • Page 23 AXIS M7016 Video Encoder Configure the Live View Page User Defined Links To display user-defined links in the Live View page, select the Show custom link option, give the link a name and then enter the URL to link to. When defining a web link do not remove the 'http://' from the URL address. Custom links can be used to run scripts or activate external devices connected to the product, or they can link to a web page.

  • Page 24: Ptz (Pan Tilt Zoom)

    For more information see the online help Install PTZ Driver This Axis product supports several PTZ devices. Please see www.axis.com for a complete list of supported devices, and to obtain the correct driver. To install a PTZ device you need to install the PTZ driver.

  • Page 25: Advanced

    Light Control Video Source • Extended Driver Specific Settings for Video Source For download and installation information about PTZ drivers for your Axis product please visit www.axis.com/techsup/ Controls Advanced PTZ settings can be configured under PTZ > Advanced > Controls.
  • Page 26 60 seconds after the last PTZ control command. 2. Event — The Axis product can be configured to go to a preset position when triggered by an alarm (see Events on page 33). The event will immediately be placed first in the queue except when an administrator is in control.

  • Page 27: Detectors

    AXIS M7016 Video Encoder Detectors Detectors Camera Tampering Camera Tampering can generate an alarm whenever the camera is repositioned, or when the lens is covered, spray-painted or severely defocused. To send an alarm, for example an email, an action rule must be set up.

  • Page 28: Axis Video Motion Detection

    AXIS Video Motion Detection is an application that detects moving objects in the camera’s field of view. When a moving object is detected, AXIS Video Motion Detection sends an alarm that can be used by the Axis product or by third-party software to, for example, record video or send a notification.
  • Page 29 Note To add and modify exclude areas, Internet Explorer and AXIS Media Control (AMC) must be used. To add an exclude area, click Add. The default exclude area is a rectangle placed in the center of the image. Use the mouse to move, reshape and resize the area so that it covers the desired part of the image.
  • Page 30 • Enabling visual confirmation may introduce video latency. Ignore Filters If AXIS Video Motion Detection 3 detects too many unwanted objects, start by modifying the include and exclude areas. If still too many objects are detected, use one or more of the ignore filters.
  • Page 31 AXIS M7016 Video Encoder AXIS Video Motion Detection 4. Click Save to apply the filter. 5. Use visual confirmation to verify the settings. 6. If the result is not satisfactory, increase the filter size in small steps. The filter size can also be set by entering a value between 10 and 50 in the field. The value corresponds to the distance from the center of the cross to one of the arrowheads.

  • Page 32: Using The Application In An Action Rule

    The following example shows how to configure the Axis product to record video when AXIS Video Motion Detection 3 detects motion. 1. Insert an SD card in the Axis product, or go to Setup > System Options > Storage in the Axis product’s webpages and configure the product to use a network share.

  • Page 33: Events

    Convert Event Types to Action Rules If the Axis product is upgraded to firmware version 5.40 or later, it is recommended to convert Event Types to Action Rules. The legacy user Event Types in the camera will continue to work but will not be visible in the user interface of the camera. The Event Types need to be converted to Action rules to become visible in the user interface.
  • Page 34 AXIS M7016 Video Encoder Events Triggers Available action rule triggers and conditions include: VMD3 – Trigger the rule when AXIS Video Motion Detection detects a moving object. See AXIS Video Motion Detection. • Detectors Live Stream Accessed – Trigger the rule when any stream is accessed and during edge storage playback.

  • Page 35: Add Recipients

    AXIS M7016 Video Encoder Events Actions Available actions include: • Overlay Text – Display an overlay text. See How to include overlay text in an action rule on page 21. • PTZ Control Preset Position – Go to a preset position.
  • Page 36 Optionally, select Use encryption to send emails over an encrypted connection. The server certificate can be validated using the certificates available in the Axis product. For information on how to upload certificates, see Certificates on page 44.

  • Page 37: Create Schedules

    AXIS M7016 Video Encoder Events Create Schedules Schedules can be used as action rule triggers or as additional conditions, for example to record video if motion is detected outside office hours. Use one of the predefined schedules or create a new schedule as described below.

  • Page 38: Recordings

    Note The recording’s start date and time is set according to the Axis product’s date and time settings. If the Axis product is configured to use a time zone different from the local time zone, make sure to configure the Recording time filters according to the product’s time zone.

  • Page 39: Export Video Clip

    Note The exported recording is a Matroska video file (.mkv). To play the recording in Windows Media Player, AXIS Matroska File Splitter must be installed. AXIS Matroska File Splitter can be downloaded from www.axis.com/techsup/software To export a video clip, follow these steps: 1.

  • Page 40: Continuous Recording

    Continuous Recording The Axis product can be configured to continuously save video to a storage device. For information about storage devices, see Storage on page 50. To prevent the disk from becoming full, it is recommended to configure the disk to automatically remove old recordings.

  • Page 41: Languages

    Languages Multiple languages can be installed in the Axis product. All web pages including the online help will be displayed in the selected language. To switch languages, go to Setup > Languages and first upload the new language file. Browse and locate the file and click the Upload Language button.

  • Page 42: System Options

    IP address filtering is enabled on the System Options > Security > IP Address Filter page. Once enabled, the listed IP address are allowed or denied access to the Axis product. Select Allow or Deny from the list and click Apply to enable IP address filtering.
  • Page 43 4. Set the HTTPS Connection Policy for the different user groups. 5. Click Save to enable the settings. To access the Axis product via the desired protocol, in the address field in a browser, enter https:// for the HTTPS protocol and http:// for the HTTP protocol.

  • Page 44: Date & Time

    Axis product: Server/Client certificates - To authenticate the Axis product. CA certificates - To authenticate peer certificates, for example the certificate of an authentication server in case the Axis product is connected to an IEEE 802.1X protected network.

  • Page 45: Network

    IPv4 Address Configuration By default, the Axis product is set to use IPv4 (IP version 4) and to obtain the IP address automatically via DHCP. The IPv4 settings are configured under System Options > Network > TCP/IP > Basic.
  • Page 46 5. Close the command prompt when the product responds with Reply from 192.168.0.125:... or similar. 6. Open a browser and type http://<IP address> in the Location/Address field. For other methods of assigning the IP address, see the document Assign an IP Address and Access the Video Stream on Axis Support web at www.axis.com/techsup Note •...
  • Page 47 Host Name Configuration The Axis product can be accessed using a host name instead of an IP address. The host name is usually the same as the assigned DNS name. The host name is configured under System Options > Network > TCP/IP > Advanced.
  • Page 48 (LAN) from the public network (Internet). Use NAT traversal when the Axis product is located on an intranet (LAN) and you wish to make it available from the other (WAN) side of a NAT router.
  • Page 49 Note All AXIS Video MIB traps are enabled when SNMP v1/v2c traps are enabled. It is not possible to turn on or off specific traps. SNMP v3 provides encryption and secure passwords. To use traps with SNMP v3, an SNMP v3 management application is required.

  • Page 50: Storage

    To prevent corruption of recordings, the SD card should always be unmounted before it is ejected. The SD card is automatically mounted when the card is inserted into the Axis product or when the product is started. A manual mount is only required if the card has been unmounted and not ejected and re-inserted.
  • Page 51 Formatting the SD card will remove all data and recordings stored on the card. The Axis product can be configured to automatically format SD cards that are inserted into the product. If autoformat is enabled and an SD card is inserted, the product will check if the SD card has the ext4 file system. If the card has a different file system, the card will automatically be formatted to ext4.

  • Page 52: Ports & Devices

    6. Click Connect. To clear all recordings and data from the Axis product’s folder on the designated share, click Clear under Storage Tools. To avoid filling the share, it is recommended to remove recordings continuously. Under Recording Settings, select Remove recordings older than and select the number of days or weeks.

  • Page 53: Maintenance

    The Axis product provides several maintenance functions. These are available under System Options > Maintenance. Click Restart to perform a correct restart if the Axis product is not behaving as expected. This will not affect any of the current settings.

  • Page 54: Advanced

    For more information, see www.axis.com/developer File Upload Files, for example webpages and images, can be uploaded to the Axis product and used as custom settings. To upload a file, go to System Options > Advanced > File Upload. Uploaded files are accessed through http://<ip address>/local/<user>/<file name> where <user> is the selected user group (viewer, operator or administrator) for the uploaded file.
  • Page 55 AXIS M7016 Video Encoder System Options To reset the product to the factory default settings: 1. Disconnect power from the product. 2. Press and hold the control button and reconnect power. See Hardware Overview on page 7 . 3. Keep the control button pressed for 15–30 seconds until the status LED indicator flashes amber.

  • Page 56: Troubleshooting

    The latest version may contain a correction that fixes your particular problem. The current firmware version in the Axis product is displayed in the page Setup > Basic Setup and in Setup > About.

  • Page 57: Symptoms, Possible Causes And Remedial Actions

    Status indicator. 5. Reinstall the product, referring to the Installation Guide. If the emergency recovery procedure does not get the product up and running again, contact Axis support at www.axis.com/techsup/ Symptoms, Possible Causes and Remedial Actions Problems setting the IP address Try the installation again.
  • Page 58 Check in the AMC Control Panel (H.264 tag) that video processing is NOT set to Decode only key frames. Lower the image resolution. The maximum frames per second is dependent on the utility frequency (60/50 Hz) of the Axis product. See Technical Specifications on page 60. Status and Network indicator LEDs are flashing red rapidly Hardware failure Contact your Axis reseller.
  • Page 59 AXIS M7016 Video Encoder Troubleshooting Storage and disk management problems Storage disruption A storage disruption alarm is sent if a storage device is unavailable, removed, full, locked or if other read or write problems occur. To identify the source of the problem, check the System Log under System Options >...

  • Page 60: Technical Specifications

    AXIS M7016 Video Encoder Technical Specifications Technical Specifications Item Specifications Function/group Video Encoder Model AXIS M7016 (16 channels) Pan/Tilt/Zoom Wide range of analog PTZ cameras supported (drivers available for download at www.axis.com) 100 presets/camera, guard tour, PTZ control queue Supports Windows compatible joysticks...
  • Page 61 Technical Specifications Item Specifications Function/group System Application Open API for software integration, including VAPIX® from Axis Communications available Integration Programming at www.axis.com Includes the ONVIF specification available at www.onvif.org Interface Support for AXIS Video Hosting System (AVHS) with One-Click Camera connection...

  • Page 62: Connectors

    English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese Warranty Axis 3-year warranty and AXIS Extended Warranty option, see www.axis.com/warranty Connectors Power Connector 2-pin terminal block for DC power input. Use a Safety Extra Low Voltage (SELV) compliant limited power source (LPS) with either a rated output power limited to ≤100 W or a rated output...
  • Page 63 Heavy network utilization due to poor infrastructure. Bandwidth affected. • Viewing on poorly performing client computers lowers perceived performance. Frame rate affected. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance.
  • Page 64 User Manual Ver. M4.3 AXIS M7016 Video Encoder Date: February 2016 © Axis Communications AB, 2013 - 2016 Part No. 54592...
