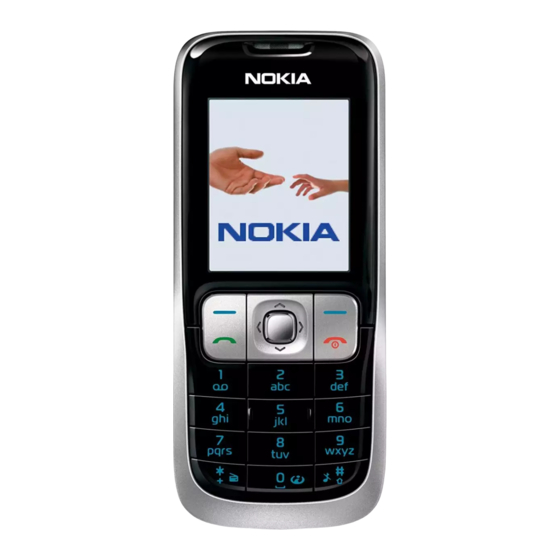

Nokia 2630 Service Manual

Hide thumbs Also See for 2630:
Table of Contents

Advertisement

Quick Links

See also: Configuration Manual , User Manual
Page

(7)
SERVICE MANUAL
Level &2
RM-298/299
CONFIDENTIAL
Copyright © 2007 NOKIA. All rights reserved.
Transceiver characteristics:
Band:
RM-298: EGSM: Dual-band 900/1800MHz
RM-299: GSM: Dual-band 850/1900MHz
WCDMA: ------------------
Display:
LCD: 128x240 pixel TFT with 65k colors display
Camera:
Camera: VGA 300k pixel with 4x digital zoom
Operating System:
Series 40
Connections:
Wireless: Bluetooth
Connector: Easy Flash II Connector
Memory:
------------
Transceiver with BL-4B Li-Ion battery pack
Talk time
up to 6h
N2630 RM-298/RM-299
Service Manual Level &2
Standby
Note
Depends on network
up to 13days
parameters
ISSUE

Advertisement

Table of Contents
loading

Related Manuals for Nokia 2630

Summary of Contents for Nokia 2630

  • Page 1 Wireless: Bluetooth Connector: Easy Flash II Connector Memory: ------------ Transceiver with BL-4B Li-Ion battery pack Talk time Standby Note Depends on network up to 6h up to 13days parameters Page (7) ISSUE  CONFIDENTIAL Copyright © 2007 NOKIA. All rights reserved.

  • Page 2: Table Of Contents

    CHANGE HISTORY COPYRIGHT WARNINGS AND CAUTIONS ESD PROTECTION CARE AND MAINTENANCE BATTERY INFORMATION EXPLODED VIEW SPARE PARTS OVERVIEW HANDLING WASTE / RECYCLING IN NOKIA REPAIR SERVICE LEVEL 2 SOLDER COMPONENTS SERVICE TOOLS SW-UPDATE UPPER BLOCK DISASSEMBLY ASSEMBLY HINTS Page (7)

  • Page 3: Change History

    Approved The purpose of this document is to help NOKIA service levels 1 and 2 workshop technicians to carry out service to NOKIA products. This Service Manual is to be used only by authorized NOKIA service suppliers, and the content of it is confidential.

  • Page 4: Esd Protection

    5. Ensure all cables and wires are repositioned correctly. ESD PROTECTION Nokia requires that service points have sufficient ESD protection (against static electricity) when servicing the phone. Any product of which the covers are removed must be handled with ESD protection. The SIM card can be replaced without ESD protection if the product is otherwise ready for use.

  • Page 5: Battery Information

    Batteries’ performance is particularly limited in temperatures well below freezing. Do not dispose batteries in a fire! Dispose of batteries according to local regulations (e.g. recycling). Do not dispose as household waste. Page (7) ISSUE  CONFIDENTIAL Copyright © 2007 NOKIA. All rights reserved.

  • Page 6: Exploded View

    N2630 RM-298/RM-299 Service Manual Level &2 EXPLODED VIEW See corresponding ITEM/CIRCUIT REF in the Spare Parts Service Bulletins on NOL. Page (7) ISSUE  CONFIDENTIAL Copyright © 2007 NOKIA. All rights reserved.

  • Page 7: Spare Parts Overview

    N2630 RM-298/RM-299 Service Manual Level &2 SPARE PARTS OVERVIEW Page (7) ISSUE  CONFIDENTIAL Copyright © 2007 NOKIA. All rights reserved.

  • Page 8: Handling Waste / Recycling In Nokia Repair Service

    N2630 RM-298/RM-299 Service Manual Level &2 HANDLING WASTE / RECYCLING IN NOKIA REPAIR SERVICE Please refer to the document “Handling Waste in NOKIA Repair Service” on your local delivery server e.g. NOL. Page (7) ISSUE  CONFIDENTIAL Copyright © 2007 NOKIA. All rights reserved.

  • Page 9: Level 2 Solder Components

    N2630 RM-298/RM-299 Service Manual Level &2 LEVEL 2 SOLDER COMPONENTS Page (7) ISSUE  CONFIDENTIAL Copyright © 2007 NOKIA. All rights reserved.
  • Page 10 Service Bulletin (SB-011) on NOKIA On- line. Supplier or manufacturer contacts for tool re-order can be found in “Recom- mended service equipment” docu- ment on NOKIA Online. Page (7) ISSUE  CONFIDENTIAL Copyright © 2007 NOKIA. All rights reserved.

  • Page 11: Sw-Update

    To use FLS-5 Flash Dongle you have to follow the user guide inside the sales package. Please check always for the latest version of flash software, which is available on NOKIA Online. Choose the CA-2DS service cable. Page (7) ISSUE  CONFIDENTIAL Copyright © 2007 NOKIA. All rights reserved.

  • Page 12: Upper Block Disassembly

    UPPER BLOCK DISASSEMBLY 1. Nokia 2630 disassembly and assembly hints 2. You will need the Nokia Standard Toolkit version 2 as well as the camera removal tool SS-88. Also refer to the General Mechanical Guideline Video for additional hints about the tools and component handling.
  • Page 13 11.Carefully flip over the C-COVER ASSY now, keep in mind that 12. Be double careful while opening the connector with the SRT- the flex foil is still connected. Page (7) ISSUE  CONFIDENTIAL Copyright © 2007 NOKIA. All rights reserved.
  • Page 14 16. Separate the ENGINE SHIELDING ASSY from the C-COVER. any adhesive residues from the shield. 17. Carefully open the vibra connector with the dental pick. 18. Unlock the clips of the D-COVER with the SRT-6… Page (7) ISSUE  CONFIDENTIAL Copyright © 2007 NOKIA. All rights reserved.
  • Page 15 21. Open the flex connector of the display with the SS-93. 22. Now these parts can be separated. 23. Lift out the CAMERA MODULE with the SS-88. 24. Careful lever out the glued in VIBRA MOTOR. Page (7) ISSUE  CONFIDENTIAL Copyright © 2007 NOKIA. All rights reserved.
  • Page 16 25. The adhesive gasket should stay at the VIBRA MOTOR. Mind that no adhesive residues remains in the cover before replacing a new VIBRA MOTOR. The disassembling procedure is now completed. Page (7) ISSUE  CONFIDENTIAL Copyright © 2007 NOKIA. All rights reserved.

  • Page 17: Assembly Hints

    1. Assembly Hints: Apply the torque of 15 Ncm to the four 2. Tighten these 2 screws with a torque of 15Ncm, too. Mind the screwing order. screws in the order shown. Page (7) ISSUE  CONFIDENTIAL Copyright © 2007 NOKIA. All rights reserved.
