Summary of Contents for New Holland FR9000

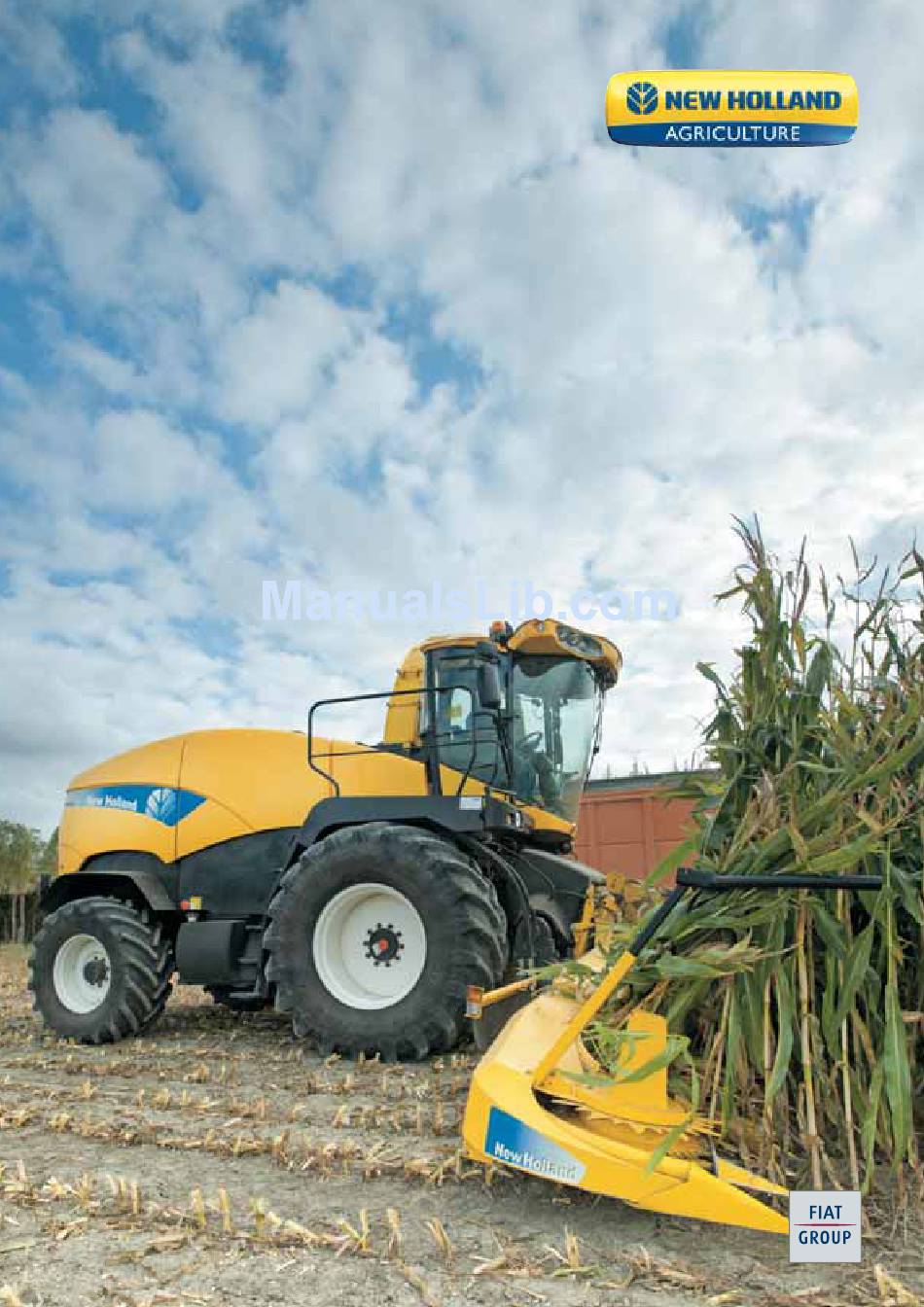

- Page 1 NEW HOLLAND FR9OOO FR9O4O FR9O5O FR9O6O FR9O8O FR9O9O...
- Page 2 In 1961 the first self propelled forage harvester made its appearance in the large fields of North America. It was a New Holland, Model SP 818. For more than 50 years, New Holland has been the leading brand, at the...
- Page 3 ● ● Standard (**) ISO 14396 - ECE R120 Built in the Centre of Excellence The FR9000 is built in the Zedelgem site, New Holland’s “Centre of Excellence for Harvesting Equipment”, by dedicated people, specialists in their undertaking, who know what total customer satisfaction means, both in terms of harvesting performance and on-the-job-reliability.
- Page 4 For increased chopping capacity, spreading the crop over a wider cutting line reduces the crop layer thickness and smoothens the cutting action. On the FR9000 models more crop is spread by the 860mm wide feed rolls which efficiently feed it to the 885mm wide...
- Page 5 Powerful blowing No limitations in the blowing of the chopped material: the spout of the FR9000 models is 330mm wide: the widest available! The maximum height of the spout is 6.40m. which means that it easily fills forage trailers of any size.
- Page 6 2100 A torque rise of 25% over a small rpm reduction within the true operating zone from 2100 to 1800rpm, will keep the FR9000 going in even the toughest of conditions. Driving confidence of the highest level! Power This massive torque rise furthermore translates...
- Page 7 Power Cruise™ II system strives for optimum fuel efficiency and the highest work rate The Power Cruise™ II system is the next generation of New Holland’s new drive concept. The system automatically adapts engine speed and ground speed of the forage harvester, depending on the actual crop load conditions.
- Page 8 Designed for efficiency For maximum power efficiency, the heavy-duty drive line of the FR9000 forage harvester range is based on a single engine power source. The important advantages of this technology include straight-forward power transmissions without a complicated engine coupling requirement.
- Page 9 Direct drivelines increase efficiency Unlike competitive designs, all the drivelines on FR9000 start off directly from the gearbox, this is so each one only transfers the power required for its specific function. This parallel system of power transfer greatly adds to the efficiency of the power transmission.
- Page 10 Cutting costs while chopping more.
- Page 11 SAVING ON FUEL. Engineered to save on fuel: Turbo compound engine New Holland recognises the benefits of the Turbo Compound technology and is the first brand to apply it in agricultural equipment. By using the energy that is left in the exhaust gases leaving the turbo charger, this state of the art technology reduces the fuel consumption by up to 8% with the same engine power.
- Page 12 MINIMAL MAINTENANCE COSTS. Built to last FR9000 forage harvesters have simple drivelines and the maintenance requirements are limited. Accessibility is high enabling easy to carry out service intervals. Filling up with fuel does not require any effort. Driveline reliability is further increased as the belt drive to cutterhead, blower and crop processor, is independent from the power allocated to the HydroLoc™...
- Page 13 2 minutes by one person without tools. While switching positions there’s no need to worry about the belt tension anymore, with New Holland’s patented tensioning system ensuring the correct belt tension in both positions.
- Page 14 Depending on the crop and the feedstuff mixing and distribution system, there are specific needs in terms of chop quality and crop processing. New Holland FR9000 forage harvesters offer exactly what is required whatever the crop and the customer preference.
- Page 15 UNIFORM KERNEL PROCESSING. Maximum precision For a uniform kernel cracking, the processing rolls on FR9000 models have a full 750mm width. In line with the wide cutterhead the crop is spread over a wide passage thus reducing the layer thickness and allowing a more precise processing.
- Page 16 The Power Cruise™ II system takes the burden out of driving the New Holland FR9000. It ensures that engine speed to transmission ratio is always adjusted to the highest degree of efficiency.
- Page 17 New Holland FR9000 forage harvesters - Unequalled visibility of the crop in front of the machine, to the side whilst loading and to the rear.
- Page 18 Permanently operating with the right information is a prerequisite for maximum capacity. The new IntelliView™ III touch screen monitor, also used on the New Holland flagship combines of the CX and CR ranges, has a wide colour screen. It displays all types of information and is also the interface to control and set up certain functionalities.
- Page 19 This location indication is even more important on the FR9000 models because of the wide chopping unit. The HydroLoc™ feedroll drive system also ensures an instant response in case of metal detection.
- Page 20 Superb sweep of the heaviest windrows Sweeping fields clean is a fast operation with the New Holland 200FP grass pick-up. Close tine spacing and an auger with retractable fingers are part of the proven technology which ensures the best possible feeding.
- Page 21 New Holland 570FW Discbine For high speed operation in whole crop, a heavy-duty rotary mower can be fitted. With a working width of 5.50m, the New Holland design includes large knife overlap, hydraulic header tilt and the ShockPRO system with individual disc...
- Page 22 New Holland 400FI series maize headers are a powerful link in the high performance maize silage operation. Heavy crops are processed at an impressive pace: the maize headers are a perfect match to the FR9000 capacity. New Holland 400FI series maize headers take any size of maize...
- Page 23 High fodder concentrates Maize cobs produce a high nutritious fodder. When equipped with an adapter kit, the FR9000 can operate a New Holland combine maize header, thus extending the unit’s potential. Row guidance improves comfort and productivity The optional Automatic row guidance system allows the operator to concentrate on the job in hand.
- Page 24 NEW HOLLAND OFFERS SO MUCH MORE. Protect your crop quality The silage additive pump, available on the FR9000 range, enables you to preserve the quality of your silage. The 285 litre tank will last throughout a day's harvesting and is controlled via IntelliView™ III touch screen.
- Page 25 A dealer technician certification programme helps ensure customers get the professional technical support they expect every time. To support this programme New Holland has created an online tool to train and develop the knowledge and skills of all technicians at New Holland dealerships.
-
Page 26: Specifications
SPECIFICATIONS Models Engine Brand / Type Cylinders / Displacement Rated power ISO 14396 - ECE R120 at 2100rpm Max. power ISO 14396 - ECE R120 at 2000rpm Max. torque ISO 14396 - ECE R120 at 1500rpm Fuel tank capacity (standard) Additional fuel tank (optional) Feeding Length of cut adjustment... - Page 27 Models Transmission Number of forward gears (remote controlled) Differential lock Mechanical 4WD Final drive ratio Max. drive speed at 1400rpm 40kph Air suspended seat Instructor’s seat IntelliView™ III touch screen colour monitor with adjustable position Up to 3 Viewing Camera’s Air conditioning Automatic climate control with removable coolbox and sun visor Heating...
- Page 28 The drawings and photos may refer to equipment that is either optional or intended for other countries. Please apply to our Sales Network for any further information. Published by New Holland Brand Communications. Bts Adv. - Printed in Italy - 07/10 - TP01 - (Turin) - 103001/INB TOP PRIORITY.
