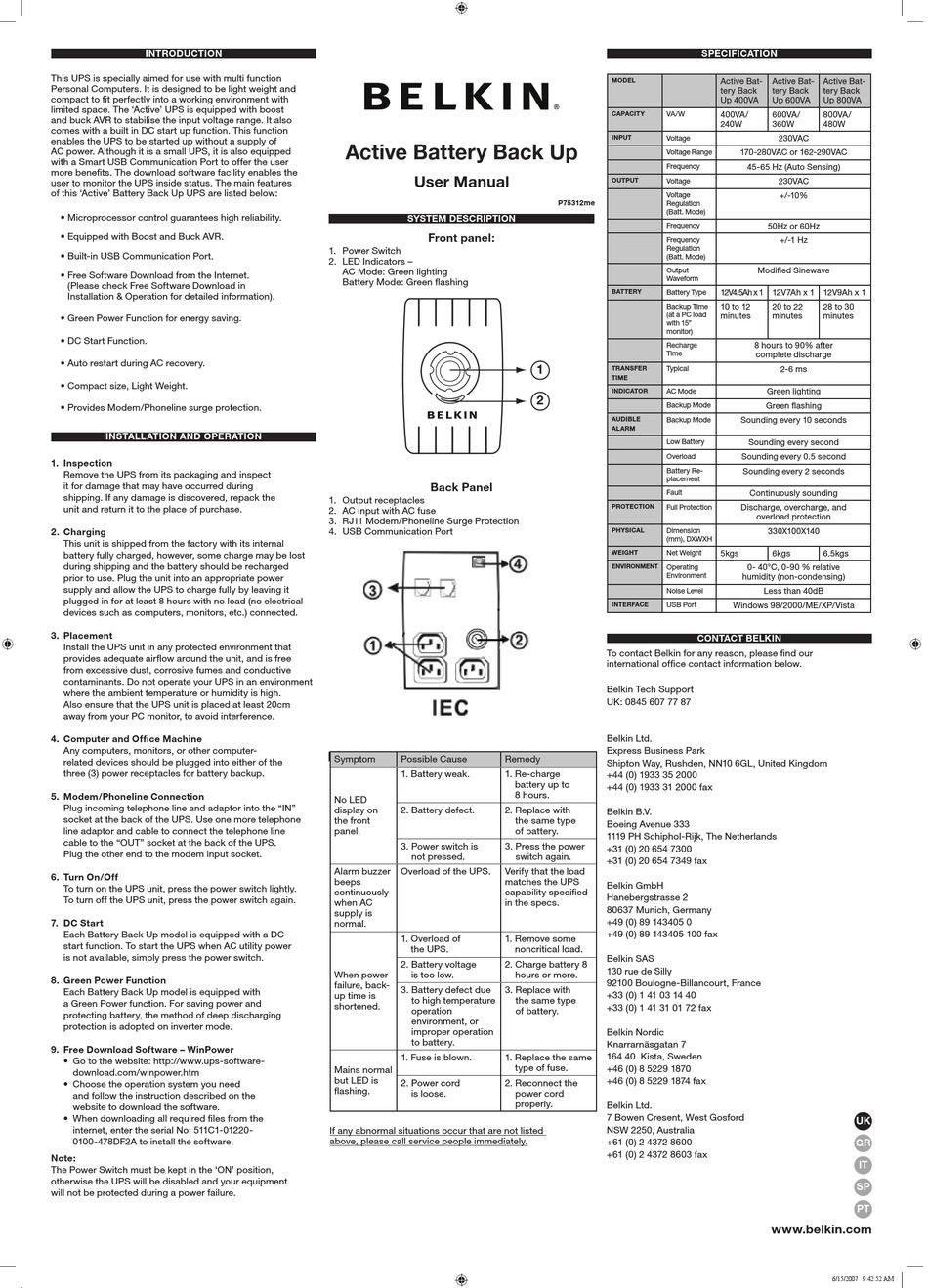

Belkin 400va User Manual

INTRODUCTION
This UPS is specially aimed for use with multi function
Personal Computers. It is designed to be light weight and
compact to fit perfectly into a working environment with
limited space. The 'Active' UPS is equipped with boost
and buck AVR to stabilise the input voltage range. It also
comes with a built in DC start up function. This function
enables the UPS to be started up without a supply of
AC power. Although it is a small UPS, it is also equipped
with a Smart USB Communication Port to offer the user
more benefits. The download software facility enables the
user to monitor the UPS inside status. The main features
of this 'Active' Battery Back Up UPS are listed below:
• Microprocessor control guarantees high reliability.
• Equipped with Boost and Buck AVR.
• Built-in USB Communication Port.
• Free Software Download from the Internet.
(Please check Free Software Download in
Installation & Operation for detailed information).
• Green Power Function for energy saving.
• DC Start Function.
• Auto restart during AC recovery.
• Compact size, Light Weight.
• Provides Modem/Phoneline surge protection.
INSTALLATION AND OPERATION
1. Inspection
Remove the UPS from its packaging and inspect
it for damage that may have occurred during
shipping. If any damage is discovered, repack the
unit and return it to the place of purchase.
2. Charging
This unit is shipped from the factory with its internal
battery fully charged, however, some charge may be lost
during shipping and the battery should be recharged
prior to use. Plug the unit into an appropriate power
supply and allow the UPS to charge fully by leaving it
plugged in for at least 8 hours with no load (no electrical
devices such as computers, monitors, etc.) connected.
3. Placement
Install the UPS unit in any protected environment that
provides adequate airflow around the unit, and is free
from excessive dust, corrosive fumes and conductive
contaminants. Do not operate your UPS in an environment
where the ambient temperature or humidity is high.
Also ensure that the UPS unit is placed at least 20cm
away from your PC monitor, to avoid interference.
4. Computer and Office Machine
Any computers, monitors, or other computer-
related devices should be plugged into either of the
three (3) power receptacles for battery backup.
5. Modem/Phoneline Connection
Plug incoming telephone line and adaptor into the "IN"
socket at the back of the UPS. Use one more telephone
line adaptor and cable to connect the telephone line
cable to the "OUT" socket at the back of the UPS.
Plug the other end to the modem input socket.
6. Turn On/Off
To turn on the UPS unit, press the power switch lightly.
To turn off the UPS unit, press the power switch again.
7. DC Start
Each Battery Back Up model is equipped with a DC
start function. To start the UPS when AC utility power
is not available, simply press the power switch.
8. Green Power Function
Each Battery Back Up model is equipped with
a Green Power function. For saving power and
protecting battery, the method of deep discharging
protection is adopted on inverter mode.
9. Free Download Software – WinPower
• Go to the website: http://www.ups-software-
download.com/winpower.htm
• Choose the operation system you need
and follow the instruction described on the
website to download the software.
• When downloading all required files from the
internet, enter the serial No: 511C1-01220-
0100-478DF2A to install the software.
Note:
The Power Switch must be kept in the 'ON' position,
otherwise the UPS will be disabled and your equipment
will not be protected during a power failure.
P75312me_BU30X000meDB.indb 1
Active Battery Back Up

User Manual

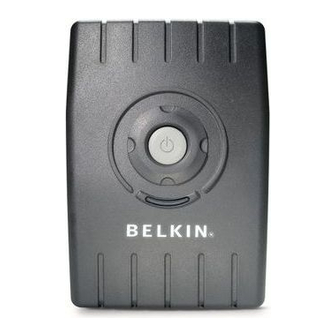

SYSTEM DESCRIPTION
Front panel:
1. Power Switch
2. LED Indicators –
AC Mode: Green lighting
Battery Mode: Green flashing
Back Panel
1. Output receptacles
2. AC input with AC fuse
3. RJ11 Modem/Phoneline Surge Protection
4. USB Communication Port
TROUBLE SHOOTINGPlu
Symptom Possible Cause
1. Battery weak.
No LED
display on 2. Battery defect.
the front
panel.
3. Power switch is
not pressed.
Alarm buzzer Overload of the UPS.
beeps
continuously
when AC
supply is
normal.
1. Overload of
the UPS.
2. Battery voltage
When power is too low.
failure, back-
3. Battery defect due
up time is
to high temperature
shortened.
operation
environment, or
improper operation
to battery.
1. Fuse is blown.
Mains normal
but LED is
2. Power cord
flashing.
is loose.
If any abnormal situations occur that are not listed
above, please call service people immediately.
MODEL
CAPACITY VA/W
INPUT Voltage
Voltage Range
Frequency
OUTPUT Voltage
Voltage
P75312me
Regulation
(Batt. Mode)
Frequency
Frequency
Regulation
(Batt. Mode)
Output
Waveform
BATTERY Battery Type
Backup Time
(at a PC load
with 15"
monitor)
Recharge
Time
1
TRANSFER Typical
TIME
INDICATOR AC Mode
2
Backup Mode
AUDIBLE Backup Mode
ALARM
Low Battery
Overload
Battery Re-
placement
Fault
PROTECTION Full Protection
PHYSICAL Dimension
(mm), DXWXH
WEIGHT Net Weight
ENVIRONMENT Operating
Environment
Noise Level
INTERFACE USB Port
To contact Belkin for any reason, please find our
international office contact information below.
Belkin Tech Support
UK: 0845 607 77 87
Belkin Ltd.
Express Business Park
Remedy
Shipton Way, Rushden, NN10 6GL, United Kingdom
1. Re-charge
+44 (0) 1933 35 2000
battery up to
+44 (0) 1933 31 2000 fax
8 hours.
2. Replace with
Belkin B.V.
the same type
Boeing Avenue 333
of battery.
1119 PH Schiphol-Rijk, The Netherlands
3. Press the power
+31 (0) 20 654 7300
switch again.
+31 (0) 20 654 7349 fax
Verify that the load
matches the UPS
Belkin GmbH
capability specified
Hanebergstrasse 2
in the specs.
80637 Munich, Germany
+49 (0) 89 143405 0
+49 (0) 89 143405 100 fax
1. Remove some
noncritical load.
Belkin SAS
2. Charge battery 8
130 rue de Silly
hours or more.
92100 Boulogne-Billancourt, France
3. Replace with
+33 (0) 1 41 03 14 40
the same type
+33 (0) 1 41 31 01 72 fax
of battery.
Belkin Nordic
Knarrarnäsgatan 7
164 40 Kista, Sweden
1. Replace the same
type of fuse.
+46 (0) 8 5229 1870
+46 (0) 8 5229 1874 fax
2. Reconnect the
power cord
properly.
Belkin Ltd.
7 Bowen Cresent, West Gosford
NSW 2250, Australia
+61 (0) 2 4372 8600
+61 (0) 2 4372 8603 fax
SPECIFICATION
Active Bat- Active Bat- Active Bat-
tery Back tery Back tery Back
Up 400VA Up 600VA Up 800VA
400VA/ 600VA/ 800VA/
240W 360W 480W
230VAC
170-280VAC or 162-290VAC
45-65 Hz (Auto Sensing)
230VAC
+/-10%
50Hz or 60Hz
+/-1 Hz
Modified Sinewave
12V4.5Ah x 1 12V7Ah x 1 12V9Ah x 1
10 to 12 20 to 22 28 to 30
minutes minutes minutes
8 hours to 90% after
complete discharge
2-6 ms
Green lighting
Green flashing
Sounding every 10 seconds
Sounding every second
Sounding every 0.5 second
Sounding every 2 seconds
Continuously sounding
Discharge, overcharge, and
overload protection
330X100X140
5kgs 6kgs 6.5kgs
0- 40°C, 0-90 % relative
humidity (non-condensing)
Less than 40dB
Windows 98/2000/ME/XP/Vista
